Renault 2009 X79 User manual
© Renault s.a.s 2007
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the manufacturer in
the production of the various component units and accessories from which the vehicles are
constructed".
All rights reserved by Renault.
Copying or translating, in part or in full, of this document or use of the service part reference
numbering system is forbidden without the prior written authority of Renault.
NOVEMBER 2009 EDITION ANGLAISE
X79
6Air conditioning
61A HEATING
62A AIR CONDITIONING
DUSTER - Chapitre 6
Contents
Pages
DUSTER - Chapitre 6ContentsPages
61A HEATING
Heating: List and location of
components 61A-1
Cabin filter: Removal -
Refitting 61A-8
Front air distribution duct:
Removal - Refitting 61A-9
Rear air distribution duct:
Removal - Refitting 61A-10
Recirculation control cable:
Removal - Refitting 61A-11
Air distribution cable:
Removal - Refitting 61A-13
Air mixing cable: Removal -
Refitting 61A-15
Distribution unit: Removal -
Refitting 61A-17
Heater matrix: Removal -
Refitting 61A-21
Fan assembly:Removal -
Refitting 61A-24
Heating resistor relays:
Removal - Refitting 61A-25
Heating resistors: Removal -
Refitting 61A-26
Passenger compartment fan
assembly control unit:
Removal - Refitting 61A-28
Control panel: Removal -
Refitting 61A-29
62A AIR CONDITIONING
Air conditioning: List and
location of components 62A-1
Air conditioning: Parts and
consumables for the repair 62A-9
Condenser: Removal -
Refitting 62A-10
Compressor: Removal -
Refitting 62A-12
Expansion valve: Removal -
Refitting 62A-16
Refrigerant pipe seal:
Removal - Refitting 62A-18
Refrigerant circuit pipe:
Removal - Refitting 62A-21
Pressure sensor: Removal -
Refitting 62A-23
61A-1
HEATING
Heating: List and location of components 61A
VALEO distribution unit
107799
143994
61A-2
HEATING
Heating: List and location of components 61A
143997
61A-3
HEATING
Heating: List and location of components 61A
BEHR distribution unit
143995
61A-4
HEATING
Heating: List and location of components 61A
143998
61A-5
HEATING
Heating: List and location of components 61A
143996
61A-6
HEATING
Heating: List and location of components 61A
128024
121595
1Control panel (see 61A, Heating, Control panel: Removal -
Refitting, page 61A-29)
2Passenger compartment fan assembly (see 61A, Heating, Fan assembly: Removal -
Refitting, page 61A-24)
61A-7
HEATING
Heating: List and location of components 61A
3Expansion valve (see 62A, Air conditioning, Expansion valve:
Removal - Refitting, page 62A-16)
4Passenger compartment fan assembly control
unit (see 61A, Heating, Passenger compartment
fan assembly control unit: Removal - Refit-
ting, page 61A-28)
5Heater matrix (see 61A, Heating, Heater matrix: Removal -
Refitting, page 61A-21)
6Air distribution cable (see 61A, Heating, Air distribution cable:
Removal - Refitting, page 61A-13)
7Recirculation control cable (see 61A, Heating, Recirculation control
cable: Removal - Refitting, page 61A-11)
8Air mixing cable (see 61A, Heating, Air mixing cable: Removal
- Refitting, page 61A-15)
9Heating resistors (VALEO type) (see 61A, Heating, Heating resistors:
Removal - Refitting, page 61A-26)
10 Evaporator sensor (VALEO type) (see Evaporator sensor: Removal - Refitting)
11 Front side air distribution duct (see 61A, Heating, Front air distribution duct:
Removal - Refitting, page 61A-9)
12 Front central air distribution duct
13 C-pillar air distribution duct (see 61A, Heating, Rear air distribution duct:
Removal - Refitting, page 61A-10)
14 A-pillar air distribution duct (see Front footwell air distribution duct:
Removal - Refitting)
61A-8
HEATING

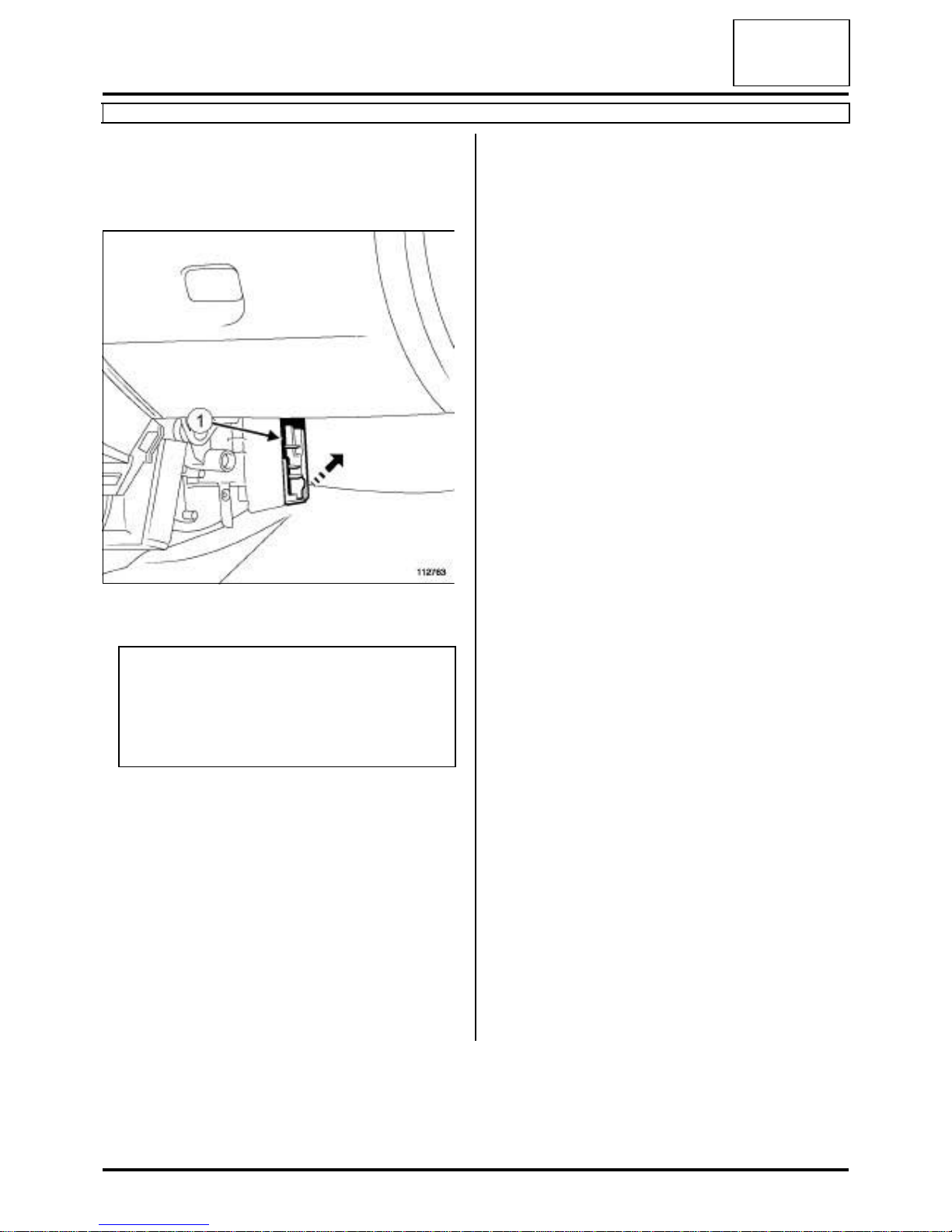

Cabin filter: Removal - Refitting
AIR CONDITIONING
61A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the passenger compartment filter (1) .
aRemove the cabin filter.
REFITTING
I - REFITTING PREPARATIONS OPERATION
aCheck for foreign bodies in the cabin filter housing,
and clean thoroughly if necessary.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the cabin filter.
aClip on the cabin filter.
112763
Note:
Foreign bodies (leaves, insects etc.) are likely to
accumulate in the passenger compartment filter.
Remove the cabin filter with care so as to prevent
foreign bodies getting into the evaporator.
