Regency IP28-NG Quick start guide

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE

Models: IP28-NG

IP28-PROPANE

Owners &

Installation

Manual

06/07/11

LISTINGS AND CODE APPROVALS

These gas appliances have been tested in

accordance with AS4553, NZS 5262 and

have been certiﬁed by the Australian Gas

Association for installation and operation as

describedintheseInstallationandOperating

Instructions.

Your unit should be serviced annually by

an authorised service person.

918-938a

IP28 GAS INBUILT

FOR YOUR SAFETY

What to do if you smell gas:

Donottrytolightanyappli-

ance

Do not touch any electri-

cal switch: do not use any

phone in your building.

Immediately call your gas

supplierfromaneighbour's

phone. Follow the gas sup-

plier's instructions.

If you cannot reach your

gas supplier, call the ﬁre

department.

WARNING:

Improper installation, adjustment, altera-

tion, service or maintenance can cause

injury or property damage. Refer to this

manual. For assistance or additional in-

formation consult an authorised installer,

service agency or the gas supplier.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂam-

mable vapours and liquids in the vicinity of

this or any other appliance.

Installation and service must be performed

byanauthorisedinstaller,service agencyor

the gas supplier.

2Regency IP28 Gas Inbuilt Fireplace

REGENCY

GAS INBUILT FIREPLACE

TO THE NEW OWNER

Congratulations! Youare theownerof a state-of-the-art GasInbuiltFireplace by FPI.TheRegency

Gas Fireplace Series of appliances has been designed to provide you with all the warmth and

charm of a ﬁreplace, at the ﬂick of a switch. The model IP28 of this series has been approved

by Australian Gas Association for both safety and efﬁciency. As it also bears our own mark, it

promises to provide you with economy, comfort and security for many trouble free years to follow.

Please take a moment now to acquaint yourself with these instructions and the many features of

your Regency Fireplace.

Regency IP28 Gas Inbuilt Fireplace 3

DIMENSIONS

UNIT DIMENSIONS W/ CONTEMPORARY FACEPLATE

37.150

(944mm)

28.180

(716mm)

18.850

(476mm)

23.327

(593mm)

14.911

(379mm)

27.298

(694mm)

4Regency IP28 Gas Inbuilt Fireplace

DIMENSIONS

UNIT DIMENSIONS W/ SLIM LINE FACEPLATE

40-1/2” (1030mm)

28-5/8” (725mm)

16 - 7/8”

27-5/16”

23-3/8”

(593mm)

(427mm)

(693mm)

18.850

475.8

Regency IP28 Gas Inbuilt Fireplace 5

DIMENSIONS

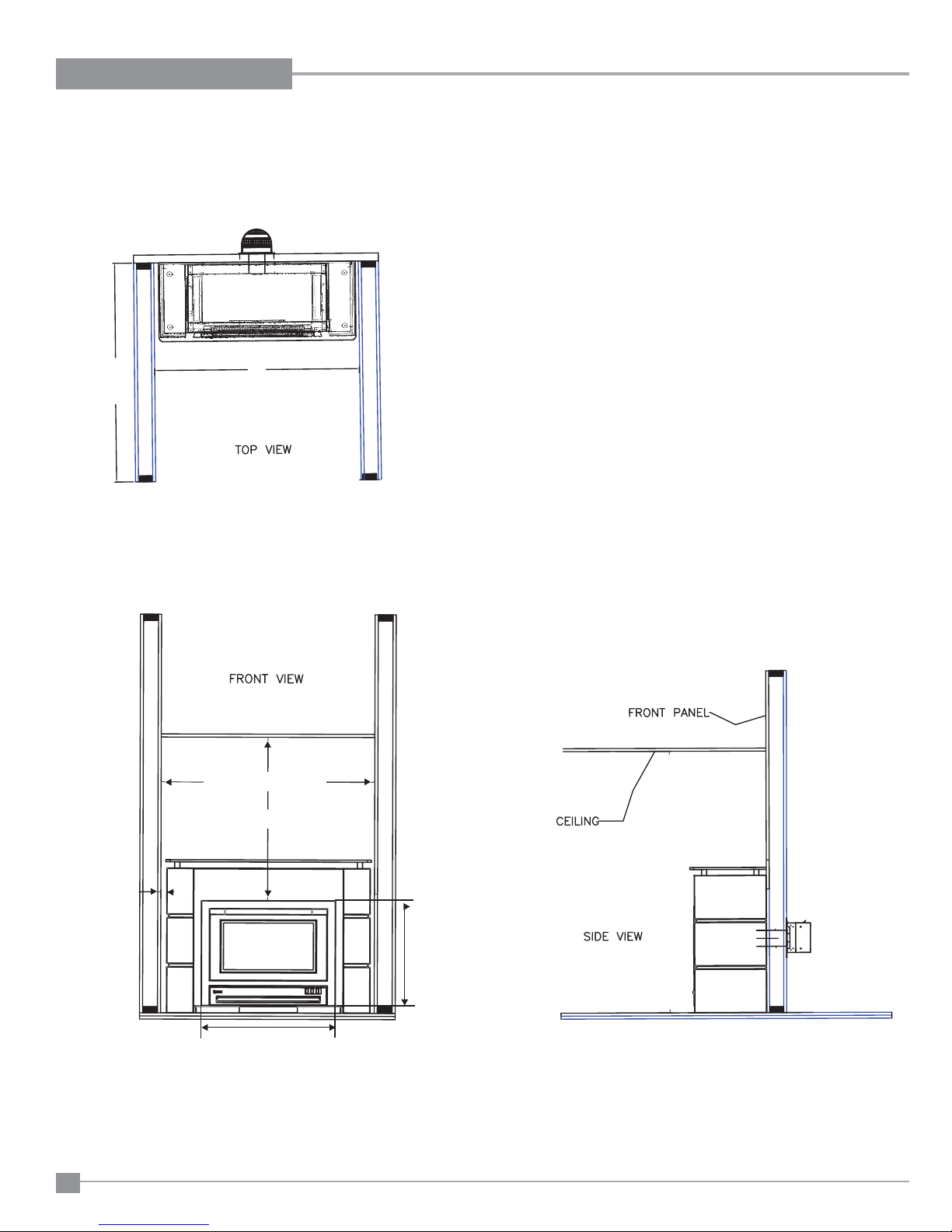

DIMENSIONS - OPTIONAL MODULAR FIREPLACE SOLUTION

49”(1245mm)

50-3/16” (1275mm)

34-7/8”(886mm)

36-15/16”(938mm)

18-5/16”(465mm)

6Regency IP28 Gas Inbuilt Fireplace

TABLE OF CONTENTS

DATA BADGE

Copy of Data Badge .....................................................4

INSTALLATION

Important Message........................................................8

For Your Safety..............................................................8

Materials Required ........................................................8

Before You Start ............................................................8

Minimum Fireplace opening Dimensions.......................9

(contemporary fascia)....................................................9

(Slim line fascia)............................................................9

Minimum Fireplace opening Dimensions (Mock)...........9

Clearances To Combustibles.........................................9

Optional Modular ﬁreplace solution Clearances..........10

Mock Fireplace kit (zero clearance) installation...........11

Gas Pipe Pressure Testing..........................................12

Exterior Flue Termination Locations............................13

Venting and termination...............................................14

Aeration Settings.........................................................15

Conversion Kit for NG to LPG Model...........................16

Optional Modular Fireplace solution Install..................17

Optional Stainless steel inner panel install..................19

Switch operation..........................................................20

Log set installation.......................................................21

Glass Door installation.................................................22

Contemporary faceplate Installation............................23

Hearth trim Installation.................................................24

Slim line faceplate Installation.....................................25

Final Check..................................................................26

Wiring ..........................................................................26

standard WIRING........................................................26

OPERATING INSTRUCTIONS

Operating Instructions ................................................27

Lighting Instructions.....................................................27

Shutdown Instructions.................................................27

First Fire ......................................................................27

Remote Control ..........................................................27

Copy Of Lighting Instruction Plate...............................29

Normal Operating Sounds Of .....................................29

Gas Appliances............................................................29

Resetting the unit.........................................................29

MAINTENANCE

Door Glass ..................................................................31

Replacement ...............................................................31

Glass Gasket...............................................................31

Convection Fan replacement......................................32

Combustion Fan replacement ....................................33

Pressure switch replacement ......................................34

Valve assembly replacement.......................................35

PARTS LIST

Main Assembly ............................................................37

Contemporary Faceplate Assembly.............................38

Slim line Faceplate Assembly......................................38

WARRANTY

Warranty......................................................................39

Regency IP28 Gas Inbuilt Fireplace 7

SAFETY LABEL

(Australia Only)

This is a copy of the label that accompanies each Regency IP28 Gas Inbuilt ﬁreplace. We have printed a copy of the contents here for your review.

DATA BADGE NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the

correct one.

DO NOT

OPERATE THIS APPLIANCE BEFORE READING THE

INSTRUCTIONS BOOKLET.

PLACE ARTICLES ON OR AGAINST THIS APPLIANCE

STORE CHEMICALS OR FLAMMABLE MATERIALS

SPRAY AEROSOLS IN THE VICINITY OF THIS

APPLIANCE WHILE IN OPERATION.

OPERATE WITH PANELS, COVERS OR GUARDS

REMOVED FROM THIS APPLIANCE.

ENCLOSE THIS APPLIANCE.

DO NOT MODIFY THIS APPLIANCE.

NEAR THIS APPLIANCE.

DO NOT

908-602a

Electrical: 240VAC 50Hz 1.0 amp

Serial

Number

918-939

N2134

Regency Gas Fireplace

Gas Type NG PROPANE

Model IP28-NG IP28-LPG

Gas Consumption 28.8mj. 28.8mj.

Manifold Pressure 0.88 kPa 2.49 kPa

Injector Size 1x#39 1x#53

2.50mm 1.5mm

Model

AGA Approval 7728

Code AS4553 NZS 5262

372

Distributed by:

Western Australia:

Air Group Australia

28 Division St

Welshpool WA 6106

Eastern Australia:

To be installed by an authorised person in

accordance with installation instructions

provided with the appliance.

Fireplace Products

Australia Pty. Ltd.

21-23 South Link Blvd.

Dandenong, VIC 3175

8Regency IP28 Gas Inbuilt Fireplace

INSTALLATION

IMPORTANT MESSAGE

The Regency Gas Inbuilt must be installed in ac-

cordancewiththeseinstructions.Carefullyreadall

the instructions in this manual ﬁrst.

Note: Failuretofollowtheseinstructionscould

causeamalfunctionoftheheaterwhich

could result in death, serious bodily in-

jury,and/orpropertydamage. Failureto

follow these instructions may also void

your ﬁre insurance and/or warranty.

FOR YOUR SAFETY

This appliance requires air for proper combustion.

Always provide adequate combustion and ventila-

tion air. Follow instructions and information in the

currentAS5601,NZS5262orlocalcodes. Consult

the "authority having jurisdiction" to determine the

need for a permit prior to starting the installation.

BEFORE YOU START

INSTALLATION AND REPAIR SHOULD

BE DONE ONLY BY AN AUTHORISED

PERSON.

1) Theapplianceshallbe installedinaccordance

withthemanufacturer'sinstallationinstructions,

local gas ﬁtting regulations, municipal building

codes,water supply regulations, electricalwir-

ing regulations, withAS5601. (AGAgas instal-

lation code) NZS 5262(New Zealand). Special

conditions ie. marine environment, should be

avoided.

2) The appliance should be inspected before

use and at least annually by an authorised

service person. More frequent cleaning may

be required due to excessive lint from carpet-

ing, bedding material, etc. It is imperative that

controlcompartments, burnersand circulating

airpassagewaysoftheappliancebekeptclean

and free from excessive lint from carpeting.

3) Alwaysconnectthisspaceheatertoaapproved

ﬂueing and termination provided. Flue to the

outside of the building envelope. Never ﬂue to

another room.

4) Inspecttheﬂueingsystemannuallyforblockage

and any signs of deterioration.

5) Any safety glass removed for servicing must

be replaced prior to operating the appliance.

6) To prevent injury, do not allow anyone who is

unfamiliarwiththeoperationtousetheﬁreplace.

MATERIALS REQUIRED

A240 VoltAC power cord is hooked up to the unit.

Plug 3 wire cord into a suitable receptacle. Do not

cutthegroundterminaloffunderanycircumstances.

When connected with 240 volts, the appliance

must be electrically grounded in accordance with

local codes.

This unit is polarity sensitive and will not

operate if polarity is incorrect.

Thepowerconnectionmustbeaccessiblewith

the appliance installed as per AS5601.

GAS CONNECTION WARNING

Only persons licensed to work with gas piping

may make the necessary gas connections to

this appliance.

Regency IP28 Gas Inbuilt Fireplace 9

INSTALLATION

12" Mantel

(305mm)

3-1/2" (89mm)

Mantel

20” (508mm)

Top

Faceplate

12 64

810

11" (279mm)

Mantel Clearances

CLEARANCES TO

COMBUSTIBLES

Minimum Clearances to Combustibles

From Unit

Sides A2" / 51mm

Ceiling B39-3/8" / 1000mm

Mantel C11" / 279mm

Max. Mantle Depth E 12" / 305mm

(see Dia. 2)

Min. Alcove Width F44-7/8" / 1139 mm

Max. Alcove Depth G 36" / 914 mm

*No hearth required.

MASONARY MINIMUM

FIREPLACE OPENING

DIMENSIONS

(CONTEMPORARY FASCIA)

The minimum ﬁreplace dimensions for the

Regency gas space heater when using the

Contemporary Fascia are shown in the follow-

ing diagrams:

NOTE: ALLOW FOR SIDE GAS CONNEC-

TION - IF REQUIRED

COMBUSTIBLE

"MOCK FIREPLACE"

MINIMUM FIREPLACE

OPENING DIMENSIONS

The minimum ﬁreplace dimensions for the

Regency gas space heater when installing into

a combustible mock ﬁreplace are shown in the

following diagrams:

15-1/8” (384mm)

23-1/2” (597mm)

15-1/8” (384mm)

27-1/2” (699mm)

(SLIM LINE FASCIA)

TheminimumﬁreplacedimensionsfortheRegency

gas space heater when using the Slim line Fascia

are shown in the following diagrams:

NOTE: ALLOW FOR SIDE GAS CONNECTION

- IF REQUIRED

490mm

702mm

490mm

770mm

490mm

702mm

450mm

770mm

(For Slim line Fascia)

(For Contemporary Fascia)

23-1/2” (597mm)

17” (432mm)

28-7/8” (735mm)

27-1/2” (699mm)

17” (432mm)

10 Regency IP28 Gas Inbuilt Fireplace

INSTALLATION

OPTIONAL MODULAR FIREPLACE SOLUTION CLEARANCES

51-7/16” (1305mm)

39-3/8” (1000mm)

1-7/16”

(37mm)

36”

(914mm)

51-7/16” (1305mm)

33-7/16” (848mm)

25-7/8”

(655mm)

This manual suits for next models

Table of contents

Other Regency Indoor Fireplace manuals

Regency

Regency Bellavista B36X User manual

Regency

Regency I43-NG1 Quick start guide

Regency

Regency I2403M Quick start guide

Regency

Regency City Series Quick start guide

Regency

Regency L965E-NG Quick start guide

Regency

Regency Panorama PG121 Quick start guide

Regency

Regency PG36NG3-R User manual

Regency

Regency Classic F1150 User manual

Regency

Regency Ei33 User manual

Regency

Regency GF900L-NG1 Quick start guide

Regency

Regency Alterra Quick start guide

Regency

Regency Sunrise E33S User manual

Regency

Regency P33-LP3 Quick start guide

Regency

Regency U30-NG and User manual

Regency

Regency City ACB60ENG Quick start guide

Regency

Regency I31-NG3 Quick start guide

Regency

Regency Studio ES105 Technical manual

Regency

Regency P36-NG Quick start guide

Regency

Regency GEM54-NG Quick start guide

Regency

Regency 510-994 User manual

Regency

Regency Panorama PG121NG1-R Quick start guide

Regency

Regency P36-LP10 Quick start guide

Regency

Regency P48-NG2 Quick start guide

Regency

Regency GEM54-NG User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
