RDMOTO CZECH REPUBLIC

info@rdmoto.cz

www.rdmoto.cz

1

K28SDM

Kawasaki Z1000SX 2011-

Kit for left side: Kit for right side:

Instruction to assemble- left side:

1. Dismantle original bolt from frame.

2. Connect duralumin adapters (ID 7 and 8)

use bolts (ID 13).

3. Insert bolts (ID 11 and 12) into the

adapters, put on the bolts dural. cylinders

(ID. 9 and 10) and mounting this set on the

frame.

4. Put on the bolts plastic cover (ID 14)

sticking 3M tape on the frame, wher is

touching point between frame and

dural.adapters.

5. By bolt (ID. 6) mounted dural. adapter for

slider (ID. 2) and steel bracket (ID 5).

6. Mounting slider (ID. 1) by bolts (ID. 4) and

washers (ID3).

We recommend: Use the glue of threads-

medium strong (blue color).

ID

Description

Cat.no

QTY

1

Slider RDmoto

SLDM

1

2

Adapter for SLD d= 15mm

DV 9

1

3

Washer M6

1023

2

4

Bolt M6x20

1024

2

5

Bracket for SLDM

537/B

1

6

Bolt M10x45

848

1

7

Dural. adapter

549

1

8

Dural. cylinder d=19mm

460

2

9

Bolt M10x100x1,25mm

892

1

10

Bolt M10x110x1,25mm

928

1

11

Plastic cover

X4

2

12

3M tape

1

ID.

Description

Cat.no.

QTY

1

Slider RDmoto

SLDM

1

2

Adapter for SLD d= 15mm

DV 9

1

3

Washer M6

1023

2

4

Bolt M6x20

1024

2

5

Bracket for SLDM

537/B

1

6

Bolt M10x45

848

1

7

Dural. adapter

548

1

8

Dural. adapter

550

1

9

Dural. cylinder d=8mm

462

1

10

Dural. cylinder d=11mm

461

1

11

Bolt M10x100x1,25mm

892

1

12

Bolt M10x80x1,25mm

920

1

13

Bolt M6x30mm

863

2

14

Plastic cover

X4

2

15

3M tape

1

RDMOTO CZECH REPUBLIC

info@rdmoto.cz

www.rdmoto.cz

2

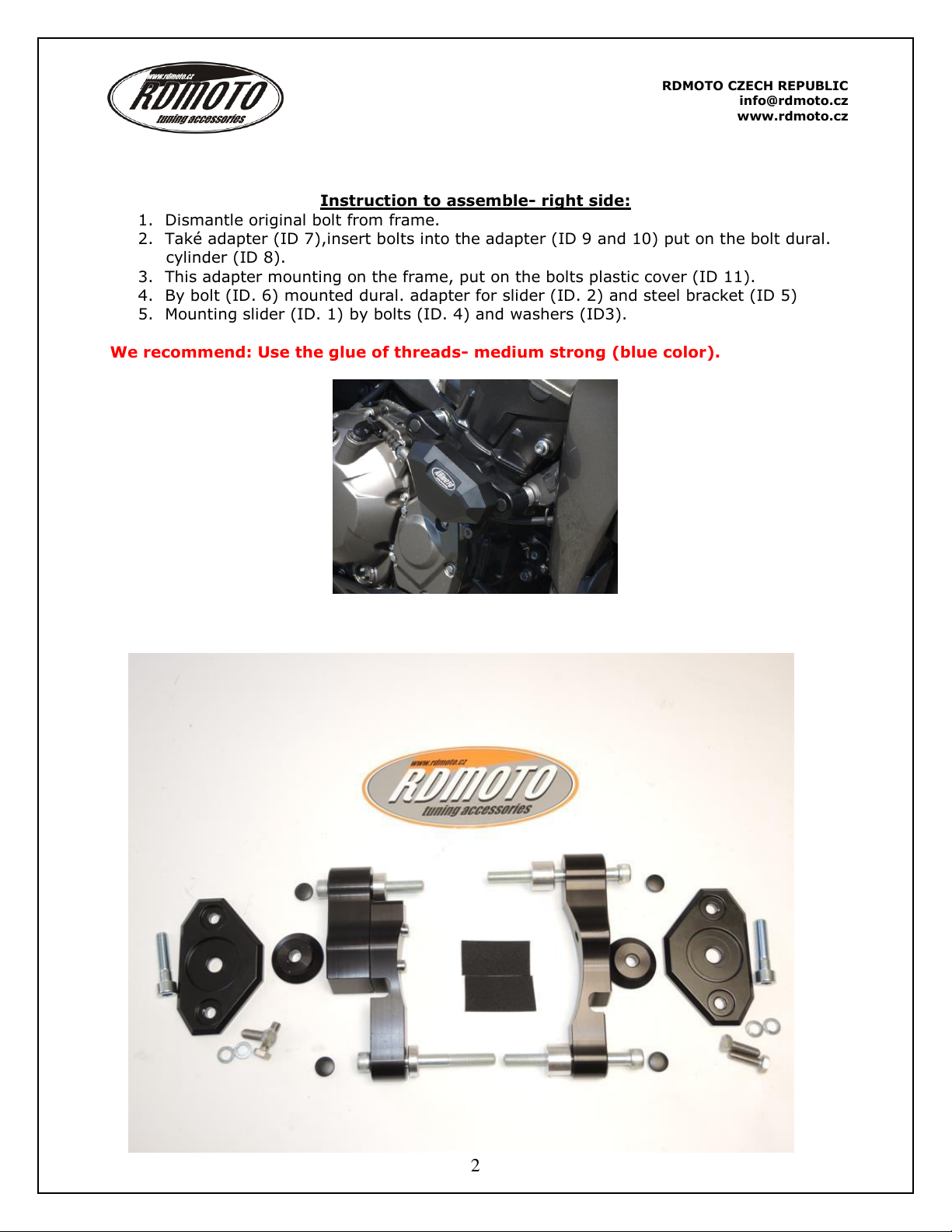

Instruction to assemble- right side:

1. Dismantle original bolt from frame.

2. Také adapter (ID 7),insert bolts into the adapter (ID 9 and 10) put on the bolt dural.

cylinder (ID 8).

3. This adapter mounting on the frame, put on the bolts plastic cover (ID 11).

4. By bolt (ID. 6) mounted dural. adapter for slider (ID. 2) and steel bracket (ID 5)

5. Mounting slider (ID. 1) by bolts (ID. 4) and washers (ID3).

We recommend: Use the glue of threads- medium strong (blue color).
