RCA LED19A30RQ User manual
Model Number.
LED19A30RQ
Part No.: RN03185G0303
Please register your product at www.rca.com
English
Please keep your sales receipt and keep the record of
the serial number and the date of purchase in order to
receive warranty parts and service.
The serial number is located at the back of the TV.
LED LCD TV
User’s Manual
Made for Today.
1

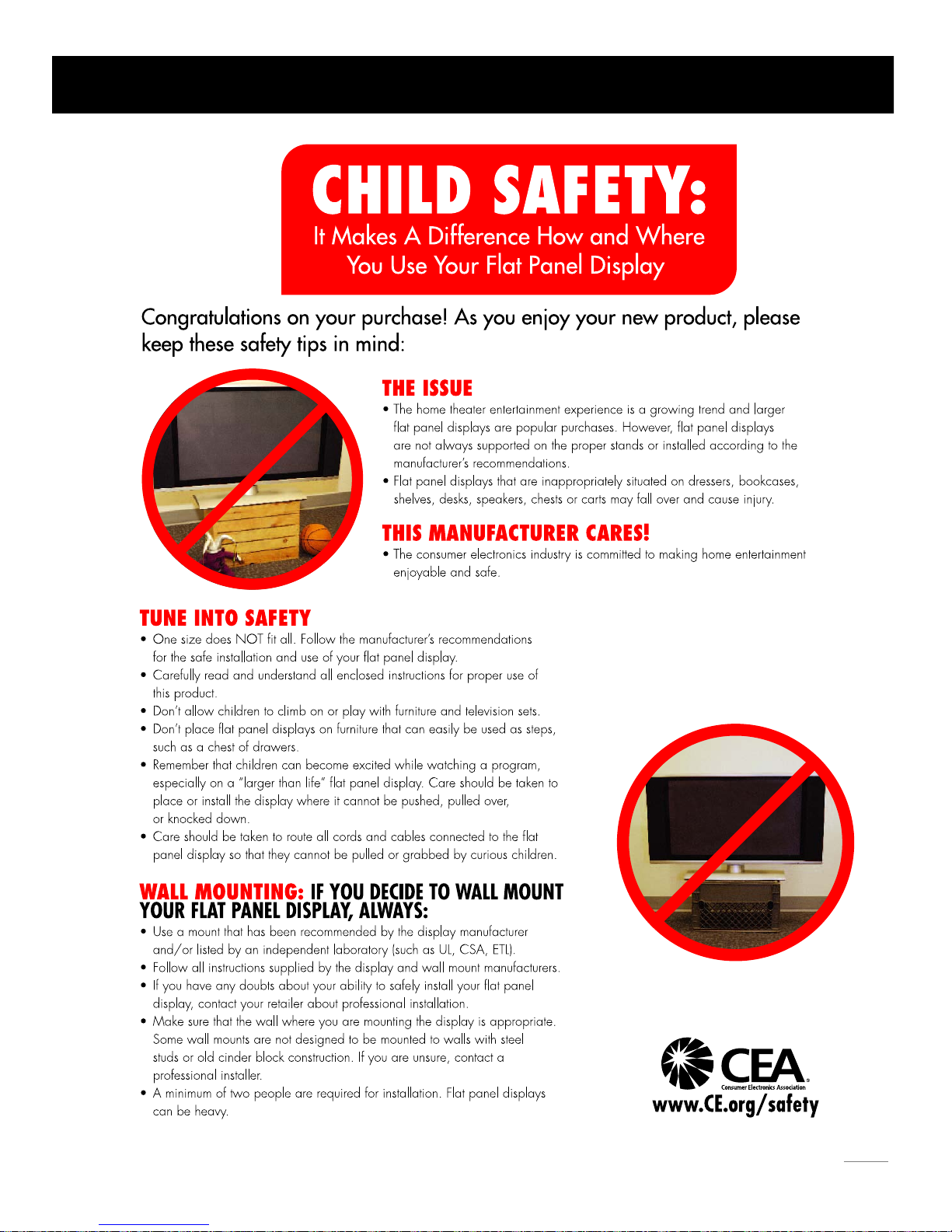

Child Safety Guide
2
Use una montura que se ha recomendado por el fabricante de monitor
y/o listado por un laboratorio independiente (como UL, CSA, ETL).
Siga todas las instrucciones ofrecidas por el fabricante de monitor
ymontaje de pared.
Child Safety Guide
3
1
5
5
6
Table of Contents
.......................................................................................................................................
Check Accessories 8
......................................................................................................................
Preparation for Your New TV 8
...................................................................................................................................
Setup TV Table Stand 8
......................................................................................................................................
Select TV Location 8
..................................................................................................................................
Connection and Using 8
....................................................................................................................................
TV Stand Installation 9
.................................................................................................................................
TV Signal Connection 10
......................................................................................................................................
Cable Connections 11
.............................................................................................................................
Side Panel Connections 12
..................................................................................................................................
TV Jacks Explanation 16
.........................................................................................................................
Top Panel and Front Panel 17
........................................................................ 12Connecting AV Composite Video device (Good Video Quality)
.......................................................................... 13Connecting YPbPr Component device (Better Video Quality)
....................................................................................................................................................
Initial Setup 20
............................................................................................... 14Connecting HDMI device (Best Video Quality)
............................................................................................................................... 15Connecting a Computer
............................................................................................... 15How to Obtain Various Kinds of Input Sources
..........................................................................................................................................
Basic Operations 21
..................................................................................................................................... 21Turning On and Off
................................................................................................................................. 21Choosing TV Channel
................................................................................................................................ 21Selecting Input Source
............................................................................................................................ 21Adjusting TV Stand Angle
............................................................................................................................................... 22Channel Bar
....................................................................................................................................... 22Adjusting Volume
................................................................................................................. 22EPG (Electronic Program Guide)
...................................................................................................................................... 17Top Panel Buttons
................................................................................................................................................. 17Front Panel
......................................................................................................................
Remote Control Instructions 18
................................................................................................................. 18Inserting Batteries in the Remote
...............................................................................................................
Learning about Remote Control 19
.............................................................................................................................. 19
Remote Control Buttons
................................................................................................................. 18Remote Control Reception Angle
Child Safety Guide ........................................................................................................................................
Caution and Warning ...................................................................................................................................
.....................................................................................................................................................
FCC Notice
.......................................................................................................................................
Safety Precautions
...........................................................................................................................................
USB Media Play 40
..................................................................................................................................
Product Specification 41
...............................................................................................................................................
Warranty Card 42
4
Table of Contents
OSD Menu Operations .............................................................................................................................
.............................................................................................................................
.........................................................................................................................................
..........................................................................................................................
................................................................................................................
................................................................................................................
....................................................................................................................
............................................................................................................................................
............................................................................................................................................
............................................................................................................................................
.....................................................................................................
..........................................................................................................................................
..........................................................................................................................................
..............................................................................................................................................
23
23
23
25
26
27
31
33
34
35
37
Adjust the OSD Screen
Picture Menu
Sound Menu
Channel Menu
Parental Menu
Frequently Asked Questions (FAQs)
Troubleshooting
V-Chip Rating Explanations
37
37
38
............................................................................................................
Wall Mounting Unit Specification 39
US V-Chip Rating System
Canadian English Rating System
Canadian French Rating System
Setup Menu
Others Menu
5
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE WITH THE FCC RULES COULD AVOID THE USERS AUTHORITY TO OPERATE THIS
EQUIPMENT.
Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution and Warning
FCC Notice
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product enclosure
that may be of sufficient magnitude to
consitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the TV.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio Communications. However, there is no Guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
6
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming
pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in
the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from
overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the TV
on a bed, sofa, rug, or other similar surface.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over. A TV and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the TV and cart combination to overturn.
13. Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this TV
receiver during a lightning storm, or when it is left unused for long periods of time, unplug it from the wall outlet and
disconnect antenna or cable system. This will prevent damage to the TV due to lightning and power line surges.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
appratus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This TV should be operated only from the type of power supply indicated on the rating label. If customer is not sure the
type of power supply in your home, consult your appliance dealer or local power company. For TV remote control battery
power, refer to the operating instructions.
16. The TV set shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on
the TV set.
17. Never push objects of any kind into this TV through openings as they may touch dangerous voltage or other electrical
parts that could result in fire or electric shock. Never spill liquid of any kind into the TV.
18. Unplug the TV from the wall outlet before cleaning. Do not use liquid or aero cleaners. Use a damp cloth for cleaning.
19. This TV should never be placed near or over a radiator or heat resource. This TV should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
20. Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to
someone, and serious damage to the appliance.
21. Do not attempt to service this TV by yourself because opening or removing covers may expose you to dangerous high
voltage or other hazards. Refer all servicing to qualified service personnel.
22. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Safety Precautions
7
25. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded to provide
some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code,
ANSI/NFPA NO.70, provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. (See figure A)
24. To reduce the risk of electric shock, the grounding of center pin of plug must be maintained.
Safety Precautions
ANTENNA
LEAD IN
WIRE
GROUND CLAMP
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PARTH)
ELECTRIC SERVICE
EQUIPMEN T
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
23. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
Figure A
Safety Strap
Caution: Pushing, pulling or climbing on the TV may cause the TV falling. Do not let chlidren climb or hang on the TV.
Always place the TV on a sturdy, level, stable surface that can hold the weight of TV. And if possible, secure the TV
according to the instruction below (Note: The fastening components such as screws are not supplied with TV).
Step one: Insert the M4 mounting screws into the upper two wall mounting screw holes and fasten them (Figure B).
Step two: Insert anchors to wall and connect the bolts and anchors with ropes or chains (Figure C).
Figure B Figure C
M4 Screws
Wall
Note: Above accessories are subject to change without notice.
Preparation for Your New TV
8
Before Turning On TV
Check Accessories
Check the accessories that are packed with your TV.
Select TV Location
Select a flat, stable table to place your TV set. Please follow the Safety Instructions when placing the TV.
Setup TV Table Stand
Please refer to TV Stand Installation guide in next page to carry out stand installing.
Connection and Using
After placing your TV properly, you can connect the TV with power supply and cable components. For further information, see page
12 to page 15.
TAPPING
SCREWS
M3 x 10mm, 4pcs
Part#RS01PB310H
TV STAND SCREWS
AAA BATTERIES
PART NO.: RE20QP83
REMOTE CONTROL
SOUND
DOCUMENTS
USER’S
GUIDE
REMOTE CONTROL
GUIDE
QUICK START
GUIDE
Remote Control Guide
Program Your Universal Cable
or Satellite Remote Control to
Operate Your New RCA TV!
If you would like to program your other
household remote controls to your new RCA
television, please consult the User’s Manual
supplied by your Cable or Satellite provider.
The Cable or Satellite providers’ User’s Manuals
should include instructions on how to program
their remote to your television.
Below is a list of RCA codes for the most
common Cable and Satellite providers.
Use the RCA code that is associated with your
Cable or Satellite provider (if applicable).
If the RCA code associated with your Cable or
Satellite provider is not listed above, if the code
above does not work, or if you can not locate the
instructions for programming your household
remote to your television, call your local Cable or
Satellite provider’s customer service center.
DIRECTV..........................0178,10178
Time Warner Cable...........0178,10178
Comcast..................................10178
Cox Communications..................0178
Dish Network.............................627
Fios Verizon.....0205,0057,0493,0775
This is for U.S. customers
Model Number.
LED19A30RQ
Part No.: RN03185G0303
Please register your product at www.rca.com
English
Please keep your sales receipt and keep the record of
the serial number and the date of purchase in order to
receive warranty parts and service.
The serial number is located at the back of the TV.
LED LCD TV
User’s Manual
SOUND
THE BOTTOM OF TV STAND
TV LED19A30RQ is packaged with the base of the TV stand separated from the cabinet. To setup the base of the TV table stand,
please carry out the installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the LED LCD panel from being damaged.
Note:
1. The LED LCD panel can be scratched easily, so please choose an absolutely flat surface to place the TV, and use soft cloth or
cushion to protect the TV panel. Do not put TV on table directly.
2. Always unplug the AC cord first when installing or removing the stand.
Step Three
Please align four holes of the base and four screwholes of the neck (align the location labels on the back of the base and the
neck), then insert the base to the neck.
Step Four
Then insert four tapping screws (all same in size) and tighten them.
Please refer to the picture given below:
RS01PB310H
Pedestal Screws Quantity Part #
4pcsM3 x 10mm
* Washer plate should be shown on bottom side of the stand base
The bottom view of the TV (Front cabinet faces down)
Note:
1. Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
2. Make sure to distinguish between the front and back of the Stand base.
3. Make sure that at least two persons lift and move the TV.
Do not insert your fingers into the stand base slot of the TV when installing the stand base.
!
Step Two
Take the base of the stand. You should take notice of the direction about the base
installation, please refer to the picture given right side:
TV Stand Installation
9
TV Front cabinet
TV Back cabinet
Under Surface
Washer Plate*
This manual suits for next models
1
Table of contents
Other RCA LCD TV manuals
RCA
RCA L40FHD41 User manual
RCA
RCA LED42A55R120Q User manual
RCA
RCA L22HD41 - 22" LCD TV User manual
RCA
RCA LED60B55R120Q User manual
RCA
RCA 19LA30RQ User manual
RCA
RCA 42LA45RQ User manual
RCA
RCA SCENIUM L26WD14 User manual
RCA
RCA l46wd250 - LCD Scenium Flat HDTV Quick start guide
RCA
RCA L1800 User manual
RCA
RCA RLC5534A User manual
