Raymarine SportPilot User manual

Distributed by

Any reference to Raytheon or

RTN in this manual should be

interpreted as Raymarine.

The names Raytheon and RTN

are owned by the

Raytheon Company.

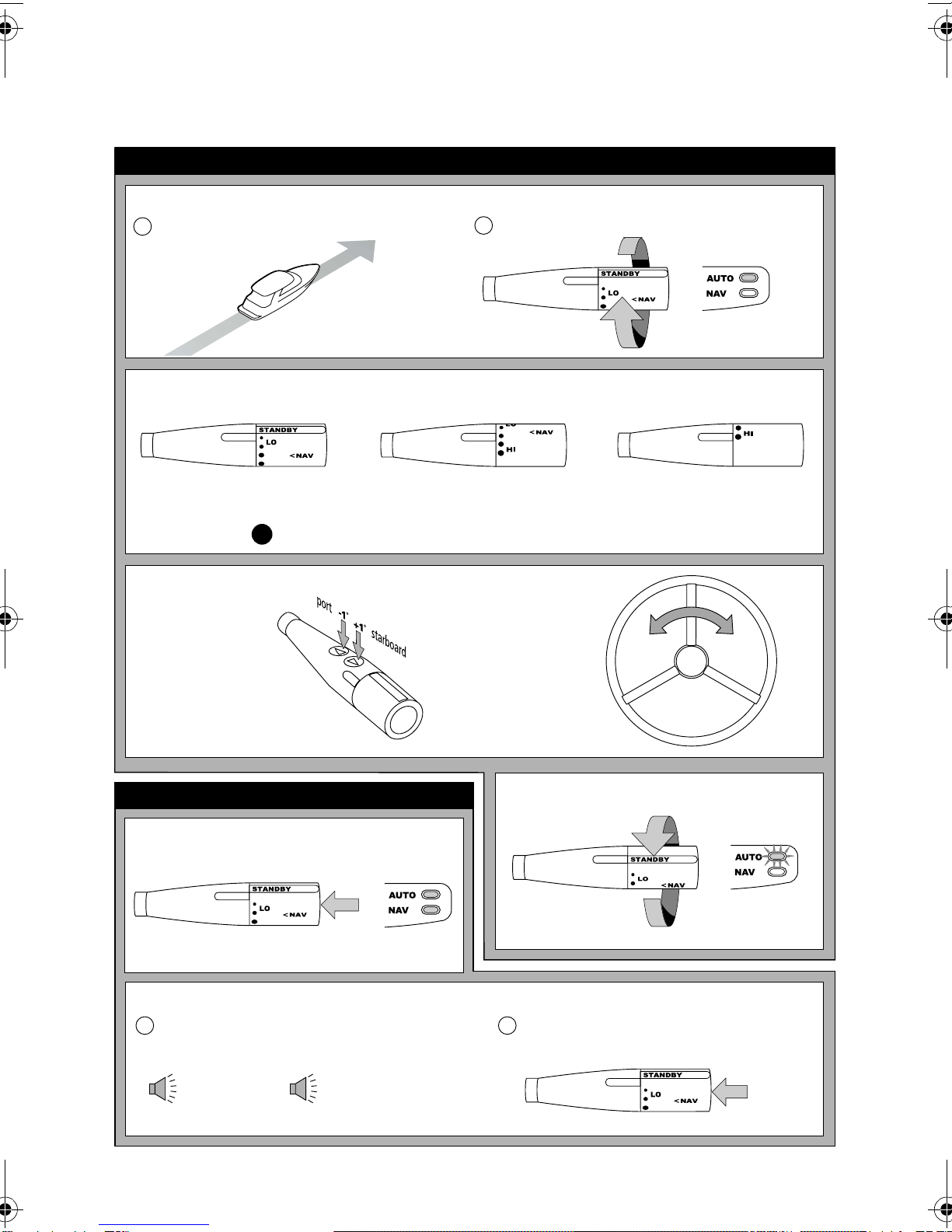

SportPilot & SportPilot+ Quick Reference Guide

Auto mode

Navigator (Track) mode

Basic operation

Entering Navigator mode (from Auto mode)

Press in control stalk end.

SportPilot indicates direction of turn required

for next waypoint:

D5597-1

Returning to Standby (Disengaging the autopilot)

Making course changes

Turning to next waypoint

Entering Auto mode (Engaging the autopilot)

Return to standby or auto to exit.

Turn control stalk to one of the gain settings.

1Check that it is safe to turn, then press in

control stalk end to turn to next waypoint.

Steer onto the required heading.

Adjusting autopilot gain (General guidelines)

x2 = port turn x1 = starboard turn

LO gain HI gainMid-range gain

• applies the LEAST amount of helm

• in general, use at HIGH boat speeds

• applies the MOST amount of helm

• in general, use at LOW boat speeds

• mid-range settings apply increasing

amounts of helm

Do NOT use HI gain at high boat speeds – it will cause dangerous boat instability.

Small course changes:

use control stalk buttons

Large course changes:

use steering wheel

86003_3.book Page 1 Monday, July 9, 2001 12:00 PM

Document number: 86003-3 (use with handbook: 81057)

Date: June 2001

SportPilot & SportPilot+ Quick Reference Guide

Enter compass calibration (from Standby)

Turn boat in slow circles

SportPilot indicates amount of deviation detected

Align the SportPilot compass to North

Save changes

To align heading (without linearizing)

x1 = 5˚ deviation

10 sec

a. Press in control stalk end for 10 sec. b. AUTO and NAV lights flash alternately

5 sec

Note: To quit compass calibration

without saving, turn control stalk

to LO then back to STANDBY.

Press in control stalk to:

• save deviation correction

• save heading alignment

• return to STANDBY mode

To align the SportPilot compass without linearizing:

1. Press in and hold control stalk end for 10 sec.

2. Steer boat onto magnetic North heading.

a. Steer the boat on a magnetic North heading. b. Press either -1 or +1 to align SportPilot compass to North.

• after the 5 sec beep, the SportPilot beeps to indicate amount of deviation detected

• each beep = 5˚ deviation (1 beep = 0˚-5˚; 2 beeps = 5˚-10˚; 3 beeps = 10˚-15˚)

• 4 or more beeps = deviation above 15˚: re-site compass then repeat linearization

Turn the boat in slow circles:

• speed less than 3 knots

• at least 2 mins for each 360˚

Keep turning the boat until:

• the AUTO and NAV lights flash together

• the SportPilot beeps for 5 sec

Compass calibration

Note: compass calibration is only necessary if you have been unable to mount the compass so it faces the bow.

Start turning boat

(see step 2)

D5598-1

3. Press either -1 or +1 to align SportPilot compass to North.

4. Press in control stalk end to save heading alignment.

86003_3.book Page 2 Monday, July 9, 2001 12:00 PM
