Raven AccuBoom User manual
Case IH FLX 10 Series
Installation Manual
P/N 016-1001-049 Rev A 09/15
Copyright 2007, 2015
Manual # 016-1001-049
1
C H A P T E R
1
INTRODUCTION
Congratulations on your purchase of the Raven AccuBoom system! This system
is designed to provide worry-free turn on and turn off of your booms with respect
to the as-applied coverage map. The following instructions are designed to
assist you in the proper installation of the AccuBoom system. See the Installation
and Operation Manual of your particular console for instructions on setting up the
software and using the AccuBoom system.
Basic Kit
Contents
AccuBoom CAN Node
Machine Specific Console Cable (115-1001-018)
CANTee Cable: 12’long (115-0171-362)
CANTee Cable: 6’ long (115-0171-753) (2)
InstallManual
Important! All boom switches must be in the ON
position while AccuBoom control is in operation!
Important! Boom configuration must be set up in
Envizio Plus/Pro or Viper/Viper Pro so that
Boom 1 = Left Fence Row
Boom 2 = Boom 1
Boom 3 = Boom 2, etc.
Boom 1 (left fence row) normally gets a 0” or 1” value and
uncheck Boom 1 from Accuboom operation.
CaseIH FLX 10 Series AccuBoom Installation Manual
2
Notes:
Manual # 016-1001-049
3
C H A P T E R
2
INSTALLATION
Use the following procedure to properly install the CANAccuBoom
system.
1. Locate Bulthead 5 Connector beneath cab.
2. Disconnect Bulkhead 5 Connector and tee in Accuboom
harness.
3. Locate power and ground studs near bulkhead connectors.
Connect Red/White wires with ring terminals on Accuboom
harness to power/ground studs.
Bulkhead panel and power/
ground studs beneath cab
CaseIH FLX 10 Series AccuBoom Installation Manual
4
4. Locate Acc Power connector beneath cab. Remove cap and
connect Accuboom Harness (switched power).
5. Drill 2 holes in enclosure lid underneath catwalk on the right side
of the cab to mount the CAN Node.
Mount CAN Node to enclosure lid.

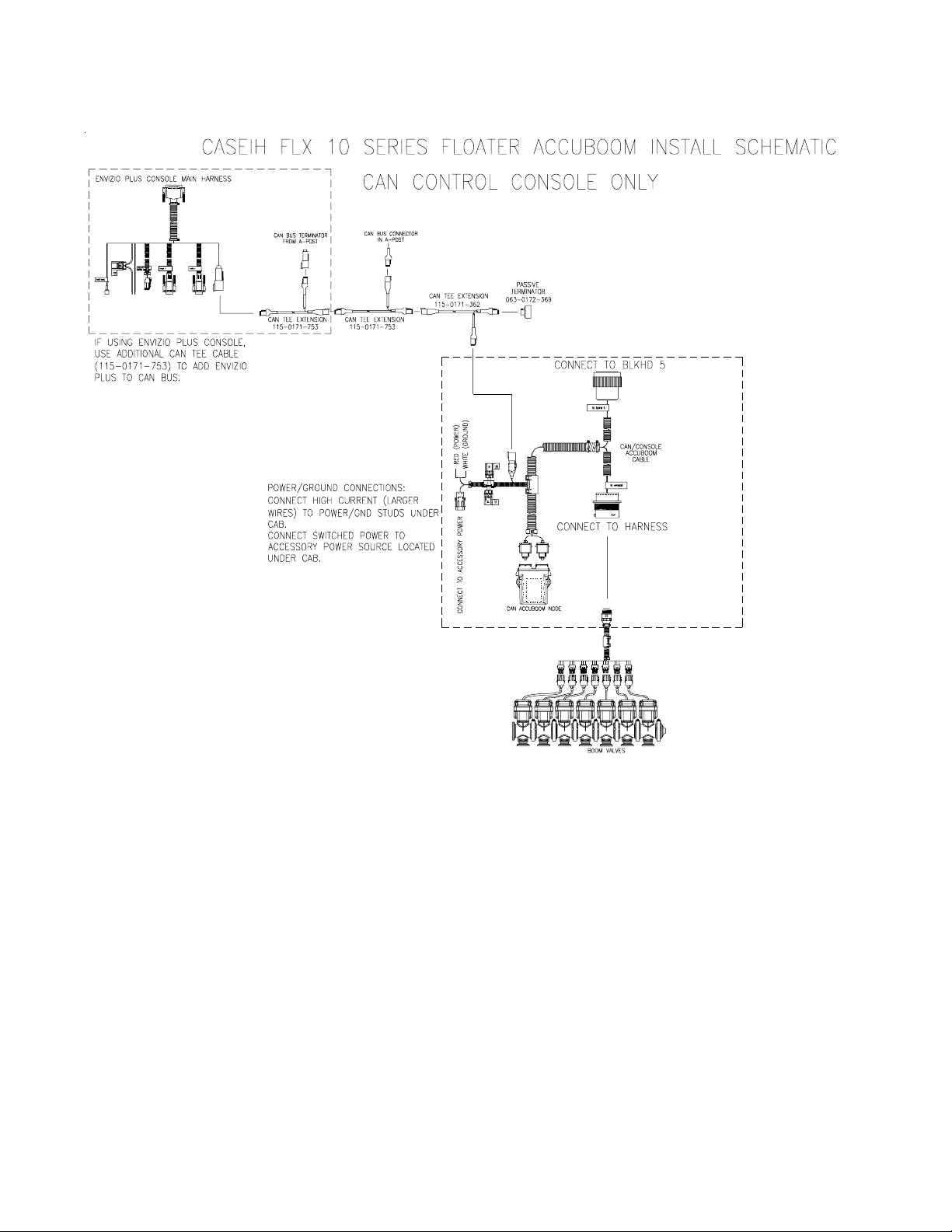

6. Connect the Accuboom harness to the CAN Node. Connect the
12’ CAN Tee (115-0171-362) to theAccuboom harness and
connect the terminator (063-0172-369) to the CAN Tee. Route
the CAN Tee harness through the floorboard into the cab.
Connect harness to CAN Node
Manual # 016-1001-049
5

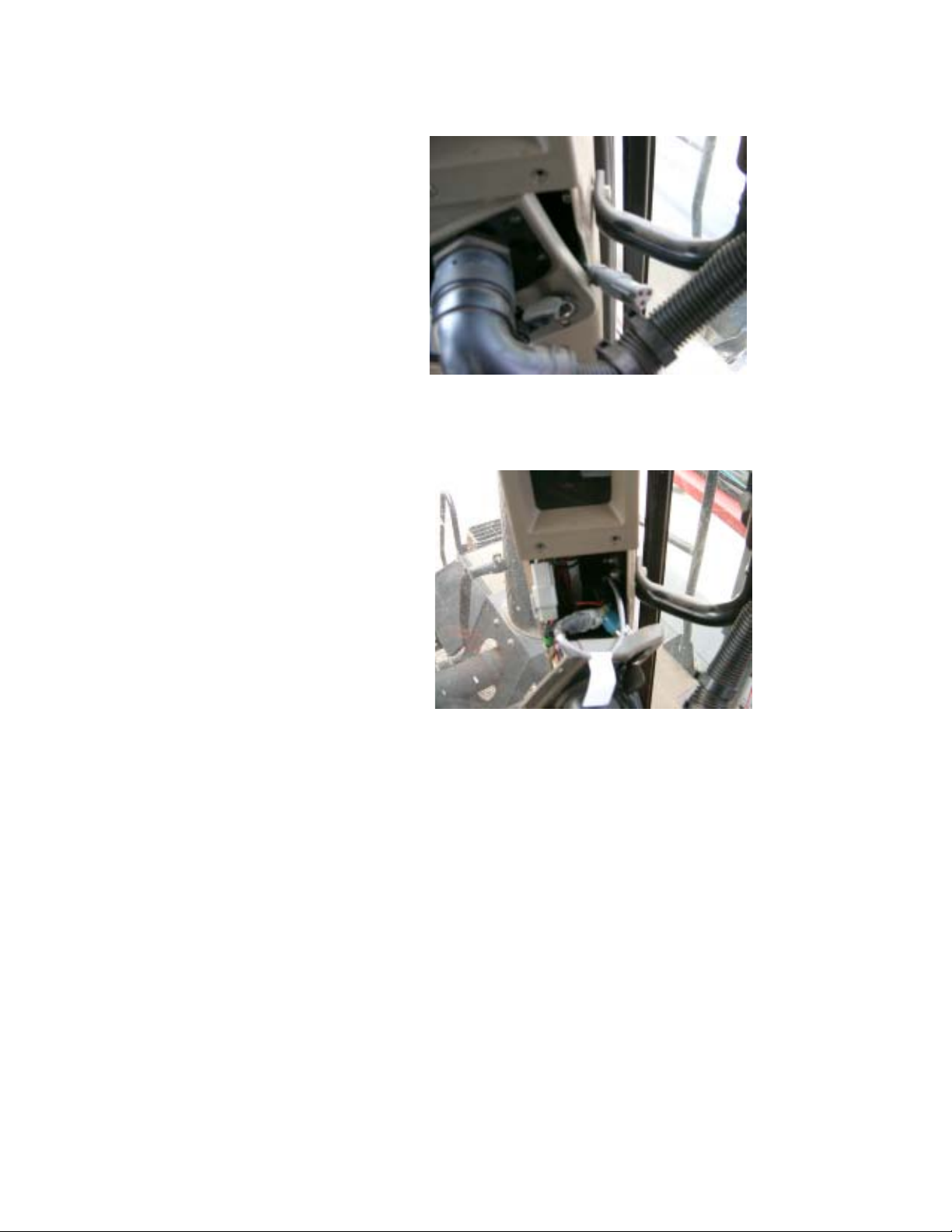

7. Locate the A-Post panel in the cab. Remove the 4 screws and
locate the CAN Bus Terminator behind the plate.
8. Remove the Terminator and route the CAN Tee harness
(115-0171-753) to the CAN Connector and connect. Replace the
A-Post panel.
9. Connect the CAN Tee cable (115-0171-753) to the CAN Tee
cable routed into the cab (115-0171-362) from the CAN Node.
Connect the CAN Terminator from theA-Post to the CAN Tee
cable (115-0171-753).
NOTE: If you are using an Envizio Plus, you will need to use the
additional CAN Tee cable (115-0171-753) and connect the Envizio
Plus to the CAN Bus. Connect the CAN Terminator from the
A-Post to the CAN Tee cable (115-0171-753).
10. Installation is now complete.
CaseIH FLX 10 Series AccuBoom Installation Manual
6
Manual # 016-1001-049
7
C H A P T E R
3
DIAGNOSTICS
The CANAccuBoom Node P/N 063-0172-316 has additional features to allow the
user to diagnose the AccuBoom system. The CAN AccuBoom node has a
plastic window in the case that allows the user to view green diagnostic lights.

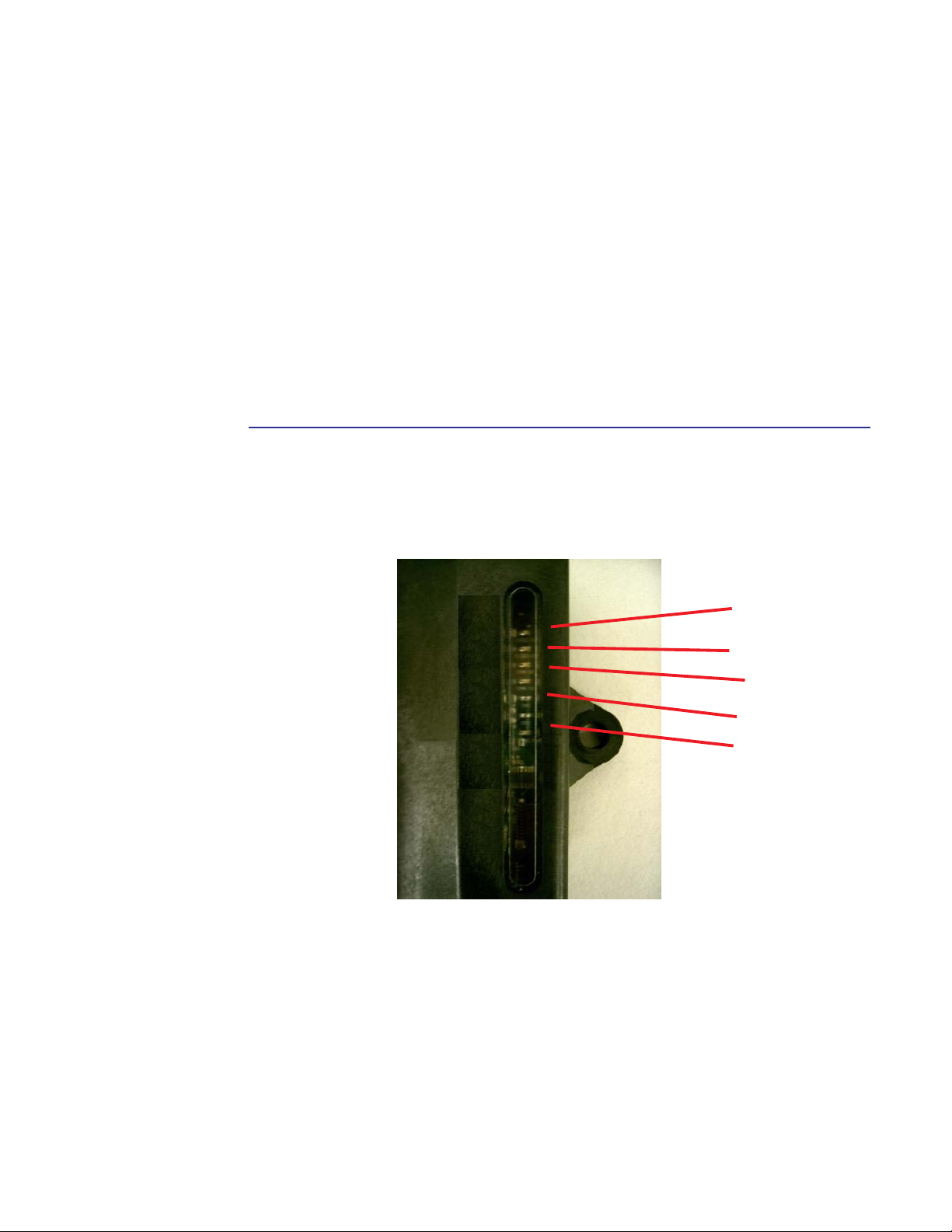

The picture below shows the positioning and function of each of the LED lights.
Logic Power
Micro 1 Hz
CAN Rx
CAN Tx
High Current
Power (HC)
Logic Powr: Lit when 12VDC logic power is available at the node.
Micro 1 Hz: Flashes at 1 Hz interval when processor is active.
CAN Rx: Flashes when CAN messages are being received.
CAN Tx: Flashes when CAN messages are being transmitted.
High Current Power: Lit when High Current Power is applied to teh node.
CaseIH FLX 10 Series AccuBoom Installation Manual
8
Notes:
