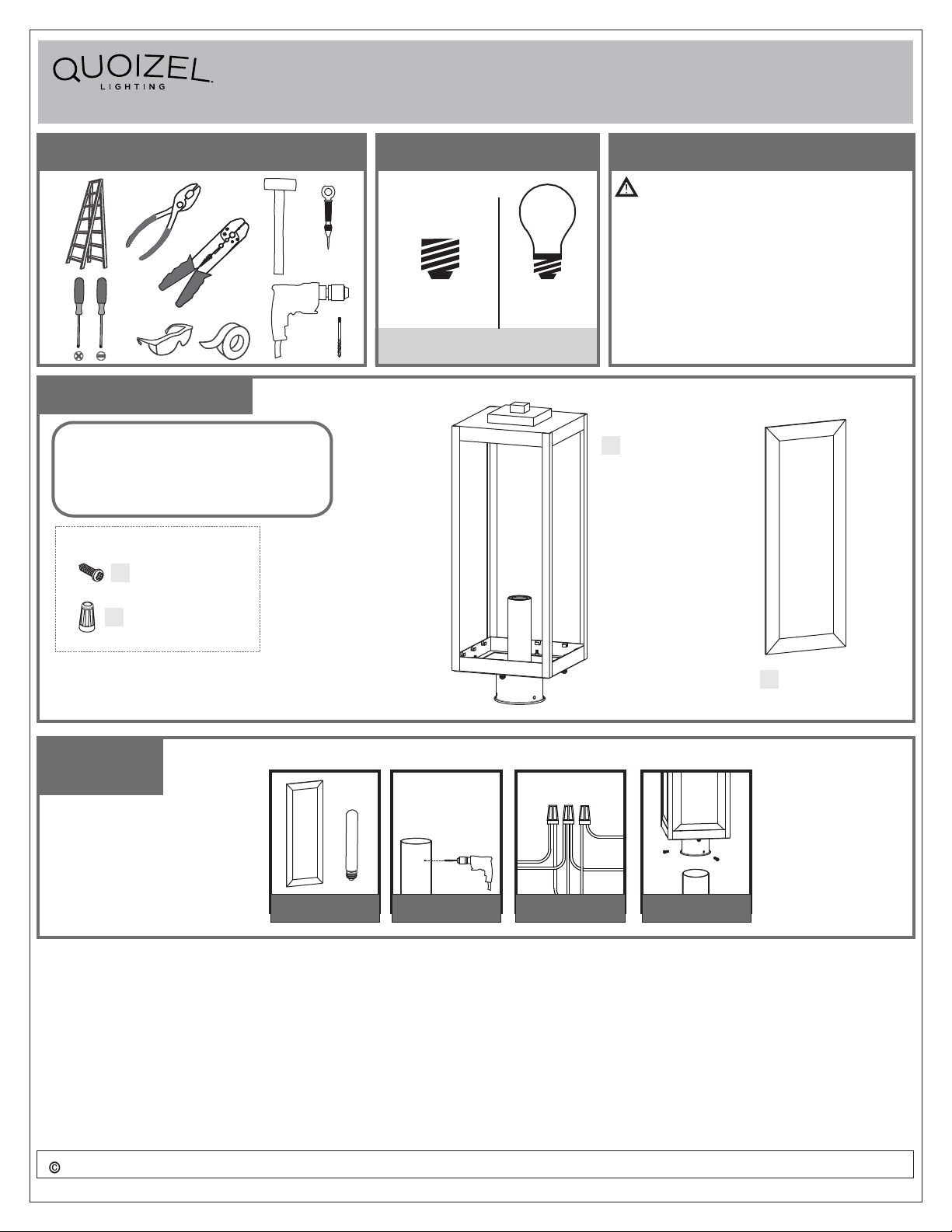

Quoizel WVR9007A User manual

1of3

2019 QuoizelInc.

visit us on-line at www.quoizel.com

ReleasedDate:2019-08-15

LightSourceToolsRequired

BULB BASE TYPE

Medium (E26)

BULB SHAPE

TYPE A

150W

MAX

1BULBREQUIRED

BULBNOTINCLUDED

Warnings and Cautions

Turn off the electricity at the circuit breaker

before installation. Consult a licensed

electrician if in doubt about installation.

Turn off power to the fixture and allow the bulbs

to cool before replacing.

Package Contents

PARTS BAG

Preparation: Identify and inspect all parts

before beginning the installation.

Missing or damaged parts? Contact your

original place of purchase.

Fixture Body

Wiring

Table of

Contents

STEP 3

Fixture Body

STEP 4

Drill Holes

STEP 2

BWire Connector

Glass Panel & Bulb

STEP 1

AMounting Screw

Glass Panel

For Styles WVR9007A, WVR9007AC, WVR9007EK,

WVR9007SS and WVR9007WT

Installation Guide

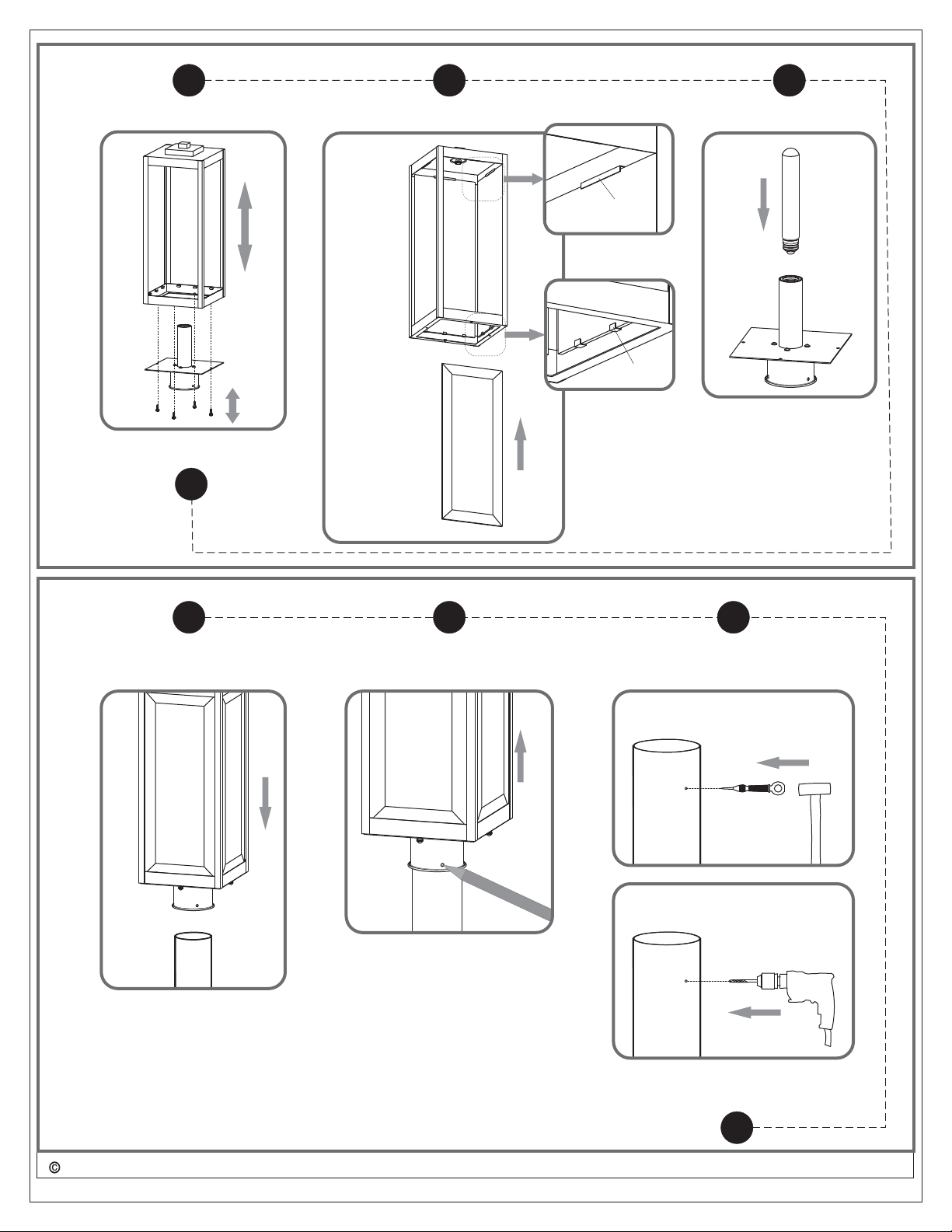

2of3

2019 QuoizelInc.

visit us on-line at www.quoizel.com

ReleasedDate:2019-08-15

STEP 1

STEP 2

1 2 3

Step 1

Place Post Fitter to Post

Step 2-3

Mark Mounting Holes Location on Post

Step 4

Drill Holes

1/16” Drill Bit

1 2 3

Remove the Cage Install Glass Panel Install Bulb

Re-install the Cage

Slot

*Glass Panels

are varies

according to

purchased*

Tab

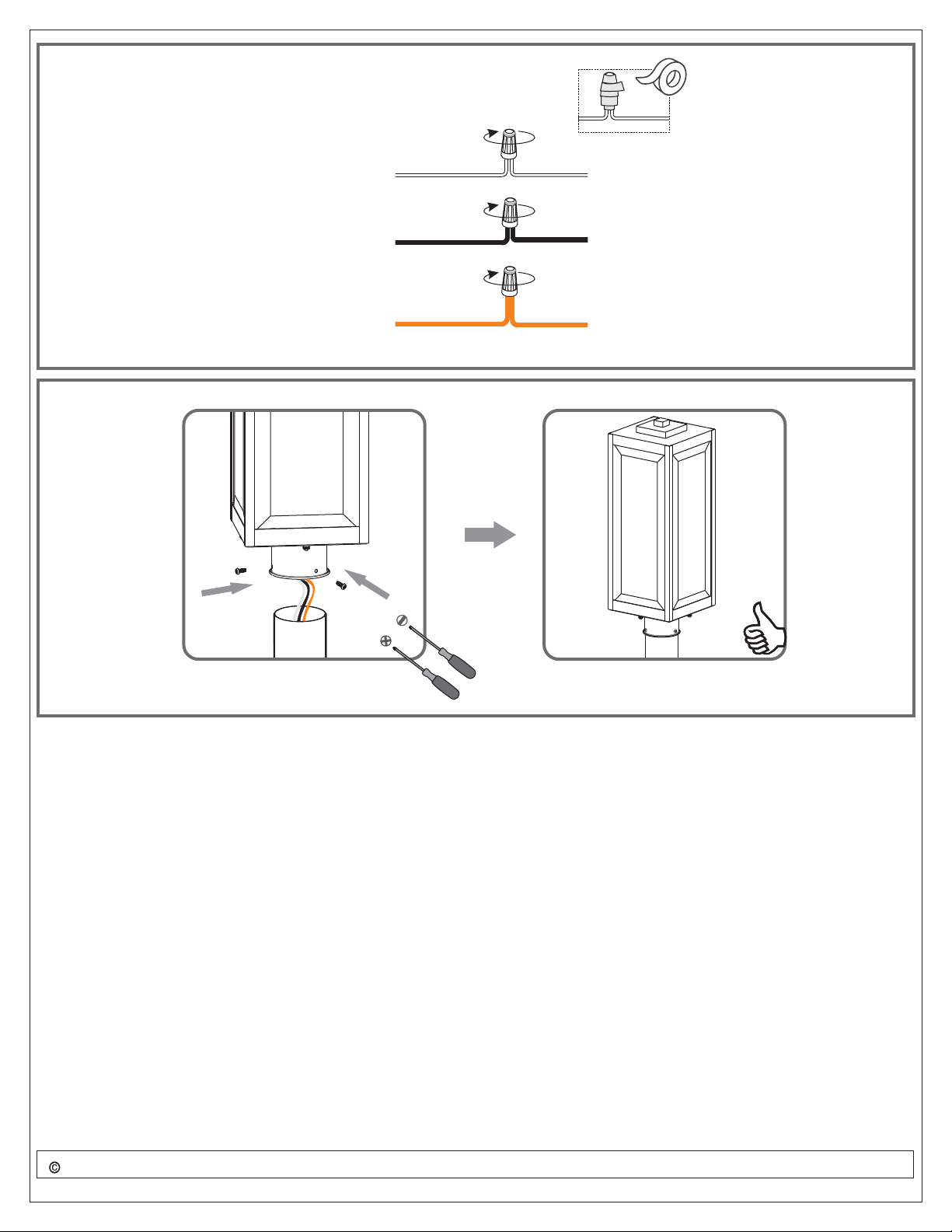

3of3

2019 QuoizelInc.

visit us on-line at www.quoizel.com

ReleasedDate:2019-08-15

STEP 4

White wire (neutral)

from outlet box

White wire

from fixture

Black wire

from fixture

Ground wire

from Fixture

STEP 3

Black or Red wire (hot)

from outlet box

Bare or Green ground wire

from outlet box
