QuickLink Studio-in-a-box ST500 User manual
Quicklink Studio-in-a-box
(ST500)
User Guide
Rev 1
quicklink.tv
1
Studio-in-a-box/ST500 uses
The ST500 can be mounted on a tripod or used on a desktop. Ensure that your sign in credentials are to hand. These will be provided by
the Administrator.
Power options
Network settings
User accounts
Video settings
Audio settings
Studio/Skype TX settings
Record settings
Show/hide settings
menu
Show/hide preview
quicklink.tv
2

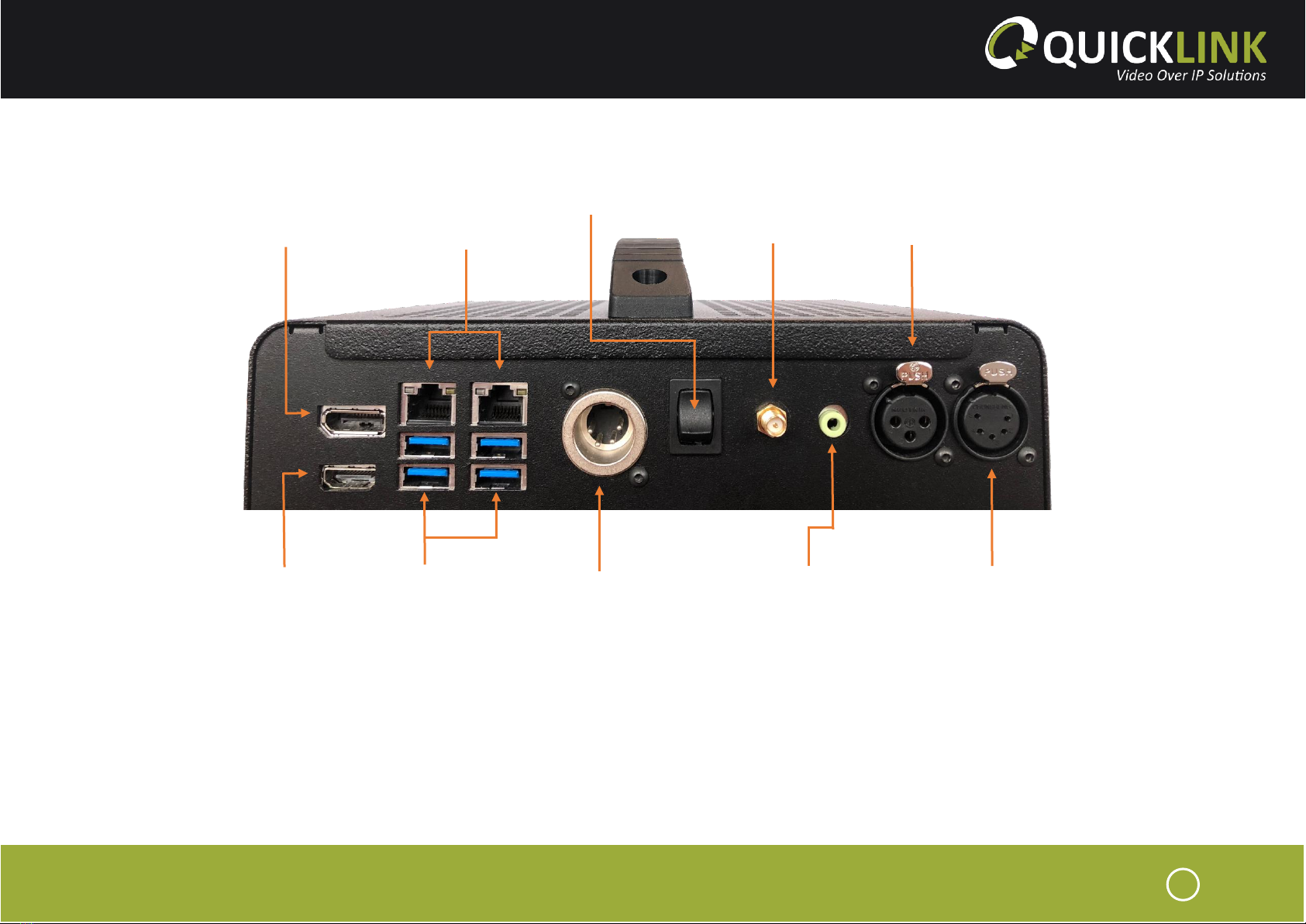

To set up your ST500, plug the power cable provided into the XLR power connector, then plug your Ethernet cable into either of the
Ethernet ports. The inbuilt Wi-Fi or a USB dongle can also be used for internet connectivity
Next, plug in your headphone/earpiece into the green 3.5mm socket and a microphone into the XLR audio connector
Power on the unit by pressing the power switch.
Power switch
Ethernet
Headphone
socket
XLR power connector
XLR microphone
connector
DMX lighting connector
USB
DisplayPort
HDMI
Wi-Fi
antenna connector
quicklink.tv
3
Your ST500 will now start booting.
The initial screen will remind you to connect a microphone, headphones and
an internet connection if you have not done so already. Tap ‘Dismiss’ if this
has already been connected.
On first use, you will need to sign into Quicklink Studio. Tap the flashing
icon to open the login. Under the Studio section, tap ‘Login’.
quicklink.tv
4
Enter your sign in credentials that have been provided to you by the
Administrator. Tap ‘Login’.
Tap the icon to clear the menu.
Once the unit is powered, logged in and connected to the internet –the
Quicklink Manager Portal will have full remote control over the video, audio
and connected lights. However, local control of settings is possible if required
and these are described in the following pages.
Tap the icon, then icon to open the video settings. From this menu,
you can control the camera using the arrow buttons, zoom the camera in/out
using the magnifying buttons, adjust the brightness of the inbuilt lighting and
turn on/off the auto focus. Tap the home icon to return to the default position.
Alternatively, the camera controls, inbuilt lighting and focus can be controlled
remotely by the Administrator from the Quicklink Manager.
quicklink.tv
5
From the menu, you can also open the audio settings by tapping the icon.
Here you can adjust the microphone and headphone levels.
Alternatively, the microphone and headphone levels can be controlled
remotely by the Administrator from the Quicklink Manager.
quicklink.tv
6
Recording
To enable the recording feature, open the settings by tapping the icon, tap
and then to configure.
Select if you would like to sign in with Google, Dropbox, Microsoft, Amazon,
Facebook, Oxygen Cloud or OneDrive for Business.
quicklink.tv
7
You will be redirected to a login for the website you selected above. Enter your
login credentials, then tap ‘Sign In’.
To access the onscreen keyboard, tap the icon.
Once logged in you will be asked to pick a storage service, tap where you
would like your recordings to save.
quicklink.tv
8
Tap ‘Authorize’ when prompted.
You will now be taken to the login screen of the storage you selected. Enter
your login credentials then tap ‘Authorize’.
You will then be redirected to your account where the storage service you
authorized will be listed.
You have now configured recording. To close the recording configuration, tap
the icon.
quicklink.tv
9
To begin recording, tap the icon. Once your recording has started, a
recording icon and time indicator will appear at the top of the screen.
To stop the recording, tap the icon.
You will now be prompted to Delete or Save the recording. Select ‘Save’, then
tap ‘Execute’.
