QQH Z1-9 User manual
15.6"Full HD Portable Monitor
Z1-9
User Manual
Note: Any technical problem pls contact support team
[support@qqhmonitor.com]
Service
[12-Month Warranty]
[24/7 After-sales Service]
support@qqhmonitor.com
QQH Tech Support
Not Satisfied?
Need Help?
Package List ----------------------------------------- 1
Monitor Introduction ------------------------------- 2
Foldable Kickstand --------------------------------- 4
Connect Condition ---------------------------------- 5
Connect with Devices ------------------------------ 6
Display Setting ------------------------------------ 11
OSD Function Introduction ---------------------- 13
Specifications ------------------------------------- 18
Supported Devices and Models ------------------ 19
Care & Cleaning ------------------------------------ 21
Notices --------------------------------------------- 22
Troubleshooting ----------------------------------- 23
Contact us ----------------------------------------- 25
Content
1
15.6"Portable Monitor
USB-C to
USB-C Cable
Mini HDMI to
HDMI Cable
USB-C to USB-A
Cable (Power Supply)
5V/2.4 A Power
Adapter
Package List
13.5mm Audio Outport
Headsets, speakers or digital audio equipment extension interface.

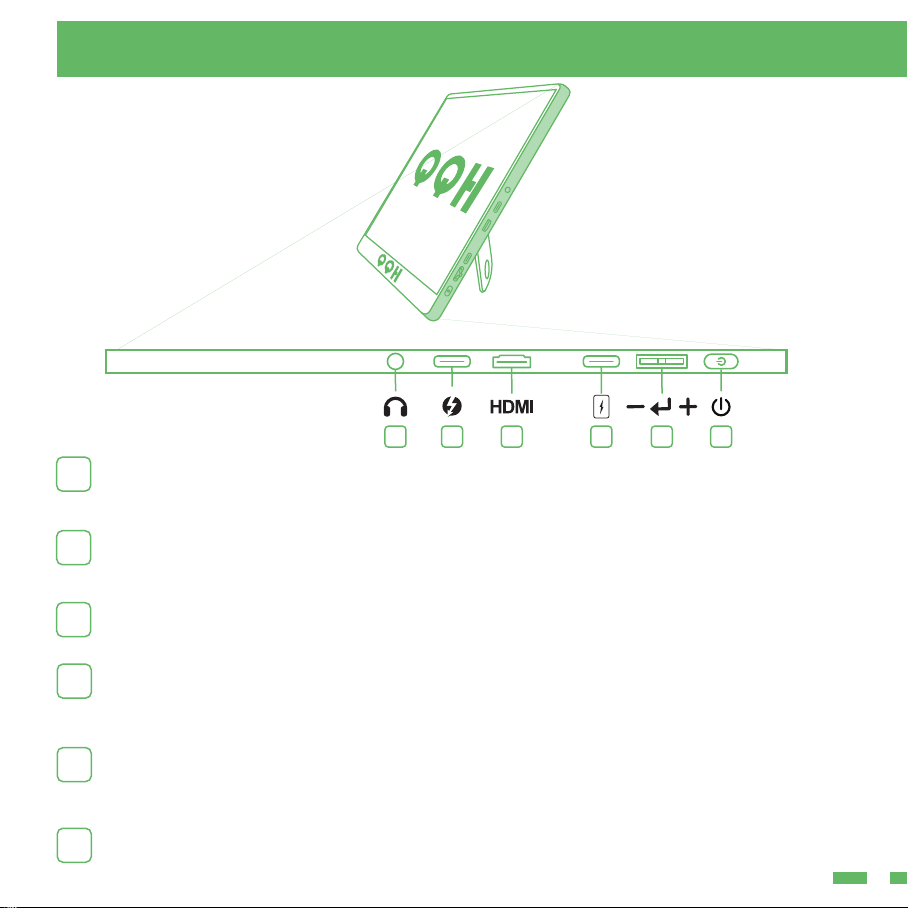

2Type-C Full Function Port
• Supply power(5~20V voltage input);
• Transmit the audio, video signal.
2
1
2
3
4
5
6
6Power Button/Back Button
Long press for 3s to turn the screen on/off. Short press to back to the previous page.
5
Trackwheel
• Press the trackwheel to turn to the OSD menu. Scroll the trackwheel to control
the cursor on the menu, and press to confirm;
• In the main interface, scroll up to open the adjust shortcut menu.
4Type-C Power Supply Port
Only supply power(5~20V voltage input);
3Mini HDMI Port
Audio and video signal transmission. (It does not provide power)
Monitor Introduction
3

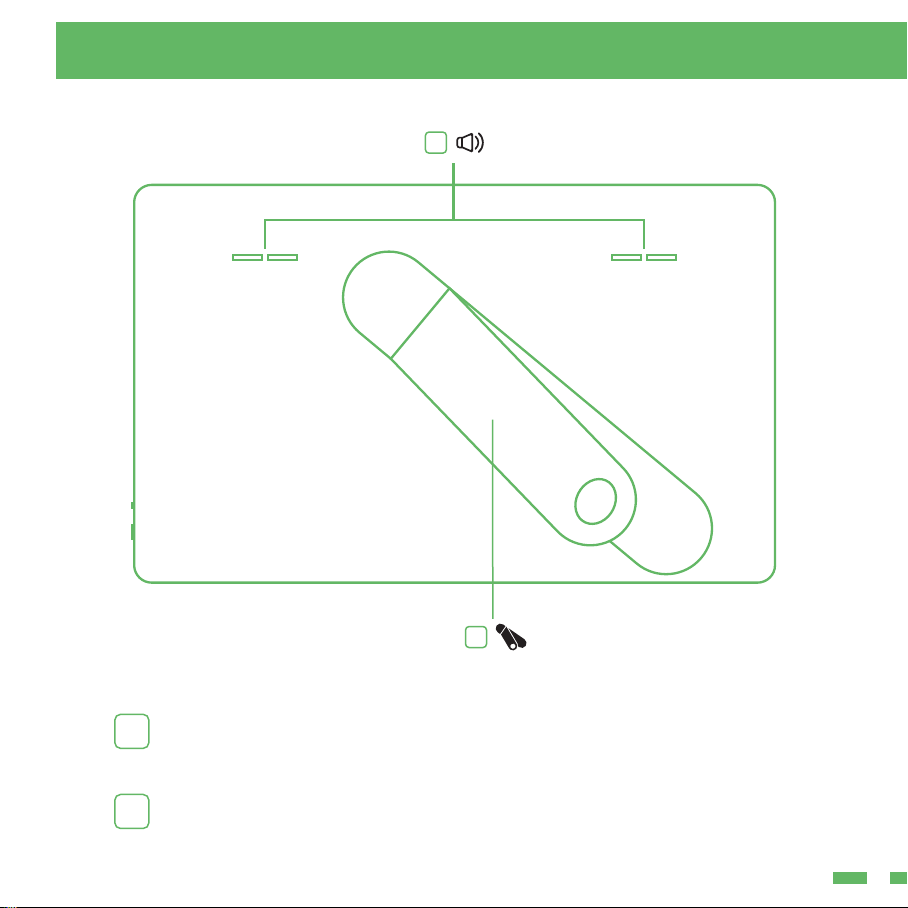

7Dual Speakers
Listen to music, movies, games, and multimedia files.
8Foldable Kickstand
Comes with hidden foldable kickstand.
Monitor Introduction
7
8
4

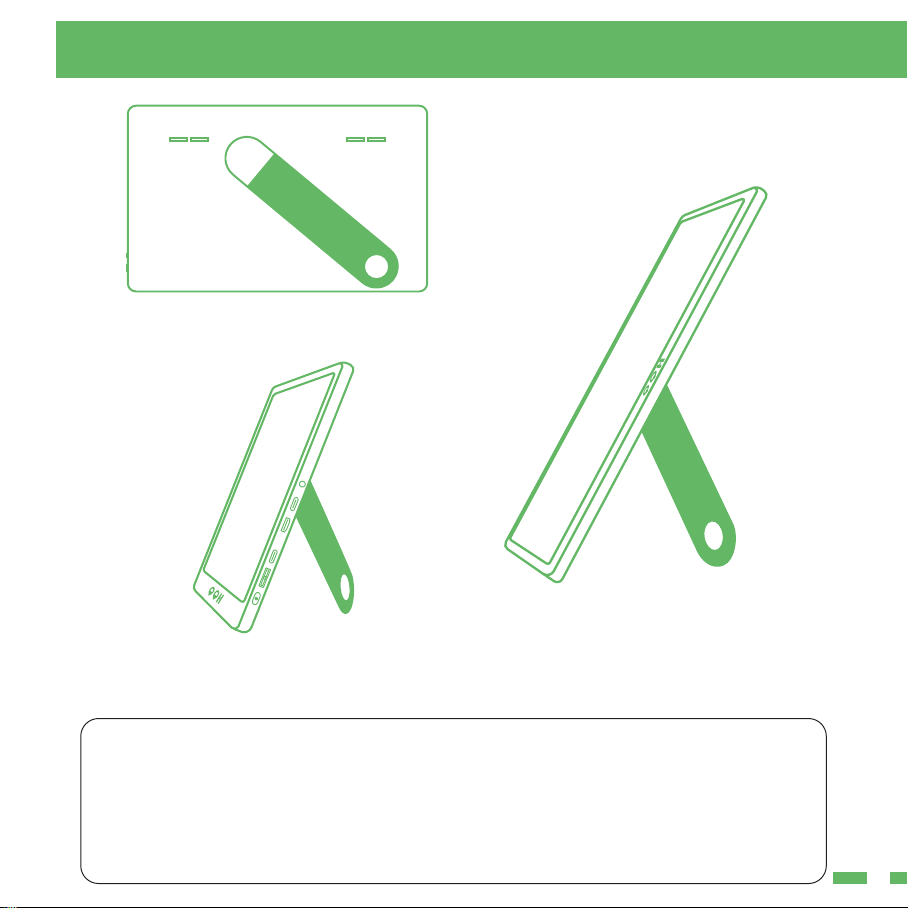

Foldable Kickstand
Foldable hidden kickstand,
portable to carry.
Use as kickstand to stand the
monitor as landscape mode.
Use as kickstand to stand the monitor
as portrait mode.
Note:
1) The Portrait mode needs to be set on Devices Setting.
2) The foldable stand has a little suction, when using it as a stand, please be
gentle when moving to prevent the stand from retracting.
3) Please place it away from the edge of the desk when using it to prevent the
display from falling and breaking.
5
Connect Condition
2

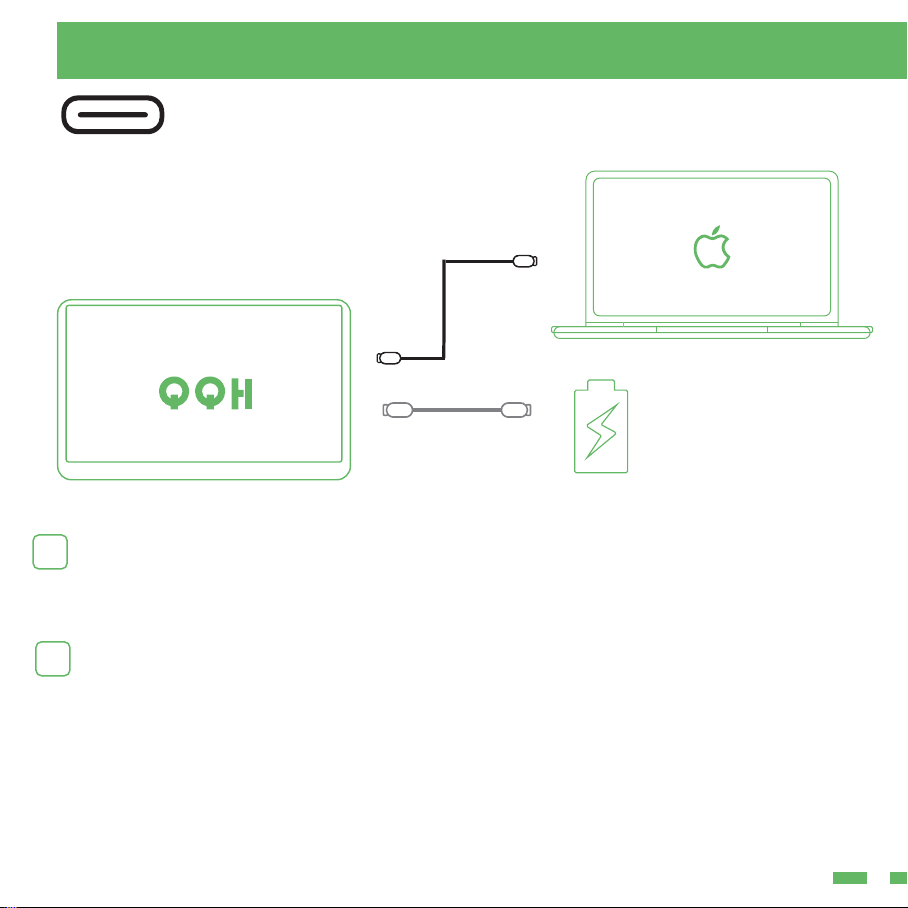

Connect without External Power Supply
Only works with full-function USB-C port.
Please plug in the [USB-C to USB-C Cable] to the USB-C
full-function port and make sure the USB-C port
of your device is full-function.
Note: The monitor does not have an internal battery.
Before using, please make sure the connected devices
or power adapter can supply at least 5V/2.4A power.
1
Connect with External Power Supply
Connect your monitor to the power supply
with the [USB-C to USB-A Cable] and the Adapter provided,
plug in the [USB-C to USB-C Cable] OR [Mini HDMI to
HDMI Cable] for video output.
USB-C Laptop
USB-C to USB-A
6
1. If you want to adjust the brightness and volume above 80%，pls
make sure the external power supply of 5V/2.4A or above be connected.
2. Not all laptops with USB-C port can work with QQH Monitor.
Pls check if the USB-C port of your laptop is compatible with audio
and video signal transmission. If not, it would need to change a way
to connect or it will need a corresponding adapter to connect.

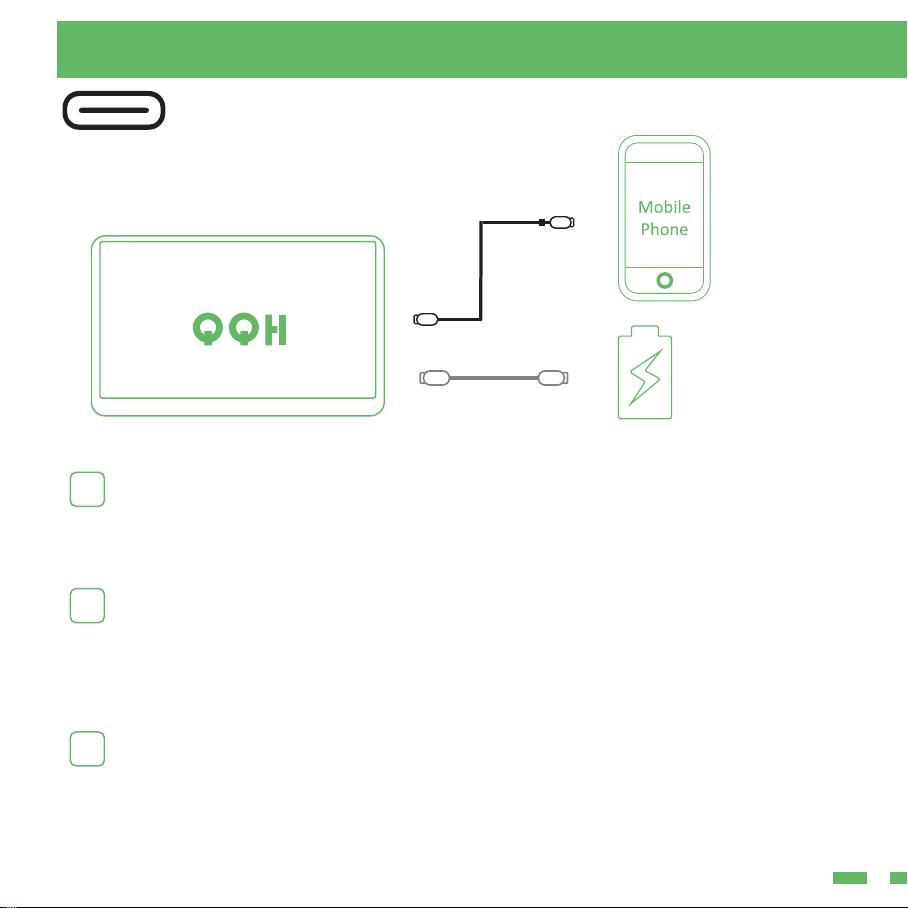

Connect with Devices
1
2
(external
power supply)
USB-C to USB-C
USB-C to USB-C
USB-C Phone
USB-C to USB-A
7
Connect with Devices
1
If there is no external power supply, the phone would supply
power to the monitor. Then the monitor would turn to energy-saving
mode, brightness will be automatically adjusted to 30%.
2
3
If plug-in an external power( 5V/2.4A or above), the monitor can
reversely charge the phone. (Please use at least 16W charger or
power bank as the external power supply for getting enough
working current)
Not all Phones with USB-C port can work with QQH Monitor.
Pls check if the USB-C port of your phone is compatible with audio
and video signal transmission.
(external
power supply)
