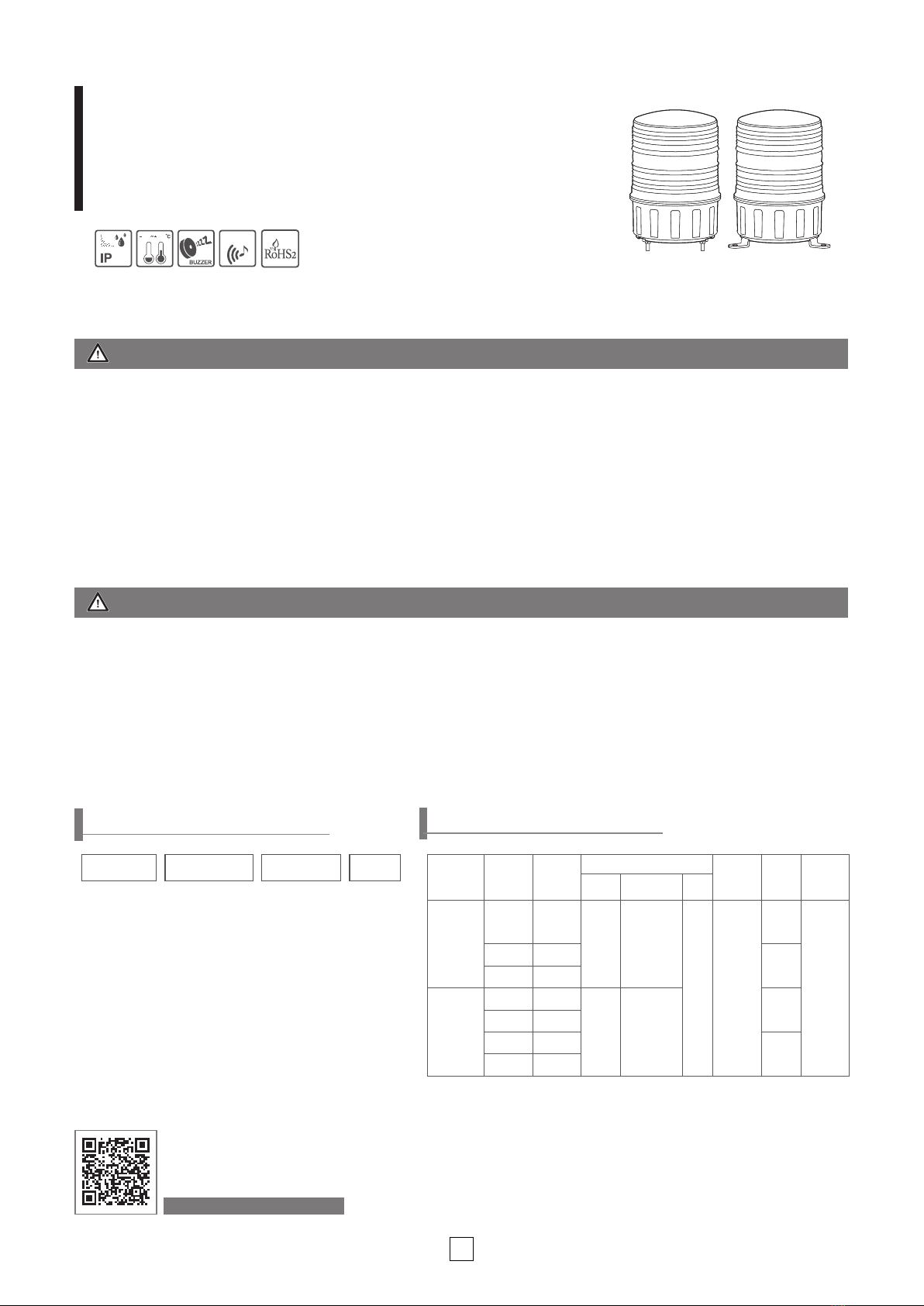

Qlightec S150US User manual

90dB

5030

S150US

220

[Model

number] [Buzzer] [Voltage] [Color]

| | | |

• S150US

• S150US-FT

• S150UHS

• S150UHS-FT

• (Blank)

- No buzzer type

• BZ

- Built-in buzzer

type

• 12/24

- DC12V~24V

• 110 -AC110V

• 220 -AC220V

R-Red

A-Amber

G-Green

B-Blue

• Protection rating : IP44

• Ambient operating temperature : -30°C to +50°C

Model

number

Voltage Current

Bulb specications

Certicate

Weight

Color

Volts/

Watts

Conguration

Part#

S150US

S150US-FT

DC12V

~24V

Max.

1.000A

200V

~550V

EUB0641

-1A(G)

U type

0.56kg

R-Red

A-Amber

G-Green

B-Blue

AC110V

0.135A

0.54kg

AC220V

0.105A

S150UHS

S150UHS-

DC12V

1.277A

280V

-400V

BH0647(G)

W type

0.78kg

DC24V

0.655A

AC110V

0.270A

0.69kg

AC220V

0.218A

Xenon Strobe Light

S150US/ S150US-FT

S150UHS/ S150UHS-FT

Please scan the QR

code for more

detailed

product information.

www.qlight.com

Ordering Specications

Thank you for purchasing Qlight’s products. Please read this user manual carefully

prior to installation and operation to ensure safe and correct use.

Precautions for Safety

Failure to follow the instructions below may cause a loss of life or serious physical injury.

1. Please remove any objects that can interrupt ventilation around the product.

2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.

3. Carefully wire the product according to each product’s specication.

4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.

5. Do not apply excessive force/impact to the product.

6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.

Precautions for Correct Use

Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product

that would void the warranty.

1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)

2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection

ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,

malfunction or damage to the product.)

3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to

follow these instructions may lead to re, electric shock, or product damage.)

4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)

5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to

follow this may cause damage to property, re, electric shock and loss of life.)

Product Specications

Parts Denition/ Installation

• First, remove the ange nuts from bolts and place the product

through the mounting surface holes (S150US only).

• Fasten the ange nuts on the opposite side of the mounting

surface until the product is tightened securely.

■

Parts Denition

■

Installation

•

External power line

- UL1015 AWG18(0.75sq) x 2C 400mm

• This product can be wired regardless of polarity.

•

For built-in buzzer type, once the unit is powered on, singal light and buzzer are working simultaneously.

S150US S150US-FT

S150US/ S150UHS S150US-FT/ S150UHS-FT

67 126

193

126

196

360°/3- 360°/3-Ø8

FITTING HOLES

M5 BOLT PCD 96 PCD 155

Ø10

CABLE ENTRY

Ø138 Ø138

Ø10

CABLE ENTRY

Red

Black

White

Black

Power Power

Fuse Fuse

DC AC

Dimensions

(Units : mm)

Wiring Instructions

Lens(AS)

Housing (ABS)

Rubber spacer

Flat washer

Flange nut

Xenon bulb

PCD 96

3-Ø6 HOLES

PCD 155

3-Ø6 HOLES

Min. Ø5 CABLE ENTRY

PCD 96

3-Ø6 HOLES

PCD 155

3-Ø6 HOLES

Min. Ø5 CABLE ENTRY

Disassemble

bulb

Disassemble

bulb

• Machine holes on the mounting surface referring to

the diagram below.

■

Mounting Hole Specications

Mounting Hole Specications/ Xenon Bulb Replacement lnstructions

■

Xenon Bulb Replacement instructions

• Please wait at least 30 mimutes after turning o󰀨 the power before replacing the xenon bulb.

• Please pull out the entire xenon bulb structure

①

to disassemble.

•For xenon bulb assembly, please ensure the connector portion of the xenon bulb structure matches the pin location

②.

① ①

②②

S150US/ S150UHS S150US-FT/ S150UHS-FT

S150US/ S150US-FT S150UHS/ S150UHS-FT

Assemble

bulb

Assemble

bulb

Installation Environment and Protection Rating

• This product is designed for use with protection rating of IP44.

• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating

indicated(IP44), it may cause malfunction or damage to the product.

• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-

down positions where water can potentially penetrate into the product and impact it’s operation.

• For further information, please visit our website (www.qlight.com).

Qlight Co., Ltd. www.qlight.com | [email protected]

Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea

Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154

Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)

Qlight OverSEAs Sales Dept |

704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100

Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017

Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]

3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1-408-519-5740 Fax. +1-408-519-5739

SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]

China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86

6651

7100 Fax. +86

6315

3929

China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China

Tel +86

513

8384

9999 Fax +86

513

8384

9910

Product Operation Inquiry / Customer Support +82-51-620-4100

You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.

※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)

Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)

For your safety

Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.

The newest product information is available on our website.(www.qlight.com)

Please read the instruction manual attached to the product carefully before installation and use.

www.qlight.com

EN - S150US - 2106A
