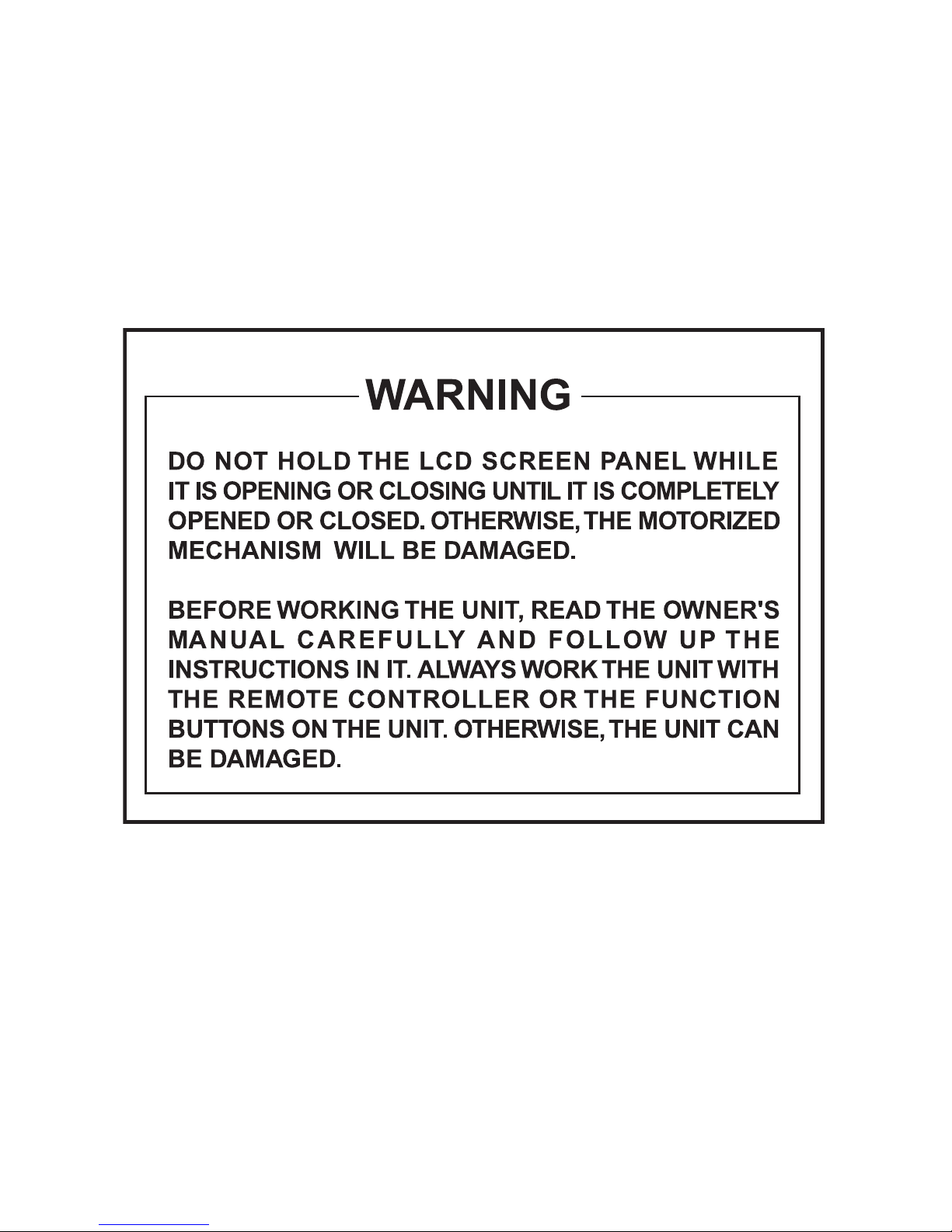

Pyle PLTV71 User manual

PRINTED IN KOREA

SPECIFICATION

General

Power Requirement 14.4V CD (11~16V)

Consumption 1.5A

Operating Temperature -10˚C ~ 60˚C

Audio Input Sensitivity 1.0V / 22㏀

Audio Output Voltage 0.5V / 1㏀

Video Input Signal 1.0Vpp/75Ω

Video Output Signal 1.0Vpp/75Ω

Speaker Built in (1W)

Dimensions 178(W) X 50(H) X 155(D)mm

Weight 3.5kg (Gross)

Monitor Section

Screen Size 7 Inch Wide

LCD Type Transparent Type TN LCD

Drive System TFT Active Matrix

Number of Pixels 336, 960 (1,440 X 234)

Effective Pixels 99.99% or more

Back Lighting U-Shaped Cold Cathode Fluorecent Tube

Color System NTSC/PAL

FM Transmitter

Frequency 89.5MHz ~ 90.2MHz

Specifications are subject to change without notice.

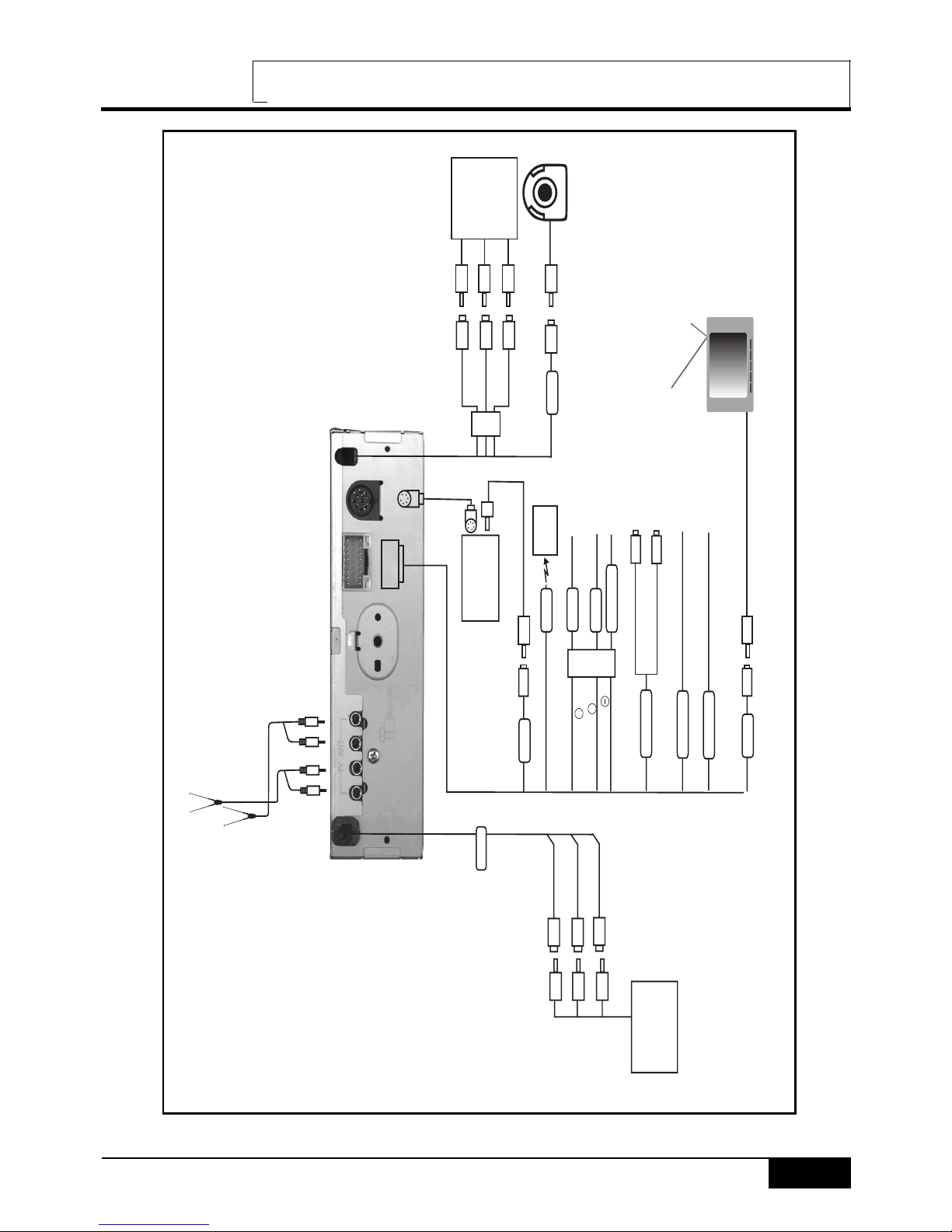

CONNECTING TO CD CHANGER and AV SOURCES

DIVERSITY

ANTENNA INPUT

AV3-IN

Ext. AV3

ANT

BATT

ACC

V4-IN

PRE-OUT

S-BRAKE

REVERSE

V-OUT

RED

WHITE

CD (VCD)

Changer

8Pin

DIN RED

WHITE

YELLOW

AV1

-IN

Audio Right

Audio left

Video

Ext. AV1

V2-IN

YELLOW

REAR VIEW

CAMERA

GROUND

RADIO

RED

WHITE

YELLOW

Audio right

Audio left

Video

YELLOW

Video ouput

To a switched power output

terminal of the reverse gear

GREEN

BLUE

RED

YELLOW

V4-IN PUT

FM Transmitter Antenna

Battery wire + 12V

BLACK

(To car chassis)

Ground wire

Audio right output

Audio left output

Parking Sensor wire

VIOLET

Ignition wire + 12v

MONITOR

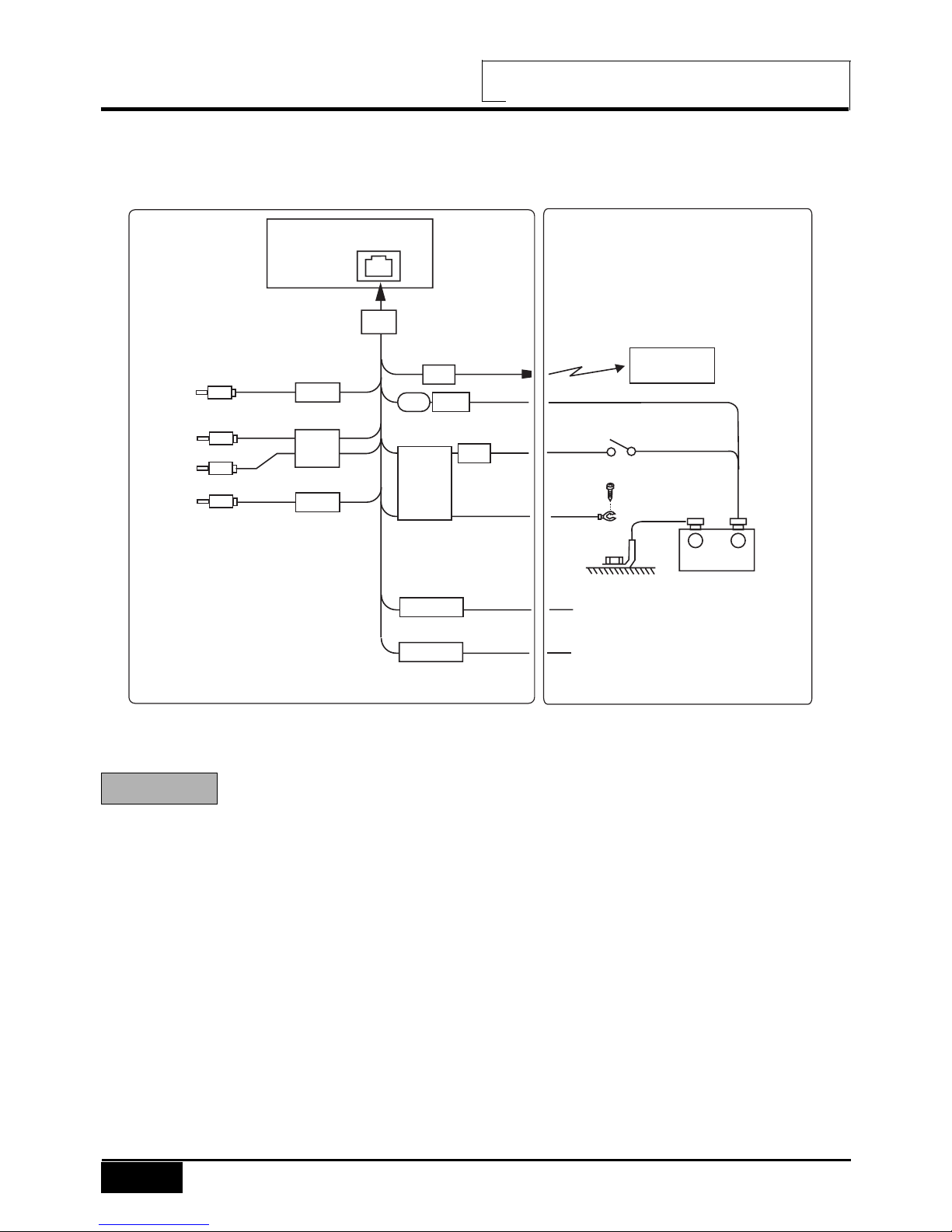

BASIC CONNECTIONS

(BLACK)

(RED)

(YELLOW)

ANT

(VIOLET)

FM RADIO

IGNITION KEY

Battery

(BROWN) To the parking brake signal lead.

(ORANGE) To the switched power output

terminal of the reverse gear.

FUSE

BATT

ACC

FILTER

BOX

S-BRAKE

REVERSE

V-OUT

PRE-

OUT

V4-IN

(YELLOW)

(RED)

(WHITE)

(YELLOW)

1. Do not connect the BATTERY wire (yellow color wire) to ignition or

the ACC wire (red color wire) to Battery. The battery can be discharged.

2. Do not connect the PARKING BRAKE wire (brown color wire) to the

battery or the ACC. The unit can be damaged.

3. Be sure not to take off the protection cloth for the ANTENNA wire

(violet color wire). If it is taken off and touches the steel part of the

car,

the unit may have problems in working.

NOTE

Strap

Be sure to use the strap to secure

the back of the unit in place to

prevent sound cuts or skips.

The strap can be bent by hand to the

desired angle.

Holder

After inserting the holder into the

dashboard, select the appropriate

tabs according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

How to Detach the Mounting

Frame

1. Insert release keys into the slots A.

2. Remove the frame B from the unit.

Keep the release key in the safe

place as you may need it in the future

to remove the unit from the car.

NOTE : Keep the release keys in the

safe place as you may need if in the

future to move the unit from the car.

INSTALLATION

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal

driving functions of the driver.

Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or

excessive vibration.

Use only the supplied mounting hardware for a safe and secure installation.

Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 20。.

MOUNTING EXAMPLE

Installation in the dashboard

Convenient spot

on the fire wall

Metal

Mounting Strap

Tapping Screw

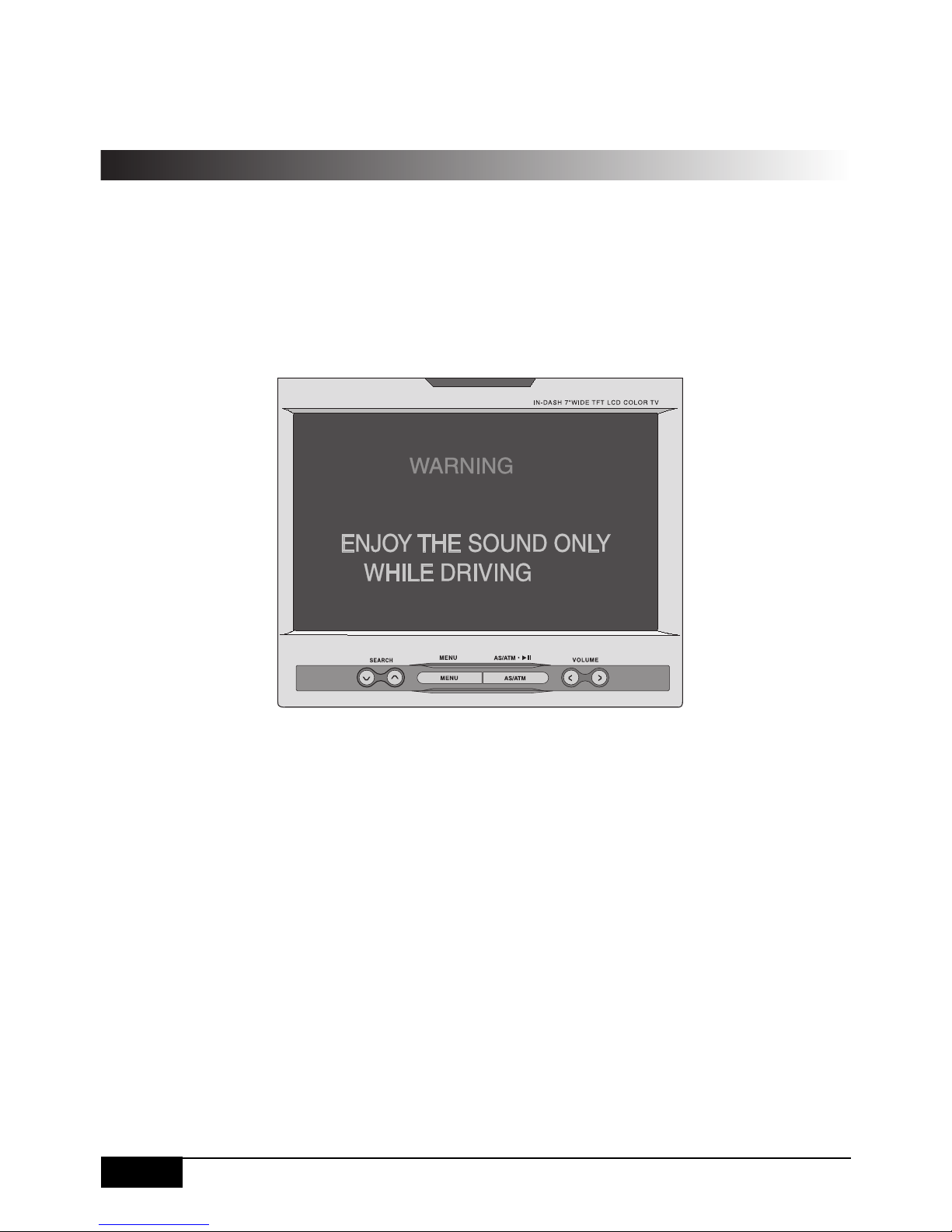

The monitor shows following warning picture when the parking brake is not set or when

driving to prevent traffic accident that may be caused while watching the screen.

The monitor shows the warning picture only and does not show any other pictures, but you

can enjoy the sound and you can also adjust the sound volume.

WARNING SCREEN

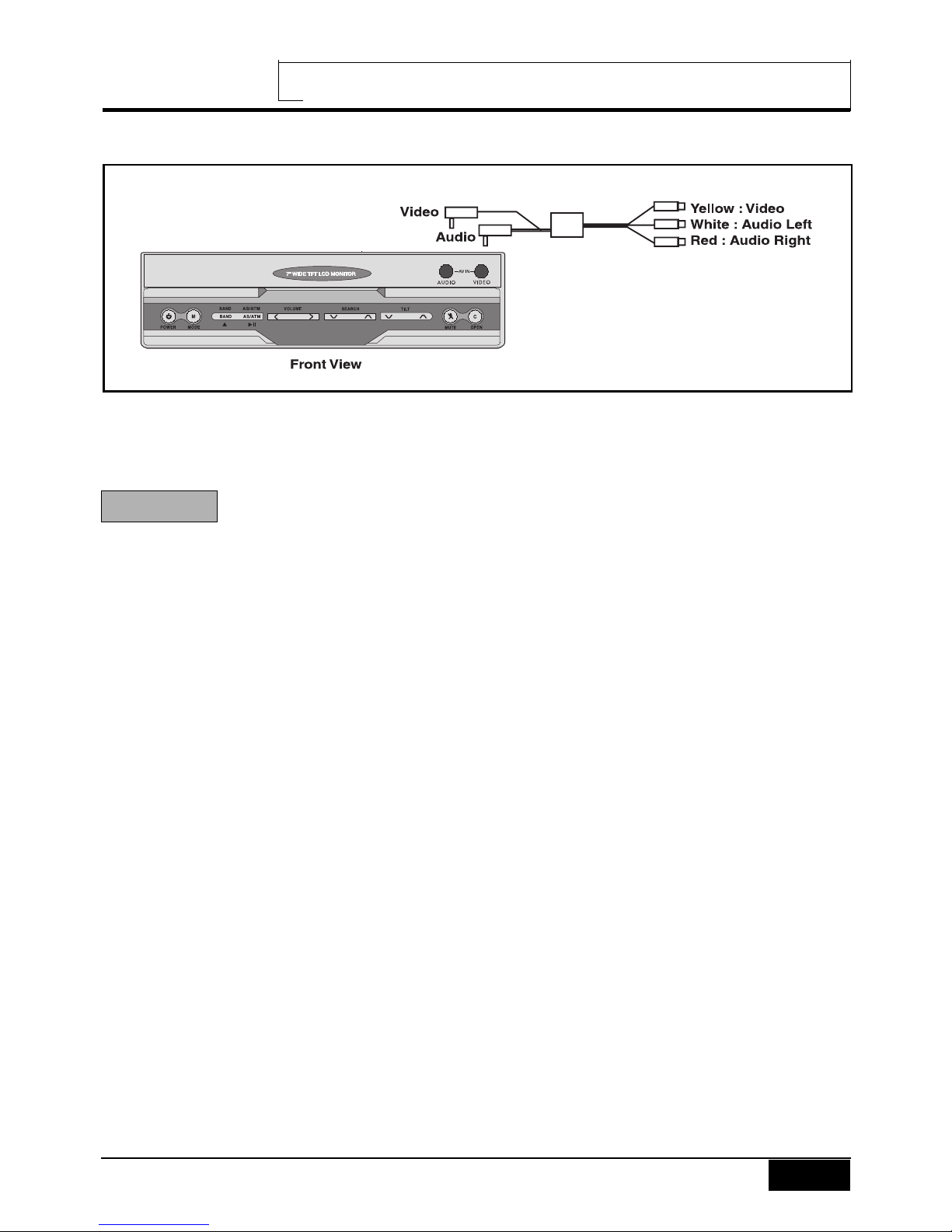

AV INPUT ON THE FRONT OF THE UNIT

1.Connect a AV source output to AV input on the front of the unit.

2.Press the MODE button to select AV1 mode.

3.5 o AV Input on the front of the unit is connected with AV1 Input on the rear the unit. If

the AV sources are connected both Input terminals, the 3.5 o AV Input has priority in

working.

(3.5øMONO)

(3.5øSTEREO)

NOTE

DIRECT CD CHANGER CONTROL

On the CD changer mode, you can directly control CD changer functions just by pressing

the buttons on the remote contoller for our monitor unit.

STOP ■button : to make the playing of the disc stop.

PAUSE button : to stop the playing of the disc .

press again to play again.

PLAY button : to make the disc play

REW button : to quickly move backward of the disc until you reach

the desired section of the track.

FF button : to quickly move forward of the disc until you reach

the desired section of the track.

DISC ▲button : to search forwards through the discs in a CD changer

until you reach the desired disc.

DISC ▼button : to search backwards through the discs in a CD changer

until you reach the desired disc.

TRACK ▶button : to search forwards through the tracks on the disc

until you reach the desired track.

TRACK ◀button : to search backwards through the tracks on the disc

until you reach the desired track.

1. The AS/ATM button on the remote controller can be used as the PAUSE button.

2. When the CD changer mode is selected again after switching the CD changer mode to

other modes or the power of the monitor unit is tuned on again after tuned it off, the

disc plays at the last played position.

3. When the ignition is switched on again after the car key is pulled out on CD changer

mode, the disc plays at the beginning of the track last played.

NOTE

1. Press the SEARCH UP/DOWN button to select REPEAT.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the button, the item changes as follows.

OFF <-> ONE <-> ALL

ALL: All the track on the current disc will be played repeatedly

ONE: The selected track on the current disc will be played repeatedly.

OFF: REPEAT will be off.

REPEAT

RANDOM

1. Press the SEARCH UP/DOWN button to select RANDOM.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the button, the item changes as follows.

OFF <-> ONE <-> ALL

ALL: The tracks on all the discs in the CD/VCD changer will be played

in random order.

ONE: All the tracks on the current disc will be played in random order.

OFF: RANDOM will be off.

1. Press the SEARCH UP/DOWN button to select INTRO SCAN.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the TILT UP/DOWN button, the item switches as follows.

OFF <-> ONE <-> ALL

ALL: The first 10 seconds of each track of all the discs will be played in succession..

ONE: The first 10 seconds of each Track of the selected disc will be played

in succession.

OFF: INTRO SCAN will be off

INTRO SCAN

1. Press the SEARCH UP/DOWN button to select DISC NUMBER.

2. Each time you press the TILT UP button on the remote controller, the disc in the CD

chagner will be selected forward and the displayed disc number increases by one.

3. Each time you press the TILT DOWN button on the remote controller the disc will be

selected backward and the displayed disc number decreases by one.

CD STATUS

This is to show the current CD status such as DISC CHECK, SEEK ,PLAY and PAUSE.

PLAY TIME

This shows playing time of the disc being played.

DISK NUMBER

1. Press the SEARCH UP/DOWN button to select TRACK NUMBER.

2. Each time you press the TILT UP button on the remote controller, the next track number

will be selected and the displayed track number increases by one.

3. Each time you press the TILT DOWN button on the remote controller, the previous

track number will be selected and the displayed track number decreases by one.

TRACK NUMBER
