Ramo plinth

Ramo plinth D

In response to the growing demand for even lower radiators

Purmo has now also developed the plinth radiator Ramo at

a height of 200 mm.

All plinth models are equipped with a beautifully nished

top grid, elegant side covers and an integrated valve body.

The supply tube for the hot water is concealed behind the

front panel.

• The plinth radiators are manufactured from cold

rolled, top quality sheet steel 1,25 mm thick according to

EN 10130. Construction: EN 442-1.

• The Ramo plinth radiator is available in the following 2

variations:

- with at front panel: single-sided (Ramo type)

- with at front panel: double-sided (Ramo D type)

All models are available in types 22, 33 and 44.

• All Ramo plinth radiators have a 33 mm vertical proling.

• Test pressure: 13 bar.

• Working pressure: 10 bar.

• Operating temperature: max 120°C.

• Accessories supplied and included in the price: 1 valve

body, 3 blind stops, 1 airvent and 1 plastic cap.

• There are no welded-on hanging brackets on the back of

the radiator.

• For all types wall brackets are available (2, 3 or 4 brackets

depending on the length of the radiator).

• Standing brackets are also available. Standing brackets

are built-in or on the surface of the oor mounted.

• Note: both the wall and standing brackets have to be

ordered separately.

• Connections: 6 connections of which 4 x G ½” on the side

and 2 x G ½” at the bottom – 50 mm.

• Colours: standard colour is RAL 9016. Other RAL-colours

and metallic colours are available.

Heat outputs

Heat outputs are measured according to standard EN 442,

with a water temperature of 75/65°C and room tempera-

ture of 20°C.

Coating process

The radiators are coated in a modern facility, specially

designed to protect the environment.

Pre-treatment

The pre-treatment consists of degreasing the radiators

(removal of grease and oil) and phosphating. In combi-

nation with the base coat, the phosphate layer provides

excellent rust protection. After pre-treatment, the radiators

are rinsed in deionised water.

Coating

This procedure consists of 2 phases. First and foremost the

radiators are coated cataphoretically with a corrosion

resistant base layer via submersion in a KTL-bath.

The radiators are then baked in a hot air oven at +/- 175°C.

Finally the powdered epoxy-polyester layer is applied, this one

is resistant to shocks, normal humidity and the majority of

acids, in accordance with standards DIN 55900 and EN 442.

Packaging

The radiators are protected on 2 sides by cardboard, including

corner protectors. The whole is packed in shrink-wrapping.

Guarantee

Purmo gives a 10 year quality guarantee on the entire

range of radiators and underoor heating!

Ramo plinth

Ramo plinth D

07/2009

weight : kg/m

hoogte Ramo Ramo D

type 22 15,50 17,60

type 33 22,20 24,30

type 44 28,80 30,90

volume : l/m

hoogte Ramo Ramo D

type 22 2,50 2,50

type 33 3,80 3,80

type 44 5,00 5,00

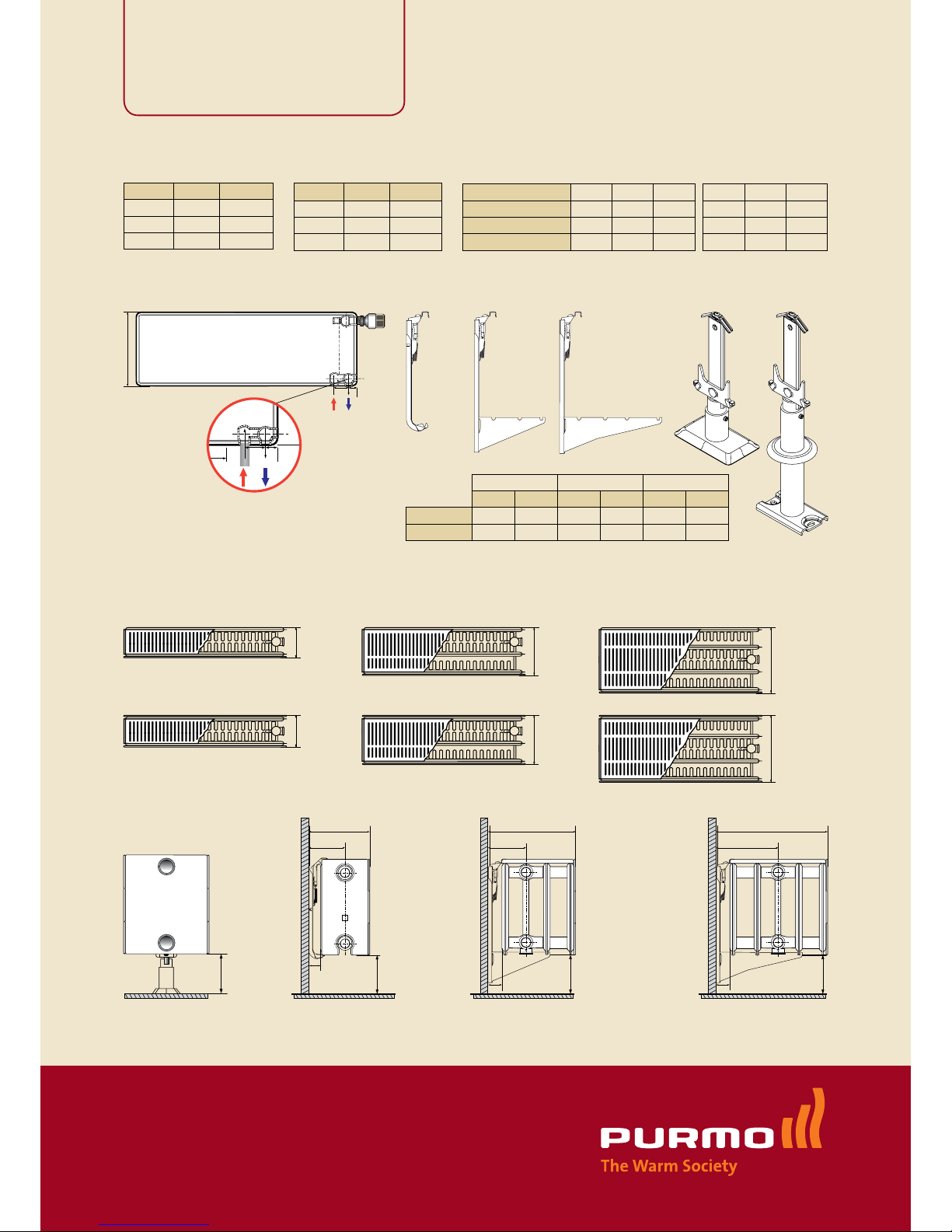

front view wall brackets and standing brackets

wall brackets

type 22 type 44

building on building in

standing brackets

200

50 30

type 33

type 22 type 33 type 44

wall foot wall foot wall foot

Ramo xxxxxx

Ramo D x x x

W/m & value n Ramo Ramo D

type 22 33 44 22 33 44

W/m - 75/65/20°C

778 1098 1381 747 1074 1341

W/m - 90/70/20°C

987 1402 1771 955 1370 1717

n-waarde 1,3030 1,3396 1,3644 1,3483 1,3361 1,3565

type 22 type 33 type 44

Ramo

Ramo D

D = double-sided front panel

104 mm type 22

154 mm type 33

204 mm type 44

106 mm type 22

156 mm type 33

206 mm type 44

Because the connection

valve is eccentric in the

radiator for type 33, the

measure b is 126 mm in

case of left connection.

type 22, 33, 44

100-120

a : 129 mm

b : 76 mm

c : 25 mm

type 22

c100-120

a : 179 mm

b : 76 mm

c : 25 mm

type 33

100-120

a : 229 mm

b : 126 mm

c : 25 mm

type 44

100-120

Usage wall or standing brackets: < 1600 mm : 2 pieces

1600 - 2400 mm : 3 pieces

> 2400 mm : 4 pieces

Note:

both the wall and standing brackets

have to be ordered separately.

Rettig Park - Drum Lane, Birtley, County Durham, DH2 1AB

Tel 0845 070 1090 - Fax 0845 070 1080 - [email protected].uk
