Pulsar NS 150 User manual
Table of Contents
Description
1. Technical Specifications 1
2. Identification Data 3
3. Location of Parts 5
4. Steering cum Ignition lock 7
5. Fuel Tank Cap / Fuel Tap 8
6. Speedometer Details 9
7. Speedometer Setting 11
8. Control Switches 13
9. Rear seat / Tool kit 15
10. Front Seat / Battery 16
11. Fitment of Front & Rear Seat 17
12. Daily Safety Checks 18
13. How to ride your Bike 19
14. Safe Riding Tips 23
15. Engine Oil 24
16. Wheels - Tube less Tyre 25
17. Battery 26
18. Periodic Maintenance Information 27
19. Brake Fluid 29
20. Periodic Maintenance & Lubrication Chart 30
21. Non Use Maintenance
Notice:
The description and illustration in this booklet
are not to be taken as binding on the
manufacturers. The essential features of the
type described and illustrated herein remaining
unaltered. Bajaj Auto Limited reserves the
right to carry out at any moment without
being obliged to bring this booklet upto-date
& to do modifications on the vehicle, parts or
accessories as may be convenient and
necessary.
Safety and Warning information :
Caution : This indicates that a potential
hazard which could result in vehicle
damage, if advice provided is not
followed.
Warning : This indicates that a potential
hazard or injury to you or other persons &
to the vehicle can happen, if advice
provided is not followed.
Engine :4 Stroke, Single Cyl.
Bore x Stroke :56.0 mm x 60.7 mm
Engine Displacement :149.5 cc
Compression Ratio :9.8 + 0.5 : 1
Idling Speed :1400 + 100 RPM
Max. Net Power :17 PS at 9500 RPM
Max. Net Torque :13 Nm at 7000 RPM
Ignition System :DC
Spark Plug :2 Nos
Spark Plug Gap :0.7 ~ 0.8 mm
Transmission :5 speed constant
mesh
Gear Shifting Pattern :1 Down 4 Up
Engine Lubrication :Forced Lubrication
Starting Aid :Electric / Kick start
Front Brake :Petal Disc type
Rear Brake :Drum type
Fuel Tank Capacity
Full :12 liters
Usable Reserve :2.4 liters
Unusable Reserve :0.2 liters
Dimensions : NS 150 AS 150
Length :2017 mm 2070 mm
Width : 803.5 mm 803.5 mm
Height :1075 mm 1205 mm
Wheel base :1363 mm 1363 mm
Ground clearance : 176 mm 170 mm
Tyre Size
Front :80/100-17,46P tubeless
Rear :110/80-17,57P tubeless
Tyre Pressure
2
Front :1.75 kgf/cm (25 PSI)
2
Rear (Solo) :2.00 kgf/cm (28 PSI)
2
Rear (with pillion) :2.25 kgf/cm (32 PSI)
Technical Specifications
1
Note :
• All dimensions are under UNLADEN condition.
• Above information is subject to change without
any notice.
Vehicle Kerb Weight :140 kg.(For )
143 Kg.(For AS 150)
Gross Vehicle Weight :270 kg. (For NS 150)
273 kg. (For AS 150)
NS 150
Electrical System :12 Volts DC
Head Lamp :High Beam - 12V 55W
Low Beam - 12V 55W
Position Lamp :3W (2 nos.)
Tail /Stop Lamp :LED type
Side Indicator lamp :10W (4 nos.)
Neutral Indicator :Green LED
Hi Beam Indicator :Blue LED
Turn Signal Indicator :Green LED
Side Stand Indicator :LCD
Speedometer Lamp :LCD
Low Battery Indicator : Red LED
Low Oil Pressure : Red LED
Service Reminder : LCD
Bajaj Logo : Blue LED
Rear No. Plate Lamp :3W
Horn :12V DC
Battery :12V - 4 Ah VRLA
2
Technical Specifications
Identification Data
The Frame and Engine serial numbers are used to register the motorcycle. They are the unique
alpha-numeric codes to identify your particular vehicle from others of the same model and type.
Engine Number Location
On LH Side Crankcase Near Gear
Change Lever (Alpha-Numeric - 11 Digits)
3
Frame Number Location (For NS 150)
On RH Side of Steering Tube
(Alpha-Numeric - 17 Digits)
On LH Side of Steering Tube
(Alpha-Numeric - 17 Digits)
[for applicable countries)
Identification Data
The Frame and Engine serial numbers are used to register the motorcycle. They are the unique
alpha-numeric codes to identify your particular vehicle from others of the same model and type.
Engine Number Location
On LH Side Crankcase Near Gear
Change Lever (Alpha-Numeric - 11 Digits)
4
Frame Number Location ( For AS 150)
Below Pillion Seat
(Alpha-Numeric - 17 Digits)
Location of Parts (Pulsar NS 150)
5
Grab Handle Pillion Seat Rider Seat
Front
Disc
Brake
Rear Brake
Pedal
Paper oil
Filter
Front Brake Lever
Rear
Number
Plate
Nitrox
Rear
Shock
Absorber

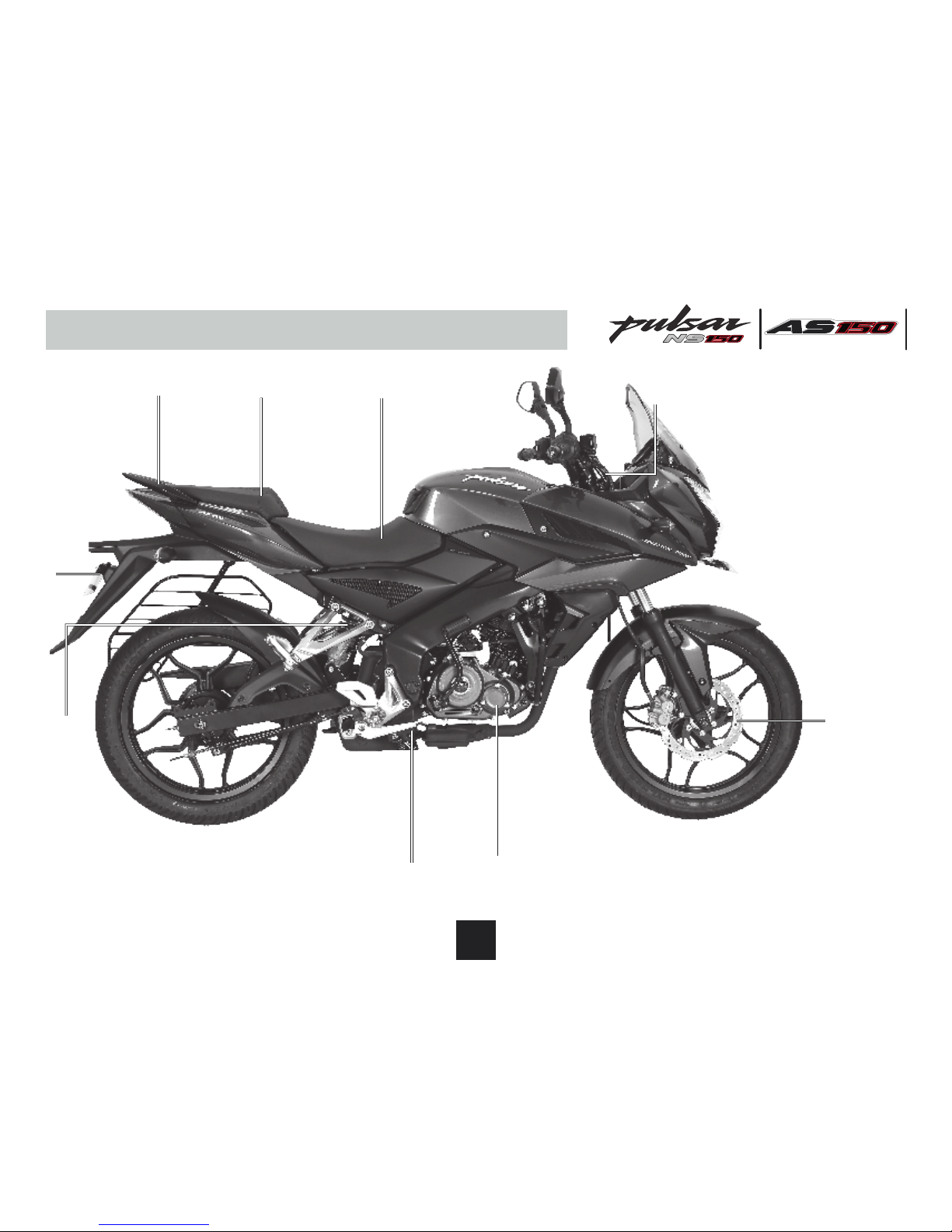

Location of Parts (Pulsar AS 150)
Grab Handle Pillion Seat Rider Seat
Front
Disc
Brake
Rear Brake
Pedal
Paper oil
Filter
Front Brake Lever
Rear
Number
Plate
6
Nitrox
Rear
Shock
Absorber
Steering cum Ignition Lock
To Lock the Steering : To lock the steering,
turn the handle bar to the left side. Push &
release the key. Turn the key to “LOCK”
position and remove the key. Steering lock
can be done on left side only.
To Unlock the Steering : To unlock steering,
insert the key in steering cum ignition lock &
turn it clockwise to “OFF” or “ON” position.
Key : A common key is used for ‘Steering
cum Ignition lock’, ‘Fuel tank cap’ & ‘Rear
Seat’.
Steering cum Ignition Lock :
It has three positions.
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
7
Fuel Tank Cap
• To open the fuel tank cap, open the flap.
Insert the key in the lock and turn it
clockwise and lift fuel tank cap.
• ‘Fuel Tank Cap’ gets locked when pushed
back into place.
Fuel Tank Cap / Fuel Tap
Fuel Tank Cap
8
Fuel Tap
Fuel tap has following positions.
Fuel Tap
ON : When fuel level is above
Reserve position.
RES: When fuel level is below
Reserve position.
OFF: When fuel supply is to be cut
off.
2
7
9
3
4
6
5
8
1
M
S
Speedometer Details
Speedometer display will work when, only both
Ignition switch & kill switch are in ‘ON’ position.
1. Fuel Level Indicator: It shows fuel level in fuel tank.
2. Tachometer Dial: It shows engine speed in RPM.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is turned to Left or Right, Turn pilot Indicator -
LH or RH will flash.
4. Neutral Indicator: When the transmission is in
Neutral, Neutral indicator will glow.
5. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
6.
charging.
7. Low Oil Pressure Indicator ( ) : It blinks when
engine oil pressure is low.
8. Bajaj Logo : Bajaj logo flying ‘B’ continuously glows.
9. Mode Button : Mode button used for changing the
mode while selecting & setting Trip1, Trip2, ODO,
Clock & Service reminder.
Low Battery Indicator : It indicates battery needs
9
