IMPORTANT! For safety reasons, the concrete wall must be
capable of supporting the combined weight of the mount and
the display. The manufacturer takes no responsibility for failure
caused by walls of insufficient strength.
1
2
INSTRUCTION MANUAL
FIXED
WALL MOUNT
FOR LCD, PLASMA,
and LED DISPLAYS
Display Size: 13” to 47”
Maximum Load: 20 kg (44 lbs)
Mounting Pattern: 200 mm x 200 mm (7.9” x 7.9”) max
Prole: 3.0 cm (1.2”)
Read these instructions before you begin. If you are unsure
of any part of the process, contact a professional contractor or
installer for assistance. Improper installation can result in injury
or damage.
The wall or mounting surface must be capable of supporting
the combined weight of the mount and the display; if not, the
structure must be reinforced.
Locate pipes, wires, or any other hazards in the wall where you
wish to install the mount before drilling.
Safety gear and proper tools must be used. Failure to do so
can result in injury or damage.
Two people are recommended for installation. Do not attempt
to lift a heavy display without assistance.
Follow all instructions and recommendations regarding
adequate ventilation and suitable locations for mounting your
display. Consult the owner‘s manual for your particular display
for more information.
CAUTION: This wall mount is intended for use only with the
maximum weight of 25 kg (55 lbs). Use with heavier than the
maximum weights indicated may result in instability causing
possible injury.
1
2
3
4
While another person holds the wall plate in position, mark two
locations (top and bottom) for securing the mount to the wall (see
Fig. 1).
Set the wall plate aside and drill a 3 mm (1/8”) pilot hole at each
marked location.
Place the wall plate back against the wall and attach it using the
lag bolts (A) and washers (B) provided (see Fig. 2). Do not
over-tighten these bolts and do not release the wall plate
until both bolts are in place. Ensure that the wall plate remains
level by using the bubble level (N) after tightening the bolts.
5
Use a high quality stud finder to locate a stud where you wish
to install your mount. Mark both edges of the stud to help
identify the exact center.
NOTE: You must use the center of each stud to avoid cracking
or splitting the wood during installation.
Place the wall plate against the wall with the arrow pointing
up and level it using the bubble level (N).
1
2
3
4
5
SPECIFICATIONS
BOX CONTENTS
HARDWARE KIT
TOOLS REQUIRED
Part 1A – Mounting to the Wall (Drywall)
(continued)
IMPORTANT! ! For safety reasons, this mount must be secured
to a wood stud capable of supporting the combined weight of
the mount and display. Do not mount to drywall alone.
Part 1A – Mounting to the Wall (Drywall)
INSTALLATION
WARNINGS
Fig. 3
Fig. 2Fig. 1
6
Phillips Head Screw Driver
Electric or Portable Drill
3 mm (1/8”) Drill Bit and Stud Finder for Drywall Installation
8 mm (5/16”) Masonry Bit for Concrete Installation
Wall Plate (x1)
Mount Arm (x2)
Instruction Manual (x1)
Hardware Kit (x1)

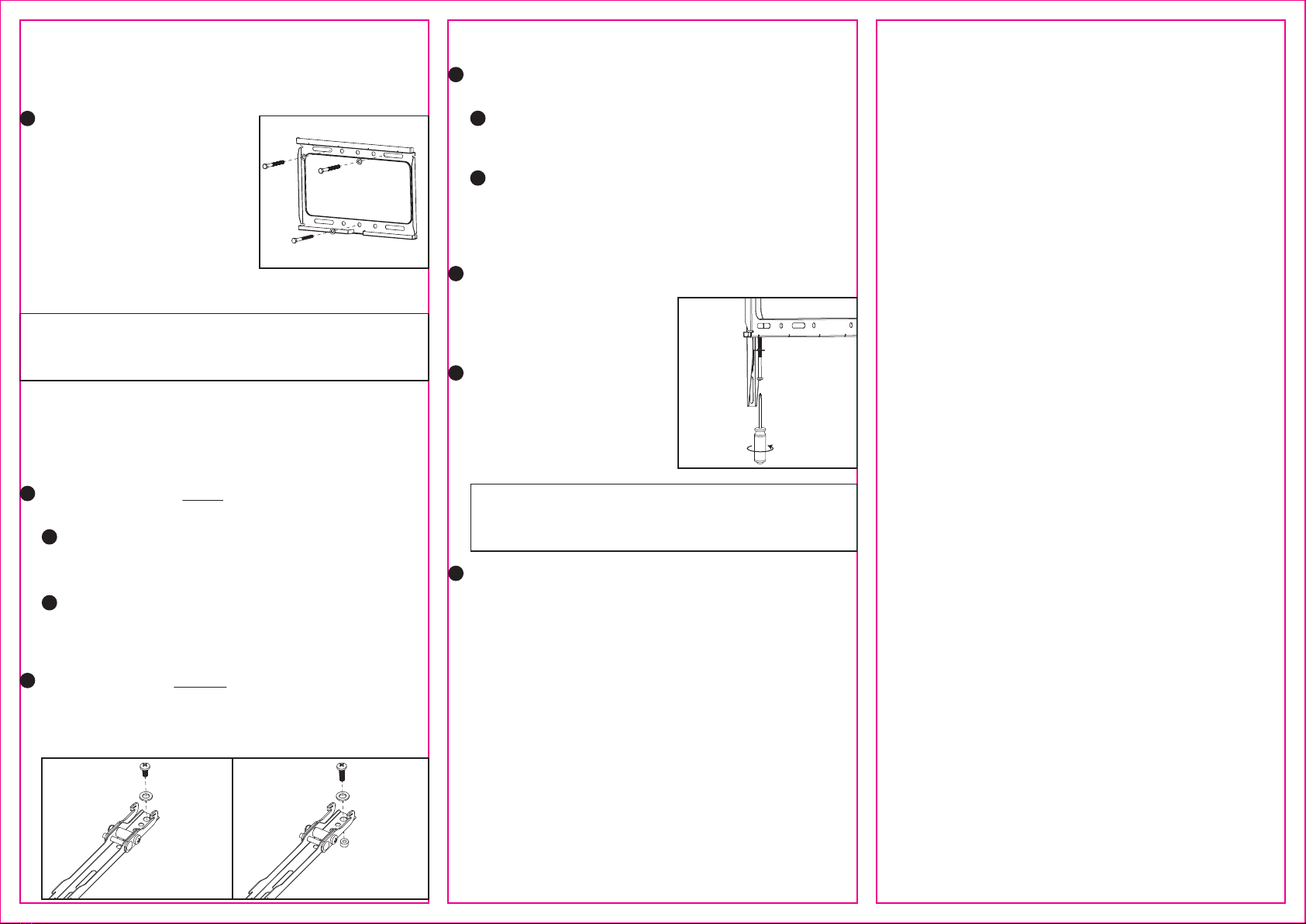

Part 1B – Mounting to the Wall (Concrete)
Place the wall plate against the
wall in the desired location with
the arrow pointing up and level it
using the bubble level (N).
While another person holds the
wall plate in place, mark three
locations on the wall for securing
the mount. Mark two locations at
the top of the wall plate and one
location at the bottom of the wall
plate (see Fig. 3).
Set the wall plate aside and drill an
8 mm (5/16”) hole at each marked
location. Remove any excess dust
from the holes.
Insert a concrete anchor (C) into
each hole so that it is flush with
the concrete surface (see Fig. 4). A hammer can be used to
lightly tap the anchors into place if necessary.
3
4
Fig. 4
(H) M6 x 15 Screw (x4)
(I) M8 x 15 Screw (x4)
(J) M8 x 30 Screw (x4)
(K) M8 x 50 Screw (x4)
(L) M8 Washer (x4)
(M) Spacer (x8)
(N) Bubble Level (x1)
(A) M6.3 x 63 Lag Bolt (x3)
(B) Lag Bolt Washer (x3)
(C) Concrete Anchor (x3)
(D) M4 x 15 Screw (x4)
(E) M4 x 50 Screw (x4)
(F) M5 x 15 Screw (x4)
(G) M5 washer (x4)
