Service
Never try to repair, dismantle or do some construction changes in case of any failure.
Always consult qualified employee or dealer. Not keeping this rule you can suffer
dangerous electric shock. Disconnect the device from mains before replacing the lamp or
dismantling the housing. Not keeping this procedure you can suffer dangerous electric
shock.
Always replace the lamp by consistent with used type or its equivalent.
Unplug mains lead before opening the housing and cleaning internal parts of device.
/optical system, dichroic filters, etc./ You can suffer dangerous damage of sight by
discharge light .

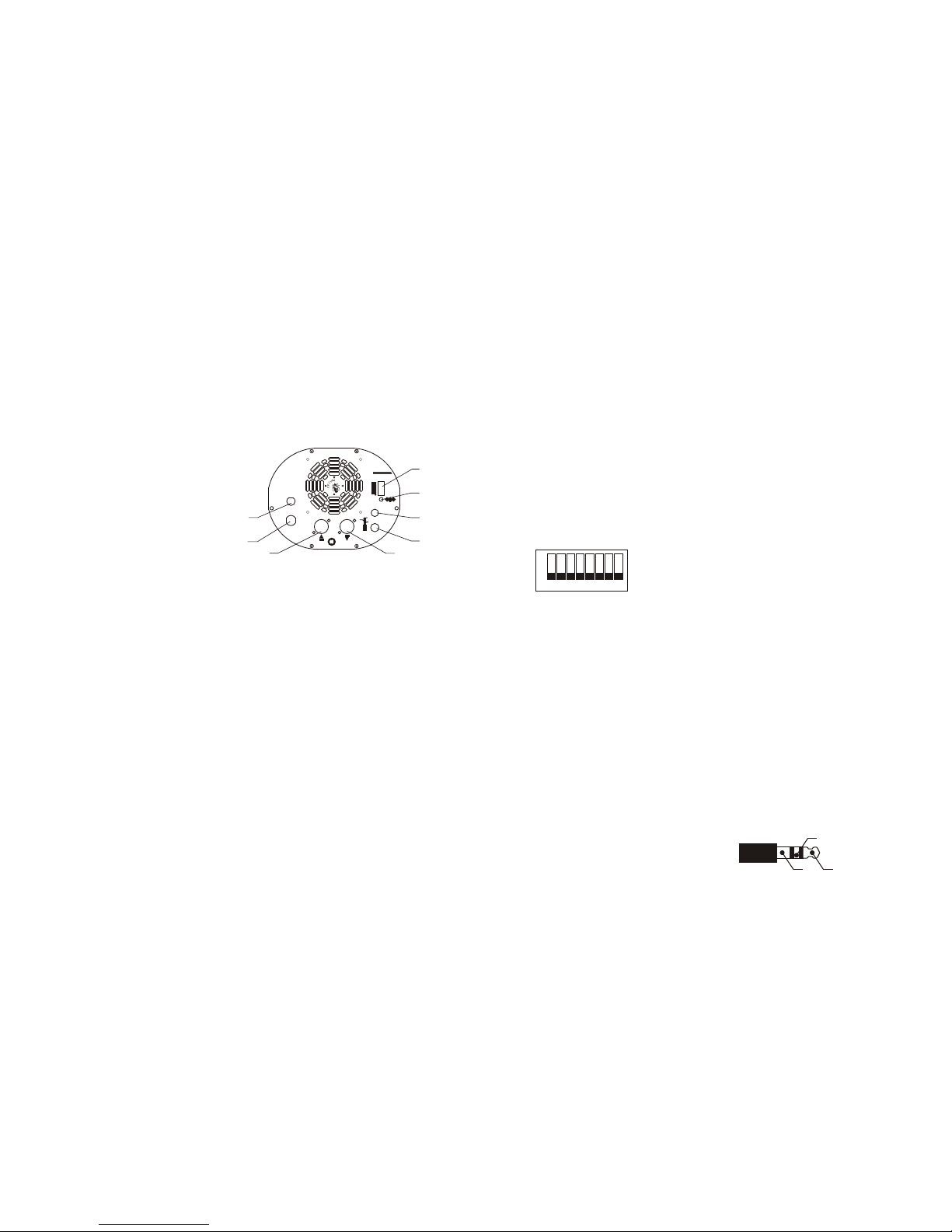

Description of the device
1- external input 0-10V
2 -microphone
3 -XLR /DMX input/
4 -XLR /DMX output/
5 -Power cord
6 -Fuse
7 -LED diode / indication of condition/
8 -DIP switch / function adjusting/
Unpacking
Unpack the device and after acclimatisation take off the protective foil. Make sure that
there are no damages caused by transportation.
Installation
The device can be installed in any position without altering its operation. For mounting
use bracket of device, which is a mounting hole in. First make sure that the structure you
are going to attach the projector is secure.
When installing the projector over the ground use the safe chain and steel-wire rope as a
double protection against falling down. Make sure the housing is closed firmly with the
screw tightened up.
It is necessary to ensure cooling fans against their covering / curtains etc./ and secure
ventilator and cooling fans to have admission of air.
Before opening the housing always disconnect the device from mains / power cord must
be unplugged from the socket/. Otherwise you can be set to dangerous electric shock.
The device is supplied from manufacturer without light power. These are types of light
power recommended by manufacturer.
version H250- 2x hal. lamp 24V/250W G/Y/ 6,35
Procedure
1-Loose fastening screw
2-Pull out the upper cover
3-If you replace the lamp, first take out original one you used before
4-Insert new lamp into the socket. Never touch the glass-bulb discharge lamp bare-
handed,always use bulb cover or dry cotton cloth or gloves.
5-Make sure that the lamp is installed tightly.
6-Close the cover and tighten fastening screw.
Connection to the mains
The device must always be connected behind the main switch .
Connection to the control signal
DMX512
FUSE
230V/50Hz
MIC
AN
A
L
O
G
CO
N
T
R
O
L
1-GND
3-DATA "+"
2-DATA "-"
DMX
DMX absent/error
Analog
DIP SWITCH
1-6 DMX address
7 Analog/DMX control
8 DMX program
DMX control
IN
OUT
GND
+10V
Control
0-10V
DMX512
(1990)4µs
BY USITT
1
2
34
5
6
7
8
Each function of device is addressed according to standard protocol DMX 512 /1990/4
us.It means, we can control this device by any other device, which provides signal
included in protocol DMX 512 by serial line. Connection is secured provided by screened
double-line ended by connector JACK 6,35 /1/4"/ or connector XLR with impedance
120ohm. If cable is not connected to external input 0-10V, the device works according to
program 1 /if 7DIP switch is adjusted well OFF/ and works according coming sound
pulses. If signal DMX 512 is connected to XLR input and if 7DIP is adjusted well-ON ,
functions controlled by 2 DMX consecutive channels.
The device offers you several procedure
>without controller connection /0-10V, DMX512/ - motors are rotating to the left or
right /PRG1/ according coming pulses
>with controller connection 0-10V- you have possibilities to adjust one of 12 built in
programs and to switch off light source / only h al.lamps to 50V and 500W/, look at
programs 0-10V
>with controller connection DMX512- you have possibility in dependance of 8DIP
switch to stimulate controlling as a memory 0-10V / it is 12 programs+BlackOut/, or
to adjust course, speed and switching light source.
DIP switch no.
1-6 DMX address(/schedule)
7 Analog (OFF)/ DMX512(ON) controlling
8 full DMX controlling(ON)12 programs (OFF)
Addressing of the device DIP1 DIP2 DIP3 DIP4 DIP5 DIP6
Address 1 ON ON ON ON ON ON
Address 2 OFF ON ON ON ON ON
Address3 ON OFF ON ON ON ON
Address 4 OFF OFF ON ON ON ON
Address 5 ON ON OFF ON ON ON
Address 6 OFF ON OFF ON ON ON
Addressing of the device you make by summary single DIP and by deduction 1. e.g.if you
want to address the device no. 30, adjust by DIP 29.
example DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 switch
1 2 4 8 16 32 value
device 30 OFF ON OFF OFF OFF ON =sum 29
Programs 0-10V /M1-motor no.1, M2-motor no.2/
Program description
1-basic mode /work during sound and change course/
2-M1 only to the left, M2 as a prg.1
3-M1 only to the right, M2 as a prg.1
4-as a prg.1 + adjusting of speed
5-M1 stops, M2 as a prg. 1
6-M1, M2 altered with stop
7-M1 as a prg.1, M2 stops
8-M1 as a prg.1 M2 only to the right
9-M1 as a prg.1, M2 only to the left
10-rotation M1to the left, M2 to the right + speed adjusting
11-break movement short fall time, function prg.1
ONON 1 2 3 4 5 6 7 81 2 3 4 5 6 7 8
GND +10V
Regulation 0-10V
