ProLights EclPanel TWCXL User manual

USER MANUAL

English version

REV.01-07/22

1.500W Tuneable White and colourful LED

soft light with pixels and lighting effects

EclPanel TWCXL

Thank you for choosing PROLIGHTS

Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements

for professionals and designed and manufactured for the use and application as shown in this document.

Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be

a source of danger.

This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively

applicable national accident prevention rules and regulations.

Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated

companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other

loss occasioned by the use of, inability to use or reliance on the information contained in this document.

Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial

PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).

Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad

set of always updated technical documentation: specications, user manual, technical drawings, photometrics,

personalities, xture rmware updates.

The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services

or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.

04026 - Minturno (LT) ITALY.

Visit the download area

of the product page

01PROLIGHTS - EclPanel TWCXL

INDEX

SAFETY INFORMATION 02

1 - PACKAGING 05

ECLPANELTWCXL PACKAGE CONTENT....................................................................... 05

ECLPANELXL1U PACKAGE CONTENT.......................................................................... 05

OPTIONAL ACCESSORIES............................................................................................. 05

2 - TECHNICAL DRAWING 06

3 - INSTALLATION 07

MOUNTING.................................................................................................................... 07

4 - CONNECTION TO THE MAINS SUPPLY 08

5 - START UP 08

CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 08

6 - PRODUCT OVERVIEW 09

7 - DMX CONNECTION 10

CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10

INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10

CONNECTION DAISY CHAIN........................................................................................ 10

CONNECTION OF THE DMX LINE................................................................................ 10

CONSTRUCTION OF THE DMX TERMINATION ........................................................... 11

DMX ADDRESSING ........................................................................................................ 11

ETHERNET OPERATION ................................................................................................ 11

ETHERNET TO DMX OPERATIONS ............................................................................... 11

OPERATION AS A WIRELESS TRANSMITTER................................................................ 12

IN TO WDMX ................................................................................................................. 12

OPERATION AS A WIRELESS RECEIVER........................................................................ 12

WDMX TO DMX (RX)...................................................................................................... 13

8 - CONTROL PANEL 14

DISPLAY AND BUTTONS LAYOUT................................................................................. 14

9 - MENU STRUCTURE 15

10 - DIMMER CURVES 18

11 - RDM FUNCTIONS 19

12 - DMX CHARTS 20

13 - ACCESSORIES INSTALLATION 86

SHORT BRACKET (CODE EPTWCXLSB - OPTIONAL) ................................................... 86

EGG CRATE (CODES EPTWCXLEC30, EPTWCXLEC60, EPTWCXLEC48C - OP.).......... 87

FRONT INTENSIFIED DIFFUSION FILTER (CODES EPTWCXLFILTERINT - OPTIONAL) 88

FRONT HIGH / MEDIUM / LOW DIFFUSION FILTER (CODES EPTWCXLFILTERHD / MD

/ LD - OPTIONAL)........................................................................................................... 88

14 - MAINTENANCE 89

MAINTENANCE AND CLEANING THE PRODUCT........................................................ 89

REPLACING THE FUSE................................................................................................... 89

VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 89

TROUBLESHOOTING..................................................................................................... 90

02 PROLIGHTS - EclPanel TWCXL

SAFETY INFORMATION

WARNING!

• Please read carefully the instruction reported in this section before installing, power-

ing, operating or servicing the product and observe the indications also for its future

handling.

This unit is not for household and residential use, only professional applications.

Connection to mains supply

• The Connection to the mains supply must be carried out by a qualied electrical

installer.

• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected

to ground (earth).

• Select the cable cross section in according with the maximum current draw of the

product and the possible number of products connected at the same power line.

• The AC mains power distribution circuit must be equipped with magnetic+residual

current circuit breaker protection.

• Do not connect it to a dimmer system; doing so may damage the product.

Protection and Warning against electrical shock

• Do not remove any cover from the product, always disconnect the product from AC

power before servicing.

• Ensure that the xture is electrically connected to ground (earth). And use only a

source of AC power that complies with local building and electrical codes and has

both overload and ground-fault (earth-fault) protection.

• Before using the xture, check that all power distribution equipment and cables are

in perfect condition and rated for the current requirements of all connected devices.

• Isolate the xture from power immediately if the power plug or any seal, cover, ca-

ble, or other components are damaged, defective, deformed or showing signs of

overheating.

• Do not reapply power until repairs have been completed.

• Refer any service operation not described in this manual to PROLIGHTS Service team

or an authorized PROLIGHTS service center.

Installation

• Make sure that all visible parts of the product are in good visible condition before its

use or installation.

• Make sure the point of anchorage is stable before positioning the projector.

• When suspending the xture above ground level, secure it against failure of primary

attachments by attaching a safety cable that is approved as a safety attachment for

the weight of the xture to the attachment point on the main frame of the product. ln

case the safety cable, enter in action, it needs to be replaced with a new one.

• Install the product only in well ventilated places.

• For non temporary installations, ensure that the xture is securely fastened to a load-

bearing surface with suitable corrosionresistant hardware.

• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or

screws are turned fully, and secured with a suitable safety cable.

0,5 m Minimum distance of illuminated objects

• The projector needs to be positioned so that the objects hit by the beam of light are

at least 0.5 meters (1.64 ft) from the lens of the projector.

03PROLIGHTS - EclPanel TWCXL

T 45°

Max operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

-10°

Minimum operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) is below -10 °C (-14 °F).

Protection from burns and re

• The exterior of the xture becomes hot during use. Avoid contact by persons and

materials.

• Ensure that there is free and unobstructed airow around the xture.

• Keep ammable materials well away from the xture

• Do not expose the front glass to sunlight or any other strong light source from any an-

gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.

• Do not attempt to bypass thermostatic switches or fuses.

Indoor use

• This product is designed for indoor and dry environments.

• Do not use in wet location and do not expose the xture to rain or moisture.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture.

• Damages caused by inadequate cleaning or maintenance are not covered by the

product warranty.

80°

Temperature of the external surface

• The surface of the xture can reach up to 80 °C (176 °F) during operation. Avoid

contact with people and materials.

Maintenance

• Warning! Disconnect the xture from AC mains power and allow to cool for at least

10 minutes before handling.

• Only technicians who are authorized by PROLIGHTS or Authorised service partners

are permitted to open the xture.

• Users may carry out external cleaning, following the warnings and instructions pro-

vided, but any service operation not described in this manual must be referred to a

qualied service technician.

• Important! Excessive dust, smoke uid, and particle build up degrades performance,

causes overheating and will damage the xture. Damages caused by inadequate

cleaning or maintenance is not covered by the product warranty.

Photobiological safety

• This device emits potentially dangerous optical radiation and is identied in the cat-

egory of Risk Group 2 according to EN 62471.

Do not stare at the operating light source

• Do not look directly at the LED source during operation. It can be harmful to the eyes

and skin.

• During Installation, operation and maintenance, be prepared for the xture to light

and move suddenly when connected to power.

• The device should be positioned so that prolonged staring into the luminaire at a

distance closer than 8.21 m (26.95 ft) is not expected.

04 PROLIGHTS - EclPanel TWCXL

Minimun

distance

Risk

Group 2

Risk

Group 1

0.2 m

0.7 ft

8.21 m

26.93 ft

Disposal

• This product is supplied in compliance with European Directive 2012/19/EU – Waste

Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-

pose/ recycle this product at the end of its life according to the local regulation.

The products to which this manual refers comply with:

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).

• 2014/30/EU - Electromagnetic Compatibility (EMC).

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

• 2014/53/EU - Radio Equipment Directive (RED).

The products to which this manual refers comply with:

• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.

• UL 1012 + CSA C22.2 No. 107.1 - Standard for power units other than class 2.

FCC Compliance:

• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may

cause undesired operation.

Other approvals

• The product meets the safety requirements of the certification procedures of the

market in which it is placed and sold.

05PROLIGHTS - EclPanel TWCXL

1 - PACKAGING

ECLPANELTWCXL PACKAGE CONTENT

• 1x ECLPANELTWCXL.

• 1x 1,5 meters power cable (BARE END - 32A NEUTRIK POWERCON TRUE1 IP65).

• 1x EPTWCXLSPG: spigot for ECLPANELTWCXL.

• User Manual.

ECLPANELXL1U PACKAGE CONTENT

• 1 x ECLPANELTWCXL with egg crate and lter installed on-board.

• 1 x EPTWCXLSB.

• 1 x EPTWCXLEC48C.

• 2 x EPTWCXLEC30 or EPTWCXLEC60.

• 3 x EPTWCXLFILTER.

OPTIONAL ACCESSORIES

• FCLPANELXL1U: ight case for 1 pcs of ECLPANELTWCXL.

• EPTWCXLFILTERINT: front intensied diffusion lter for ECLPANELTWCXL.

• EPTWCXLFILTERHD: front high diffusion lter (less output) for ECLPANELTWCXL.

• EPTWCXLFILTERMD: front low diffusion lter (more output) for ECLPANELTWCXL.

• EPTWCXLFILTERLD: front low diffusion lter (more output) for ECLPANELTWCXL.

• EPTWCXLEC30: 30 degree egg crate for ECLPANELTWCXL.

• EPTWCXLEC60: 60 degree egg crate for ECLPANELTWCXL.

• EPTWCXLEC48C: 48 chambers egg crate for ECLPANELTWCXL.

• EPTWCXLSB: short bracket for ECLPANELTWCXL.

• MENAC3FCHC: power-con 32A cable mount straight connector, IN 32A (1P+N+E).

• EPTWCXLSG40: 40° SnapGrid, for ECLPANELTWCXL by DoP choice.

• EPTWCXLSRXL: fat-Rabbit for ECLPANELTWCXL by DoP choice.

• EPSRXLSBRED8: SNAPBAG 8ft DoubleHEX for ECLPANELTWC fat-rabbit (EPTWCXLSRXL).

• EPSRXLSBRER65: SNAPBAG 6' x 5' for ECLPANELTWC rabbit-ears (EPTWCXLSRXL).

• EPSBRER65SG40: 40° SnapGrid, to be mounted on SnapBag 6' x 5' (EPSRXLSBRER65).

• WSBBF1G5: blackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch.

• WSBBF1G6: blackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX.

• WSBBR512G5: blackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional.

• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX.

• TOUR53415L03BK: dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m.

• C6040A/B: aluminum clamp for 28mm spigot, 250kg load, 48-51mm tubes, silver/black.

• C6044A/B: quick-trigger slim clamp for 28mm spigot, 100 kg load, 40-70 mm tubes, silver/black.

• C6046A/B: aluminum clamp for 28mm spigot, 100kg loa, 40-55mm tubes, silver/black.

• RSR0630A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black.

• UPBOX1UP5: rmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT.

06 PROLIGHTS - EclPanel TWCXL

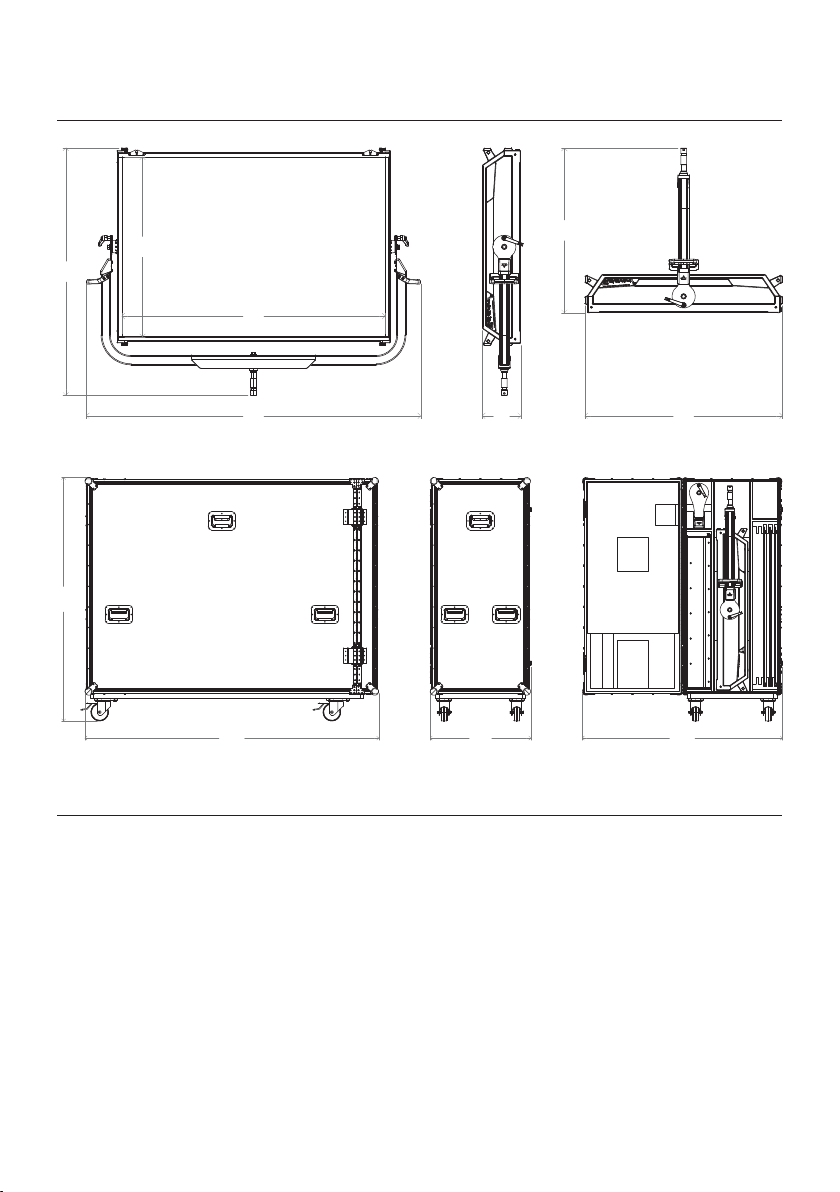

2 - TECHNICAL DRAWING

1623

[63.9]

1201

[47.3]

959

[37.8]

800

[31.5]

186

[7.3]

873

[34.4]

1279

[50.3]

1419 mm

[55.9 in]

1711 mm

[67.4 in]

586 mm

[23.1 in]

1165 mm

[45.9 in]

Fig. 01

Weight: 48,7 kg - 107,36 lbs

Empty weight: 125 kg - 275,58 lbs

Full weight: 225 kg - 496,04 lbs

07PROLIGHTS - EclPanel TWCXL

Fig. 02

3 - INSTALLATION

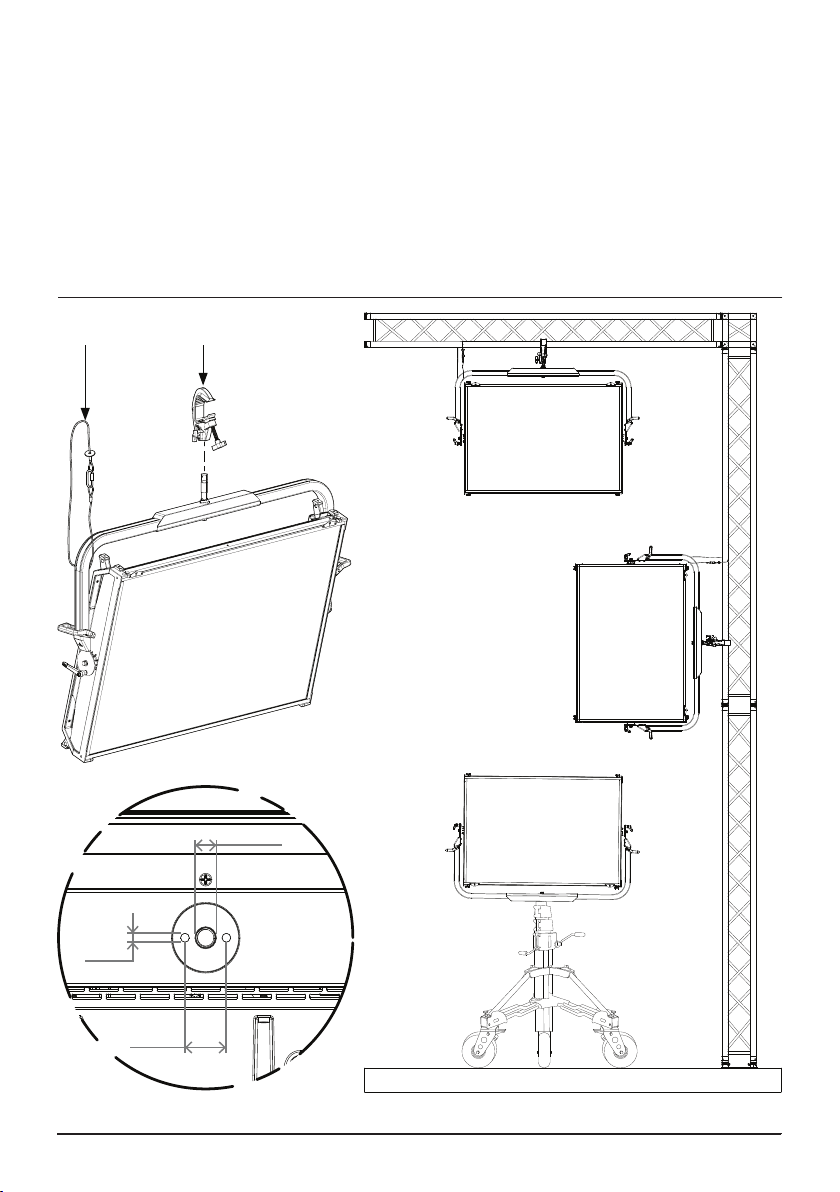

MOUNTING

Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,

auxiliary equipment, etc. and complies with locally applicable regulations.

When suspending the xture above ground level, secure it against failure of primary attachments by

attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor

point on the product main frame.

Do not use removable parts or weak anchors for secondary attachment.

Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-

pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

RSR0630A/B

steel security cable

C6046

clamp

25 mm

1.0 in

Ø13 mm

0.5 in

Ø5 mm

0.2 in

08 PROLIGHTS - EclPanel TWCXL

5 - START UP

CONNECT AND DISCONNECT POWER FROM THE PRODUCT

To apply and disconnect power to the product:

• Check that the product is installed and secured as indicated in the Safety Informations, and that

personal safety will not be put at risk when the xture lights up.

• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).

• The product is then ready for its operations and can be controlled through the available input sig-

nals on board.

• To disconnect power from the product, disconnect the Mains from the socket.

4 - CONNECTION TO THE MAINS SUPPLY

WARNING: For protection from electric shock, the xture must be earthed!

The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz

AC power source from 100-240 Volts.

If you need to install a power plug on the power cable to allow connection to power outlets, install a

grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts

about proper installation, consult a qualied electrician.

The max power consumption is 1600 W.

Core (EU) Core (US) Connection Plug terminal marking

Brown Black Live L

Blue White Neutral N

Yellow+green Green Earth

Table of contents

Other ProLights Lighting Equipment manuals

ProLights

ProLights EXPLO3000D User manual

ProLights

ProLights SOLAR48Q User manual

ProLights

ProLights WIFIBox User manual

ProLights

ProLights DIGIDRIVERIP User manual

ProLights

ProLights Astra Profile400 User manual

ProLights

ProLights EclDisplay UN User manual

ProLights

ProLights Stark Bar1000 User manual

ProLights

ProLights ARCLED5118 User manual

ProLights

ProLights EclMini CC User manual

ProLights

ProLights ECLIPSEPARFC User manual

ProLights

ProLights ECLFR2KTU-DY User manual

ProLights

ProLights spider User manual

ProLights

ProLights Astra Wash19Pix User manual

ProLights

ProLights ECLIPSEJZIP User manual

ProLights

ProLights EclNanoPanel TWC User manual

ProLights

ProLights AIR6PIX User manual

ProLights

ProLights LUMIPIX6Q User manual

ProLights

ProLights ArcShine S9-18FC User manual

ProLights

ProLights Jet Hybrid200 User manual

ProLights

ProLights Astra Wash19PixIP User manual

ProLights

ProLights EclFresnel CT+M User manual

ProLights

ProLights RAZOR440 HYBRID BEAM User manual

ProLights

ProLights EclMiniProfile WDMX User manual

ProLights

ProLights EclGalleryProfile FC User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
