ProFusion PH-9100WS User manual

10,000W HEAVY DUTY HEATER

OWNER’S MANUAL

Model No.: PH-9100WS

10000W 240V 60Hz

7500W 208V 60Hz

IMPORTANT INSTRUCTIONS

READ & SAVE

PET OWNERS WARNING:

The health of some small pets including birds are extremely sensitive to the fumes

produced during the first-time use of many appliances. These fumes are not harmful

to humans but we recommended that you do not use your heater around birds and

small pets during its initial use until the manufacturing corrosion coatings burn off.

Technical support: 1-866-206-0888

Service email: [email protected]

TABLE OF CONTENTS

Important Instructions……………………………………… 3

Specifications and Wiring Diagram………………………. 4

Parts of the heater ……………………….………………… 4-5

Installing Instructions……………………….……………… 5-7

Operating Instructions……………………….………….... 7

Maintenance and Cleaning………………………………. 7

Troubleshooting……………………………………………. 8

IMPORTANT INSTRUCTIONS

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER

NOTE: There may be a trace of smoke or odor when unit is first operated. Don’t be

alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing

process. It will quickly evaporate and should not re-occur.

Make sure that the room in which the appliance is located is well ventilated during this

operation. It is normal for the appliance to emit small cracking sounds when you turn it on

for the first time. Do not be alarmed.

WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE

FOLLOWED TO REDUCE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY TO PERSONS

OR PROPERTY, INCLUDING THE FOLLOWING:

1) Read all instructions before using this heater.

2) This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep

combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3’

(0.9 m) from the front of the heater and keep them away from the sides and rear.

3) Extreme caution is necessary when any heater is used by or near children or invalids and

whenever the heater is left operating and unattended.

4) Always switch off the heater when not in use.

5) Do not operate any heater after the heater malfunctions has been dropped or damaged in any

manner. Disconnect power at service panel and have heater inspected by a reputable electrician

before reusing.

6) Do not use outdoors.

7) To disconnect heater, turn off power to heater circuit at main disconnect panel.

8) Do not install less than 6 feet (1.8m) high from the floor and closer than 1 foot (0.3m) to any

adjacent vertical surfaces or walls. Keep at least 4.5 inches (11.5cm) from the back wall (with or

without using the wall hanging mounting bracket).

9) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may

cause an electric shock or fire, or damage the heater.

10) To prevent a possible fire, do not block air intakes or exhaust in any manner.

11) A heater has hot and arcing or sparking parts inside. To reduce the risk of fire, do not use it in

areas where gasoline, paint, or flammable vapors and liquids are used or stored.

12) Use this heater only as described in this manual. Any other use not recommended by the

manufacturer may cause fire, electric shock, or injury to persons.

13) This product must be installed by a certified electrician, in accordance with local codes.

14) For supply cables, use 10 AWG (5.3 mm2) copper wires .

15) WARNING – RISK OF FIRE, DO NOT USE AS A RESIDENTIAL OR HOUSEHOLD HEATER.

CAUTION – High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other

combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.

SAVE THESE INSTRUCTIONS

10,000W HEAVY DUTY HEATER

Model : PH-9100WS

Voltage : 1-Phase 208 / 240 V

Watts: 7500 / 10000 W

Frequency: 60 Hz

Recommended Heating Capacity: 1.25 watts / ft³(0.03m³)

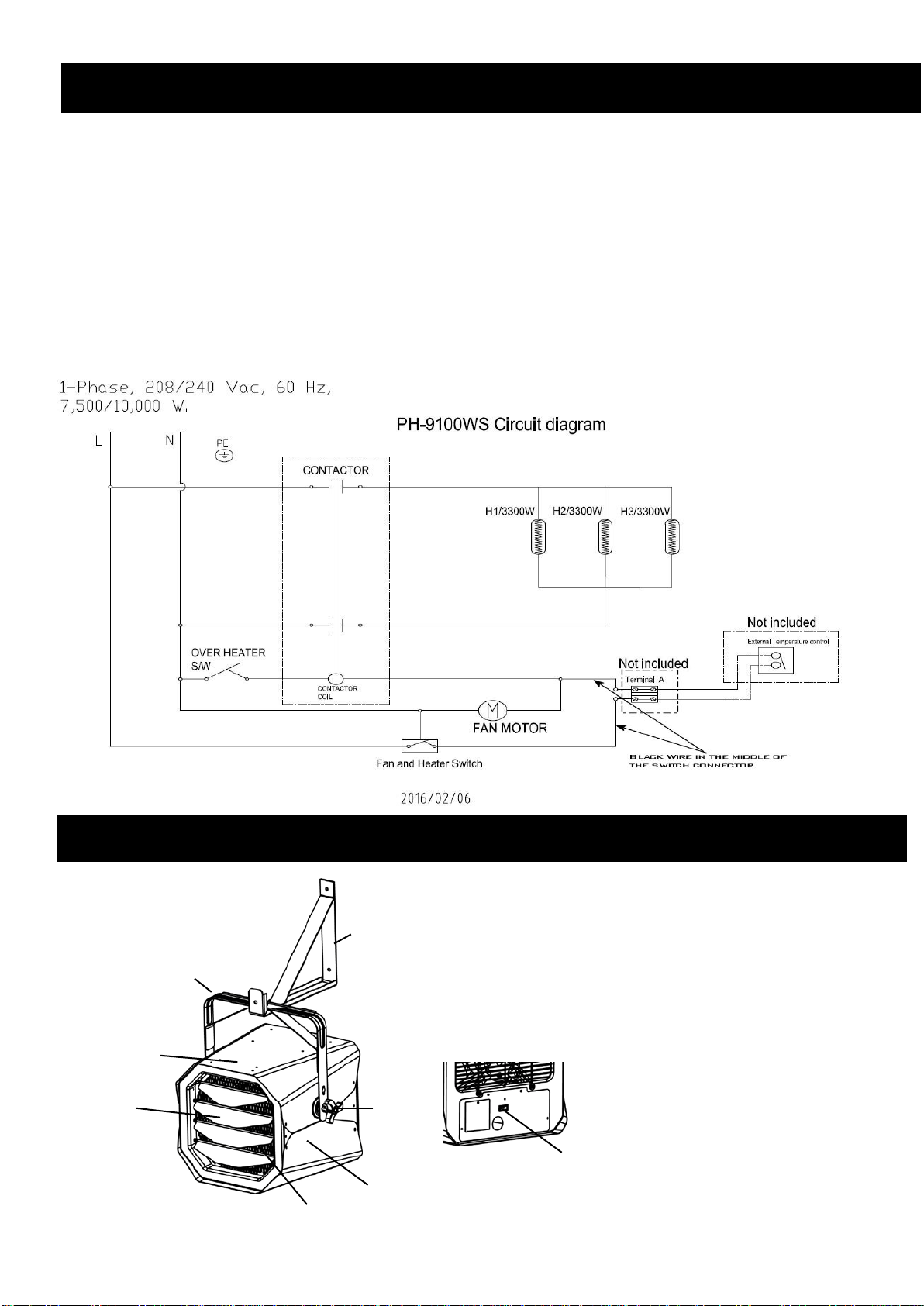

Wiring diagram:

PARTS OF THE HEATER

SPECIFICATIONS

PH-9100WN

A. Wall Mount Bracket

B. Ceiling Bracket

C. Upper Housing

D. Louver for air direction

E. Tilt adjustable knob

F. Down Housing

G. Front Exhaust Grill

H. ON/OFF Switch

WARNING: All wiring must be installed by a certified electrician according to the electrical safety.

The ceiling heater must be grounded in accordance with all national and local building codes.

All Wiring procedures and connections shall be in accordance with the national and local

codes having jurisdiction.

NOTE: Compatible with a 240V Line Voltage Double Pole Wall Thermostat. Must be installed

by a Certified Electrician.

Before installation:

Disconnect the main supply connection.

Supply cables shall be 10 AWG (5.3 mm2) copper wires.

The heater must be connected to individual branch circuit protected by 60 Amp circuit breaker only.

Supply cables must be equipped with a dual pole circuit breaker rating at least 240V 40A/pole as

main cutoff switch of power connection to the heater.

Wiring compartment for accommodating supply cables and pigtail leads are adequate and

measured free space of 2524.67 cm3.

CAUTION : High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other

combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.

WARNING: To reduce the risk of fire, do not store or use gasoline or other flammable vapors

and liquids in the vicinity of the heater.

INSTALLATION INSTRUCTION:

1. Keep the unit at least 6 feet (1.8m) away from the floor. This minimum distance must be

maintained.

2. Do not install closer than1 foot (or 0.3 m) to any adjacent vertical surfaces or walls.

3. Keep at least 4.5 inches (11.5cm) from the back wall (with or without using the wall hanging

mounting bracket).

4. Mark the drill-hole positions on the wall or ceiling for the mounting bracket.

5. Drill the required holes with diameter fit for the anchor provided for positioning the mounting

bracket.

6. Insert the anchors.

INSTALLATION INSTRUCTIONS

Wall Mount

Ceiling Mount

7. Attach the mounting bracket to the wall and secure with mounting screws.

8. Loose the tilt adjustment knobs, remove the cart.

9. Align the Hang Bracket to the knob screw holes.

10. Re-insert the knob and tighten.

11. Hook the unit to the mounting bracket and let the unit hang from the mounting bracket.

12. Insert the bolt provided through the mounting bracket and the heater handle; tighten with the

nut and washer.

13. Loosen the screw to remove the small cover in the rear of the heater.

14. Run the electrical power supply cable in conduit.

15. Secure the conduit to the back plate via the knock-out hole.

16. Make the connections properly with connectors which are suitable for the conductor size, in

cluding grounding wirings.

Pull all the conductors from the conduit. Strip 3/4 inch of insulation from each of the insulated

conductors. Make a right angle bend in the white insulated pigtail and place its stripped end next

to the stripped ends of the other white supply cable. Make sure that the bare ends are tight

together and square. Using lineman's pliers, twist the bare ends tightly together in a clockwise

direction, then screw one of the wire nuts tightly on the spliced conductors. Check to be sure

that no bare copper shows from beneath the wire nut. Repeat these steps for the black

conductor. Once the wire nuts are firmly in place, cover them with plastic electrical tape. The

grounding conductor is spliced in the same manner.

Wall Mount

Ceiling Mount

17. And after making the connections, arrange the pigtail leads of unit and power supply wires in

the wiring compartment.

18. Replace the wiring cover and lock in place with the screw.

19. Consult NEC code for other types of approved electrical wire splices & wire connectors.

WARNING -The heater must be properly installed before it is used.

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH :

Apply appropriate personal protective equipment (PPE) and follow safe electrical

workpractices. See NFPA 70E.

A circuit breaker must be installed and serviced only by qualified electrical personnel.

Always use a properly rated voltage sensing device to confirm power is off.

The switch on the heater is to start the Fan and Heater. Use the circuit

breaker as power ON/OFF device. The circuit breaker is to be installed by

certified electrican and shall be located in line of sight from the heater

location or shall be capable of being locked in open position. Follow the

operating instruction to reduce the risk of fire, electric shock, injury or death

to persons.

Switch on the circuit breaker to turn on the heater power.

Press the switch at the back of the heater to turn on the fan and heating function.

To turn off the heater, press the switch turn off the fan and heating function. And then switch

off the circuit breaker. The circuit breaker serves as the power disconnection

means.

There is no user maintenance part except regular cleaning as following description. All other

servicing or maintenance should be performed by qualified service personnel.

Before any cleaning, make sure that:

1. Disconnect power supply at source.Switch off the circuit breaker.

2. Wait for 60 minutes to ensure the heating element has cool down, and your heater is now

ready for cleaning.

Regular Cleaning:

1. Do not use cleaning liquid or other chemicals to spray on the unit.

2. Interior dust can often be removed by using a vacuum cleaner with a crevice tool attachment.

3. To clean enclosure, use a clean, soft and lightly damp cloth to gently wipe off the dirt from the

surface of the unit. Be sure not to wet the heating element and the switches. Allow the unit to

dry completely before using it.

CAUTION: DO NOT ALLOW WATER TO RUN INTO THE INTERIOR OF THE HEATER AS THIS

COULD CREATE A FIRE OR ELECTRIC SHOCK HAZARD, DAMAGING THE UNIT.

MAINTENANCE AND CLEANING

OPERATING INSTRUCTIONS

If your heater fails to operate, please follow these procedures:

This heater is intended to be a ceiling-mounted heater. It has a thermal cut-off protection. If the

thermal cut-off protection trips, then, switch off the power. Switch off the circuit breaker.The

unit should reset automatically after 10 minutes. If the thermal cut-off protection trips again,

consult a certified electrician to determine the reason for overheating.

Problem

Probable Cause

Solution

Unit is not

heating.

Overheat protection has temporarily

deactivated the heater.

Turn the heater OFF; Switch off the

circuit breaker.Wait 10 minutes before

turning on the heater

Breaker/Fuse has been tripped.

Check your electrical box to confirm the

breaker has not been blown. This may

occur if the receptacle is shared between

other high consumption appliances.

The heater

is producing

a burning

smell.

Check & ensure there are no

combustible materials within 0.9

meters (3 feet) surrounding the

heater.

Remove any combustible items from the

heater.

A drop of oil fell on the heating coil

during the manufacturing process. It

will quickly evaporate and should not

occur again.

Ensure room in which heater is situated is

well ventilated.

Ensure a minimum clearance of 4.5

inches (11.5 cm) from both sides and

rear of heater to adjacent walls.

Reposition the heater so there is enough

space around the heater to the adjacent

walls.

PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF. DOING SO

COULD CAUSE DAMAGE OR PERSONAL INJURY.

TROUBLESHOOTING
