Pro-Form 1350 User manual

USERʼS MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEX19810.0

Serial No.

Write the serial number in the

space above for reference.

www.proform.com

QUESTIONS?

f you have questions, or if parts are

damaged or missing, DO NOT

CONTACT T E STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON T E WEB:

www.proformservice.com

Serial Number

Decal

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

PART DENTFCATONCHART ..............................................................5

ASSEMBLY ...............................................................................6

HOWTOUSETHEEXERCSEBKE .........................................................11

FCC NFORMATON.......................................................................23

MANTENANCEANDTROUBLESHOOTNG ...................................................24

EXERCSEGUDELNES ...................................................................25

PARTLST ..............................................................................26

EXPLODEDDRAWNG ....................................................................27

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

PROFORM is a registered trademark of CON P, nc.

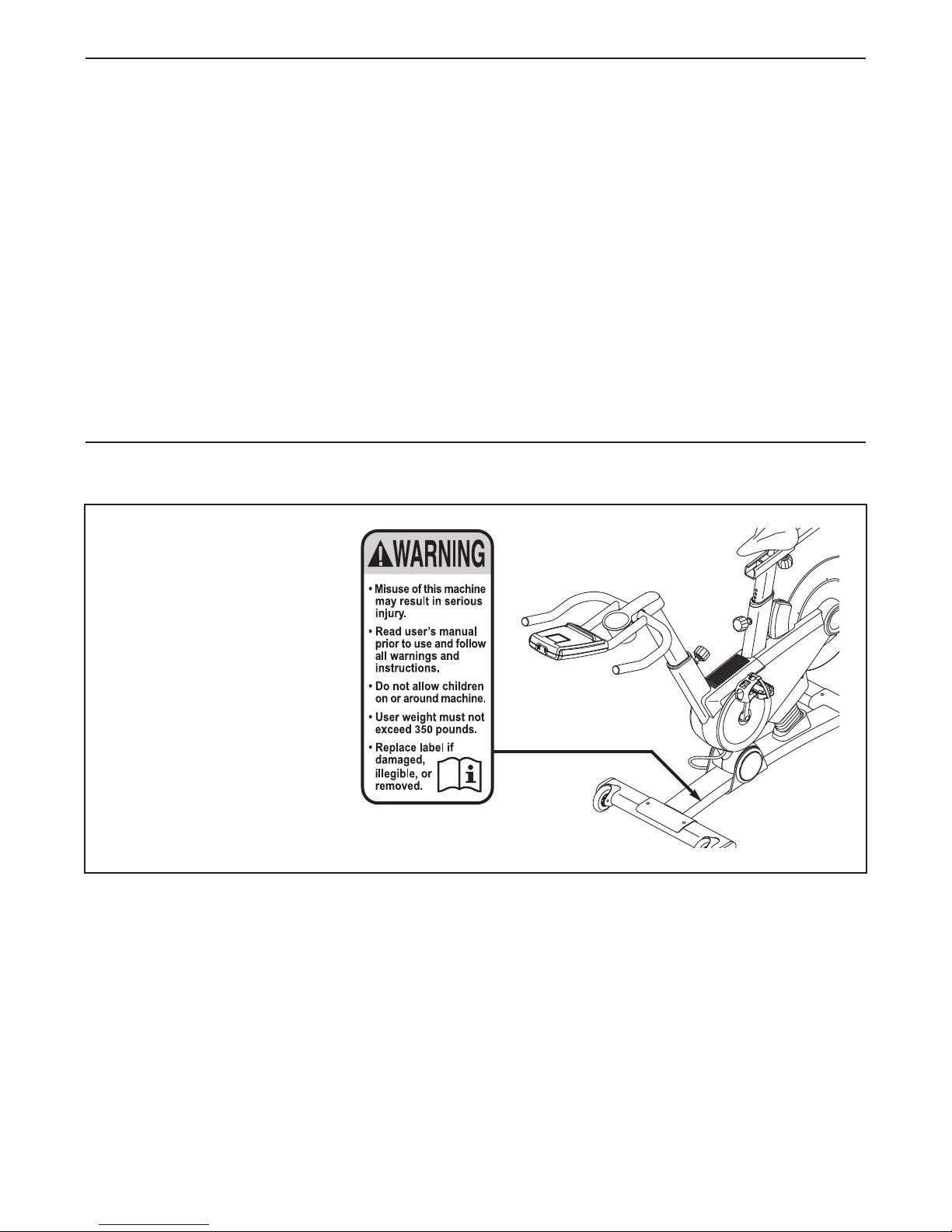

WARNING DECAL PLACEMENT

This drawing shows the

location(s) of the warning

decal(s). If a decal is

missing or illegible, see

the front cover of this

manual and request a

free replacement decal.

Apply the decal in the

location shown. Note: The

decal(s) may not be shown

at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise bike only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface,

with a mat beneath it to protect the floor or

carpet. Make sure that there is at least 2 ft.

(0.6 m) of clearance around the exercise bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used by

persons weighing more than 350 lbs.

(159 kg).

11. Always keep your back straight while using

the exercise bike; do not arch your back.

12. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

Thank you for selecting the new PROFORM®1350

exercise bike. Cycling is an effective exercise for

increasing cardiovascular fitness, building endurance,

and toning the body. The 1350 exercise bike provides

a selection of features designed to make your work-

outs at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. f you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

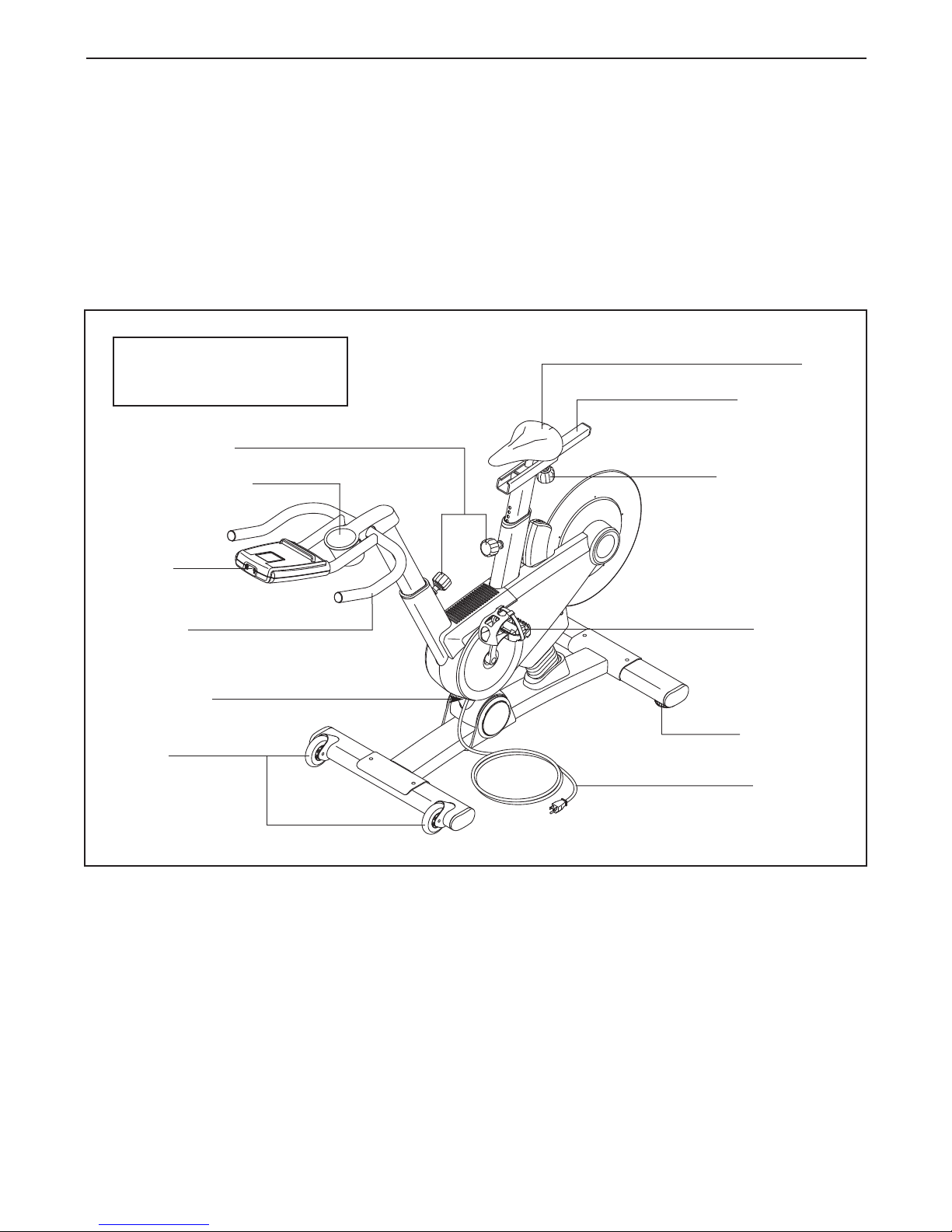

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Seat

Adjustment Knob

Seat Carriage

Adjustment Knob

Handlebar

Water Bottle Holder

Wheels

BEFORE YOU BEGIN

Pedal/Strap

Console

Leveling Foot

Power Cord

Power Switch

Length: 4 ft. 10 in. (147 cm)

Width: 2 ft. 1 in. (64 cm)

5/16" x 3/4" Patch

Screw (92)–1

#8 x 3/4"

Screw (94)–6

5/16" x 2 1/4" Patch

Screw (81)–1

#8 x 1/4"

Screw (70)–1

3/8" x 2 1/4" Patch

Screw (74)–4

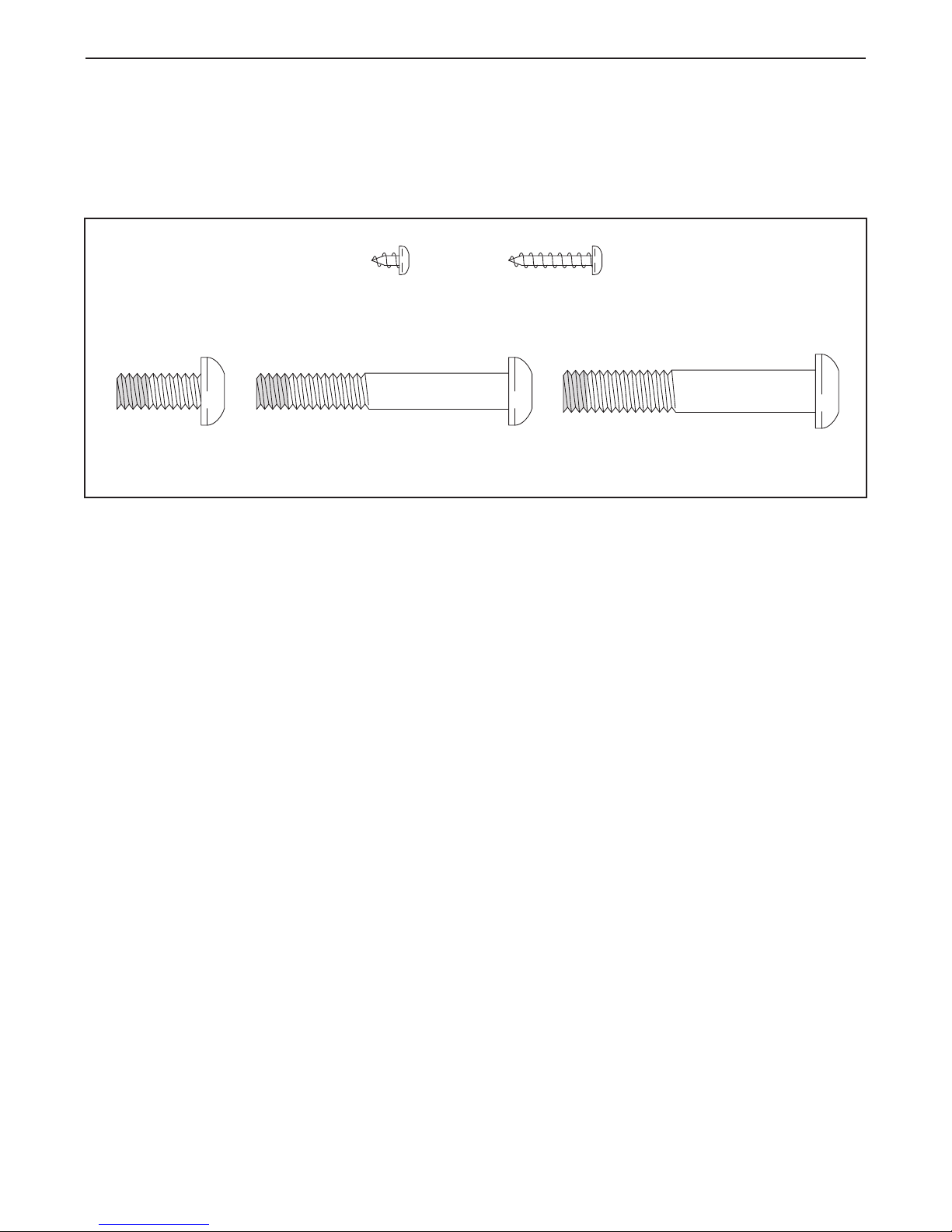

PART IDENTIFICATION C ART

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is

the key number of the part, from the PART L ST near the end of this manual. The number following the key

number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has

been preattached. To avoid damaging parts, do not use power tools for assembly.

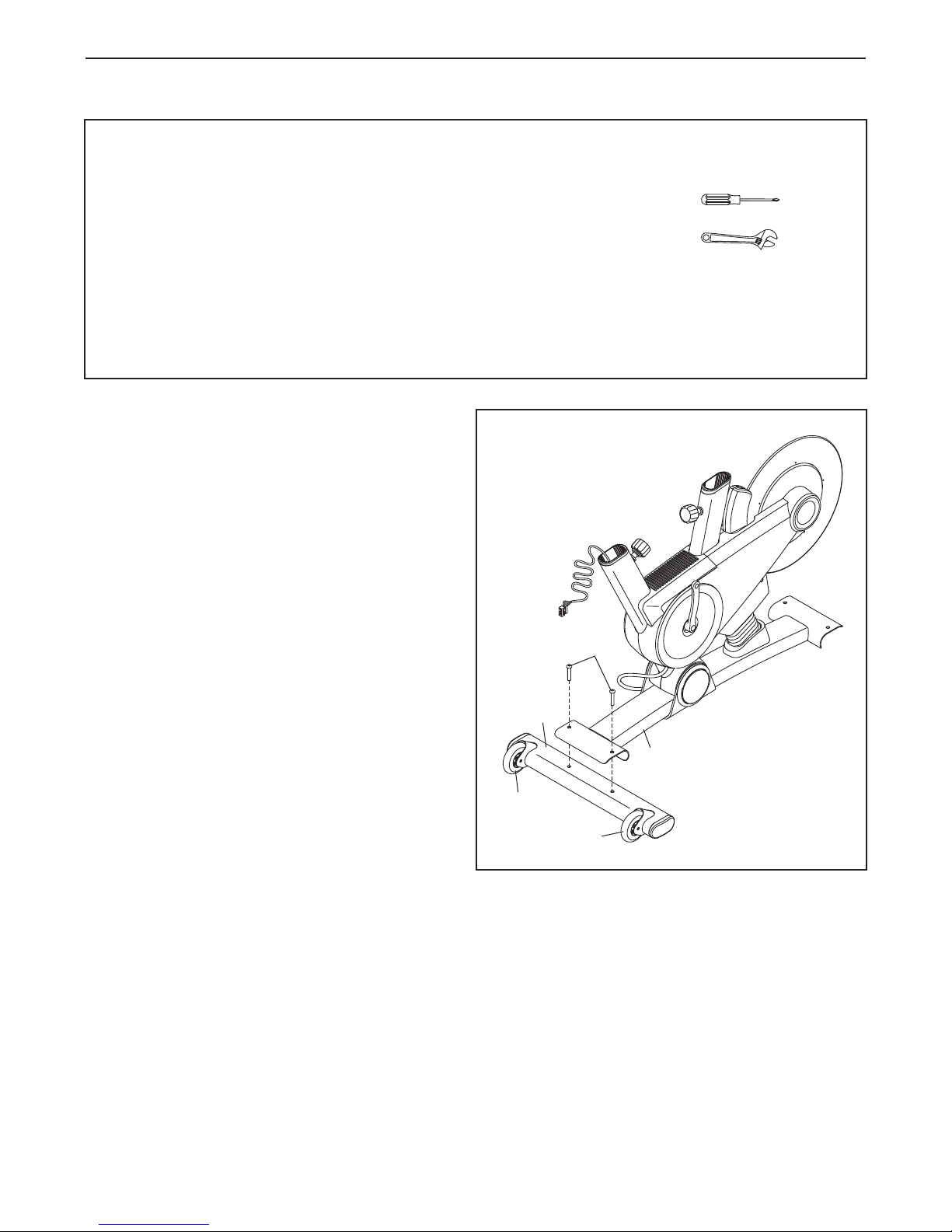

1. dentify the Front Stabilizer (22), which has

Wheels (27).

Attach the Front Stabilizer (22) to the Base (1)

with two 3/8" x 2 1/4" Patch Screws (74).

•To hire an authorized service technician

to assemble the exercise bike, call

1-800-445-2480.

•Assembly requires two persons.

• Place all parts in a cleared area and remove

the packing materials. Do not dispose of the

packing materials until you complete all

assembly steps.

• To identify small parts, see page 5.

•In addition to the included tool(s), assembly

requires:

one Phillips screwdriver

one adjustable wrench

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

ASSEMBLY

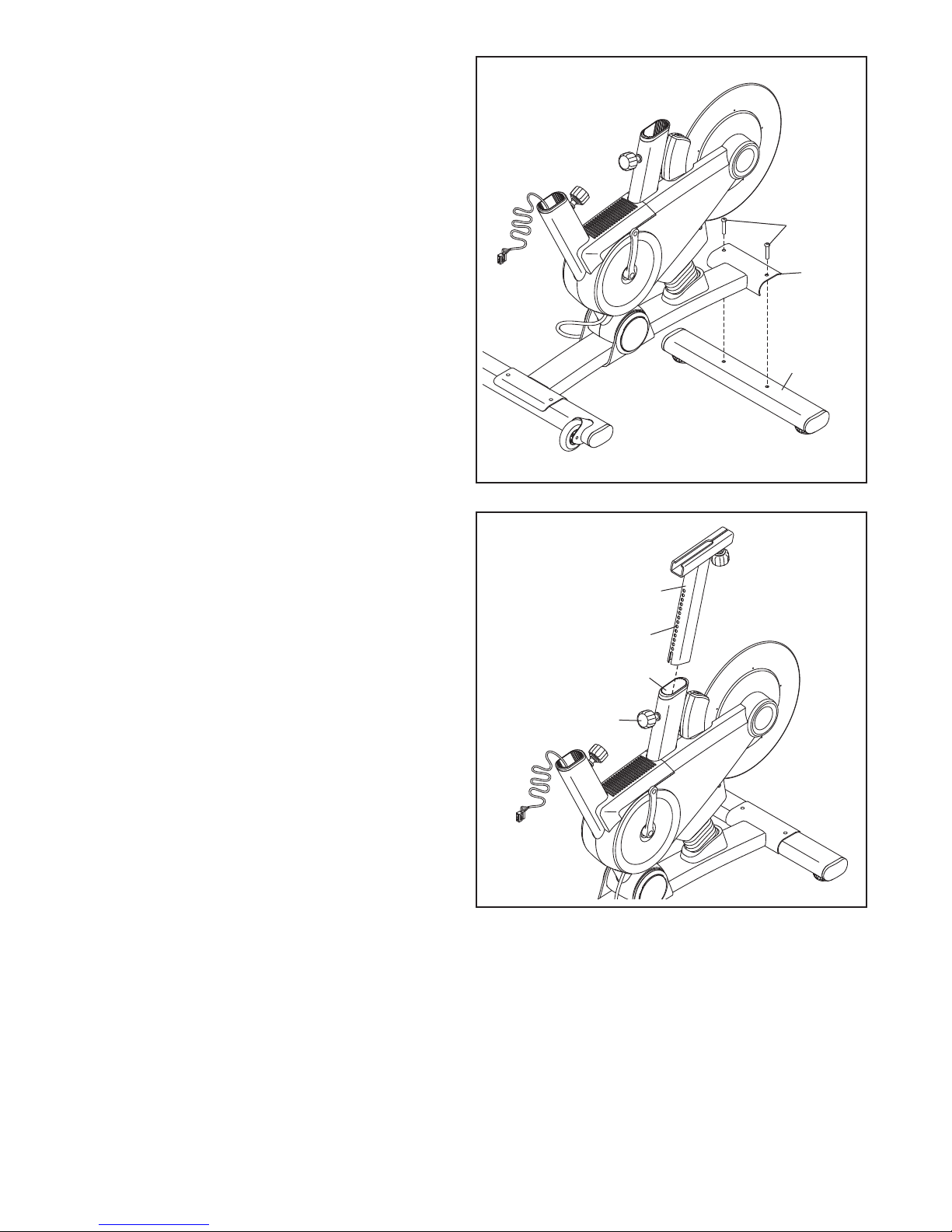

2. Attach the Rear Stabilizer (23) to the Base (1)

with two 3/8" x 2 1/4" Patch Screws (74).

3. Orient the Seat Post (3) as shown.

Loosen the indicated Post Knob (47) and pull it

outward. Then, insert the Seat Post (3) into the

Frame (2).

Move the Seat Post (3) upward or downward to

the desired position, release the Post Knob (47)

into an adjustment hole in the Seat Post, and

then tighten the Post Knob. Make sure that the

Post Knob is firmly engaged in an adjust-

ment hole. 47

Holes

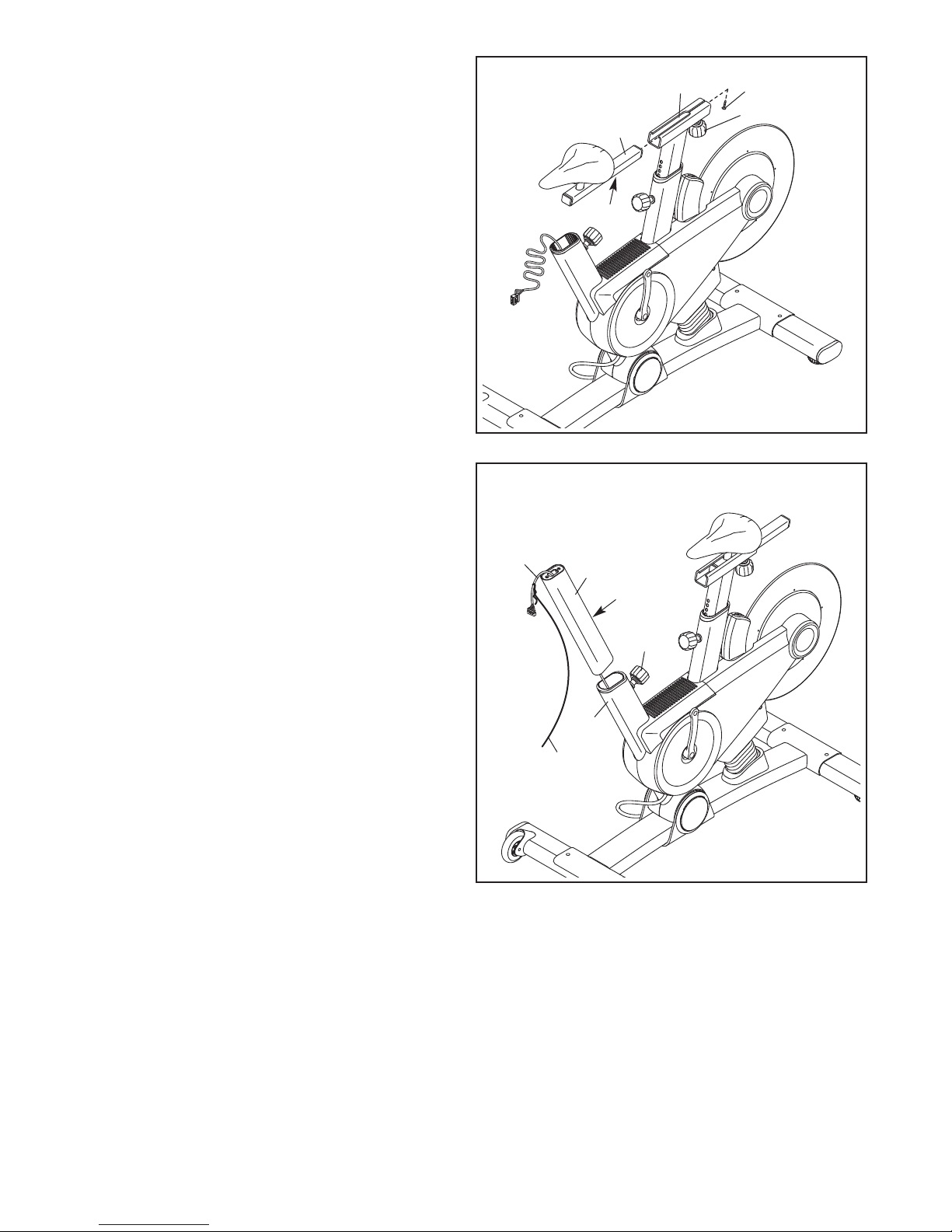

4. Orient the Seat Carriage (4) as shown.

Locate the Seat Knob (29) on the Seat Post (3).

Loosen the Seat Knob and pull it downward.

Then, insert the Seat Carriage (4) into the Seat

Post.

Slide the Seat Carriage (4) to the desired posi-

tion, release the Seat Knob (29) into one of the

adjustment holes in the Seat Carriage, and then

tighten the Seat Knob. Make sure that the

Seat Knob is firmly engaged in an adjust-

ment hole.

Tighten a #8 x 1/4" Screw (70) into the under-

side of the Seat Carriage (4).

Holes

5. Orient the Handlebar Post (6) as shown.

Have a second person hold the Handlebar Post

(6) near the Frame (2). Locate the wire tie in the

lower end of the Handlebar Post. Tie the wire

tie to the Lower Wire (69). Then, pull the upper

end of the wire tie until the Lower Wire is routed

upward through the Handlebar Post.

Tip: Avoid pinching the Lower Wire (69).

Loosen the indicated Post Knob (47) and pull it

outward. Then, insert the Handlebar Post (6)

into the Frame (2).

Move the Handlebar Post (6) upward or down-

ward to the desired position, release the Post

Knob (47) into an adjustment hole in the

Handlebar Post, and then tighten the Post

Knob. Make sure that the Post Knob is firmly

engaged in an adjustment hole.

Holes

Wire Tie

Avoid pinching the

Lower Wire (69)

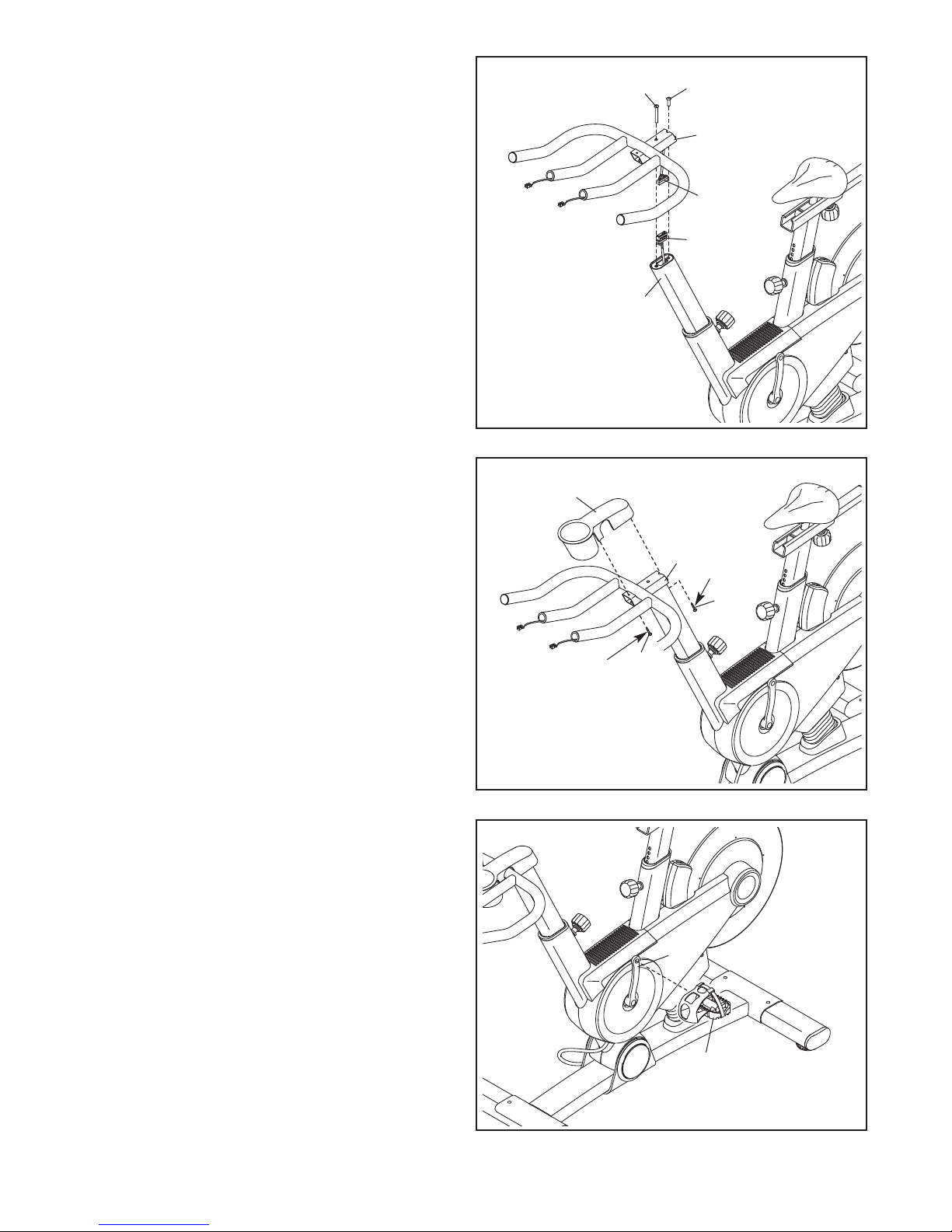

6. Orient the Handlebar (7) as shown.

While a second person holds the Handlebar (7)

near the Handlebar Post (6), connect the Upper

Wire (68) to the Lower Wire (69).

nsert the wires into the Handlebar Post (6).

Tip: Avoid pinching the wires. Attach the

Handlebar (7) to the Handlebar Post (6) with a

5/16" x 3/4" Patch Screw (92) and a 5/16" x 2

1/4" Patch Screw (81).

Avoid pinching

the wires

81 92

7. Orient the Handlebar Cover (8) as shown.

Attach the Handlebar Cover (8) to the

Handlebar (7) with two #8 x 3/4" Screws (94).

Tip: First, insert the front #8 x 3/4" Screw

(94) through the andlebar (7). Next, set the

andlebar Cover (8) on the andlebar and

tighten the front Screw. Then, tighten the

rear #8 x 3/4" Screw (94) into the andlebar

and the andlebar Cover.

8. dentify the Left Pedal (61), which is marked

with an “L.”

Using an adjustable wrench, firmly tighten the

Left Pedal (61) counterclockwise into the Left

Crank Arm (63).

Tighten the Right Pedal (not shown) clockwise

into the Right Crank Arm (not shown).

Front

Rear

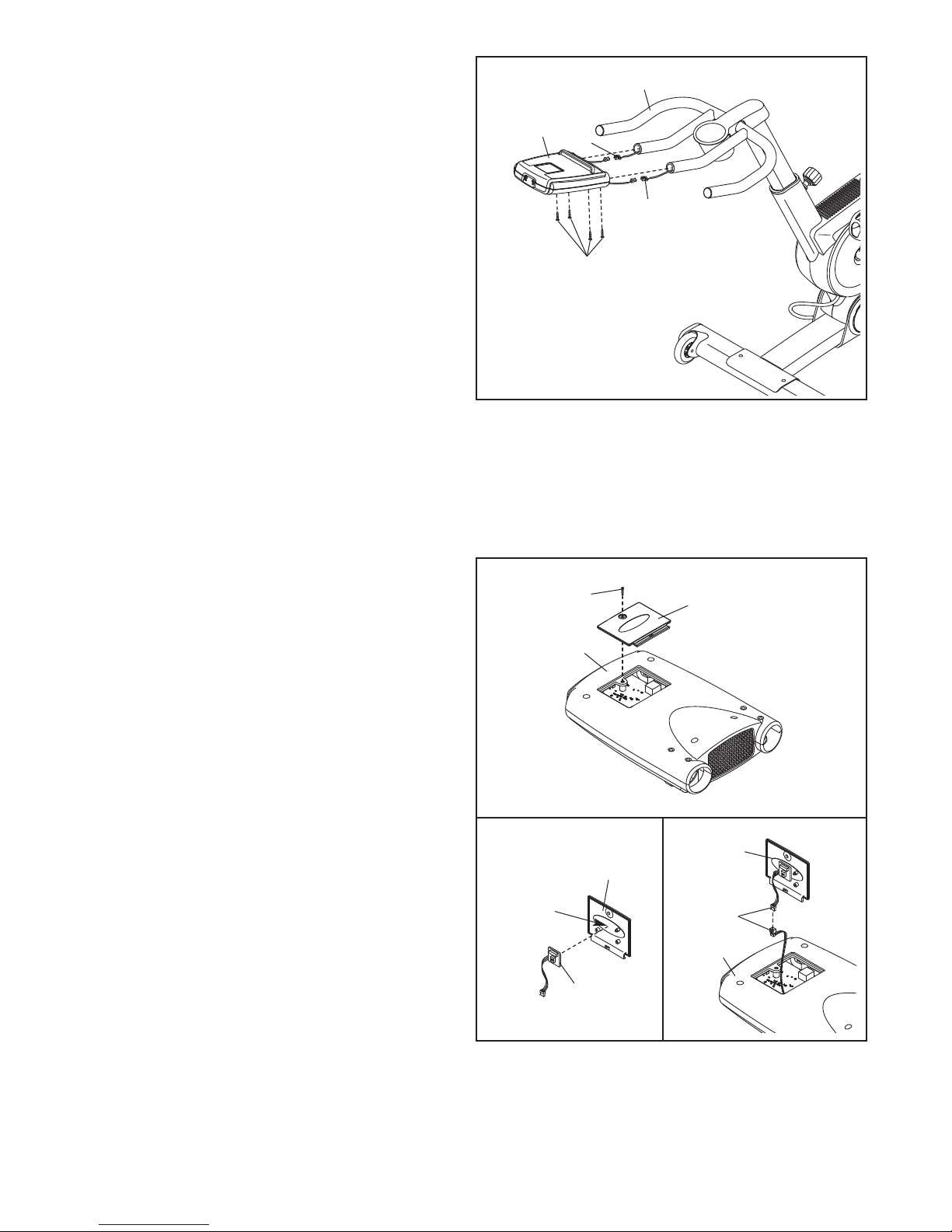

11. Remove the screw and the cover from the back

of the Console (9).

Remove the paper from the adhesive pad on

the back of the receiver. Press the receiver onto

the indicated location inside the cover.

Connect the wire on the receiver to the wire in

the Console (9). Then, reattach the cover with

the screw.

Note: Discard any other wires that are included

with the heart rate monitor.

If you purchase the optional heart rate monitor (see page 22), follow the additional step below to install

the receiver included with the heart rate monitor.

Wires

Receiver

Cover

Screw

Attach

receiver

here

9. Locate the Upper Wires (68) inside the

Handlebar (7).

While a second person holds the Console (9)

near the Handlebar (7), connect the wires on

the Console to the Upper Wires (68). Then,

insert the wires into the Handlebar.

Tip: Avoid pinching the wires. Slide the

Console (9) onto the Handlebar (7).

Attach the Console (9) with four #8 x 3/4"

Screws (94).

10. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly

is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.

Avoid pinching

the wires

Cover

This manual suits for next models

Table of contents

Other Pro-Form Exercise Bike manuals

Pro-Form

Pro-Form 745 Ekg Bike User manual

Pro-Form

Pro-Form 425 Zlx Bike User manual

Pro-Form

Pro-Form Le Tour De France PFEX01312.0 User manual

Pro-Form

Pro-Form 770s PFEX72060 User manual

Pro-Form

Pro-Form Whirlwind PFCCEX25122 User manual

Pro-Form

Pro-Form 100 Zlx Bike User guide

Pro-Form

Pro-Form 4.0 RT User manual

Pro-Form

Pro-Form 780 Ekg Bike Operating and maintenance manual

Pro-Form

Pro-Form 8.0 EX User manual

Pro-Form

Pro-Form CLUBVTP User manual

Pro-Form

Pro-Form 710 Ekg Exercise Bike Operating and maintenance manual

Pro-Form

Pro-Form 385 Csx Bike User manual

Pro-Form

Pro-Form 425 Zlx Bike Setup guide

Pro-Form

Pro-Form PFEX20020 User manual

Pro-Form

Pro-Form 115 Csx Bike User manual

Pro-Form

Pro-Form 300 Zlx Bike System manual

Pro-Form

Pro-Form 300 Zlx Bike User manual

Pro-Form

Pro-Form 190 Zlx Riz Bike User manual

Pro-Form

Pro-Form 450 UR PFEX44177.2 User manual

Pro-Form

Pro-Form LE TOUR DE FRANCE User manual

Pro-Form

Pro-Form 870e Quick start guide

Pro-Form

Pro-Form 750 Ekg Bike User manual

Pro-Form

Pro-Form 870e Operating and maintenance manual

Pro-Form

Pro-Form Studio Bike Pro 22 User manual

Popular Exercise Bike manuals by other brands

Weslo

Weslo Vector 302 Bedienungsanleitung

TOORX

TOORX BRX85 Instruction

Matrix

Matrix KranKcycle user manual

Matrix

Matrix IC3 manual

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 user manual

Monark

Monark 827E instruction manual

Stamina

Stamina 1310 owner's manual

American Fitness

American Fitness SPR-BK1072A owner's manual

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Service manual

BH FITNESS

BH FITNESS H9158H Instructions for assembly and use

Body Sculpture

Body Sculpture BC-7220G manual

Cateye

Cateye EC-2300 manual

FYTTER

FYTTER RACER RC MSR user manual

Kikos

Kikos HM-9090M user manual

Fuel Fitness

Fuel Fitness SU135-40 owner's manual

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel de l'utilisateur

Vision Fitness

Vision Fitness U70 Service manual

Stamina

Stamina 15-0340A owner's manual
