Pro-Form PFEL57908.1 User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Serial Number Decal

(on underside of frame)

Model No. PFEL57908.1

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

DO NOT CONTACT THE STORE;

please contact Customer Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

USERʼS MANUAL

www.proform.com

TABLE OF CONTENTS

WARNINGDECA P ACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMB Y ...............................................................................5

HOWTOUSETHEE IPTICA EXERCISER ..................................................12

MAINTENANCEANDTROUB ESHOOTING ...................................................20

EXERCISEGUIDE INES ...................................................................21

PART IST ..............................................................................23

EXP ODEDDRAWING ....................................................................25

ORDERINGREP ACEMENTPARTS ..................................................BackCover

IMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of

the warning decal(s). If a decal is

missing or illegible, see the front

cover of this manual and request a

free replacement decal. Apply the

decal in the location shown. Note:

The decal(s) may not be shown at

actual size.

PROFORM is a registered trademark of ICON IP, Inc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is at least 3 ft. (1 m) of

clearance in the front and rear of your ellipti-

cal exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(125 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using your elliptical exerciser.

10. eep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM®785 F

elliptical exerciser. The 785 F elliptical exerciser pro-

vides a wide array of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the exercise

cycle at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

Wheel

Pedal

Ramp Handle

Roller

Console

Water Bottle Holder*

*Water bottle is not included

Ramp

Handle

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART IST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

M8 x 38mm

Bolt (96)–8

M8 Locknut

(102)–8

19mm Wave

Washer (66)–4

16mm Wave

Washer (54)–2

M8 x 25mm

Washer (98)–6

M4 x 16mm

Screw (104)–10

M8 x 19mm Patch

Screw (82)–15

M8 Split

Washer (83)–9

M10 Locknut

(92)–2

M10 Washer

(95)–2

M8 x 80mm Patch

Screw (84)–2

M10 x 60mm

Bolt (100)–2

M10 x 45mm Patch

Screw (99)–4

Attach the Front Stabilizer (6) to the Frame (1)

with two M8 x 80mm Patch Screws (84).

2. Orient the Ramp (3) as shown. Then, insert the

Ramp into the Frame (1).

Attach the Ramp (3) with five M8 x 19mm Patch

Screws (82) and five M8 Split Washers (83).

3. While a second person holds the Upright (4)

near the Frame (1), connect the Upper Wire

Harness (110) to the ower Wire Harness (111).

Tip: Avoid pinching the wires. Slide the

Upright (4) onto the Frame (1). Attach the

Upright with four M8 x 19mm Patch Screws (82)

and four M8 Split Washers (83). Do not tighten

the Patch Screws yet.

Avoid pinching

the wires

110

111

To make assembly easier, read the

information on page 5 before you begin.

4. Apply a small amount of the included grease to

the right Crank Arm (20) and to a 19mm Wave

Washer (66).

Slide a Crank Arm Spacer (55) and the 19mm

Wave Washer (66) onto the right Crank Arm

(20).

Identify the Right Roller Arm (59), which is

marked with a “Right” sticker, and orient it as

shown.

Slide the Right Roller Arm (59) onto the right

Crank Arm (20). Attach the Right Roller Arm

with an M8 x 19mm Patch Screw (82), an Axle

Cover (53), and an M8 x 25mm Washer (98); to

avoid breaking the Axle Cover, do not over-

tighten the Patch Screw.

Repeat this step for the Left Roller Arm (not

shown).

Grease

98 53

5. Identify the Right Pedal Bracket (64), which is

marked with a “Right” sticker.

Apply a small amount of grease to the inside of

the tube on the Right Roller Arm (59) and to the

barrel of an M10 x 60mm Bolt (100).

Attach the Right Pedal Bracket (64) to the Right

Roller Arm (59) with the M10 x 60mm Bolt

(100), an M10 Washer (95), and an M10

ocknut (92). Do not overtighten the Locknut;

the Right Pedal Bracket must pivot freely.

Repeat this step for the Left Pedal Bracket

(48).

Grease

100

6. Identify the Right Handlebar (61) and the Right

Handlebar eg (60), which are marked with

“Right” stickers, and orient them as shown.

Make sure that the hexagonal holes are in

the indicated location.

Slide the Right Handlebar (61) onto the Right

Handlebar eg (60).

Attach the Right Handlebar (61) with two M8 x

38mm Bolts (96) and two M8 ocknuts (102).

Make sure that the Locknuts are in the

hexagonal holes.

Repeat this step for the Left Handlebar (not

shown) and the Left Handlebar Leg (not

shown).

102

Hexagonal

Holes

7. Apply a small amount of grease to the Pivot

Axle (35) and to a 16mm Wave Washer (54).

Insert the Pivot Axle (35) through the Upright (4)

and then center it.

Slide the 16mm Wave Washer (54), an Inner

Handlebar Cover (68), and the Right Handlebar

eg (60) onto the right side of the Pivot Axle

(35).

Repeat this step for the Left Handlebar Leg

(not shown).

Tighten an M8 x 19mm Patch Screw (82) and

an M8 x 25mm Washer (98) into each end of

the Pivot Axle (35).

54 68

Grease

8. Attach an Outer Handlebar Cover (67) and the

Inner Handlebar Cover (68) around the Right

Handlebar eg (60) with two M4 x 16mm

Screws (104).

Repeat this step for the other side of the

elliptical exerciser.

104

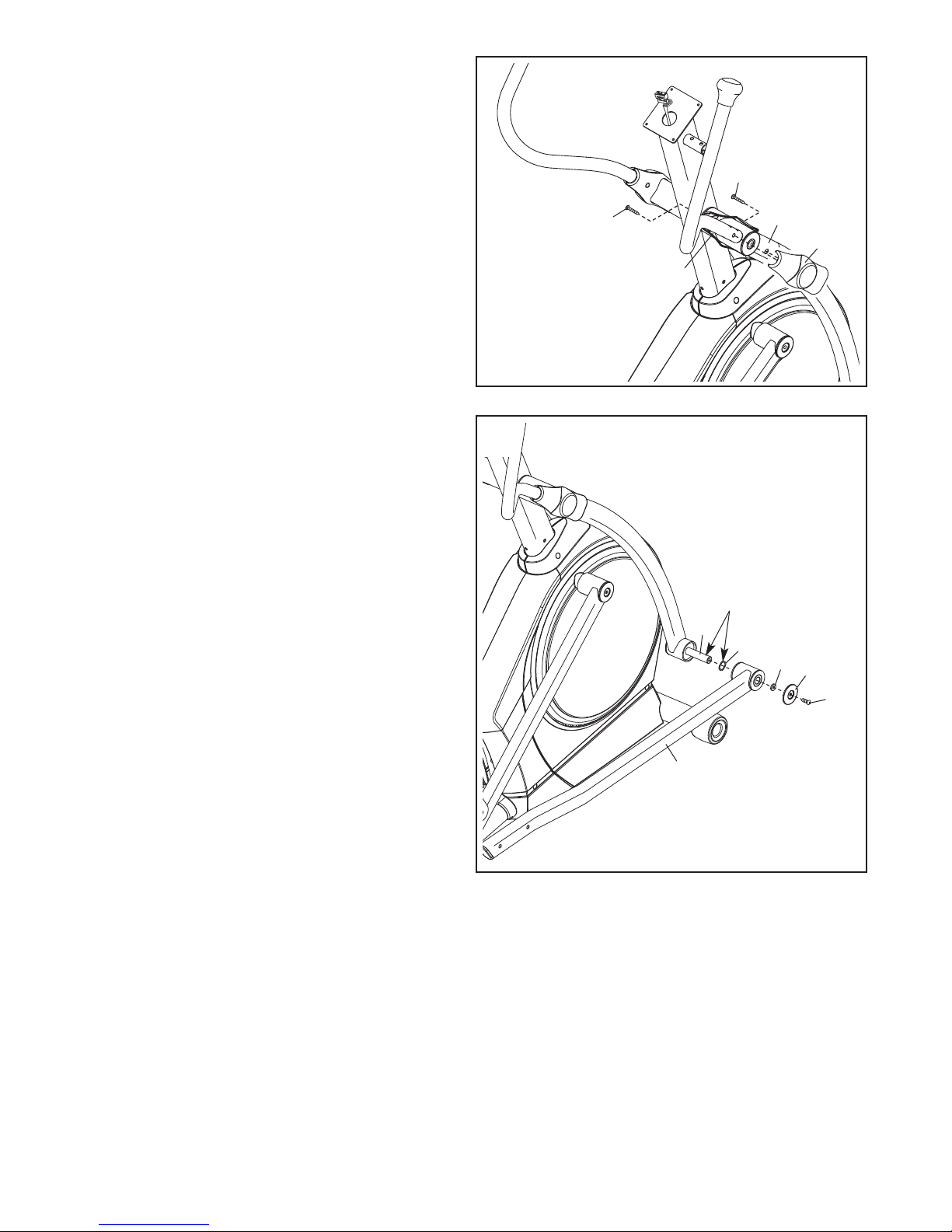

9. Apply a small amount of grease to the axle on

the Right Handlebar eg (60) and to a 19mm

Wave Washer (66).

Identify the Right Pedal Arm (58), which is

marked with a “Right” sticker, and orient it as

shown.

Slide the 19mm Wave Washer (66) and the

Right Pedal Arm (58) onto the Right Handlebar

eg (60).

Attach the Right Pedal Arm (58) with an M8 x

19mm Patch Screw (82), an Axle Cover (53),

and an M8 x 25mm Washer (98); to avoid

breaking the Axle Cover, do not overtighten

the Patch Screw.

Repeat this step for the Left Pedal Arm (not

shown).

98 53

Grease

10. Attach the Right Pedal Arm (58) to the Right

Pedal Bracket (64) with two M10 x 45mm Patch

Screws (99).

Repeat this step for the Left Pedal Arm (44).

11. Identify the Right Pulse Bar (9), which is

marked with a “Right” sticker.

See the inset drawing. ocate the wire tie in

the Upright (4). Tie the lower end of the wire tie

to the Pulse Wire (63) in the Right Pulse Bar

(9). Next, pull the upper end of the wire tie

upward out of the top of the Upright. Then, untie

and discard the wire tie.

Slide the Right Pulse Bar (9) onto the right side

of the Upright (4). Make sure that the hexago-

nal holes are in the indicated location.

Tip: Avoid pinching the wires. Attach the

Right Pulse Bar (9) with two M8 x 38mm Bolts

(96) and two M8 ocknuts (102). Make sure

that the Locknuts are in the hexagonal

holes.

Repeat this step for the Left Pulse Bar (8).

Wire Tie

110

102

Hexagonal

Holes

Avoid pinching

the wires

This manual suits for next models

Other Pro-Form Elliptical Trainer manuals

Pro-Form

Pro-Form 764hr Bike Operating and maintenance manual

Pro-Form

Pro-Form 696 Elliptical Quick start guide

Pro-Form

Pro-Form ZE 6 User manual

Pro-Form

Pro-Form 600 LE User manual

Pro-Form

Pro-Form CardioCrossTrainer 820 User manual

Pro-Form

Pro-Form COACHLINK E9.0 User manual

Pro-Form

Pro-Form 550 Hr Elliptical User manual

Pro-Form

Pro-Form 831.283521 User manual

Pro-Form

Pro-Form 14.0 Re Elliptical User manual

Pro-Form

Pro-Form heart rate monitor 545S User manual

Pro-Form

Pro-Form 380 Razor Elliptical Setup guide

Pro-Form

Pro-Form 831.23935.0 User manual

Pro-Form

Pro-Form 595 HR Quick start guide

Pro-Form

Pro-Form 605 Hr Elliptical User manual

Pro-Form

Pro-Form XP 130 831.28544.0 User manual

Pro-Form

Pro-Form 530e User manual

Pro-Form

Pro-Form Strideclimer 710 I User manual

Pro-Form

Pro-Form 790e Elliptical User manual

Pro-Form

Pro-Form PFEL3926.1 User manual

Pro-Form

Pro-Form 696 Elliptical User manual

Pro-Form

Pro-Form 325 CSE User manual

Pro-Form

Pro-Form 4.0 X Elliptical User manual

Pro-Form

Pro-Form PFEVEL34020 User manual

Pro-Form

Pro-Form 500 Ekg Elliptical System manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual
