Pro-face GP-3300T Manual

Easy! Smooth!

GP-3300 Series->GP4000 Series

Replacement Guidebook

Fifth Edition Jul. 2012

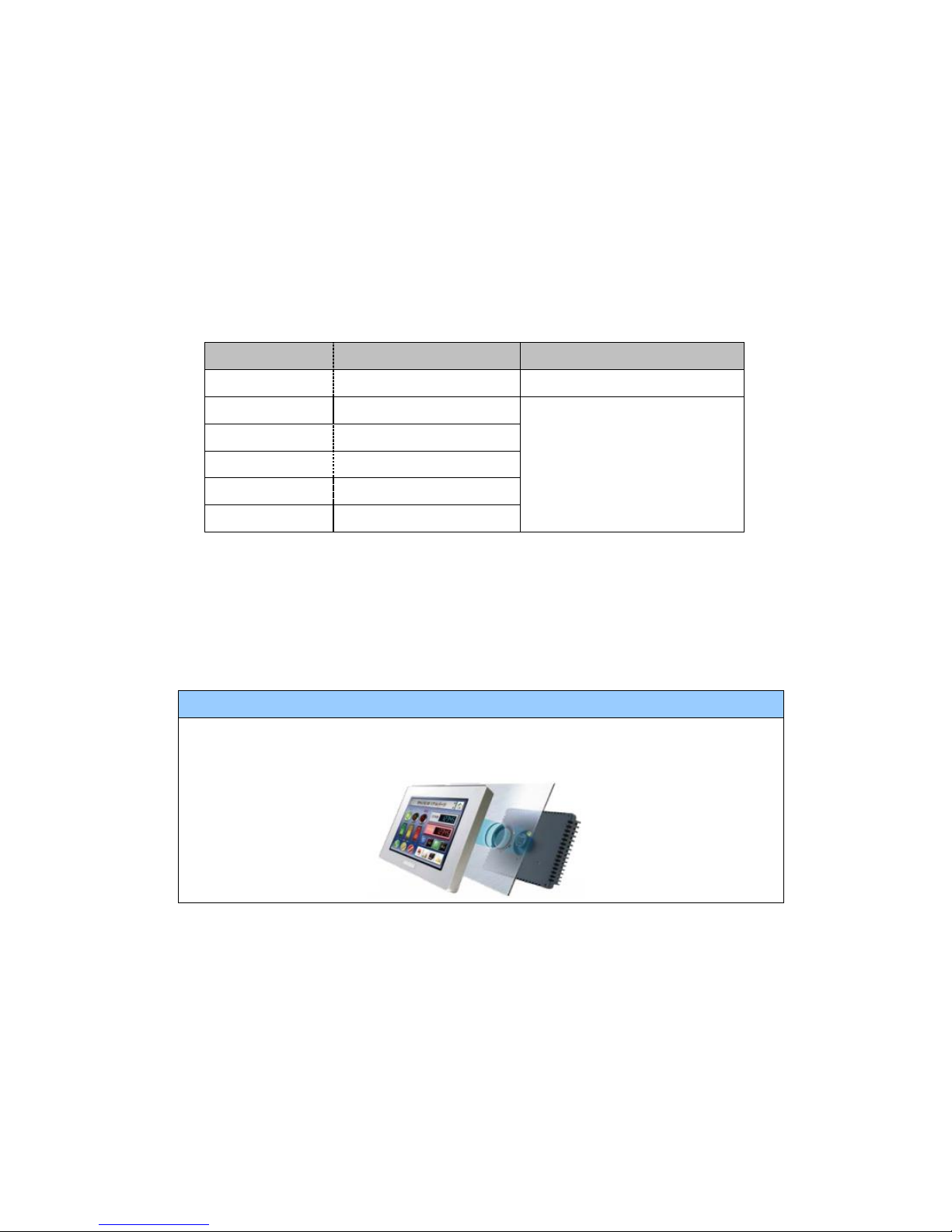

Preface

This guidebook introduces the procedures to replace a unit in GP-3300 series with a

GP-4301T/TW unit.

Model in use

Model No.

Recommended Substitution

GP-3300T

AGP3300-T1-D24

GP-4301T

GP-3300S

AGP3300-S1-D24

GP-4301TW

GP-3300L

AGP3300-L1-D24

GP-3301S*1

AGP3301-S1-D24

GP-3301L*1

AGP3301-L1-D24

GP-3302B*1

AGP3302-B1-D24

*1: It is also possible to replace GP-3301S/L with GP-4301TM (modular type). For

details, please refer to “GP/ST3000 Series -> GP4000M Series Replacement

Guidebook”.

What is “Modular Type” graphic operator interface, GP-4301TM?

GP-4301TM is the modular type graphic operator interface that can be installed

with a φ22-mm circular hole as shown below.

Safety Information

HAZARD OF OPERATOR INJURY, OR UNINTENDED EQUIPMENT DAMAGE

Before operating any of these products, be sure to read all related manuals thoroughly.

Failure to follow these instructions can result in death, serious injury or unintended equipment

damage.

GP4000 Series Model Number

GP4000 series model number partly differs depending on a specification. Before

placing an order, please make sure of the model number.

GP-4200 series (3.5”)

GP-4300 series (5.7”)

GP-4400 series (7.5”/7.0”W)

GP-4500 series (10.4”)

GP-4600 series (12.1”)

RS-232C/422/485

RS-485 (isolation)

TFT color LCD

TFT color LCD (Wide Type)

Analog Resistive Film Touch Panel

Matrix Resistive Film Touch Panel

AC Type Power Supply

DC Type Power Supply

GP-4201TW/4301TW/4401WW/4501TW

Coated model

Coated model of GP-4301TW

Contents

PREFACE 2

SAFETY INFORMATION 3

HAZARD OF OPERATOR INJURY, OR UNINTENDED EQUIPMENT DAMAGE

GP4000 SERIES MODEL NUMBER 4

CONTENTS 5

CHAPTER 1 SPECIFICATION COMPARISON 7

1.1 SPECIFICATIONS OF GP-3300T AND GP-4301T 7

1.2 SPECIFICATIONS OF GP-3300S/L AND GP-4301TW 9

1.3 SPECIFICATIONS OF GP-3301S/L AND GP-4301TW 11

1.4 SPECIFICATIONS OF GP-3302B AND GP-4301TW 13

CHAPTER 2 COMPATIBILITY OF HARDWARE 14

2.1 LOCATIONS OF CONNECTOR 14

2.2 DISPLAY COLORS (ONLY WHEN REPLACING GP-3300L/3301L/3302B) 18

2.3 TRANSFER CABLE 19

2.4 INTERFACE 20

2.4.1 SERIAL INTERFACE 20

2.4.2 CF CARD INTERFACE (EXCEPT GP-3302B) 21

2.5 PERIPHERAL UNITS AND OPTIONS 21

2.5.1 BARCODE READER CONNECTION 21

2.5.2 PRINTER CONNECTION 21

2.5.3 EXPANSION UNIT 22

2.5.4 ISOLATION UNIT 22

2.6 BACKUP BATTERY (ONLY WHEN REPLACING WITH GP-4301T) 22

2.7 POWER CONSUMPTION 23

2.8 MATERIALS/COLORS OF THE BODY 23

2.9 BACKUP MEMORY (SRAM) (ONLY WHEN REPLACING WITH GP-4301TW) 23

CHAPTER 3 REPLACEMENT PROCEDURE 24

3.1 WORK FLOW 24

3.2 PREPARATION 25

3.3 RECEIVE SCREEN DATA FROM GP-3300 SERIES 26

3.4 CHANGE THE DISPLAY UNIT TYPE 33

3.5 TRANSFER SCREEN DATA TO GP-4301T/TW 34

3.6 DIFFERENCES OF SOFTWARE 38

CHAPTER 4 COMMUNICATION WITH DEVICE/PLC 39

4.1 DRIVERS 39

4.2 SHAPES OF COM PORTS 39

4.3 SIGNALS OF COM PORTS 40

4.3.1 SIGNALS OF COM1 40

4.3.2 SIGNALS OF COM2 43

4.4 MULTILINK CONNECTION 44

4.5 CABLE DIAGRAM AT THE TIME OF REPLACEMENT 45

CHAPTER 5 APPENDIX 47

5.1 CHANGING THE SETTING OF THE EXTERNAL MEDIA TO USE 47

Chapter 1 Specification Comparison

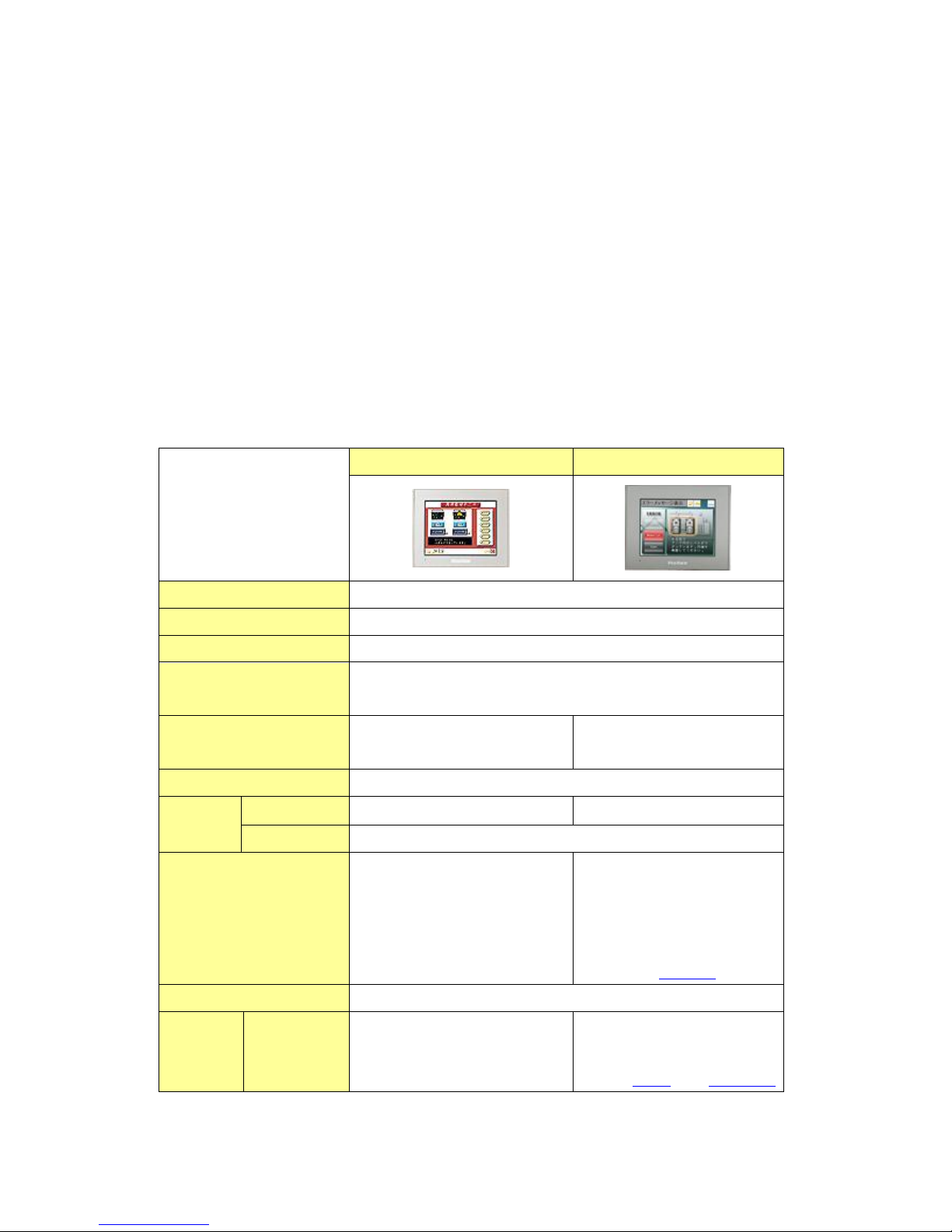

1.1 Specifications of GP-3300T and GP-4301T

GP-3300T

GP-4301T

Display Type

TFT color LCD

Display Colors, Levels

65,536 colors (without blink)/16,384 colors (with blink)

Display Resolution

QVGA (320x240 pixels)

Panel Cutout

Dimensions (mm)

156(W)×123.5(H)

External Dimensions

(mm)

167.5(W)x135(H)x59.5(D)

169.5(W)x137(H)x59.5(D)

Touch Panel Type

Resistive film (Analog)

Memory

Application

6MB

UP! 16MB

SRAM

320KB

Backup Battery

Secondary Battery

(Rechargeable Lithium

battery)

NEW!

Primary Battery

(Replaceable Lithium

battery)

->See 2.6

Rated Input Voltage

DC 24V

Serial

I/F

COM1

D-Sub 9 pin (plug)

RS-232C/422/485

D-Sub 9 pin (plug)

RS-232C

->See 2.4.1 and Chapter4

COM2

D-Sub 9 pin (socket)

RS-422/485

D-Sub 9 pin (plug)

RS-422/485

->See 2.4.1 and Chapter4

Ethernet I/F

10BASE-T/100BASE-TX

CF Card I/F

✔

->See 2.4.2

SD Card I/F

NEW! ✔

USB

I/F

Type A

✔

->See 2.3

Type mini B

Expansion Unit I/F

✔

- ->See 2.5.3

1.2 Specifications of GP-3300S/L and GP-4301TW

GP-3300S/L

GP-4301TW

Display

Type

GP-3300S

STN color LCD

UP! TFT color LCD

GP-3300L

Monochrome LCD

Display

Colors,

Levels

GP-3300S

4,096 colors

UP!

65,536 colors (without blink)/

16,384 colors (with blink)

->See 2.2

GP-3300L

Monochrome, 16 levels

Display Resolution

QVGA (320x240 pixels)

Panel Cutout

Dimensions (mm)

156(W)×123.5(H)

External Dimensions

(mm)

167.5(W)x135(H)x59.5(D)

169.5(W)x137(H)x59.5(D)

Touch Panel Type

Resistive film (Analog)

Memory

Application

6MB

UP! 8MB

SRAM

320KB

128KB ->See 2.9

Backup Battery

Secondary Battery (Rechargeable Lithium battery)

Rated Input Voltage

DC 24V

Serial

I/F

COM1

D-Sub 9 pin (plug)

RS-232C/422/485

D-Sub 9 pin (plug)

RS-232C

->See 2.4.1 and Chapter4

COM2

D-Sub 9 pin (socket)

RS-422/485

D-Sub 9 pin (plug)

RS-422/485

->See 2.4.1 and Chapter4

Ethernet I/F

10BASE-T/100BASE-TX

CF Card I/F

✔

- ->See 2.4.2

USB

I/F

Type A

✔

->See 2.3

Type mini B

Expansion Unit I/F

✔

- ->See 2.5.3
