Pride Mobility Quantum TB3 User manual

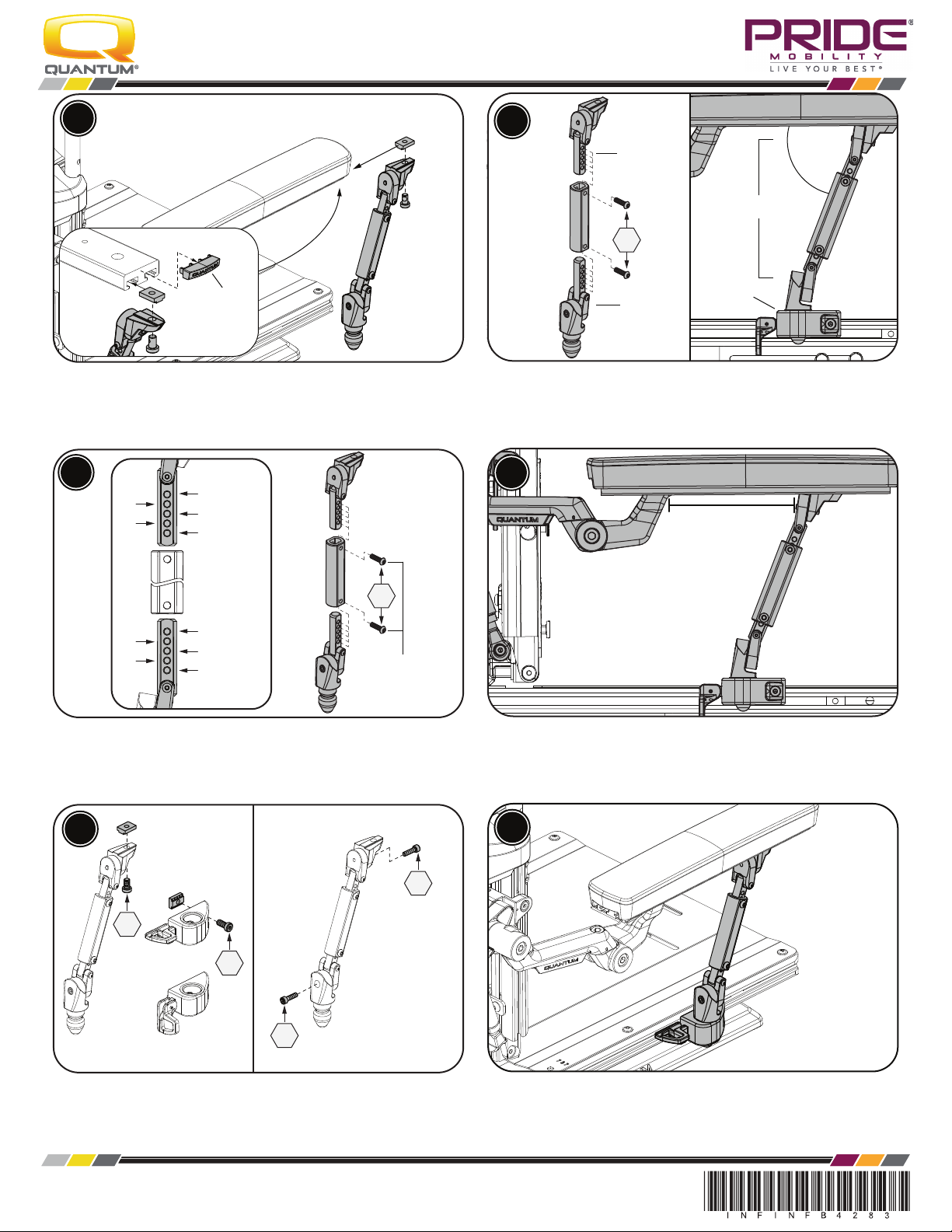

Down Post Installation Instruction

TB3 Version 3 Flip-back Armrest

Rev A / August 2020

If you require any assistance with these instructions, please call Quantum Technical Service at

1-877-800-1248. Canada providers, call 1-888-570-1113.

NOTE: Only the right side is shown. The left side installation mirrors the right.

WARNING! Prior to performing any actions to the power chair, ensure the power is

turned off at the joystick and the power base is in drive mode.

NOTE: The following symbol will be used to indicate the size of the Hex Key needed in

millimeters. Example: is a 6 millimeter Hex Key. is an 8mm Hex Key.

mm 8

14”-16”H11”-13”H8-10”H

Down Post Assemblies

Tools Required:

- Metric Hex Key Set

- Calibrated Torque

Wrench

- Measuring Tape

- Loosen the Mounting Hardware and Hinge

Screws. The Hinge Points should be loose but

remain connected.

Hardware shown removed for illustration purposes only.

Hinge Screws

Mounting Hardware

- Slide the receiver block into the side rail. The

Reverse orientation is used for 8” - 10” high armrests,

the Forward orientation is used for all other armrest

heights.

Back

Front

Back

Front

Reverse

Forward

Orientation

Shown

Hinge

Point

Hinge

Point

Down Post Installation Instruction

TB3 Version 3 Flip-back Armrest

Rev A / August 2020

To p

Adjustment

Rod

Bottom

Adjustment

Rod

Torque to

12.5 - 17.5 N • m

(9.2 - 12.9 ft • lb)

Hinge Screws

Torque to

10 - 15 N • m

(7.4 - 11.0 ft • lb)

Mounting Hardware

Locked

Unlocked

Torque to

8 - 12 N • m

(5.9 - 8.9 ft • lb)

- Remove the armrest end cap.

- Slide the down post assembly into the outermost

armrest channel. Do not tighten.

Hardware shown removed for illustration purposes only.

End Cap

8 - 10”H

Down Post

Shown

To p

Adjustment

Rod

Bottom

Adjustment

Rod

~70°

- The Top and Bottom Adjustment Rods should be

kept within one setting of eachother, i.e. If the top is

set to 4 the bottom should have a setting of 3, 4, or 5.

- Torque the screws to the values shown.

- Align the down post and receiver block so the top of

the down post is 2” to 5” away from the armrest while

maintaining the approximate 70° angle from Step 4.

~ 2” to 5”

- Torque the remaining hardware to the values shown.

- Ensure the receiver block is in the locked position.

- Reinstall the endcap from Step 3.

Down Post

Receiver

Block

- Set the Top and Bottom Adjustment Rods so the

Down Post can be inserted into the Receiver Block.

- The down post should form and approximate angle

of 70° with the top of the armrest.

- Ensure the down post is secure.

- If the unit is equipped with a recline back, run the

recline and make sure the down post has full range

of motion. Adjust if necessary.
