1Hurricane

The Ultimate In Style & Performance

Owner’s Manual

Alber Technologies Limited,

Chantry Court, Sovereign Way,

Chester, England. CH1 4QN

Tel: 01244 394240 Fax: 01244 394254

Email: [email protected] www.alber.co.uk

All manuals and user guides at all-guides.com

all-guides.com

2Hurricane

Read and follow all of the instructions in this manual before you attempt to operate your Scooter for the

first time.

The following symbols will be used throughout this Owners Manual to identify warnings and

cautions. It is very important for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal

injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to

your Scooter.

Please be sure to fill out and return your warranty card. Also, notify us of any change of address so that we can

keep you apprised of important information about safety, new products, and new options that can increase your

ability to use and enjoy your Scooter.

our Hurricane:

Body Colour _______________________________ Serial # _____________________________

Purchase Date _____________________________ Options______________________________

our authorized Pride Mobility Products Ltd., provider:

Name ______________________________________________________________________________

Address _____________________________________________________________________________

Phone ______________________________________________________________________________

SAFETY GUIDELINES

All manuals and user guides at all-guides.com

3Hurricane

I. INTRODUCTION ......................................................................................................................... 5

II. SAFETY ......................................................................................................................................... 6

Safety Precautions .............................................................................................................................. 6

Doors.................................................................................................................................................. 7

Elevators ............................................................................................................................................. 7

Ramps and Other Inclines .................................................................................................................... 7

Driving Surfaces .................................................................................................................................. 8

III. SPECIFICATIONS ..................................................................................................................... 9

IV. DESCRIPTION .......................................................................................................................... 11

V. BATTERIES AND CHARGING ........................................................................................... 17

Reading your Battery Voltage ............................................................................................................. 17

Charging your Batteries ..................................................................................................................... 17

Frequently Asked Questions (FAQs).................................................................................................. 18

VI. OPERATION .............................................................................................................................. 22

Pre-ride Adjustments and Checks ...................................................................................................... 22

Getting on our Scooter..................................................................................................................... 22

Operating our Scooter ..................................................................................................................... 22

Getting Off Of our Scooter .............................................................................................................. 23

Auto Shutoff Feature ......................................................................................................................... 23

VII. COMFORT ADJUSTMENTS............................................................................................... 24

Tiller Angle Adjustment ...................................................................................................................... 24

Seat Height Adjustment ...................................................................................................................... 24

Power Seat Actuator ......................................................................................................................... 24

Sliding Seat Adjustment ..................................................................................................................... 25

Seat Rotation ..................................................................................................................................... 25

Armrest Width Adjustment ................................................................................................................. 25

Armrest Height Adjustment ................................................................................................................ 26

High-back Seat Headrest Adjustment................................................................................................. 26

VIII. ASSEMBLY AND DISASSEMBLY .................................................................................... 27

Assembly .......................................................................................................................................... 27

Disassembly ...................................................................................................................................... 29

IX. TROUBLESHOOTING ........................................................................................................... 30

X. CARE AND MAINTENANCE ............................................................................................... 31

XI. WARRANTY ............................................................................................................................... 32

CONTENTS

All manuals and user guides at all-guides.com

4Hurricane

Pride Mobility Products, Ltd. cannot be held responsible for any damage or injury incurred due to improper or

unsafe use of a scooter. Nor can Pride be held responsible for any damage or injury incurred during or resulting

from attempts to follow the instructions and recommendations set forth in this owner's manual or in any of the

instructions displayed on or accompanying the product itself. If you do not feel capable of safely following any of

the instructions and recommendations pertaining to your scooter, please contact your authorized Pride provider.

Pride Mobility Products, Ltd.

All manuals and user guides at all-guides.com

5Hurricane

I. INTRODUCTION

Welcome to Pride Mobility Products, Ltd. (Pride). Congratulations on the purchase of your new Scooter. The

Hurricane design combines the most advanced state-of-the-art components with modern, attractive styling. We

are certain that the design features and trouble-free operation of your new Scooter will add convenience to your

daily living.

At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before

you attempt to operate your Scooter for the first time. These instructions were produced for your benefit.

our understanding of these instructions is essential for the safe operation of your new Scooter.

This owners manual is compiled from the latest specifications and product information available at the time of

publication. We reserve the right to make changes, as they become necessary. Any changes to our products may

cause slight variations between the illustrations and explanations in this manual and the product you purchased.

As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners

Club. ou may do so by filling out and returning your enclosed registration card or by visiting Prides web site at

www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most

interactive and honest educational venue available today for people with mobility needs, their families and friends.

From the cover page of our site, click on the button that reads Owners Club to enter a page dedicated to current

and potential Pride Mobility Product Owners. ou will gain access to interviews, stories, recreation ideas, daily

living tips, product and funding information, and interactive message boards. On these message boards you are

invited to speak with other Pride customers as well as Pride representatives who are available to assist you with

any questions or concerns you may have. ou will receive a free gift simply for registering with the Pride Owners

Club.

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the

safety and reliability of your new Scooter, as well as about the service you received from your Pride provider. Also, notify

us of any change of address, so we can keep you apprised of important information about safety, new products, and new

options that can increase your ability to use and enjoy your Scooter. Please feel free to write us at the address below:

If you experience any problems with your Scooter that you are not able to solve, or if you do not feel confident in your

ability to perform any of the instructions contained in this manual, please contact your local Pride provider. Once you

understand how to operate and take care of your Scooter, we are certain that it will give you years of trouble-free service

and enjoyment.

The Pride Team

Alber Technologies Limited,

Chantry Court, Sovereign Way,

Chester, England. CH1 4QN

Tel: 01244 394240 Fax: 01244 394254

Email: [email protected] www.alber.co.uk

All manuals and user guides at all-guides.com

6Hurricane

It is imperative that you read this entire manual and understand all of the safety precautions before you attempt to

operate your new Hurricane for the first time.

SAFETY PRECAUTIONS

nMake certain that the seat is locked into place and the key is removed from the key switch before getting on or

off of your Scooter.

nMake sure that you set the 4 - 8 mph switch to 4 and the speed adjustment dial to the tortoise (slowest speed)

setting when you begin using your Hurricane.

nEnsure the seat is in a locked position when you are operating your Scooter.

nDo not operate your Scooter while you are under the influence of alcohol.

nCheck with your physician if you are taking any medication(s) that may affect your ability to operate your

Scooter.

nDo not exceed the specifications in this manual.

nDo not carry passengers on your Hurricane, under any circumstances.

nNever drive your Scooter across the side of an incline or diagonally up or down an incline; do not stop, if

possible, while driving up or down an incline.

nKeep both hands on the tiller and your feet on the floorboard at all times while operating your Scooter. This

recommended driving position gives you the most control over your Scooter.

nUse extreme caution when driving on busy streets, in parking lots, or in shopping malls.

nProceed with extreme caution when driving near raised surfaces or unprotected ledges or drop-offs (kerbs,

porches, stairs, etc.).

nDrive slowly through turns.

nMake certain that the tyres are properly inflated (30 psi).

nNever use your Scooter as a seat in a moving vehicle. our Scooter is not designed to be used as such and

cannot protect you in the event of an automobile accident or an abrupt stop.

nSecure the batteries before loading your Hurricane into another vehicle for transport.

nDisconnect the batteries if you are not going to operate your Scooter for more than 48 hours.

WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist, or

wash). Such exposure can damage the electronics. Never attempt to ride a Hurricane that has

been exposed to moisture until it has dried thoroughly.

Do not operate or store your Hurricane where it may be exposed to inclement weather conditions

such as rain, snow, mist, and below-freezing temperatures (such as storage on an outside car/van

lift). Attempting to operate your Scooter in such conditions can damage the electronics and

potentially result in loss of control.

Do not operate your Hurricane in icy or slippery conditions or on salted surfaces (i.e., walks or

roads). Such use may result in an accident, personal injury, or adversely affect the performance

and/or safety of your Scooter.

Always protect batteries from freezing temperatures and never charge a frozen battery. his

damages the battery and may cause personal injury. Attempting to charge a battery in freezing

conditions does not prevent a battery from freezing.

Contact your authorized Pride provider if you have any questions after reading this manual.

II. SAFETY

All manuals and user guides at all-guides.com

all-guides.com

7Hurricane

II. SAFETY

As you begin to use your Hurricane during your daily activities, you will encounter situations that may require some

practice. Simply take your time as you operate your Scooter and you will soon be in full and confident control as

you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain.

DOORS

nDetermine if the door opens toward or away from you.

nUse your hand to turn the knob or push the handle or push-bar.

nDrive your Hurricane slowly forward to push the door open; or drive your Scooter slowly backwards as you

pull the door open.

ELEVATORS

Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s).

nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or

allow the rubber door edge to contact your Scooter to reopen the door.

nUse care that pocketbooks, packages, or Hurricane accessories do not become caught in the elevator doors.

RAMPS AND OTHER INCLINES

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe scooter

access. Some ramps may have turning switchbacks that require you to have good cornering skills on your Hurricane.

nTake slow, wide swings with your Scooters front wheel(s) around any tight corners. If you do that, the rear

wheels will follow a wide arc and will not cut the corner short, bump into, or get hung up on any railing corners.

nWhen driving down a ramp, keep your Hurricanes speed adjustment dial (see IV. Description) set to the

tortoise (slowest speed setting) to ensure a safely controlled descent.

nAvoid sudden stops and starts.

Other inclines may be natural or, if man-made, not designed specifically for scooters. Figure 1 illustrates your

Hurricanes stability and its ability to climb grades under various weight loads and under controlled testing conditions.

Figure 1. Maximum Recommended Incline Angle

8.7%

10.5%

(150-200 lbs.) (250-300 lbs.)

68-90 kg/

11-14 stone 113-136 kg/

18-21 stone

All manuals and user guides at all-guides.com

8Hurricane

The controlled tests show that, when you approach an incline, it is best to lean forward. See figures 2 and 3. This

shifts the center of gravity of you and your Hurricane toward the front of the Scooter for improved stability.

II. SAFETY

Figure 3. Increased Stability Driving PositionFigure 2. Normal Driving Position

DRIVING SURFACES

our Hurricane was designed to provide optimum stability under normal driving conditions  dry, level surfaces

composed of concrete or asphalt. However, Pride recognizes that there will be times when you will operate your

Hurricane on surfaces other than concrete or asphalt. For that reason, we also designed your Hurricane to perform

admirably on packed soil, grass, and gravel.

nFeel free to use your Hurricane safely on lawns and in park areas.

nAvoid tall grass that can entangle the running gear.

nPacked soil, gravel, driveways, or roads will not present a problem for your Hurricane.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface, avoid that surface.

WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual.

III

All manuals and user guides at all-guides.com

9Hurricane

III. SPECIFICATIONS

I. SPECIFICATIONS II

Figure 4. Hurricane Specifications

(48.75"- 55")

(18.5")

(19.5")

(25")

(24"- 28.5")

(55.5")

(43")

Turning Radius

15 cm (6")

(1.75")

(18"- 21")

46 cm - 53 cm

50 cm 141 cm

109 cm

47 cm

61 cm-72 cm

63.5 cm

(8"-12")

20 cm-30.5 cm

124 cm-140 cm

80˚

3.8 cm

4.4 cm

(1.5")

(25"- 28")

63.5 cm-71 cm

All manuals and user guides at all-guides.com

10 Hurricane

6SHFLILFDWLRQV

Length: 141 cm (55.5”)

Width: 63.5 cm (25”)

Tyres: Type: Pneumatic

Front: 10 cm x 29 cm (4” x 11.5”)

Rear:10 cm x 30 cm (4” x 12”)

Weight Capacity: 136 kg/21 stone (300 lbs.) maximum

Battery Type

(not included): Choices: Two 12V, 32 amp hours (AH), U-1 type SLA (sealed lead-acid) or gell cell

Horsepower: 2.0 HP (Peak)

Charger: Onboard 5-amp charger

Speed (Max): Variable up to 13 km/hr (8 mph) (60% reverse)

Maximum Grade: Please refer to figure 1.

Range: Up to 32 - 40 km (20 - 25 miles) per charge with 32 AH batteries

Up to 40 - 48 km(25 - 30 miles) per charge with 40 AH batteries

Turning Radius: 109 cm (43” )

Body Colours: Candy Apple Red, Forest Green, Viper Blue, or Onyx Black

Seating:

Style: High back with headrest and sliders

Dimensions: 49.5 cm (19.5”) width (usable) x 63.5 cm - 71 cm (25” - 28”) height (usable) x 47

cm (18.5”) depth (usable)

Seat cover material: Gray, brown, or beige vinyl

Armrests: Match seat cover material

User adjustable seat height from ground: 65 cm - 72 cm (25.5” - 28.5”)

User adjustable seat height from scooter deck: 46 cm - 53 cm (18” - 21”)

Included Features: Sliding seat, energy-saving auto shutoff feature, height adjustable armrests, front and rear

suspension, full lighting package, front and rear bumpers, front basket, rearview mirror, hand

brake, height adjustable armrests

Brakes: Electronic regenerative braking and electromechanical disc brake

Rear Wheel Drive: Sealed transaxle, 24 VDC motor

Wheels: Pride MicroMag aluminum alloy wheels in black, red, or gold

Tiller Type: Infinitely adjustable between forward stop and scooter deck

Freewheel Mechanism: Freewheel release lever located on transaxle

Scooter Weight:

Total weight with batteries: w/two 12V, 32 AH batteries: 99 kg (219.5 lbs.)

w/two 12V, 40 AH batteries:106 kg(234.5 lbs.)

Total weight without batteries: 76 kg (169.5 lbs.)

Component Breakdown:

Front Section: 25 kg (61.5 lbs.)

Rear Section (without batteries or rear shroud): 31 kg (68.5 lbs.)

Rear Plastic Shroud: 1.5 kg (3.5 lbs.)

Seat:16 kg (36 lbs.)

Batteries (2 required): 11 kg (25 lbs.) each (12V, 32 AH)

15 kg (32.5 lbs.) each (12V, 40 AH)

Front-to-rear Lockup: Lock pin and cam lever system

Ground Clearance: 15 cm (6”)

Optional Accessories: Cup holder, rear basket, dust cover, flag, oxygen holder, canopy, power elevating seat, crutch

holder

All manuals and user guides at all-guides.com

Table of contents

Other Pride Mobility Scooter manuals

Pride Mobility

Pride Mobility INFINFB2311 User manual

Pride Mobility

Pride Mobility CELEBRITY X User manual

Pride Mobility

Pride Mobility Colt Series User manual

Pride Mobility

Pride Mobility Celebrity XL SC4450DX User manual

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR User manual

Pride Mobility

Pride Mobility Traveller Plus User manual

Pride Mobility

Pride Mobility VICTORY SERIES User manual

Pride Mobility

Pride Mobility Elite Traveller Series INFINFB2039 Guide

Pride Mobility

Pride Mobility Quantum Jazzy 1420 User manual

Pride Mobility

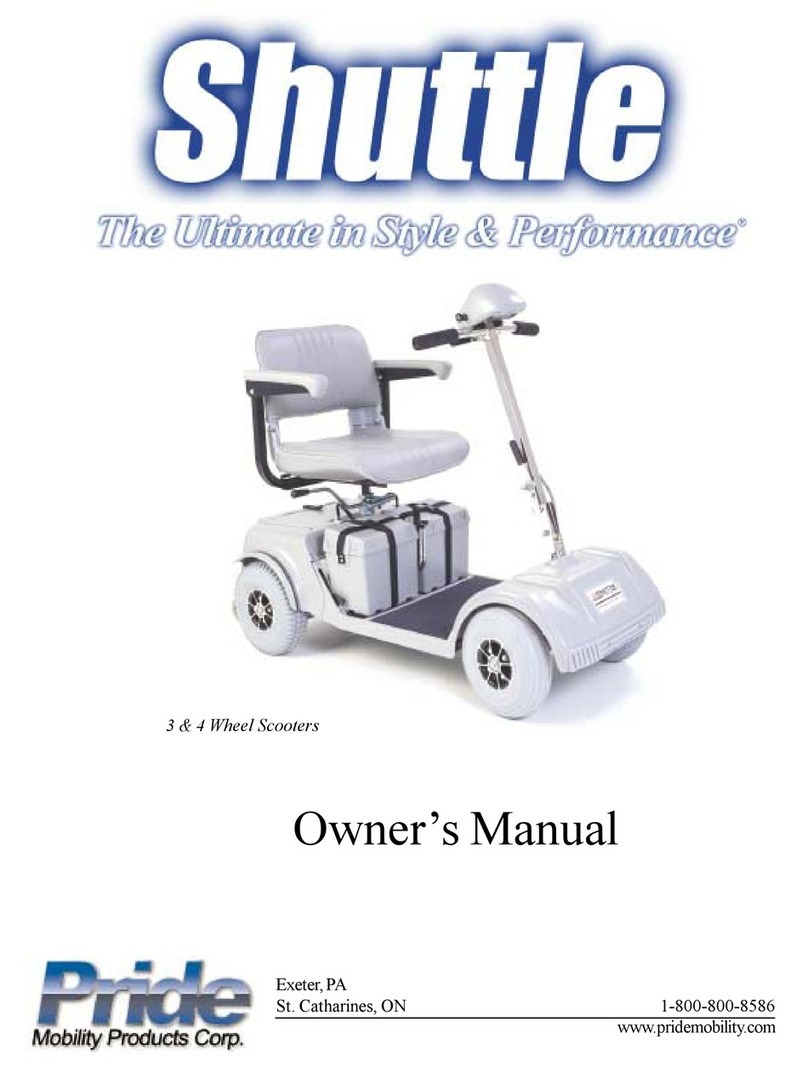

Pride Mobility Shuttle User manual

Pride Mobility

Pride Mobility Victory XL User manual

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter User manual

Pride Mobility

Pride Mobility 613 User manual

Pride Mobility

Pride Mobility Maxima Scooter SC940 User manual

Pride Mobility

Pride Mobility Go-Go Ultra X User manual

Pride Mobility

Pride Mobility KOLJA ELITE User manual

Pride Mobility

Pride Mobility CELEBRITY XL User manual

Pride Mobility

Pride Mobility VICTORY SERIES User manual

Pride Mobility

Pride Mobility Celebrity DX User manual

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 User manual

Pride Mobility

Pride Mobility Quantum 614 User manual

Pride Mobility

Pride Mobility Maxima Scooter SC940 User manual

Pride Mobility

Pride Mobility iRIDE S25 User manual

Pride Mobility

Pride Mobility Path rider User manual

Popular Scooter manuals by other brands

TEKTRO

TEKTRO CHEETAH owner's manual

Douglas

Douglas Vespa Sprint Operation and maintenance

PLAYTIVE

PLAYTIVE AS-2448 Instructions for use

Ebinger

Ebinger DONKEY XL User instructions

Flyer

Flyer Mountain Original instruction manual

BackCountry eBikes

BackCountry eBikes Storm owner's manual

equipmed

equipmed FreeRoam II user manual

Yoto

Yoto Lion owner's manual

WESTHILL BIKES

WESTHILL BIKES LINK user manual

BAnff

BAnff eProdigy series Assembly manual

Winther

Winther 475 Assembly instruction

Jetson

Jetson JBZL17 user manual

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 user manual

Carrera

Carrera impel manual

Afikim

Afikim Superlight SL-3 user manual

CareCo

CareCo ZOOM owner's manual

Douglas

Douglas Vespa G.S. Service manual

Gazelle

Gazelle with BOSCH System user manual
