Prestigio P7240WD User manual

MODEL:PRESTIGIO P7240WD

3

4

4

4

5

7

8

.9

.9

10

10

Important Safety Instruction

1. Read these instructions thoroughly and keep this user manual for future use.

2. Do not use the product near water. Never spill liquid of any kind of the

products. Clean LCD monitor when power off. Never clean it with liquid

cleanness or liquefier. Better use clean wet cloth carefully.

3. Do not place the product on an unstable cart, stand or table. Doing so may

cause the product to fall, which can seriously damage it.

4. To ensure reliable operation, never block these ventilation slots by placing

the product on a bed, rug or similar surface; This product should never be

placed near or over a radiator or heat register; or installed in any enclosure

that prevents proper ventilation.

5. Do not place any object on the power cord. Do not place this product where

persons could walk on the power cord.

6. Never push objects of any kind through the ventilation slots at the back of

the product. To do so could risk fire or electronic shock.

7 .Do not attempt to service this product by yourself. Opening or removing

covers may expose you to dangerous voltage that could cause fire or

electronic shock. Refer all servicing needs to authorized service personnel.

8. Unplug this product from the wall outlet and contact authorized service

personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If a liquid has been spilled into or on the product.

c. If the product has been rained or spilled by water.

d. If the product has been dropped or the cabinet has been damaged.

e. If the product does not operate normally when operating instructions

are followed, and product shows to be maintained.

UXGA

modes

4

4

3

16:10 AUTO 4:3

4

5

1920×1200 60HZ

16:10 AUTO 4:3

6

DCR MODE on off

7

Max resolution

Display Color

Pixel Pitch

Brightness

Contrast Ratio

Response time

Viewing Angle

Display Area

Signal Mode

Sync.Frequency

Max Bandwidth

Lamp life

Power Supply

Speaker

Power Consumption

Dimension

1920×1200/UXGA

16.7M

0.270mm×0.270mm

518.4mm(H)×324.0mm(V)

5ms(typical)

300cd/m (min)/400cd/m (typical)

700:1(min)/1000:1 (typical)

160 (H)/160 (V) (typical)

00

Video Signal:0.7Vpp 75 ,DVI(optional)

Horizontal 30KHz-80kHz/Vertical 55Hz-76Hz

165MHz

50000hrs

AC100-240V, 60/50Hz

2W×2(optional)

100W

594mm(W)×454mm(H)×205mm(D)

LM2410W

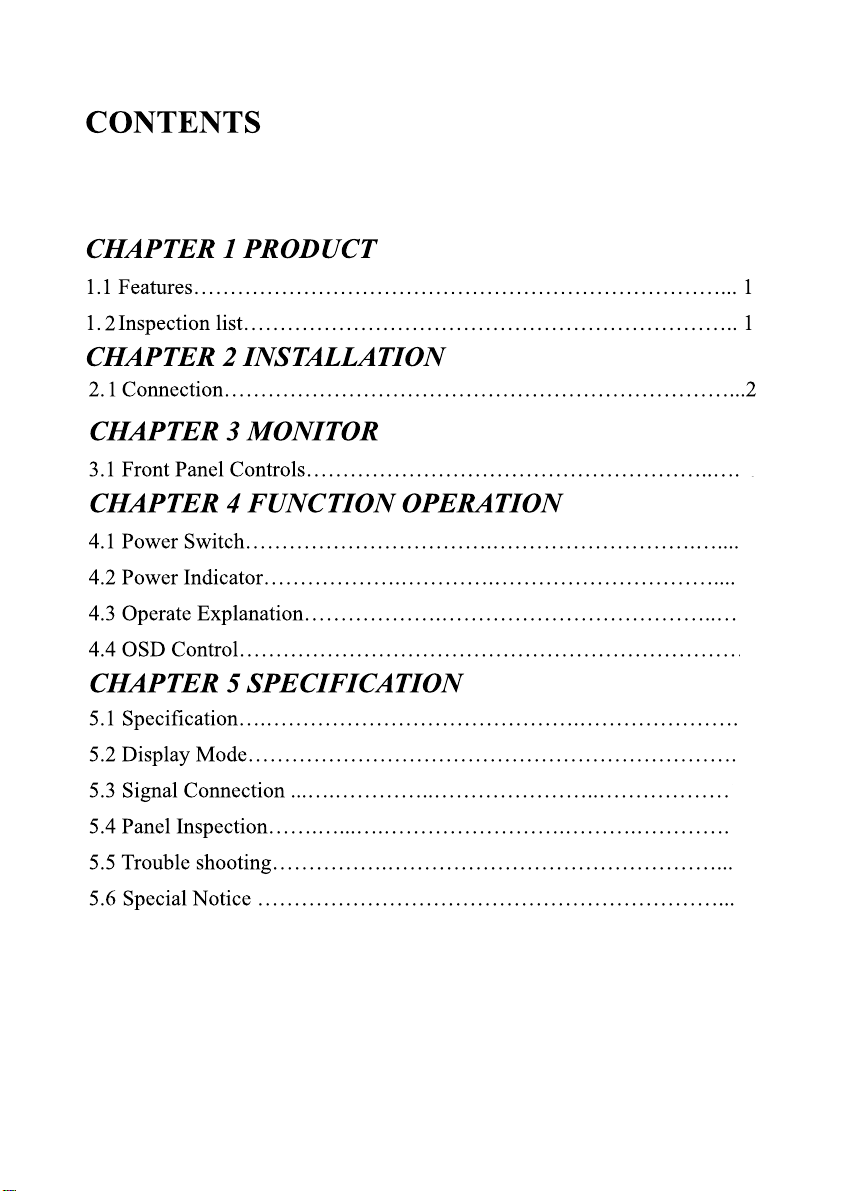

Table of contents
