PRESONUS FIRESTUDIO MOBILE - SCHEMA Specification sheet

TS - TS

XLR (M) - XLR (F)

TRS - XLR (M)

TRS - XLR (M)

FW400

Microphone

Guitar

Headphones

Computer with FireWire Active Monitor Speakers

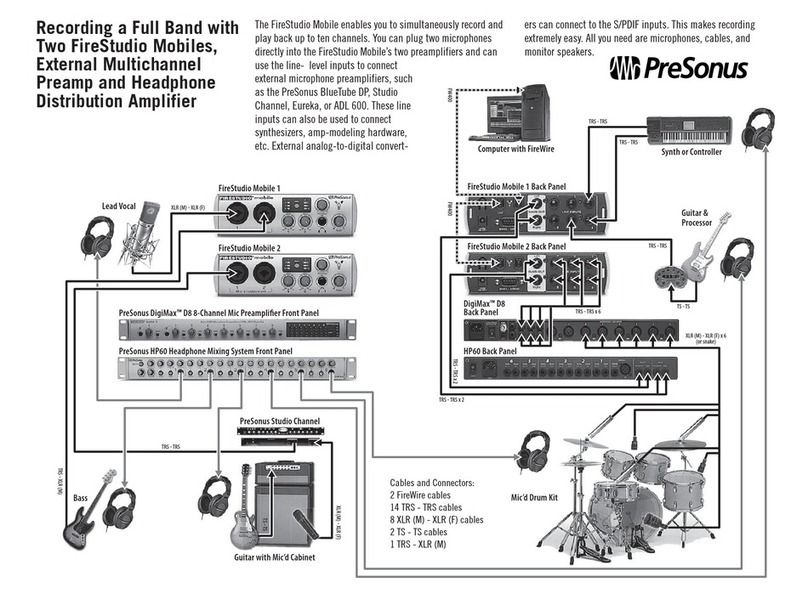

The FireStudio Mobile enables you to simultaneously

record and play back up to ten channels. You can

plug two microphones directly into the FireStudio

Mobile’s two preamplifiers and can use the line-

level inputs to connect external microphone pream-

plifiers, such as the PreSonus BlueTube DP, Studio

Channel, Eureka, or ADL 600. These line inputs can

also be used to connect synthesizers, amp-

modeling hardware, etc. External analog-to-digital

converters can connect to the S/PDIF inputs. This

makes recording extremely easy. All you need are

microphones, cables, and monitor speakers.

FireStudio Mobile Basic Setup

Cables and Connectors:

1 XLR (M) -XLR (F) (mic cable)

1 FireWire 400 (computer cable)

1 TS - TS (guitar cable)

2 TRS - XLR (M)
