Premier Mounts PFDM1 User manual
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1321 S. State College Blvd., Fullerton, CA 92831 USA
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFDM1
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Included components
Required for installation
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
Maximum Flat Panel Weight:
100 lb. / 45.35 kg.
x4
M4 x 12mm
screw
x4
M4 x 16mm
screw
x4
M4 x 25mm
screw
x4
M6 x 12mm
screw
x4
M6 x 16mm
screw
x4
M6 x 25mm
screw
x4
M8 x 16mm
screw
x4
M8 x 25mm
screw
x4
5/16” x 3”
Lag Bolts
x4
Washers
x4
Universal 3
HoleWasher
x8
Universal
Spacer
x1
Depth Measuring
Straw x1
Lock-it Barrel
Page 2
Pencil
Level
1/4” Drill Bit for
Wood Stud
Electronic Stud Finder
Socket Wrench Phillips Tip Screwdriver Tape Measure
Hand Held Drill
Protective Eyewear
1/2” Socket
O
N
x1
Wall Plate
x2
Mounting Brackets
7/16” Drill Bit for
Steel Stud
3/8” Concrete
Drill Bit
M6 Steel Stud Anchors
x4
Finned Anchors
x4
1
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
Page 3
Introduction
Directional Mounting Arrow
The Directional Mounting Arrow stamped
into the top of the PFDM1 wall mount
indicates which edge is the top.
Mounting Safety
Two people are recommended for the
installation of this mount.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
XX
You must secure the wall plate to two (2)
wall studs with a minimum of four (4) lag
bolts (2 lag bolts for each stud found).
Use a stud nder to determine the exact
center of wall studs in the vicinity of the wall
plate.
Use a pencil to mark the exact center of each
of the wall studs.
Wood Stud Installation
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 4
3
2Two people are recommended for this step; one
person to level the wall plate and another person
to mark the wall stud location.
Place the wall plate against the wall in the desired
viewing location.
Adjust the wall plate to align the mount slots in the
wall plate with the center of the wall studs.
Level the wall plate.
Use a pencil to mark the upper right mounting
location along the center of the wall stud.
Drill a “pilot hole” in the center of the upper right mark
using a 1/4” drill bit and power drill.
Only use a 1/4” drill bit when drilling the pilot
holes.
4 Place the wall plate against the wall and align it with
the pilot hole.
Insert one (1) 5/16” x 3″ lag bolt and one (1) 5/16”
washer into the upper right mounting hole and
tighten using a socket wrench and 1/2” socket.
Do not overtighten the lag bolt.
5
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 5
Level the wall plate.
Use a pencil to mark the remaining three (3)
mounting locations along the center of each wall
stud.
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 6
7
6Two people are recommended for this step; one
person to level the wall plate and another person
to drill the pilot holes.
Drill a “pilot hole” in the center of each of the marks with
a power drill and a 1/4” drill bit.
Only use 1/4” drill bit when drilling the pilot holes.
Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into each pilot hole.
Tighten all lag bolts using a socket wrench and 1/2”
socket.
Do not overtighten the lag bolts when attaching
the mount to the wall. Improper installation may
result in personal injury or property damage.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 7
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
X

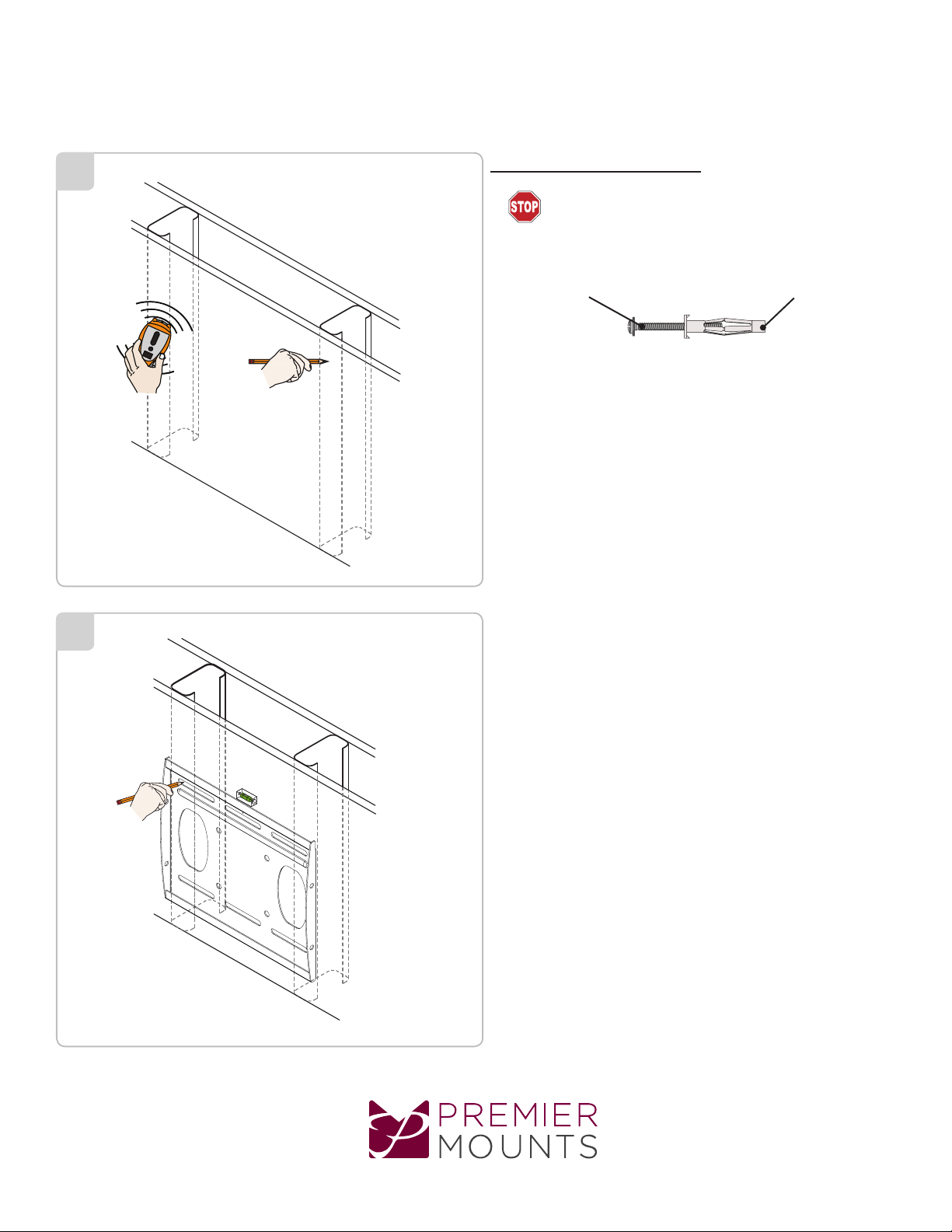

Steel Stud Installation
1
2
Identify the general location on the wall where you
will be mounting your at panel.
Use a stud nder to determine the exact center
of each steel stud in the vicinity of the mounting
location.
Use a pencil and mark the exact center of each
steel stud.
Steel Stud Anchor Screw Steel Stud Anchor Sleeve
The supplied M6 steel stud anchors must be used
to install your mount to steel studs. Do not use
lag bolts or wood screws.
Place the wall plate against the wall in the desired
viewing location.
Adjust the wall plate to match the locations of the
steel studs.
Level the wall plate.
Use a pencil and mark 2 upper and 2 lower
locations where you will be drilling holes for the steel
stud anchors.
Set the wall plate to one side in a safe location.
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 8
4
3 Use a power drill and 7/16” drill bit to drill a hole at
each of the marks.
Insert a steel stud anchor into each hole.
If necessary, lightly tap each steel stud anchor into
place with a hammer.
Use a Phillips screwdriver to tighten each steel
stud anchor screw until the legs have completely
compressed against the back of the steel stud.
The steel stud anchor screw will feel tight when
you rst begin to turn it until the legs begin to
compress. The steel stud anchor screw will then
turn easier for several turns. The steel stud anchor
screw will again feel tight when the legs have
completely compressed against the back of the
drywall. Stop turning the steel stud anchor screw
at that point.
Do not overtighten the steel stud anchor screw.
Remove the steel stud anchor screws and set them
aside.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
Page 9
1
5 Align the wall plate over the steel stud anchor
sleeves.
Insert a steel stud anchor screw and a washer into
each steel stud anchor sleeve.
Use a Phillips screwdriver and tighten each steel
stud anchor screw until it is just snug.
Do not overtighten the steel stud anchor screws.
Do not use a power drill to tighten the steel stud
anchor screws.
Concrete Wall Installation
Use a pencil and mark 4 mounting hole locations
through the slots.
Level the wall plate
PFDM1
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 10
3
2 Drill 4 pilot holes of each mark using a power drill
and 3/8˝ drill bit. Drill 3 inches deep.
Insert a concrete wedge anchor into each hole.
If necessary, lightly tap each concrete wedge
anchor into place with a hammer.
Finned Anchor
X 4
