Premier Mounts CTM-MS4 User manual

9531-000-331-06

INSTALLATION MANUAL

CTM-MS4

Premier Mounts

3130 E. Miraloma Avenue

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

[email protected] www.mounts.com

CTM-MS4

Installation Manual Page - 2 -

Table of Contents

Warning Statements ........................................................................................................................................- 3 -

Parts List ...........................................................................................................................................................- 4 -

Installation Tools ..............................................................................................................................................- 4 -

Mounting Bracket Installation .......................................................................................................................- 8 -

CTM-MS4 Installation ..................................................................................................................................- 11 -

Installing the Flat Panel Display (CTM-MS4) ............................................................................................- 14 -

Technical Specifications ................................................................................................................................- 17 -

Warranty ........................................................................................................................................................- 18 -

Contact Premier Mounts ...............................................................................................................................- 18 -

Notes ................................................................................................................................................................- 18 -

CTM-MS4

Page - 3 - Installation Manual

Warning Statements

WARNING: PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE

USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE

FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED

ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY

DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF

WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER

RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 300 LBS. IF NOT, THE

WALL STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE

BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION

INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN

SERIOUS PERSONAL INJURY, OR EVEN DEATH.

WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE

INSTALLATION OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR

THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY.

WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION

INSTRUCTIONS SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE

INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY

AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN

EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

Indicates that the power plug is to be

disconnected from the power outlet.

Contact Premier Mounts with any

questions - (800) 368-9700

Safety precautions must be taken at all

times.

Warning and Caution statements.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do

so could result in damage to the flat panel display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat

energy. Failure to do so may result in damage to the flat panel display and could increase the risk of

fire.

At least two qualified people should perform the installation procedure. Injury and/or damage can

result from dropping or mishandling the flat panel display.

CTM-MS4

Installation Manual Page - 4 -

Parts List

NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that

none of these parts are missing and/or damaged before beginning installation. If there are parts

missing and/or damaged, please stop the installation and contact Premier Mounts

(800-368-9700).

Wall Plate

(Qty 2)

Mounting Brackets

(Qty 2)

5/16” Flat

Washers

(Qty 12)

5/16” x 3” Lag Bolts

(wooden studs only)

(Qty 12)

M6 x 30mm

Lateral Shift

Locking

Screws (Qty 2) Griplate™ (Qty 8)

M6 x 12mm

Safety Knobs

(Qty 2)

M8 Hex Nut

(Qty 2)

M8 x 16mm

Hex Head

Bolt (Qty 2)

5/16” x 1-1/4”

Mounting Rod

Set Screw (Qty 1)

Installation Tools

Phillips Head Screw Driver Soft Material/ Blanket ½ ” Socket and Wrench

Pencil Tape Measure Drill Gun

Level (Supplied) Thread Depth Indicator (Supplied)

CTM-MS4

Page - 5 - Installation Manual

M5 x 25 (Qty 8) M6 x 35

(Qty 8)

M5 x 30 (Qty 8) M8 x 20

(Qty 8)

M6 x 20

(Qty 8) M8 x 25

(Qty 8)

M6 x 25

(Qty 8) M8 x 30

(Qty 8)

M6 x 30

(Qty 8) M8 x 35

(Qty 8)

M8 x 70 (Qty 4)

Nylon spacers and flat washers’ actual size

NOTE: The nylon spacers may be stacked to achieve proper spacing.

¼” Nylon

Spacers

(Qty 8) ¼” Nylon

Spacers

(Qty 8)

½” Nylon

Spacers

(Qty

12) 9/16” Nylon

Spacers

(Qty 8)

5/16” Flat

Washers

(Qty 8) Nylon Sleeves

(Qty 8)

1” Nylon Spacers

(Qty 8)

CTM-MS4

Installation Manual Page - 6 -

How to Determine the Correct Spacer

1. The following illustration shows a display

mounting surface that will not need the use of a

spacer.

2. The illustration shows a display mounting surface

that will need a spacer to correctly install the

mounting plate.

3. Anytime a display has a recessed mounting point,

a spacer must be used.

4. Select the spacer(s) that will create a flush and

level mounting surface for the mounting plate.

5. The following illustration shows how a thread

depth indicator should be used to determine which

spacer should be used.

6. The following illustration shows how a correctly

installed spacer and mounting screw will sit in a

recessed mounting point.

CTM-MS4

Installation Manual Page - 7 -

Thread Depth Indicator

1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to

make sure the inserts measure the same full depth and mark it (Figure 1).

2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).

3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.

4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find

one that comes closest to your mark without going past the mark on the Thread Depth Indicator.

Figure 1

Figure 2 Figure 3

Marking the depth

Thread depth

indicator

Thread insert

Inverted flat panel

display

Screw

Marking

Thread depth

indicato

Screw Thread depth

indicator

Marking

CTM-MS4

Page - 8 - Installation Manual

Mounting Bracket Installation

NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be

adhered to. Failure to do so could result in serious personal injury and possible damage to the flat

panel.

WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT

DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO

WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON

THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. THE FLAT PANEL IS

HEAVY AND FRAGILE. AT LEAST TWO QUALIFIED PERSONNEL ARE STRONGLY

RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO

COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT

PANEL.

1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring from

outside to outside of the flat panel (Figure 4).

2. Using a pencil lightly mark the center of your flat panel (Figure 5).

Figure 4 Figure 5

Top of flat panel

Measuring tape

Inverted flat panelBottom of flat panel

Inverted flat panel

Mark the center

of the flat

anel

CTM-MS4

Installation Manual Page - 9 -

3. Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6).

4. Lay the mounting brackets (stamped arrows facing out) - (Figure 7).

Figure 6

Figure 7

5. Match the center of viewing guide with the centerline you marked in Step 1 (Figure 8).

6. The mounting brackets are designed with a center of viewing guide on the outside (Figure 9).

Nylon Spacers, If Applicable

Inverted Flat Panel

Center Mark

Arrows Facing Out

Bottom of Flat Panel

Notched Cut Outs

CTM-MS4

Page - 10 - Installation Manual

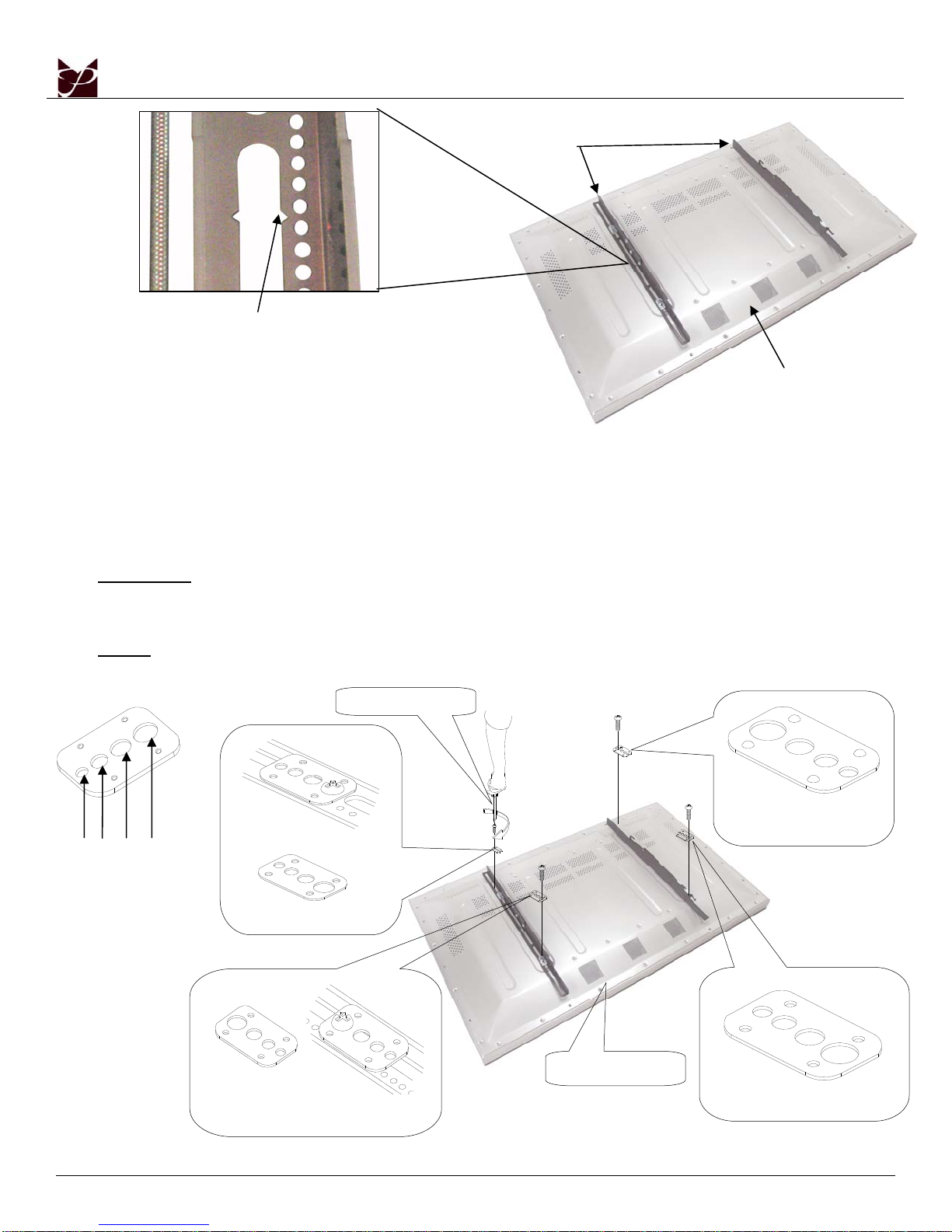

7. The Griplate™ has M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires.

EXAMPLE: If your plasma uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 10).

8. Once the mounting brackets are aligned, secure the Griplate™ to the flat panel. Use (1) Griplate™ per

mounting point (Figure 11).

NOTE: The dimples of the top Griplate™ have to be facing up and the bottom Griplate™ dimples must

be facing down.

Dimples Facing Up

Dimples Facing Down

Inverted Flat Panel

Dimples Facing Down

Dimples Facing Up

Phillips Screw Driver

Figure 11

Figure 10

M4 M5 M6 M8

Bottom of the

Flat Panel

Mounting Bracket

Notched Cut Out

Figure 8

Figure 9
