PreciseFit DC0001-N User manual

mPreclseFilt.

II E ITm[.l$TErl FOTT THE *,CIg

Precise Fit Trusted for the Job & PF Design@ is a registered trademark of LF, LLC.

ITEM #A153730

1O GU. FT. STEEL UTILITY DUMP CART

Pu rchase Date

MODEL # DCOOO1 -N

ATTACH YOUR

Serial Number

RECEIPT HERE

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., Monday - Thursday; 8 a.m. - 5 p.m.,

Friday, EST.

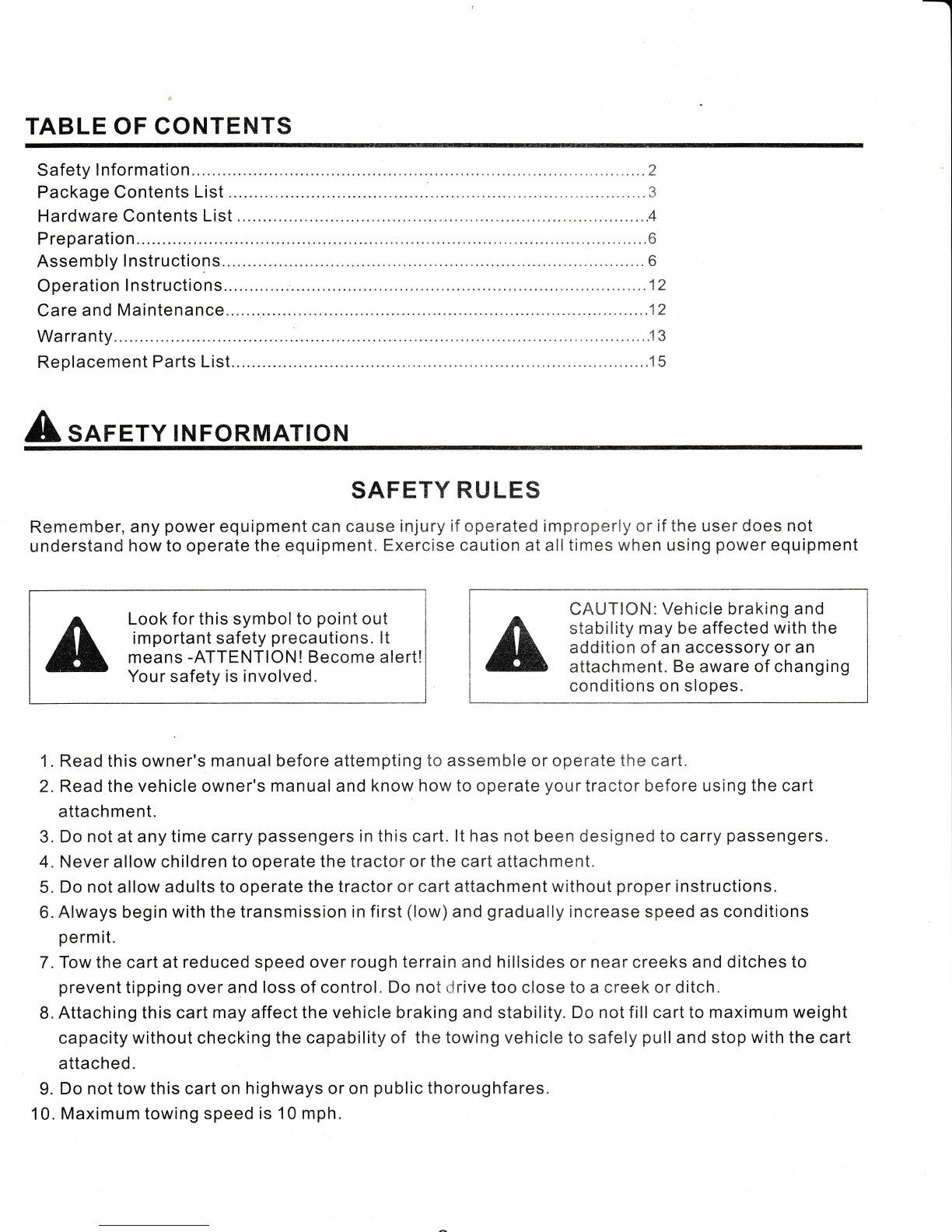

TABLE OF CONTENTS

A SAFETY INFORMATION

SAFETY RULES

Remember, any power equipment can cause injury if operated

understand how to operate the equipment. Exercise caution atimproperiy or if the user does not

alltirnes when using power equipment

Look for this symbol to point out

important safety precautions. lt

means -ATTENTION! Become alert!

Your safety is involved.

CAUTION : Vehicle braking and

stability may be affected with the

addition of an accessory or an

attachment. Be aware of changing

conditions on slopes.

1. Read this owner's manual before attempting to assemble or operate the cart.

2. Read the vehicle owner's manual and know how to operate your tractor before using the cart

attachment.

3. Do not at any time carry passengers in this cart. lt has not been designed to carry passengers.

4. Never allow children to operate the tractor or the cart attachment.

5. Do not allow adults to operate the tractor or cart attachment without proper instructions.

6. Always begin with the transmission in first (low) and gradually increase speed as conditions

permit.

7. Tow the cart at reduced speed over rough terrain and hillsides or near creeks and ditches to

prevent tipping over and loss of control. Do not drive too close to a creek or ditch.

8. Attaching this cart may affect the vehicle braking and stability. Do not fill cart to maximum weight

capacity without checking the capability of the towing vehicle to safely pull and stop with the cart

attached.

9. Do not tow this cart on highways or on public thoroughfares.

10. Maximum towing speed is 10 mph.

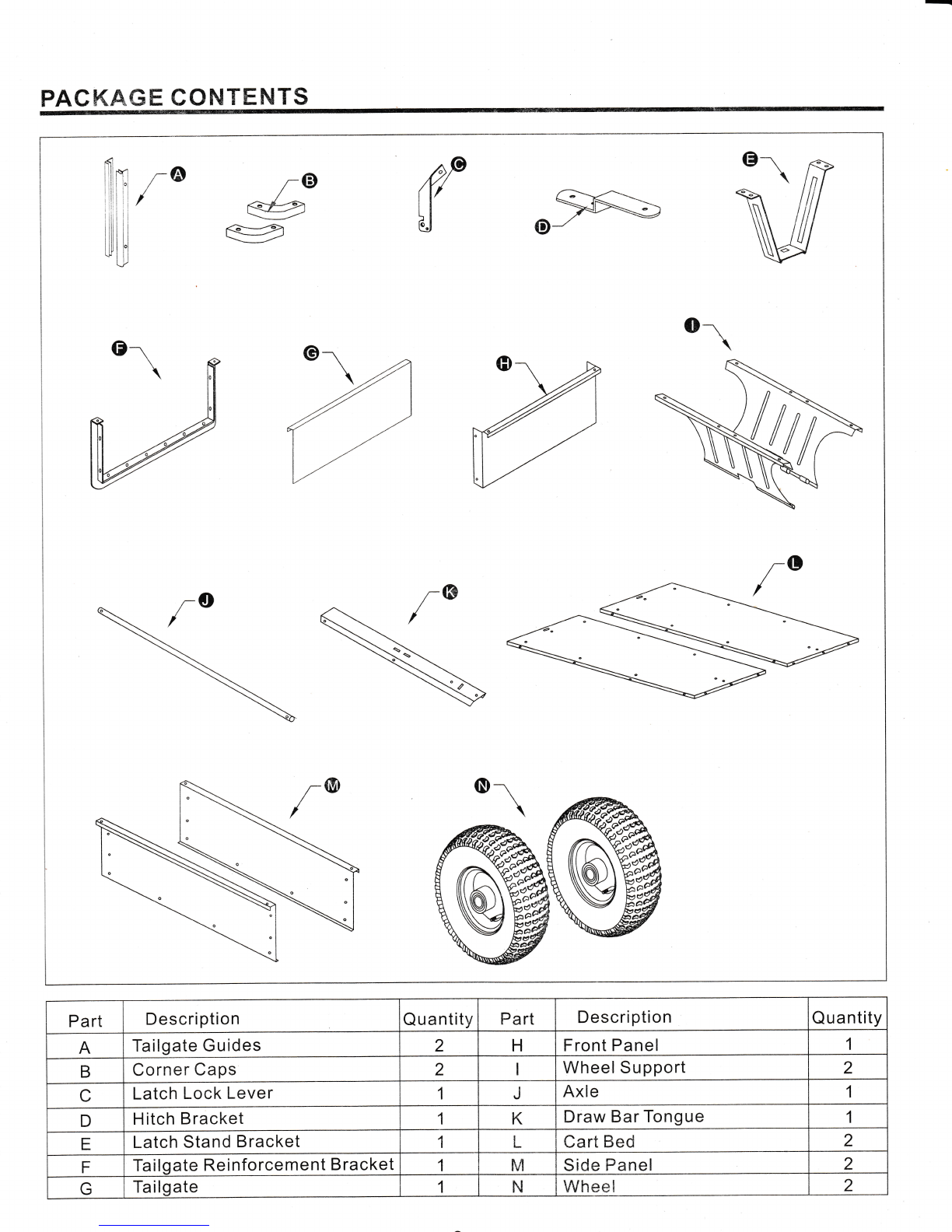

PACKA&ffi CON-T#NT$

ilry r^G

LilL| vR

g-t

O1\

Pa rt Description Q u a ntity Part Description Q u a ntity

ATailgate Guides 2HFront Panel 1

BCorner Caps 2Wheel Su pport 2

CLatch Lock Lever 1JAxle 1

DH itch B racket 1KDraw tsar Tongue 1

ELatch Stand Bracket tlILCart Bed 2

FTa Igate Reinforcement B racket 1F.d Side Panel 2

GTa lgate 1NWh**l 2

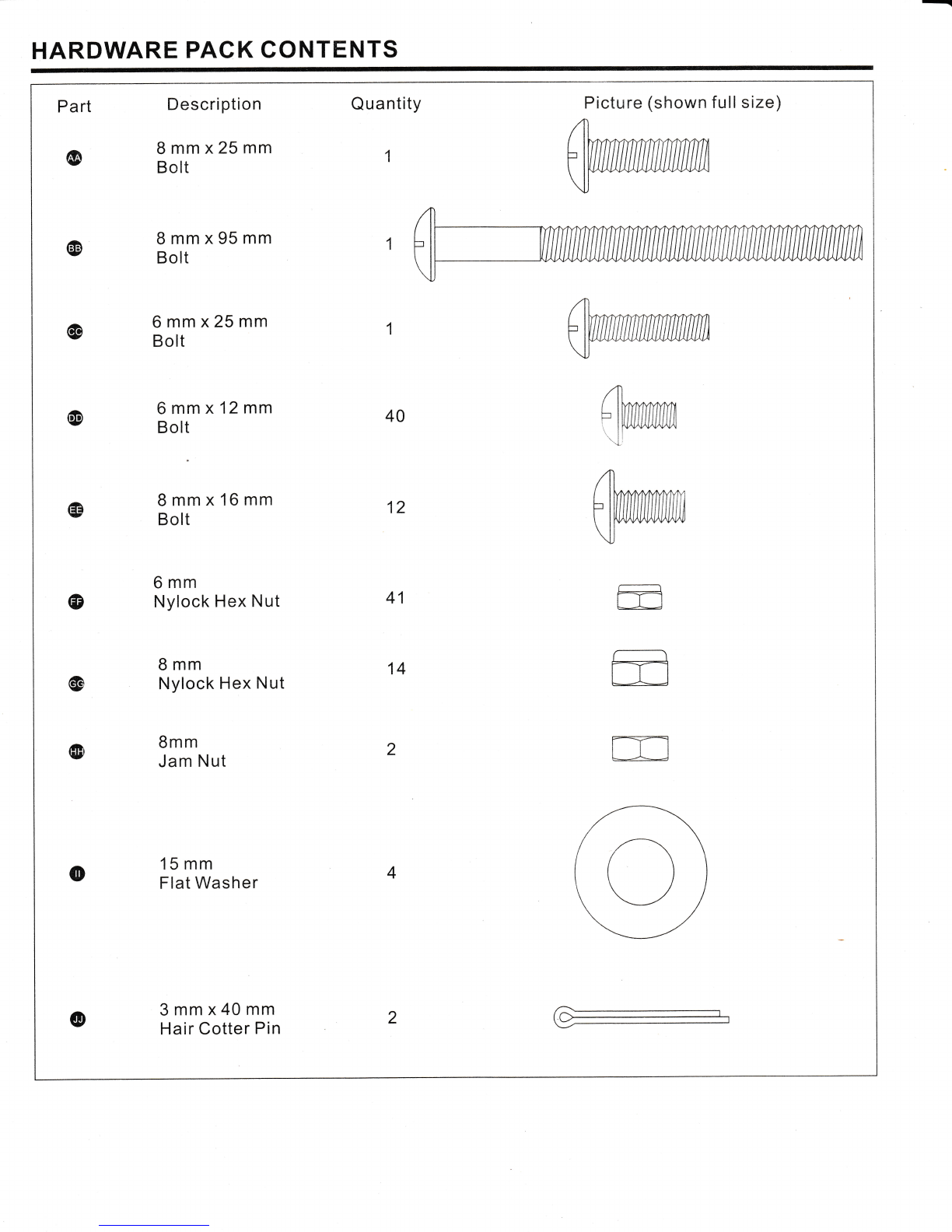

HARDWARE PACK CONTENTS

Part

Description

8mmx25mm

Bolt

8mmx95mm

Bolt

6mmx25mm

Bolt

6mmx12mm

Bol:

8mmx16mm

Bolt

6mm

Nylock Hex Nut

8mm

Nylock Hex Nut

Bmm

Jam Nut

Quantity

Pictu re (shown fu ll s tze)

@40 /T)

L 1il111?,11fr

\Lr",*"

Ftffi

Vffi

@12

(D 41

o15 mm

Flat Washer

@3mmx40mm

Hair Cotter Pin

-l

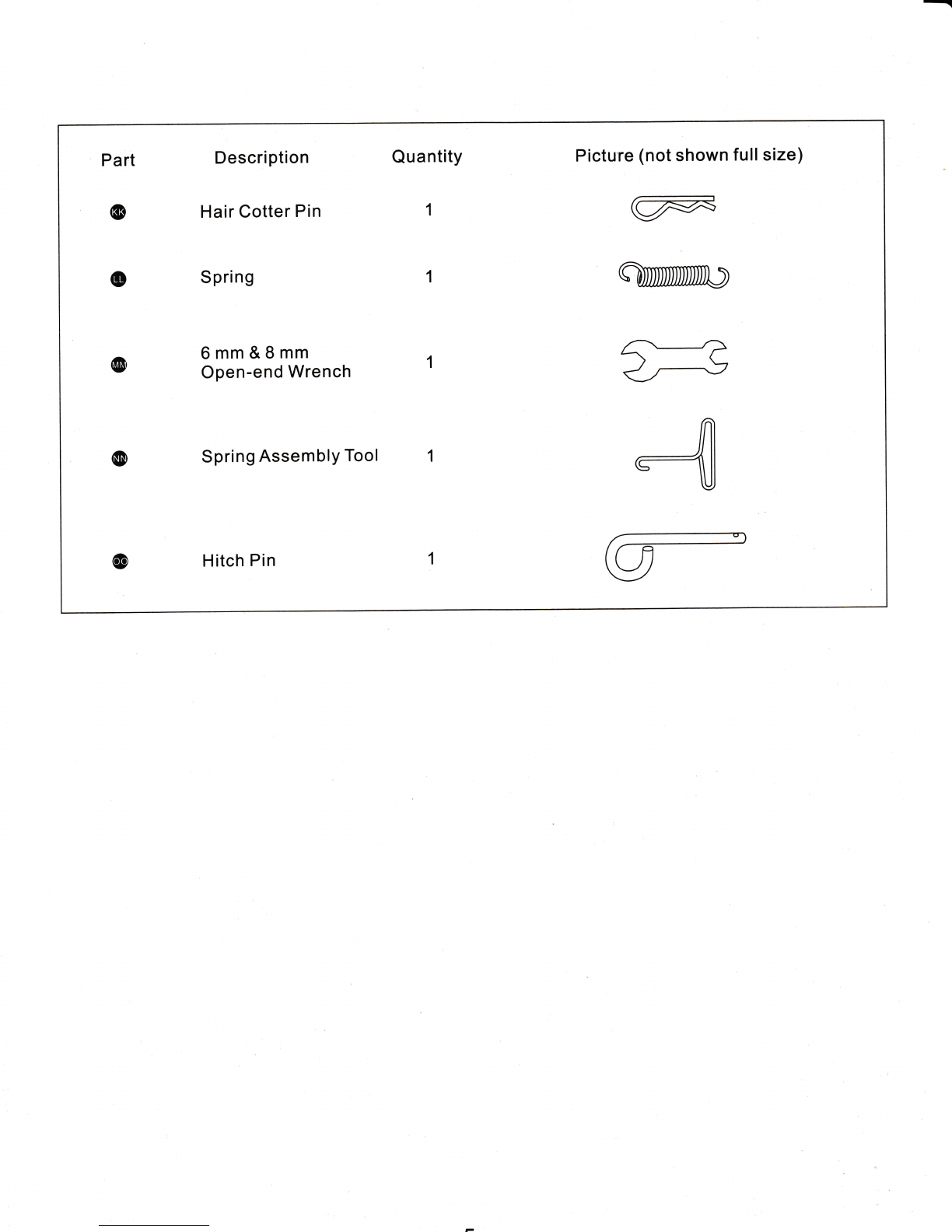

Part Description QuantitY Picture (not shown full size)

@ Hair Cotter Pin

(D SPring @

@ 3[H::Jffiench 1

1@ Spring AssemblY Tool 1

@ Hitch Pin

PREPARATION

Before beginning assembly or operation of product, make sure all parts are present. Compare parts

with package contents list and diagram above. lf any part is missing or damaged, do not attempt to

assemble or operate the product. Contact customer service for replacement.

Estimated assembly time: 120 minutes.

Tools Required for AssemblY:

6 mm & 8 mm Open-end wrench (included) O=

Spring assembly tool (included)

Phillips screwdriver (not included)

Adjustable wrench (not included)

ASSEMBLY INSTRUCTIONS

f-Yl

(c=-AJ

ffi

CAUTION

Do not leave the cart unattended in upright position

during assembly. A falling cart can cause personal

injuryl Pay close attention to the stability of the cart

while it remains in an upright position, For stability,

assemble on a smooth, level surface.

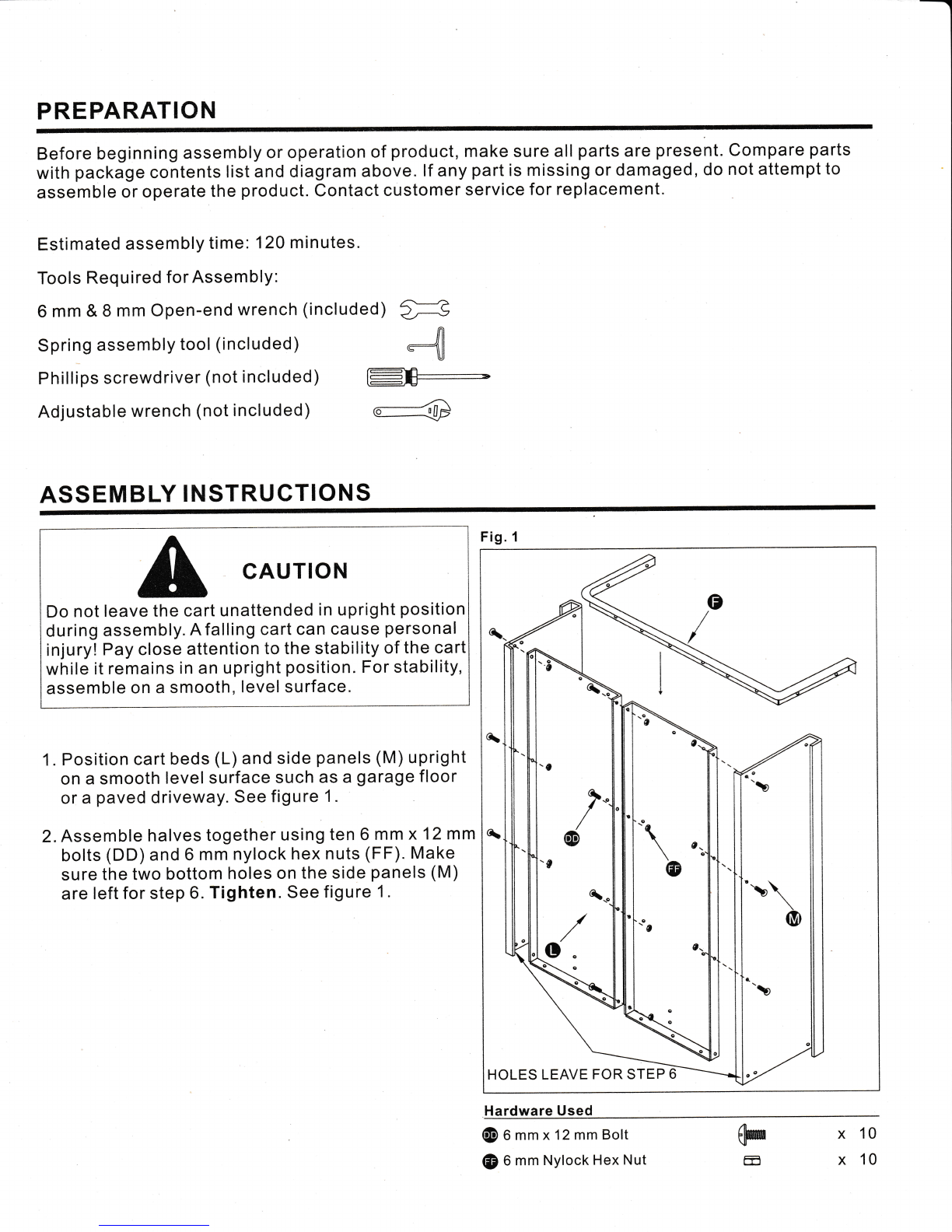

1 , Position cart beds (L) and side panels (M) upright

on a smooth level surface such as a garage floor

or a paved driveway. See figure 1.

2. Assemble halves together using ten 6 mm x 12mm

bolts (DD) and 6 mm nylock hex nuts (FF). Make

sure the two bottom holes on the side panels (M)

are left for step 6. Tighten. See figure 1 .

Fig. 1

HOLES LEAVE FOR STE}}

Hardware Used

@ 0 mm x12 mm Bolt

e) 6 mm Nylock Hex Nut @

-t\ \o..

-o

t\\

Fig. 2GUIDE CHANNELS

FACING FRO

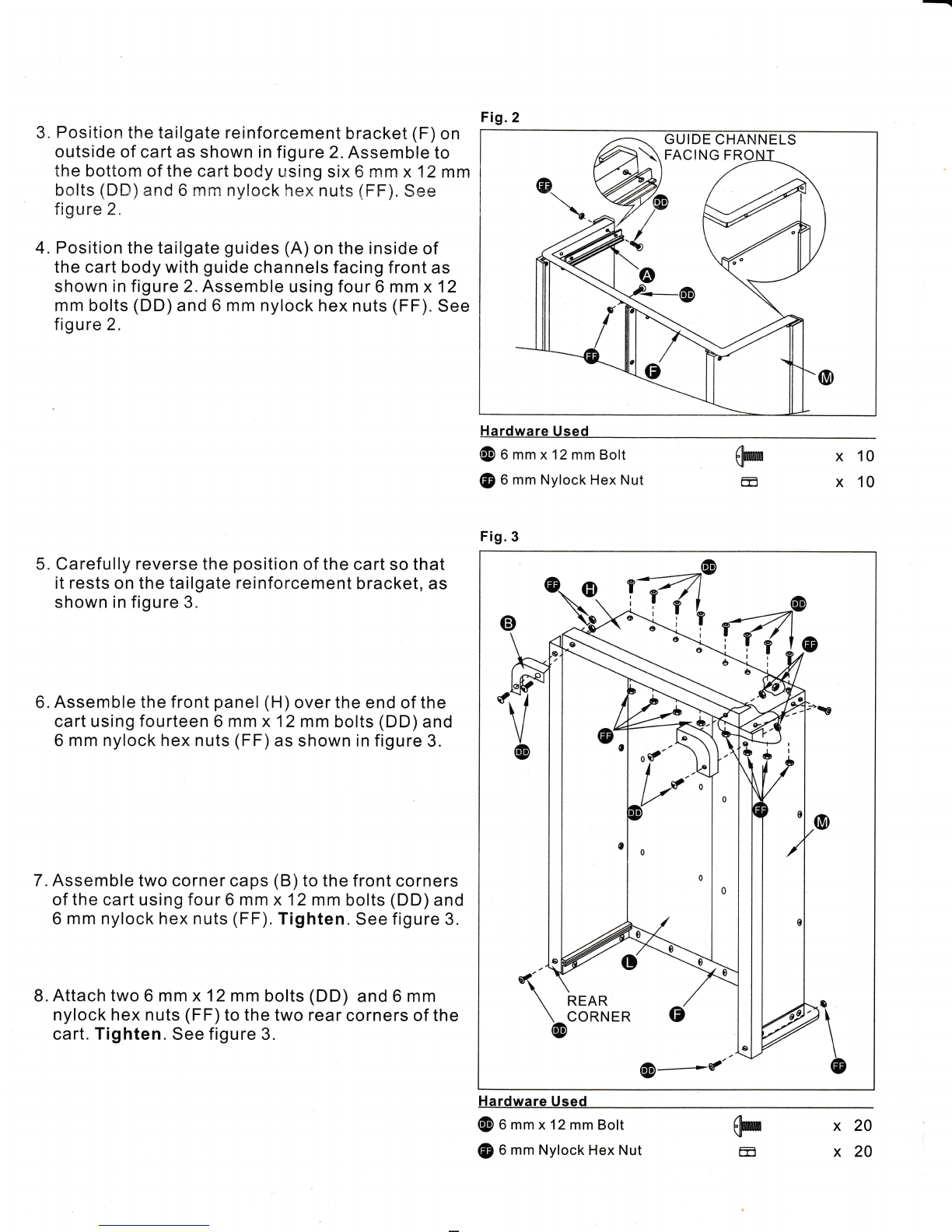

3. Position the tailgate reinforcement bracket (F) on

outside of cart as shown in figure 2. Assemble to

the bottom of the cart body using six 6 mm x 12 mm

bolts (DD) and 6 mm nylock hex nuts (FF). See

figu re 2.

4. Position the tailgate guides (A) on the inside of

the cart body with guide channels facing front as

shown in figu re 2. Assemble using four 6 mm x 12

mm bolts (DD) and 6 mm nylock hex nuts (FF).See

figure2.

@ 0 mm x12mm Bolt

@ 6 mm Nylock Hex Nut (@

ffi x 10

x 10

5. Carefully reverse the

it rests on the tailgate

shown in figure 3.

position of the cart so that

rei nforcement bracket, os

6. Assemble the front panel (H) over the end of the

cart using fourteen 6 mm x 12 mm bolts (DD) and

6 mm nylock hex nuts (FF) as shown in figure 3.

7. Assemble two corner caps

of the cart using four 6 mm

6 mm nylock hex nuts (FF).

(B) to the front corners

x 12 mm bolts (DD) and

Tighten. See figure 3.

8. Attach two 6 mm x 12 mm bolts

nylock hex nuts (FF) to the two

cart. Tighten. See figure 3.

(DD) and 6 mm

rear corners of the

@0mmx12mmBolt

@ 6 mm Nylock Hex Nut @

mx20

x20

Fig.3

@- -t''

,€" \

/.k

L{o

Hardware Used

Hardware Used _

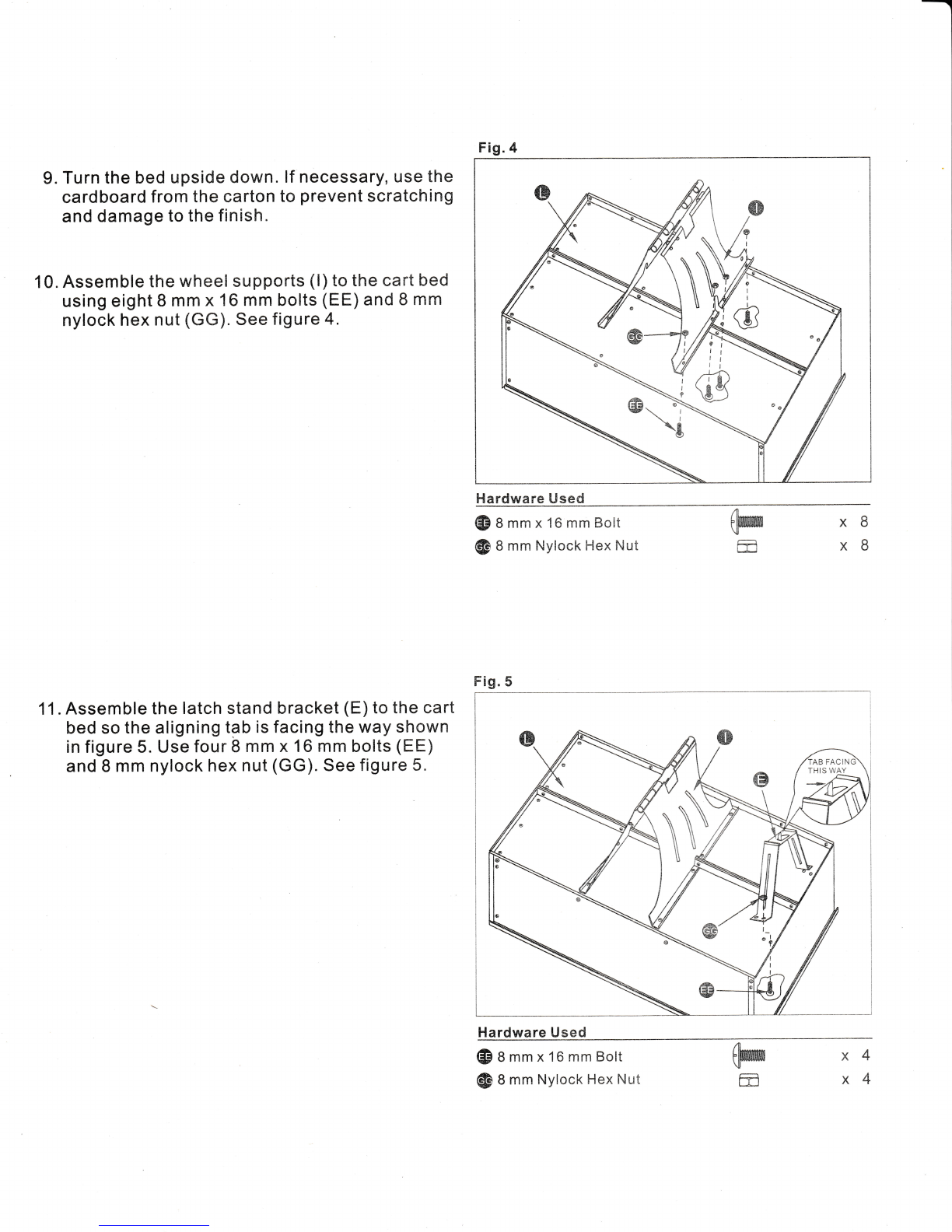

9. Turn the bed upside down. If necessary, use the

cardboard from the carton to prevent scratching

and damage to the finish.

10. Assernble the wheel supports (l) to the cart bed

using eight I mm x 16 rnm bolts (EE) and 8 mm

nylock hex nut (GG). See figure 4.

11 . Assemble the latch stand bracket (E) to the cart

bed so the aligning t3b is facing tl'te way shown

in figure 5. Use four 8 mm x 16 mrn bolts (EE)

and 8 mm nylock hex nut (GG). See figure 5.

GD g mm x 1G mm Bolt

@ 8 mffl Nylock Hex Nut @

ffi x8

Hardware Used

@Ammxl6mmBolt

G& 8 mnn Nylock Hex Nut (@

ffi x4

)I r i-

Fig.4

l-tandwai'e Used

Frg. 5

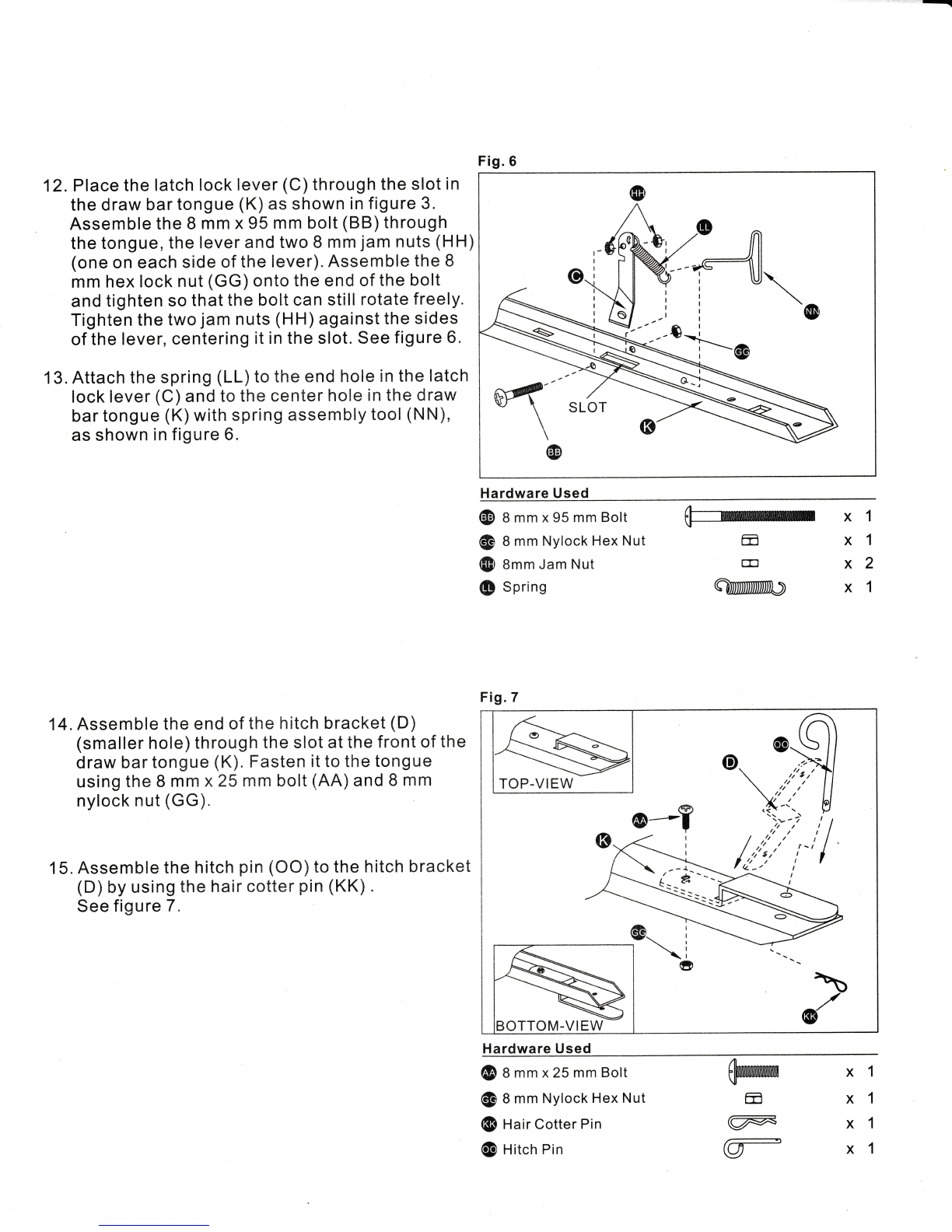

12. Place the latch lock lever (C) through the slot in

the draw bar tongue (K) as shown in figure 3.

Assemble the 8 mm x 95 mm bolt (BB) through

the tongue, the lever and two 8 mm jam nuts (HH)

(one on each side of the lever). Assemble the 8

mm hex lock nut (GG) onto the end of the bolt

and tighten so that the bott can still rotate freely.

Tighten the two jam nuts (HH) against the sides

of the lever, centering it in the slot. See figure 6.

13.Attach the spring (LL) to the end hole in the latch

lock lever (C) and to the center hole in the draw

bar tongue (K) with spring assembly tool (N N ),

as shown in figure 6.

l4.Assemble the end of the hitch bracket (D)

(smaller hole) through the slot at the front of the

draw bar tongue (K). Fasten it to the tongue

using the 8 mm x25 mm bolt (AA) and 8 mm

nylock nut (GG).

15. Assemble the hitch pin (OO) to the hitch bracket

(D) by using the hair cotter pin (KK) .

See figure 7.

8 mm x 95 mm Bolt

8 mm Nylock Hex Nut

8mm Jam Nut

S pring

@ A mm x25 mm Bolt

@ I mm Nylock Hex Nut

@ nair Cotter Pin

@ Hitch Pin

Fig. 6

Hardware Used

Fig.7

Hardware Used

TOP.VIEW

BOTTOM-VIEW

Fig.8

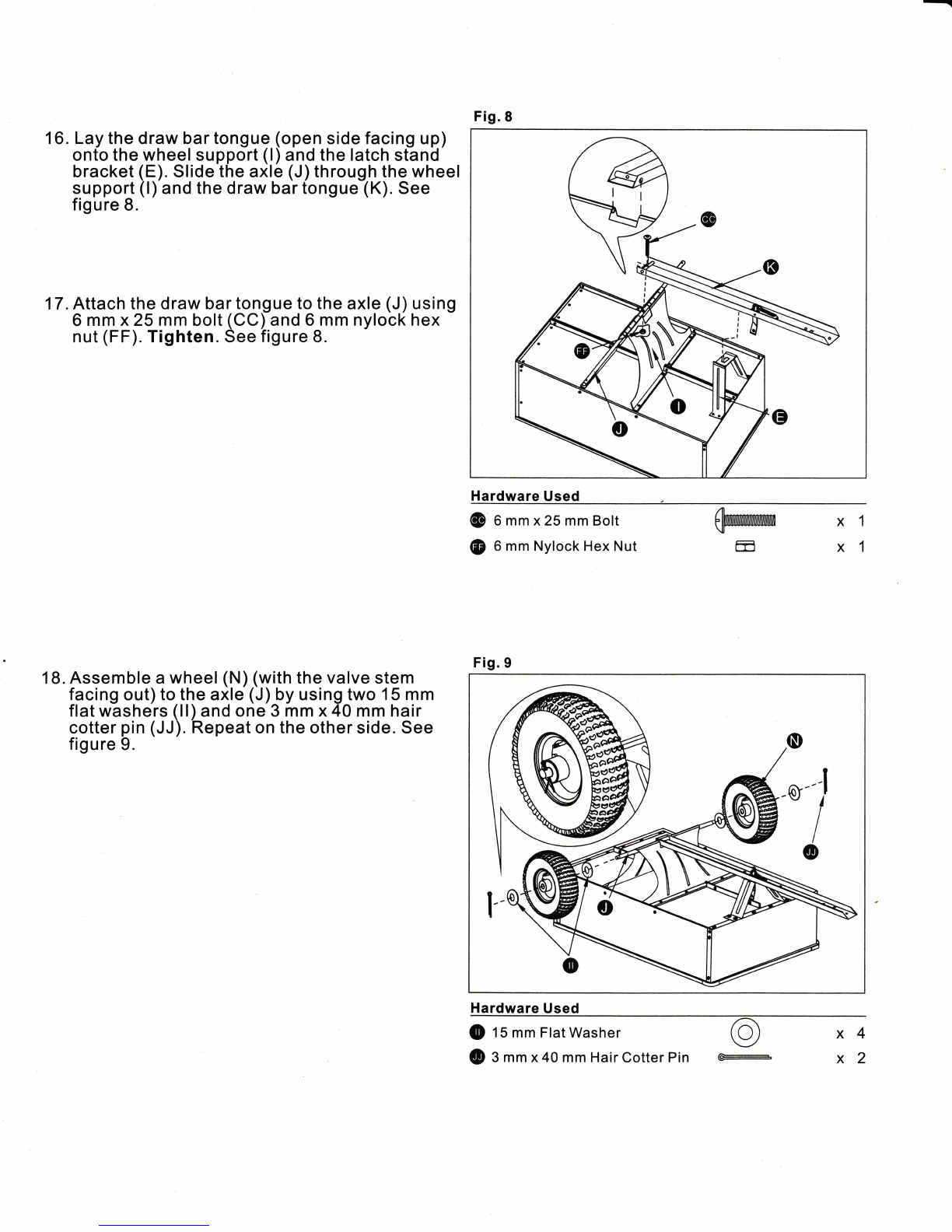

Lay the draw bar tongue (open side facing up)

onto the wheel support (l) and the latch stand

bracket (E). Slide the axle (J) through the wheel

support (l) and the draw bar tongue (K). See

figure 8.

17. Attach the draw bar tongue to the axle (J)

6 mm x 25 mm bolt (CC) and 6 mm nylock

nut (FF).Tighten. See figure 8.

18. Assemble a wheel (N) (with the valve stem

facing out) to the axle (J) by using two 15 mm

flat washers (ll) and one 3 mm x40 mm hair

cotter pin (JJ). Repeat on the other side. See

figure 9.

16.

usi ng

hex

Hardware Used x1

qWUWWffWn

@ O mm x25 mm Bolt

@ 6 mm Nylock Hex Nut

Hardware Used

O 15 mm FlatWasher O x 4

@ S mm x40 mm HairCotter Pin F x 2

Fig. 9
