PPT Vision A-Series Installation instructions

A-Series

Hardware Guide

PPT Publication # 843-0116 (Rev L)

Disclaimer

PPT Vision, Inc. makes no representations or warranties for merchantability or fitness for any particular purpose, regard-

ing PPT’s software or hardware. PPT Vision, Inc. shall not be liable for errors contained herein or for incidental or conse-

quential damages in connection with the furnishing, performance, or use of this publication or its contents.

PPT VISION, Inc. reserves the right to revise this publication from time to time and to make changes in the content hereof

without obligation to notify any person of such revision or changes.

Under the copyright laws, neither this publication nor the software may be copied, photocopied, reproduced, or reduced to

any electronic medium or machine-readable form, in whole or in part, without the prior written consent of PPT VISION,

Inc.

Impact, A-Series, Vision Program Manager, VPM, Control Panel Manager, CPM, Digital Serial Link, and DSL are trade-

marks of PPT Vision, Inc. Microsoft Windows is a trademark of Microsoft Corporation. Java is a trademark of Sun Micro-

systems, Inc.

Technical Support

If you have technical questions about the operation of any PPT product, contact your distributor or PPT Vision, Inc. Please

have the following information available before you call:

• The version number of Impact Software Suite software you are running. To find it, click the information icon on

the title bar.

• The type and version number of the operating system software you are running on the client computer.

• The model and serial numbers of the PPT device you are using. They are located on the bottom of the unit.

Telephone:

Facsimile:

Web site:

E-Mail:

952-996-9500

952-996-9501

http://www.pptvision.com

[email protected]

PPT VISION, Inc Table of Contents

TABLE OF CONTENTS

Chapter 1: Introduction

Contents of This Manual.................................................................................... 1-1

Chapter 2: When Your System Arrives

Before You Set Up the System.......................................................................... 2-1

Hardware Components............................................................................... 2-1

Safety Precautions...................................................................................... 2-2

System Specifications........................................................................................ 2-3

Setting Up the System....................................................................................... 2-4

Connection Diagram................................................................................... 2-5

Preventive Maintenance .................................................................................... 2-6

Before You Call........................................................................................... 2-6

Chapter 3: Basic Hardware Components

Camera Mounting .............................................................................................. 3-1

Mounting Dimensions ................................................................................. 3-2

Top View Status Lights...................................................................................... 3-3

Trigger Source ................................................................................................... 3-3

Strobes............................................................................................................... 3-4

PPT LED Ringlight............................................................................................. 3-4

PPT LED Ringlight dimensions................................................................... 3-5

PPT LED Ringlight Adapter ........................................................................ 3-5

PPT LED Ringlight Specifications............................................................... 3-7

PPT LED Ringlight Wiring........................................................................... 3-8

RLD3 LED Ringlight........................................................................................... 3-9

RLD3 LED Ringlight dimensions .............................................................. 3-10

RLD3 LED Ringlight Adapter.................................................................... 3-10

RLD3 LED Ringlight Specifications .......................................................... 3-12

RLD3 LED Ringlight Wiring ...................................................................... 3-13

Power Supply................................................................................................... 3-14

Chapter 4: I/O Reference

Inputs................................................................................................................. 4-1

Sample Wiring Diagram.............................................................................. 4-2

Outputs .............................................................................................................. 4-3

Sample Wiring Diagrams............................................................................ 4-4

Chapter 5: Cable Reference

Ethernet ............................................................................................................. 5-1

Input/Output....................................................................................................... 5-1

Terminated I/O Cable ................................................................................. 5-1

I/O Terminal Block...................................................................................... 5-2

Terminal Block Connection Table (A10 Only)............................................. 5-3

Unterminated I/O Cable (A10 Only)............................................................ 5-4

Terminal Block Connection Table (except A10) ......................................... 5-7

Unterminated I/O Cable (except A10)......................................................... 5-8

Strobe .............................................................................................................. 5-10

Serial................................................................................................................ 5-11

Chapter 6: Appendix

IP Mask and Address......................................................................................... 6-1

Configuring the camera...................................................................................... 6-1

Configuring the Client ........................................................................................ 6-3

Troubleshooting ................................................................................................. 6-4

Table of Contents PPT VISION, Inc

A-Series Hardware Guide 1-1

CHAPTER 1

Introduction

Thank you for purchasing a PPT A-Series camera. Please read the instructions in this document before starting your sys-

tem setup.

This manual explains the various parts of the PPT A-Series camera, including the system inputs and outputs available to

integrate your system into a production line.

NOTE: This manual covers the entire line of PPT A-Series cameras. Sections that apply to a specific A-Series model

number will be indicated.

Contents of This Manual

The Hardware Guide consists of the following chapters:

•Chapter 1: Introduction

The contents of this manual.

•Chapter 2: When your system arrives

This chapter explains the general safety precautions and specifications for the PPT A-Series camera.

•Chapter 3: Basic Hardware Components

This chapter illustrates the hardware components and their dimensions.

•Chapter 4: I/O Reference

These are the diagrams of the inputs and outputs of your camera.

•Chapter 5: Cable Reference

These are the wiring specifications for cables for your camera.

•Chapter 6: Appendix

This chapter explains technical configuration, as well as tips for correcting problems you may encounter while

using the PPT A-Series camera.

Introduction PPT VISION, Inc.

1-2 A-Series Hardware Guide

A-Series Hardware Guide 2-1

CHAPTER 2

When Your System Arrives

When your system arrives, check the shipping cartons for wrinkled or damaged corners, holes through the cardboard, or

other signs of rough handling or abuse. If you find any signs of damage, ask the delivery service to make a note on the

delivery receipt describing the damage.

Carefully remove the A-Series camera, cabling, and accessories from the shipping package. Place the equipment on a

table and inspect each item. Save all packing materials so you can repack the system in case you need to move or ship it.

Extreme temperature precautions: If your system arrives in very cold or hot weather, allow all the equipment to reach

room temperature before plugging it in. Exposing cold equipment to a warm room can cause condensation. If condensa-

tion forms, wait for the equipment to dry completely before applying power.

Before You Set Up the System

Before we shipped your A-Series camera, we did the following:

•Ran the setup program and specified a default software and hardware configuration. See page 2-4 for more infor-

mation about setting up the hardware. Refer to the Impact Reference Guide for software configuration information.

•Set a default Internet Protocol (IP) address and a default IP Mask value. You will need to change the IP address if

you have multiple devices on a network. (See Chapter 6 of this manual for more information.)

Hardware Components

The major hardware components of an A-Series camera system are:

•Camera (A10 = PPT Part # 661-0373; A20 = PPT Part # 661-0384)

•Optional power supply

•Optional unterminated I/O cable (PPT Part # 606-0644-xx)

•Optional terminated I/O cable (PPT Part # 606-0607-xx)

•Optional terminal block (PPT Part # 248-0138)

•Optional screw-down Ethernet cable (PPT Part # 606-0619-xx)

optional standard double-shielded Ethernet cable (PPT Part # 606-0615-xx)

•Optional Ethernet switch (PPT Part # 606-0455)

•Optional Ringlights (see pages 4 and 9)

When Your System Arrives PPT VISION, Inc.

2-2 A-Series Hardware Guide

•Optional LED Ringlight cable (PPT Part # 606-0614-xx)

•Optional LED Ringlight adapter (PPT Part # 651-0131)

•Optional Dust Cover adapter (PPT Part # 651-0160)

To configure the camera, a computer running the Impact Software Suite Utilities software is required. See Chapter 6 of

this manual and refer to the Impact Reference Guide for more details.

Note: An optional power supply is available for your A-Series camera. If you provide your own, it must supply 24 VDC

@ .50 A (minimum). Its safe operating ambient temperature range is 0° to +50° C (+32° to +122° F).

This equipment is to be powered by a Listed power supply for the U.S. and Canada, or a power supply that meets the

requirements for use where either IEC 60950 or EN60950 is applicable.

Safety Precautions

Warning: There are no user-serviceable parts inside the PPT device. To avoid electrical shock, never open the case.

Opening the case or removing the tamper-proof sticker will void the product warranty.

Avertissement: Il n'y a aucune partie utilisateur-utile à l'intérieur du dispositif d'PPT. Pour éviter le choc électrique,

n'ouvrez jamais la valise. L'ouverture de la valise ou l'enlèvement de l'autocollant de trifouiller-preuve videra la

garantie de produit.

1. Read all of the following instructions before setting up your system. Save this document for later use.

2. Follow all warnings and instructions in this manual and in other user guides shipped with your camera.

3. To avoid damage to your camera and its components, never plug in or unplug a cable when the power is on.

Always shut off the power supply first, then make any necessary cable changes.

4. Never use the system if a power cable has been damaged. Do not allow anything to rest on a power cable and keep

these cables away from traffic.

5. Do not expose your PPT camera to moisture, rain, or snow, and do not use it near water. If a component gets wet,

unplug it and do not use it.

6. To avoid injury, never open the case. Opening the case will void the product warranty.

Service Personnel Only - Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to battery maker’s instructions.

PPT VISION, Inc. When Your System Arrives

A-Series Hardware Guide 2-3

System Specifications

This section lists the general operating specifications for the PPT A-Series camera. More detailed specifications are listed

in other appropriate sections of this manual.

Operating Environment

Characteristics

The A-Series camera’s optical and speed characteristics and the imager’s relative response are here.

The camera’s relative sensitivity to light is approximately 78% of the sensitivity of the T-Series camera and the C-Series

5200 camera.

Dimensions 2.678 w x 5.5 h x .945 d (inches)

68 w x 139.7 h x 24 d (mm)

Weight .96 lb. (.44 kg.)

Input Power +24 VDC +/- 10%

.50 A (min.)

Temperature

Humidity 0° to +50° C ((+32 to +122 F)

20% to 80% (non-condensing)

Pick-up Device CMOS active pixel sensor with 752 (H) x 480 (V)

pixel image

Imager Type 1/3 (5.35mm diag) - 4.51mm(H) x

2.88mm(V)

Capture Rate 60 full-resolution fps; higher with partial scan

Pixel Size 6.0 x 6.0 micrometers

Gain 100% to 395%

Shutter Open 30 to 193,629 microseconds

Lens Mount C Mount

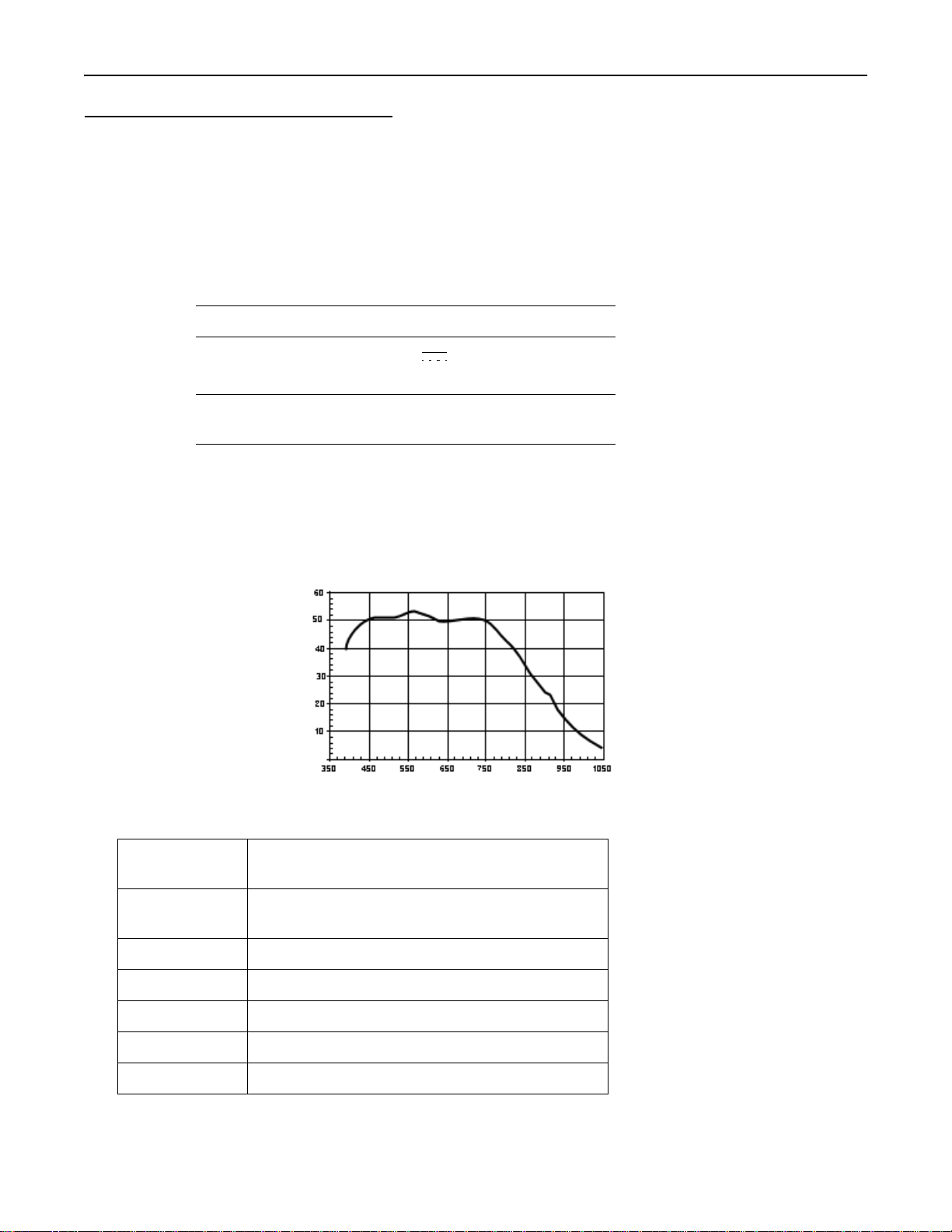

Relative Response

Wavelength (nm)

When Your System Arrives PPT VISION, Inc.

2-4 A-Series Hardware Guide

NOTE: The A-Series is the most economical Intelligent Camera on the market. Do not expect the same image processing

performance or network communication speeds that are available from PPT’s higher performance T and C-Series Intelli-

gent Cameras.

Setting Up the System

Important: To avoid damage to your unit, never plug in or unplug a cable when the unit power is on. Always turn off the

power supply first, and then make the necessary cable changes.

1. Familiarize yourself with the major system components that are shown in Chapter 3 of this manual.

2. Mount the camera, lighting, and other hardware components in their desired positions. Mounting instructions are

included in Chapter 3 of this manual.

3. You are ready to wire the hardware. Chapter 4 contains the input/output schematics for your A-Series camera.

Wiring diagrams for all cables are contained in Chapter 5.

4. Attach the Ethernet and I/O to the camera. Diagrams for attaching cables are shown later in this chapter.

NOTE: To insure a solid connection, be sure to screw down the I/O cable connections on the camera.

5. Connect an Ethernet cable to the optional Ethernet switch, then connect an Ethernet cable from the switch to the

client computer.

6. Connect the power supply for the unit to an appropriate grounded power source. To protect your system, we rec-

ommend using a surge protector.

7. Plug the power supply connector into the camera’s power connector. Turn on the power supply. Wait for the Status

and Busy lights to go off before proceeding.

8. Configure the IP address and mask for the camera and client computer, if necessary.

NOTE: A default network IP mask and address were assigned at the factory. You may need to change them for your

installation. See Chapter 6 for more details.

9. From the client computer, start Impact Vision Program Manager (VPM). Use Impact software to check your cam-

era and lighting setup, calibrate the camera, configure your inspection parameters, and put the camera online. For

more information about using Impact software, refer to the Impact Reference Guide.

If your system does not work when you are finished with the setup, review the instructions and diagrams to make sure you

made all connections properly. For more help, refer to the troubleshooting guide in Chapter 6 of this manual.

Software A10 Rev A - Impact Software Suite Version

7.1.1.1 or greater

A10 Rev B - Impact Software Suite Version

7.1.1.26 or greater

A20 Rev A - Impact Software Suite Version 7.5.0

or greater

Processor A10 - 625 Million Instructions Per Second (MIPS)

A20 - 1334 MIPS

Table of contents

Other PPT Vision Digital Camera manuals

PPT Vision

PPT Vision C series User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
