Powermatic PJ1696 User manual

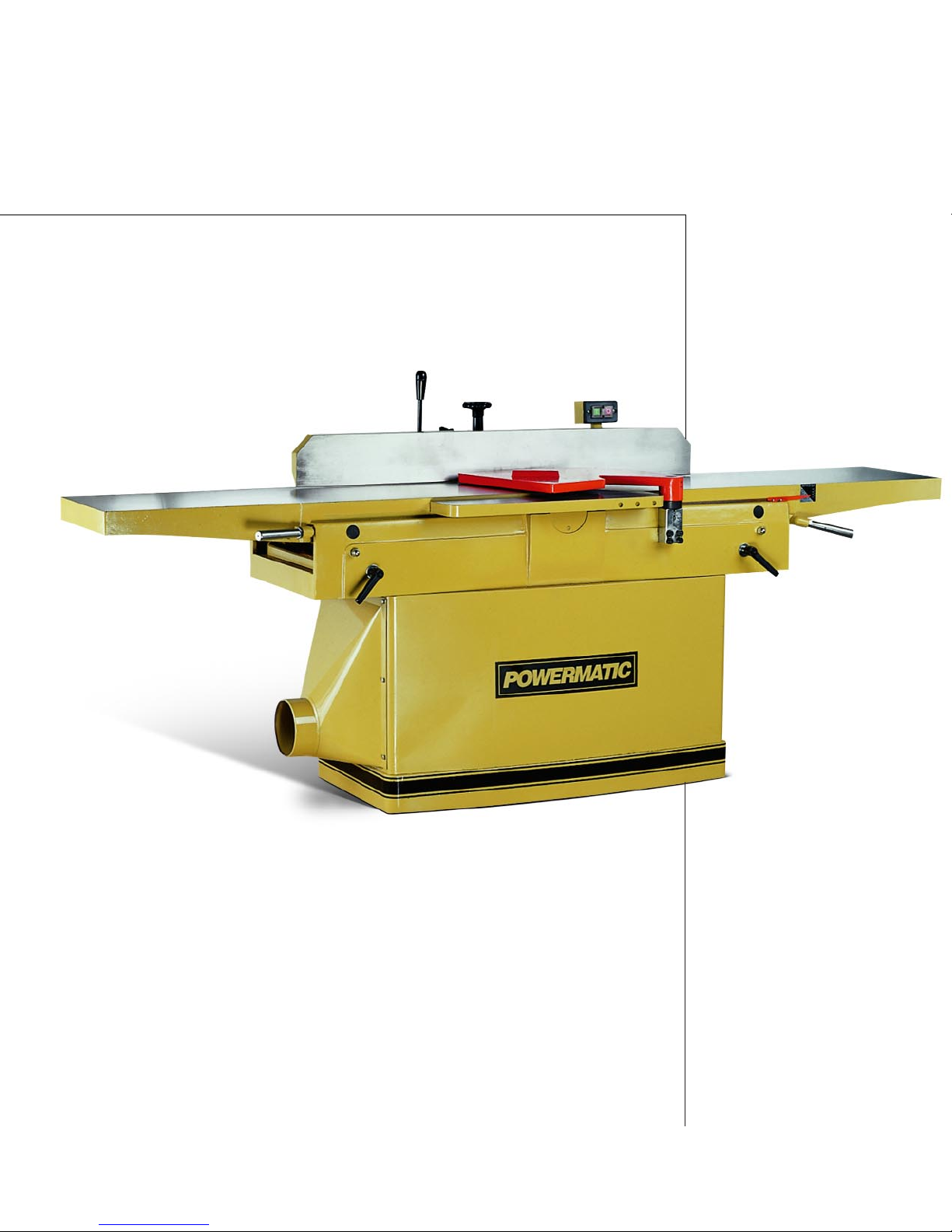

PJ1696 16" Jointer

Large capacity, Parallelogram Bed design and Helical Insert

Cutterhead make this 16-inch jointer from Powermatic the best

value on the market.

The Gold Standard Since 1921.

PJ1696 16" Jointer

The Gold Standard Since 1921.

The new 16-inch jointer offers big

capacity and performance in a

machine that is loaded with features.

Large center-mounted fence assembly

adjusts easily via rack and pinion

system with ram lock. Preset stops on

the fence body allow for fast angle

set-up at 45 degrees in and out and

a positive stop for perfect 90. ■The

Parallelogram design keeps the table

in close proximity to the cutterhead

for improved finish and allows for

a fast depth of cut adjustment. This

design also insure the tables remain

perfectly parallel even after years of

tough duty. ■The specially designed

solid steel Helical cutterhead consists

of six rows of staggered 14 mm

inserts precision ground on 2 sides.

This system makes fast work of

knife changing and never needs

adjustment. ■The big 71/2HP motor

delivers all the power you will need

for even the biggest jobs!

FEATURE

71/2HP 3PH motor

Center-mounted cast iron

fence assembly

Helical cutterhead with 2-sided

insert tooling

Large 16" x 96" table surface

Full size rabbetting table

Parallelogram construction

BENEFIT

Capacity to handle the largest work

Can support large stock at any angle

Quickly change cutting edge with no

need for adjustments and extremely

quiet operations

Maximum support for accuracy and

a fine finish

Supports large workpieces for rabbets

up to 3/4inch deep

Fast set up and maintains tables

in parallel plane even after years

of tough duty

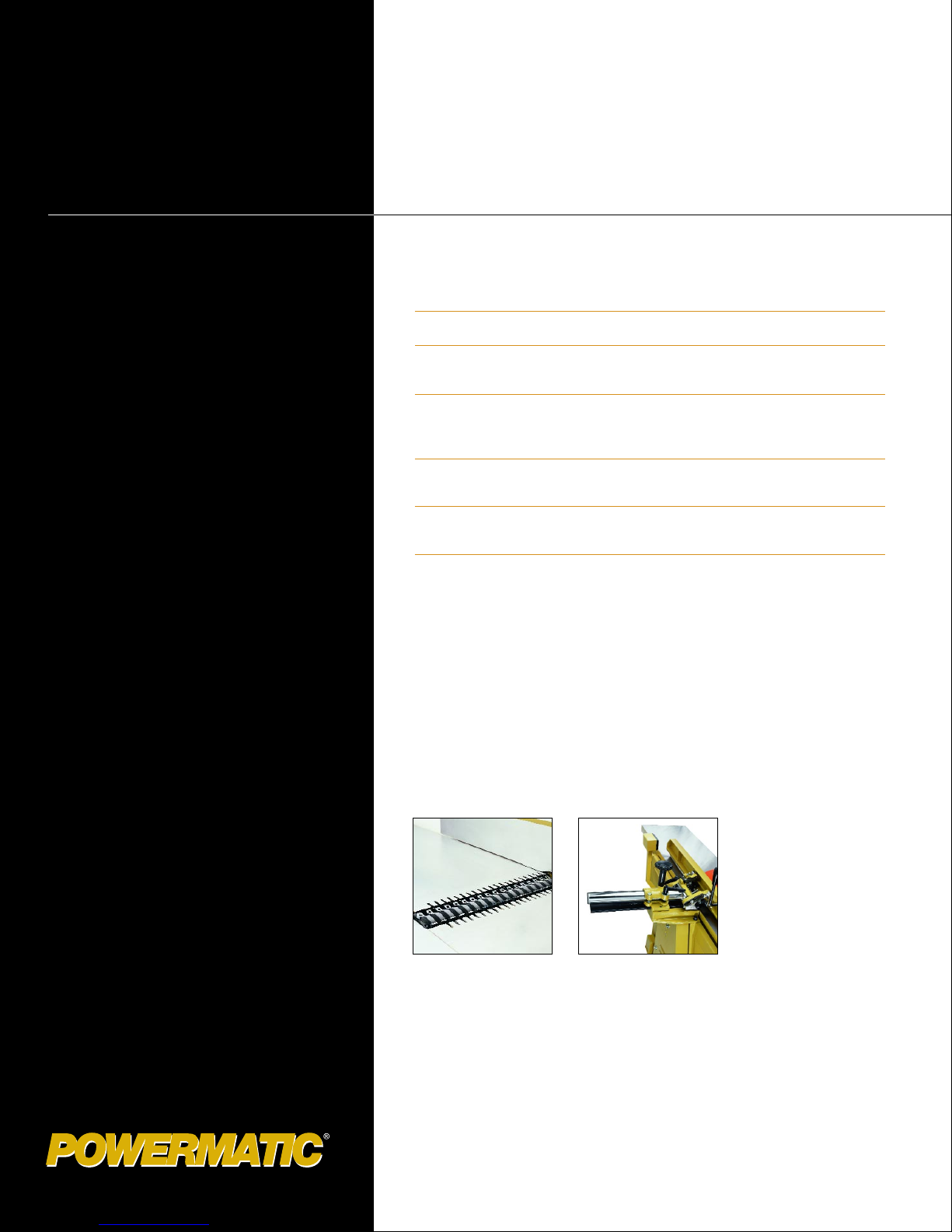

Solid Steel Helical

Insert Head with 14 mm

two-sided knives, no

adjustment required

after changing knives.

Reduced sound levels

when cutting.

Large center-mounted

fence with rack and pinion

adjustment and ram lock.

Positive stops for 90 and

45 degrees in and out.

Helical knife cutterhead

with 14 mm insert

Extra-long cast iron

infeed and outfeed

tables

Big center-mounted

fence with rack and

pinion adjustment

Parallelogram table

raising design

Rabbetting ledge

included

PJ1696 16" Jointer

The Gold Standard Since 1921.

Model Number PJ1696

Stock Number 3PH 1791283

Motor HP/Voltage/PH 71/2HP 230/460V 3PH

Maximum Working Width 16"

Maximum Depth Cut 3/4"

Cuts Per Minute 20,800

Table Size L x W 19" x96

Infeed Table L 471/2"

Outfeed Table L 471/4"

Rabbeting Ledge 5" x24

1/2"

Table Height 371/2"

Fence Size H x L 51/4" x47

1/4"

Fence Tilts 45 degrees in/out

Fence Positive Stops 45 deg., 90 deg.

Cutterhead Diameter 4.5"

# of Knives Helical Head 105 2-sided inserts

Standard Knife Size 14 x 2 mm

Cutterhead Speed 5200 rpm

Rabbeting Capacity 3/4"

Dust Connect Diameter 6"

Minimum CFM Required 800

Shipping Weight 1400 Lbs

Net Weight 1280 Lbs

Overall Dimensions 96"Lx46

"Wx43

Shipping Dimensions 102"Lx39

"Wx29

1/2"H

PN Accy. Cutterhead Inserts (10 pcs per box)

14 x 2 mm 6400013

WMH TOOL GROUP

Industrial Woodworking Machinery Division

427 Sanford Road

LaVergne, TN 37086

1-800-248-0144

www.powermatic.com

Part No. 91-607
