PowerAcoustik PDR-654 User manual

PDR-654/PDR-654T

6.5” Monitor

MP3/MP4 Player

AM/FM Radio

Built-in TV tuner (only for PDR-654T model)

Owner’s Manual

Take the time to read through this owner’s manual.

Familiarity with installation and operation procedures will help you obtain the best

Performance from your new device.

Important Safeguards

zUsing the device at temperature below -10℃may cause the breakage of the device.

BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE

RECOMMENDED TEMPERATURE!

zRead carefully through this manual to familiarize you with this high-quality sound system.

zDisconnect the vehicle's negative battery terminal while mounting and connecting the unit.

zWhen replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse

with a higher amperage rating may cause serious damage to the unit.

zMake sure that pins or other foreign objects do not get inside the unit; they may cause

malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

zIf you have parked the car for a long time in hot or cold weather, wait until the temperature in

the car becomes normal before operating the unit.

zDO NOT open covers and do not repair yourself. Consult the dealer or an experienced

technician for help.

zMake sure you disconnect the power supply and aerial if you will not use the system for a long

period or during a thunderstorm.

zMake sure you disconnect the power supply if the system appears to be working incorrectly,

(For example: making unusual sounds, smelling strange, emitting smokes from inside or

liquid having gotten inside it）Have a qualified technician check the system.

zThe unit is designed for negative terminal of the battery, which is connected to the vehicle

metal. Please confirm it before installation.

zDo not allow the speaker wires to be shorted together when the unit is switched on. Otherwise

it may overload or burn out the power amplifier.

zDo not install the detachable panel before connecting the wire.

zDon't remove the detachable panel when encoding.

Contents

Important Safeguards...................................................................................................................2

Contents.......................................................................................................................................3

Accessories..................................................................................................................................4

Installation/Un-installation ............................................................................................................5

Wiring Connections......................................................................................................................6

Panel Control ...............................................................................................................................8

Remote control.............................................................................................................................9

Remove Battery ...........................................................................................................................9

Main Menu .................................................................................................................................10

◆Radio Player.....................................................................................................................10

◆USB/SD/MMC Interface ................................................................................................... 11

◆TV Mode(only for PDR-654T)...........................................................................................12

◆AV-IN Mode ......................................................................................................................13

◆Setting Control .................................................................................................................13

Other Functions ......................................................................................................................... 15

Troubleshooting guide................................................................................................................16

Specification...............................................................................................................................17

Accessories

Package contains the following accessories for installation and operation of the unit.

(1) Washer, Spring

Washer, M5 Nut 1 each

(2) Mounting Strap 1

(3) Bolt 5*20 1

(4) Screw 5*6 4

(5) Mounting Collar 1

(6) Release Key 2

(7) Screw 5*20 1

(8) Rubber Cushion 1

RemoteControl Warrantycard

User Manual

Noted:

Product image may vary from the actual delivery

ISO cable

Trim ring

RCA Cable

Installation/Un-installation

Note

Before starting installation of the unit, make sure the wiring is connected properly.

Use only the parts provided with the unit to ensure proper installation.

The use of unauthorized parts may cause malfunction.

Install the unit where it does not get in the driver’s way and will not injure the passenger in case

there is a sudden stop, like an emergency stop.

INSTALLATION （Figure 1）

Insert Half Sleeve into dash-board hole and bend mount tabs outwards to fix it

If necessary, place the mount strap at the rear of the unit and fix it with provided washer as

figure 2.

Push the unit into the Half Sleeve until you hear a click sound

Place Trim Ring over the unit and installation is completed as figure 3. (Some vehicle may not

need Trim Ring)

UN-INSTALLATION

Insert the supplied extraction keys into the unit and pull the unit out with keeping the extraction

keys. (as Figure. 4)

Wiring Connections

NOTE: Never connect cable to the system while it is connected to the battery power. Whenever

the unit is disconnected from the battery, the preset memory will be erased and the unit will go

back to its factory defaults.

Note: To watch video the parking wire should be connected to break signal. 2 cables is

connected to a Hands-Free device (not included).

Parking wire

Note: The parking wire is connected with brake signal; for safety, the programs can be seen on

the monitor after braking the car.

Connecting the reversing line to taillight on the car

After connecting, when you start up the reverse gear, the unit will receive the picture from car

rear view camera.

Note:

- Only use groundless loudspeakers.

- Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your

loudspeakers at higher volumes.

- Use 4~8 Ω(Ohm impedance) loudspeakers only; using higher or lesser impedance may

damage the unit.

- Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car

body (GND). The unit is using a BTL circuit and each loudspeaker must be connected with

insulated cables according the diagram.

- Loudspeaker cables and/or optional external power amplifiers must always be about

30cm away from the antenna and/or antenna extension parts.

Connect the speakers according the following diagram, incorrect connections will damage the

unit or your loudspeakers

Correct connection

Left front - Right front | Left rear - Right rear

Incorrect connections

Panel Control

1. POWER/MUTE Button

Press it to turn on the unit. When turned on, press it to mute the volume output, press and hold

for 2 seconds to turn the unit off when the unit is on.

(* Press any button on panel to turn on the unit)

2. VOL Knob

Adjust the volume level by turning the knob clockwise to increase or counterclockwise to

decrease.

3. MODE Button

Press it to select the mode: Radio, USB (if there is a USB device in the unit), CARD (if there is a

SD/MMC card in the unit), TV (For PDR-654T) and AV IN.

4. IR Sensor

IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.

5. RESET Button

Press it with a thin, sharp object. The device will then be reset to factory default settings.

6. TFT SCREEN

7. SD CARD Slot

SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and

the unit will automatically start reading and playback the card. * Supported Music File Format:

MP3, WMA Files.

8. USB Jack

USB slot, for Multimedia playback files only. Insert a USB into this slot and the unit will

automatically start reading and playback the files. * Supported Music File Format: MP3, WMA

Files

9. AV IN Jack

Put the AV plug into the AV-IN in jack which was marked on front panel.

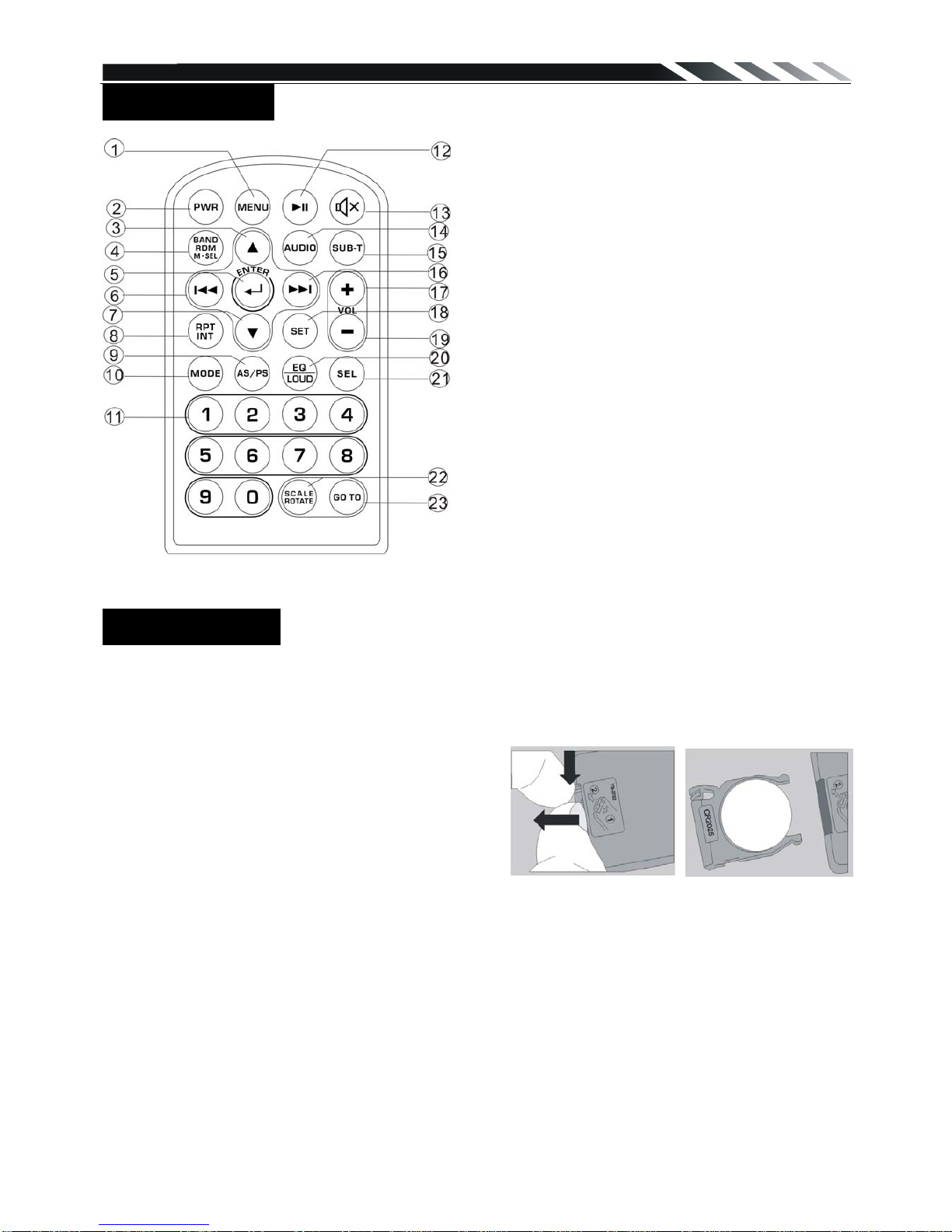

Remote control

Remove Battery

Note:

The distance may vary according to the brightness of ambient light.

If the remote is not used for an extended period of time, remove the battery to prevent

possible damage from battery leakage and

corrosion.

Do not place any objects between the remote

control unit and the sensor on the unit.

Do not drop the remote control onto the floor; it

will damage it beyond repair.

Do not use the remote control unit, while simultaneously operating the remote control unit of

any other equipment; they may interfere resulting in improper operation.

The battery normally last for about one year although depending how often the remote

control is used. If the remote control unit isn’t working even when it is operated near the unit,

replace the battery with a new battery of the same make and use only a lithium cell battery

type: CR2025 (3V).

Dispose empty batteries in accordance with your local governmental regulations.

Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.

Keep the battery out of reach of children, should the battery be swallowed, immediately

consult a doctor.

1: MENU

2: POWER

3: UP

4: BAND/M.SEL/RDM

5: ENTER

6: LEFT/SEEK-/FAST BACKWARD

7: DOWN

8:REPEAT/INT

9: AS/PS

10: MODE

11:DIGIT NUMBER

12:PLAY/PAUSE

13:MUTE

14: AUDIO

15: SUBTITLE

16:RIGHT/SEEK+/FAST FORWARD

17:VOLUME PLUS

18:SET

19: VOLUME MINUS

20: EQ/LOUD

21: SEL

22: SCALE/ROTATE

23: GO TO

Main Menu

The best way to discover the program is to explore each screen in detail, and to find out how to

move from one to another. Read this chapter for a guided tour.

Unit starts by displaying the Main menu.

This is the root of the screen hierarchy, and you can simply access all features by tapping on the

touch screen buttons.

Tap the icons to enter a desired mode.

Radio Player◆

To start Radio, tap RADIO button on main menu screen, or press the MODE button on the

front panel or RC repeatedly.

Touch it to adjust the volume

Touch this button can scan the stations from 1-6, Long Touch it to save the stations with

good reception automatically and scan each station for about 5 seconds

Touch this button to search stations backward automatically.

Touch this button to open manual select station backward.

Touch this button to open manual select station forward.

Touch this button to search stations forward automatically.
