Poulan Pro PP1330ES User manual
OWNER'S MANUAL
MODEL NUMBER:
PP1330ES
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
428553 Rev.1 08.15.09 SR
Printed in the U.S.A.
21
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)

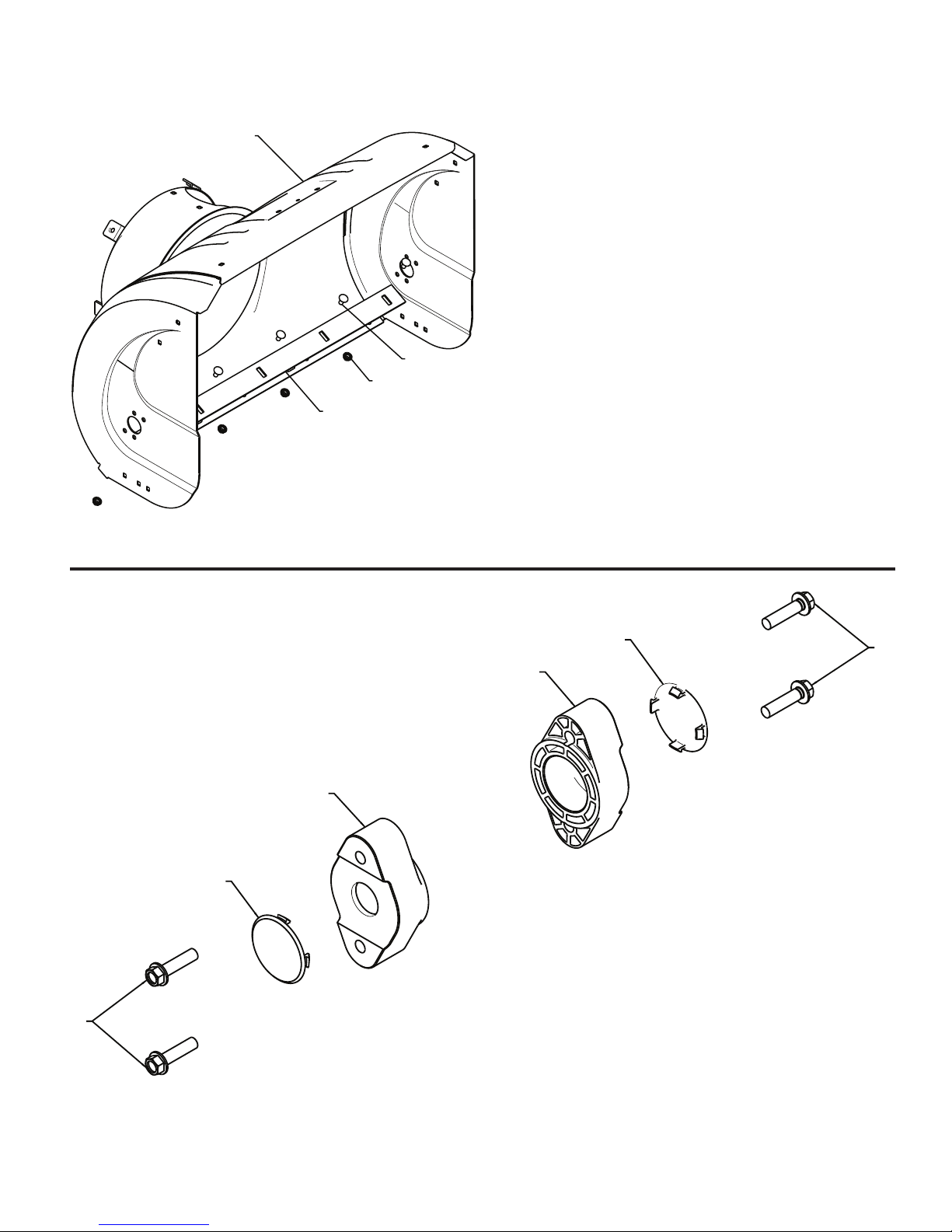

AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
1
2
3
23
01.07.024-B
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
1
2
3 (5x)
4 (5x)
01.07.003-A
1 404930X428 AUGER HOUSING
2 404933X428 SCRAPPER BAR
3 72270505 CARRIAGEBOLT5/16−18X.625
4 155377 NUT 5/16−18
22
10
11
11
11
11
1
2
3
4
5
6
7
9
9
9
8
12
12
13
14
15
16
17
18 19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
37
01.07.026-C
2(EXPLODED)
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
23
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1 175321X479 IMPELLER
2 427148 GEARBOX ASSEMBLY
3 188909 BEARING
4 427146 IMPELLER PULLEY
5 175322 DISCHARGE BASE
6 178675X008 CORNER BRACKET
7 192199 CLEAN OUT TOOL
8 405400 TOOL CLIP
9 73800400 NUT 1/4-20
10 74780426 SCREW 1/4-20 X .625
11 427942 NUT 5/16-18
12 163183 SCREW 5/16-18 X .625
13 427145 IMPELLER HUB
14 427154 IMPELLER SLEEVE
15 73900600 NUT 3/8-16
16 180355 CARRIAGE BOLT
17 194189 SCREW 13-16 X .625
18 407760 PLUG
19 427302 GEARBOX COVER RH
20 427345 GASKET
21 407770 SEAL
22 407762 BEARING
23 174697 THRUST WASHER 1.00
24 407763 WORM GEAR
25 407764 AUGER SHAFT
26 189282 SQUARE KEY
27 407758 BEARING
28 174683 THRUST WASHER
29 427147 IMPELLER SHAFT
30 7836M ROLL PIN
31 174681 THRUST WASHER
32 174684 THRUST BEARING
33 407769 BEARING
34 407768 O-RING
35 407767 SCREW 5/16-18 X .750
36 427317 GEARBOX COVER LH
37 192090 BOLT
24
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
4
3
01.11.001-A
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 174762X479 SKID PLATE LH
2 178777X479 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1
2
01.07.019-A
1 420497X479 AUGER ASSEMBLY 30 LH
2 420498X479 AUGER ASSEMBLY 30 RH
25
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1
2
5
34
34
1
2
53
4
3
4
01.16.001-A
1 181160X479 DRIFT CUTTER BAR
2 72270506 CARRIAGEBOLT5/16−18X.750
3 179246 PLASTIC WASHER
4 10040500 LOCKWASHER 5/16
5 128638 NUT 5/16−18
01.17.003-B
1
2
3
3
2
4
4
1 182516 WEIGHT BAR
2 72110510 CARRIAGE BOLT 5/16−18 X 1.25
3 751153 NUT 5/16−18
4 19112206 WASHER
26
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
CONTROL PANEL / CHUTE
5
7
15
16
3
*11
*14
2
4
6
1
6
89
*12
*13
10
6
01.09.015-A
1 420315X428 CHUTE WELDMENT
2 178633X428 DEFLECTOR WELDMENT
3 420673 DEFLECTOR CONTROL ASSEMBLY
4 420325 DEFLECTOR SEAL
5 414280 KNOB BLACK
6 128415 POP RIVET
7 17501010 SCREW 10-24 X .625
8 419821 CHUTE SNOW SHIELD
9 419822X004 SHIELD RETAINER STRAP
*10 179829 SHOULDER BOLT 1/4-20 X .375
*11 191730 NUT 1/4-20
*12 72250505 CARRIAGE BOLT 3/8-16 X .625
*13 751153 NUT 5/16-18
*14 184505 DEFLECTOR SPRING
15 420679 (SERVICE PART) DEFLECTOR CONTROL
16 420672 (SERVICE PART) DEFLECTOR CABLE BLK
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 15 AND 16 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.
27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3
*4 *5
*6
*7
01.09.010-A
1
2
01.15.009-A
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
CONTROL PANEL / CHUTE
1 428272 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10-24 X .625
*3 420678 ROTATOR HEAD
*4 405932 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 428273 CABLE ASSEMBLY ADJUSTABLE
*7 428310 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
1 421249 STEER CABLE
2 74041024 SCREW 10−24 X 1.50
28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

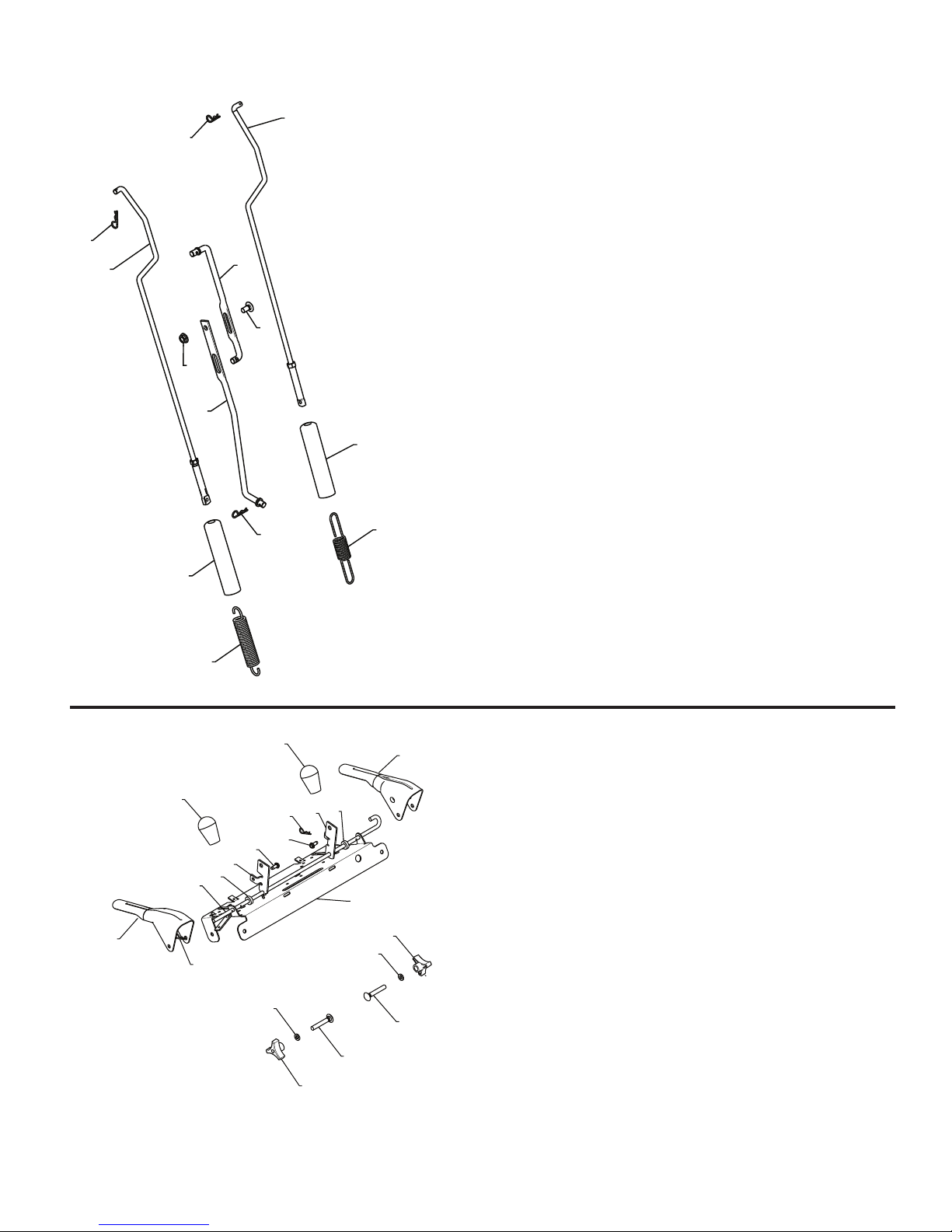

REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
HANDLES
1
2
3
3
4
4
3
3
01.08.004-B
4
41 419798X479 LOOP HANDLE LH
2 419799X479 LOOP HANDLE RH
3 74780524 SCREW 5/16−18 X 1.50
4 751153 NUT 5/16−18
1
2
3
4
4
4
4
01.05.004-C
1 419797X479 LOWER TUBE
2 418313X479 PIVOT SUPPORT
3 428867 BOLT 5/16-18 X .750
4 17000616 SCREW 3/8-16 X 1.00
29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
11
1
2
3
4
5
67
7
9
9
8
8
12
12
13
13
14
14
01.08.002-F
1 412683X479 CONTROL PANEL
2 424517X479 CONTROL LEVER LH
3 424516X479 CONTROL LEVER RH
4 412679X008 TRACTION ROD ARM
5 420889X008 IMPELLER ROD ARM
6 412677 INTERLOCK ROD
7 421613 SPACER
8 169675 RETAINER
9 17060410 SCREW 1/4-20 X .62
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8-16 X 2.25
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
HANDLES
KEY PART
NO. NO. DESCRIPTION
10
10
10
1
2
3
4
5
5
6
7
9
8
01.12.001-E
1 180480 IMPELLER ROD ASSEMBLY
2 405740 TRACTION ROD ASSEMBLY
3 180445 SHIFTER ROD TOP
4 187716 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 178669 IMPELLER SPRING
7 180926 TRACTION SPRING
8 72270505 CARRIAGE BOLT 5/16-18 X .75
9 155377 NUT 5/16-18
10 169675 RETAINER
