Poslab MK-100 User manual
Table of Contents
1. Standard Package ……………………………………………………………… 4
2. Optional Devices ………………..……………………….……………………… 5
3. General Guide ……………….…………………….……………………………. 6
4. Getting Start ……………………………………………………………………... 7
5. Install “ ctive Sync4.5 ……………………………………………..…….……. 18
2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital de ice, pursuant to
Part 15 of the FCC Rules. These limits are designed to pro ide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. Howe er, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or tele ision reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the recei ing antenna.
. Increase the separation between the equipment and recei er.
. Connect the equipment into an outlet on a circuit different from that to which the recei er is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly appro ed by the
party responsible for compliance could oid the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral de ices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled en ironment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The antennas used for this transmitter must be installed to pro ide a separation distance of at least 20 cm from
all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
This de ice complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This de ice may not cause harmful interference, and (2) This de ice must accept any interference recei ed,
including interference that may cause undesired operation.
3
1. Standard Package
Take out the terminal carefull and the following items will be found.
a. MK-100 b. Power adaptor
(MK100 onl accepts 5v adaptor)
4

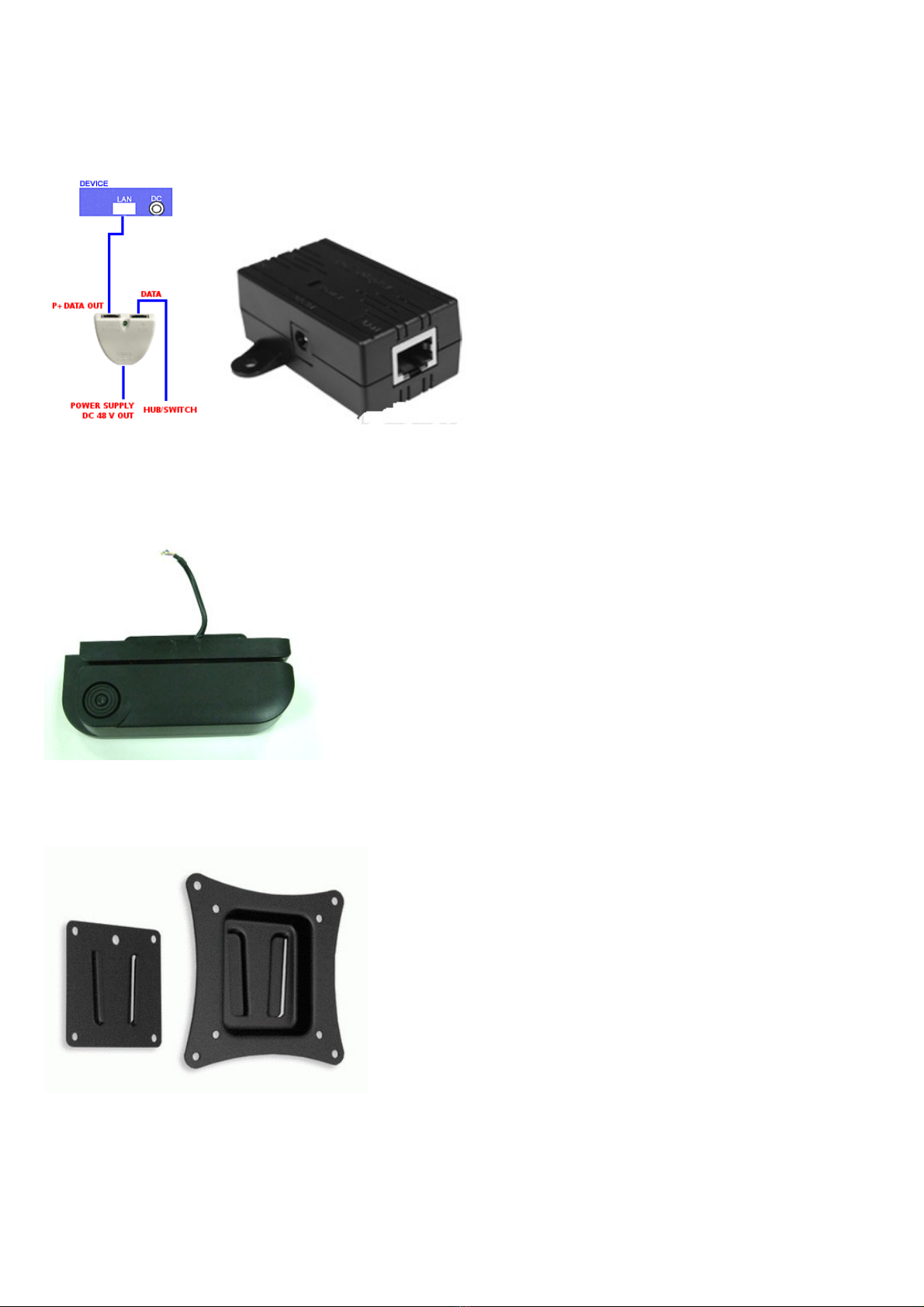

2. Optional Devices
POE Adaptor
Magnetic Card Reader
Wall Mount Kit
5
3. General Guide
6
4. Getting Start
Install USB driver
fter the PC find the new hardware, follow the steps as the pictures
indicate.
7
Select “No, not this time” for search for software?
8
Select “ Install from a list or specific location” for the USB driver.
9

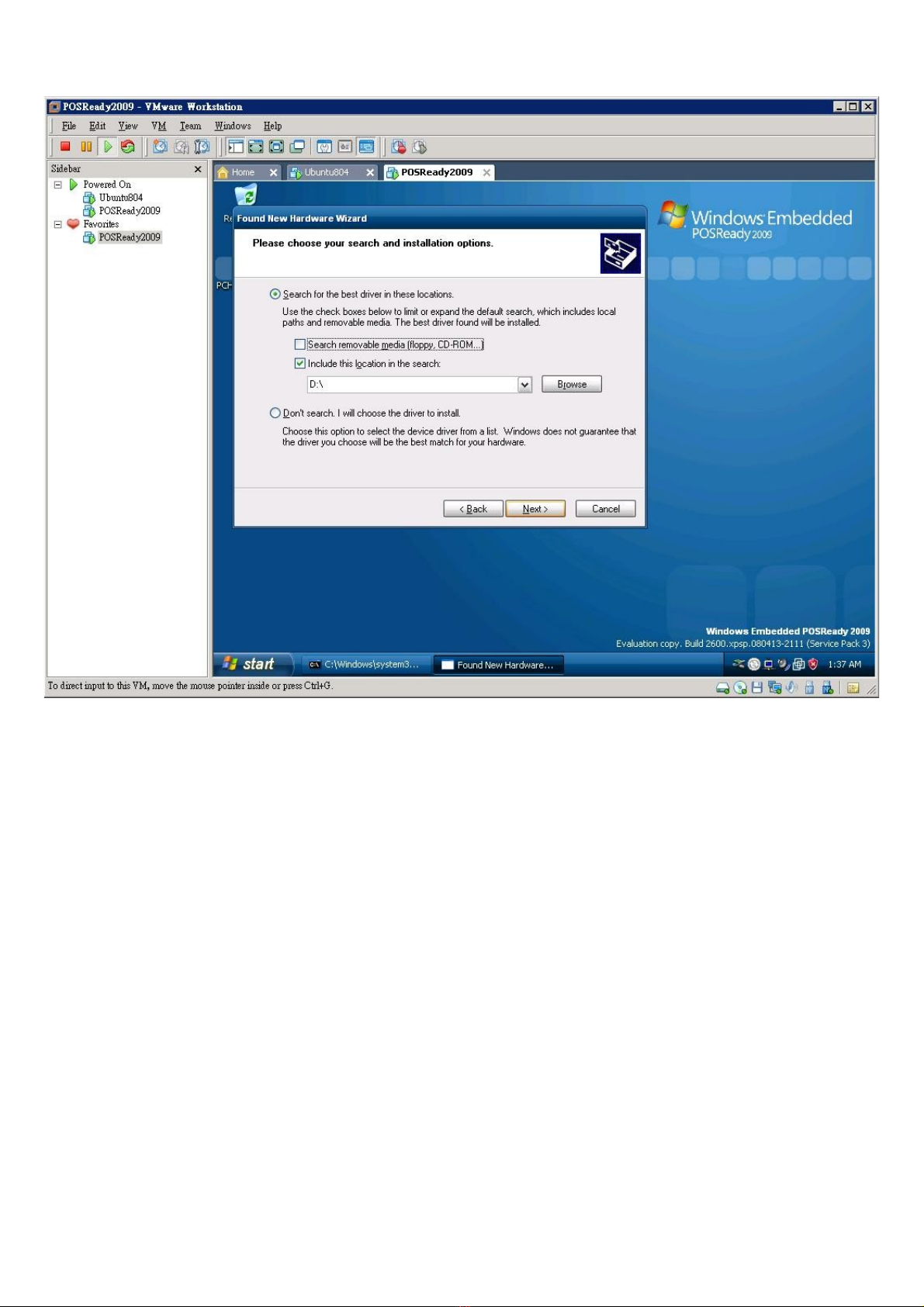

Select “Include this location in this search”
1
0
