Portfolio LWS0038D User manual
ITEM #0112851
MODEL #LWS0038D
4-LIGHT VANITY BAR
Français p. 9
Español p. 17
1
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
EB12276 Lowes.com/portfolio
Portfolio ® is a registered trademark
of LF, LLC. All Rights Reserved.

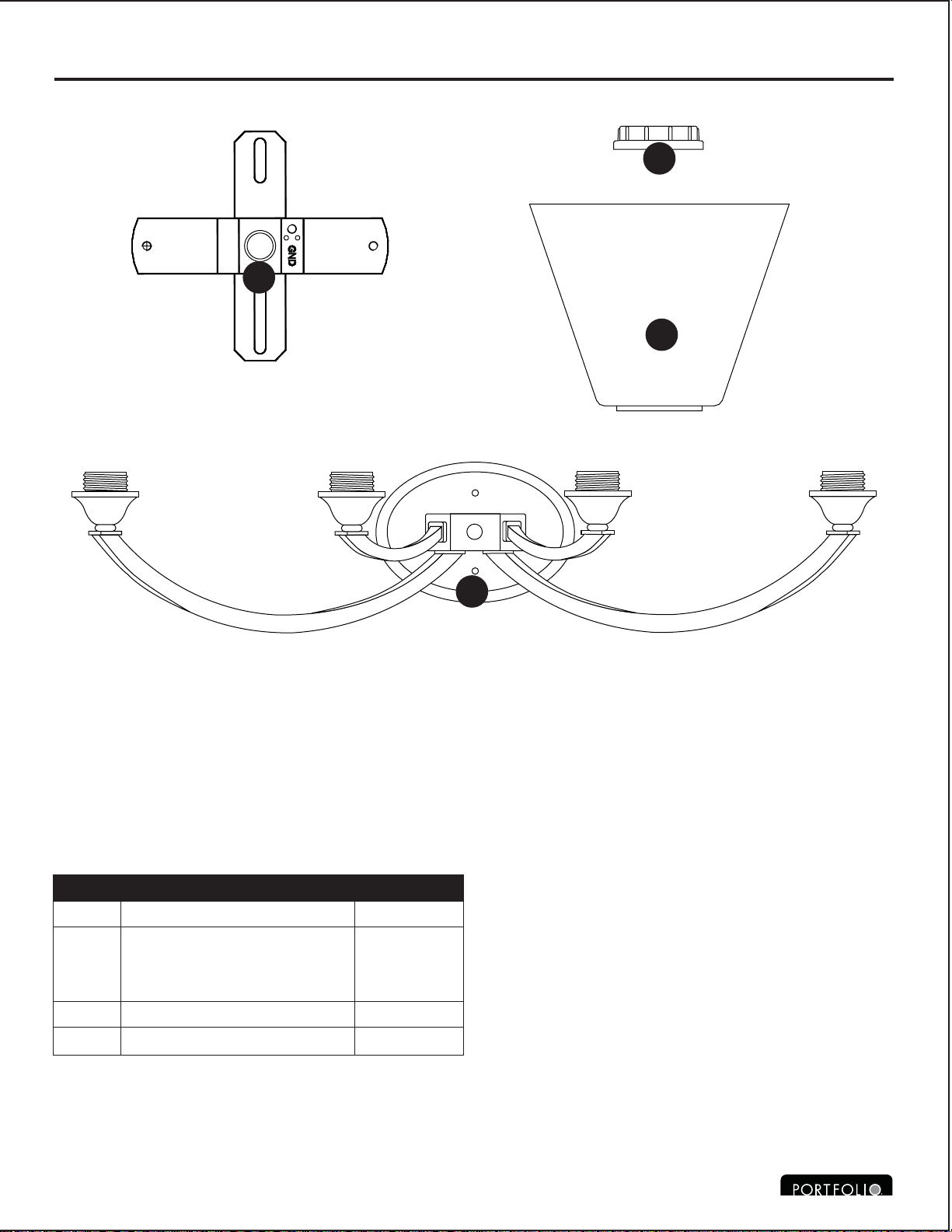

PACKAGE CONTENTS
2
PART DESCRIPTION QUANTITY
A
Crossbar
1
B
Socket Collar
[preassembled to Fixture
Body (D)]
4
C
Shade
4
D
Fixture Body
1
A
C
B
D
Lowes.com/portfolio
HARDWARE CONTENTS (shown actual size)
Mounting
Ball
Qty. 2
Mounting
Screw
Qty. 2
Outlet
Box
Screw
Qty. 2
DD EECC FF
Hex Nut
Qty. 2
3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
WARNING
• RISK OF ELECTRIC SHOCK - Before beginning installation, turn off electricity at the circuit
breaker box or the main fuse box.
• RISK OF FIRE - Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).
AA BB
Wire
Connector
Qty. 3
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 20 - 30 minutes
Tools Required for Assembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers,
Wire cutters, Electrical tape, Safety goggles and Ladder.
Helpful Tools (not included): Wire strippers
Green
Ground
Screw
[preassembled
to Crossbar (A)]
Qty. 1
Lowes.com/portfolio
4
Hardware Used
x 2
Mounting
Screw
x 2
Hex Nut
1. Place the crossbar (A) onto the backplate
of the fixture body (D) and align the holes
in the backplate with a set of threaded
holes in the crossbar (A). Install the
mounting screws (CC) in the aligned
threaded holes on the crossbar (A) and
thread the small hex nuts (EE) onto the
mounting screws (CC) as shown.
1
ASSEMBLY INSTRUCTIONS
CC
EE
DD
A
CC
EE
D
DD
2.
Secure the crossbar (A) to the outlet box
with outlet box screws (DD).
Hardware Used
2
Outlet Box A
DD
x 2
Outlet Box
Screw
Lowes.com/portfolio
5
AA
BB
CC
FF
ASSEMBLY INSTRUCTIONS
Hardware Used
3. Attach ground fixture wire to either the green
ground screw (AA) on crossbar (A) or to the
ground wire in the outlet box (usually GREEN
or BARE). If attaching fixture ground wire to
the crossbar, it is imperative that the outlet
box in your home be properly grounded.
Connect the neutral WHITE or RIBBED side
fixture wire to the neutral usually WHITE wire
from the outlet box. Connect the hot BLACK
or SMOOTH side fixture wire to the hot
usually BLACK wire from the outlet box.
Fasten wires together with a plastic wire
connector (BB) and tightly wrap connector
with electrical tape.
3
x 1
Green
Ground
Screw
White Wire
From Outlet Box
Black Wire
From Outlet Box
Bare, or Green
Ground Wire Bare, or Green
Fixture Ground Wire
From Outlet Box
Bare, or Green
Ground Wire
From Outlet Box
White or
Ribbed Side
From Fixture
From Fixture
Black or
Smooth Side
OR AA
BB
x 3
Wire
Connector
DD
4.
Carefully tuck all wires into the outlet box and
position the fixture body (D) over the outlet box.
Align the holes in the backplate of the fixture
body (D) with the mounting screws (CC)
attached to the crossbar (A). Pass the fixture
over the mounting screws (CC) and secure by
threading mounting balls (FF) onto end of
screws. Tighten until snug.
Hardware Used
4
x 2
Mounting
Screw
CC A
D
FF
x 2
Mounting
Ball
Lowes.com/portfolio
6
ASSEMBLY INSTRUCTIONS
5. Place the shade (C) over the socket of the
fixture body (D) and secure with the socket
collar (B). Hand-tighten until snug.
6. Install the bulbs (not included).
Use (4) 100-watt max. standard base bulbs only.
5
6
C
D
B
Lowes.com/portfolio
7
CARE AND MAINTENANCE
• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives
to clean fixture as they may damage the finish.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Bulbs will not light. 1. Bulb is burned out.
2. Power is off.
3. Faulty wire connection.
4. Faulty switch.
1. Replace light bulb.
2. Make sure power supply is on.
3. Check wiring.
4. Test or replace the switch.
Fuse blows or the
circuit breaker trips
when light is turned
on.
Crossed wires or power wire is
grounding out. Check wire connection.
WARRANTY
The manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for
one (1) year from the date of purchase. If within this period the product is found to be defective in
material or workmanship, the product must be returned, with a copy of the original sales receipt as
proof of purchase in the original carton, to the place of purchase. The manufacturer will, at its option,
repair, replace or refund the original purchase price to the consumer. This warranty does not cover
fixtures becoming defective due to misuse, accidental damage, improper handling and/or installation
and specifically excludes liability for direct, incidental or consequential damages. As some states do
no allow exclusions or limitations on an implied warranty, the above exclusions and limitations may
not apply to you. This warranty gives you specific legal rights. You may have other rights that vary
from state to state.
II
Lowes.com/portfolio
8
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067,
8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION
A Crossbar
B Socket Collar
C Shade
D Fixture Body
AA Green Ground Screw
BB Wire Connector
CC Mounting Screw
DD Outlet Box Screw
EE Hex Nut
FF Mounting Ball
A
AA
BB
CC
DD
EE
FF
C
D
B
Printed in China
Portfolio ® is a registered
trademark of LF, LLC.All
Rights Reserved.
Lowes.com/portfolio
ARTICLE N°0112851
MODÈLE N°LWS0038D
RAMPE D’ÉCLAIRAGE
À QUATRE LUMIÈRES
POUR MEUBLE-LAVABO
9
Portfolio® est une marque déposée de
LF, LLC. Tous droits réservés.
JOINDRE LE REÇU ICI
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l'article à
votre détaillant, appelez notre service à la clientèle au 1 800 643-0067, entre 8 h et 18 h
(HNE), du lundi au jeudi, ou entre 8 h et 17 h (HNE), le vendredi.
Lowes.com/portfolio
CONTENU DE L'EMBALLAGE
10
PIÈCE DESCRIPTION QUANTITÉ
A Barra transversale 1
B Bague de douille
[préassemblée au corps du
luminaire (D)] 4
C Abat-jour 4
D Corps du luminaire 1
D
A
C
B
Lowes.com/portfolio
