Polaroid Splash II User manual
Instruction Manual
Splash II
-1-

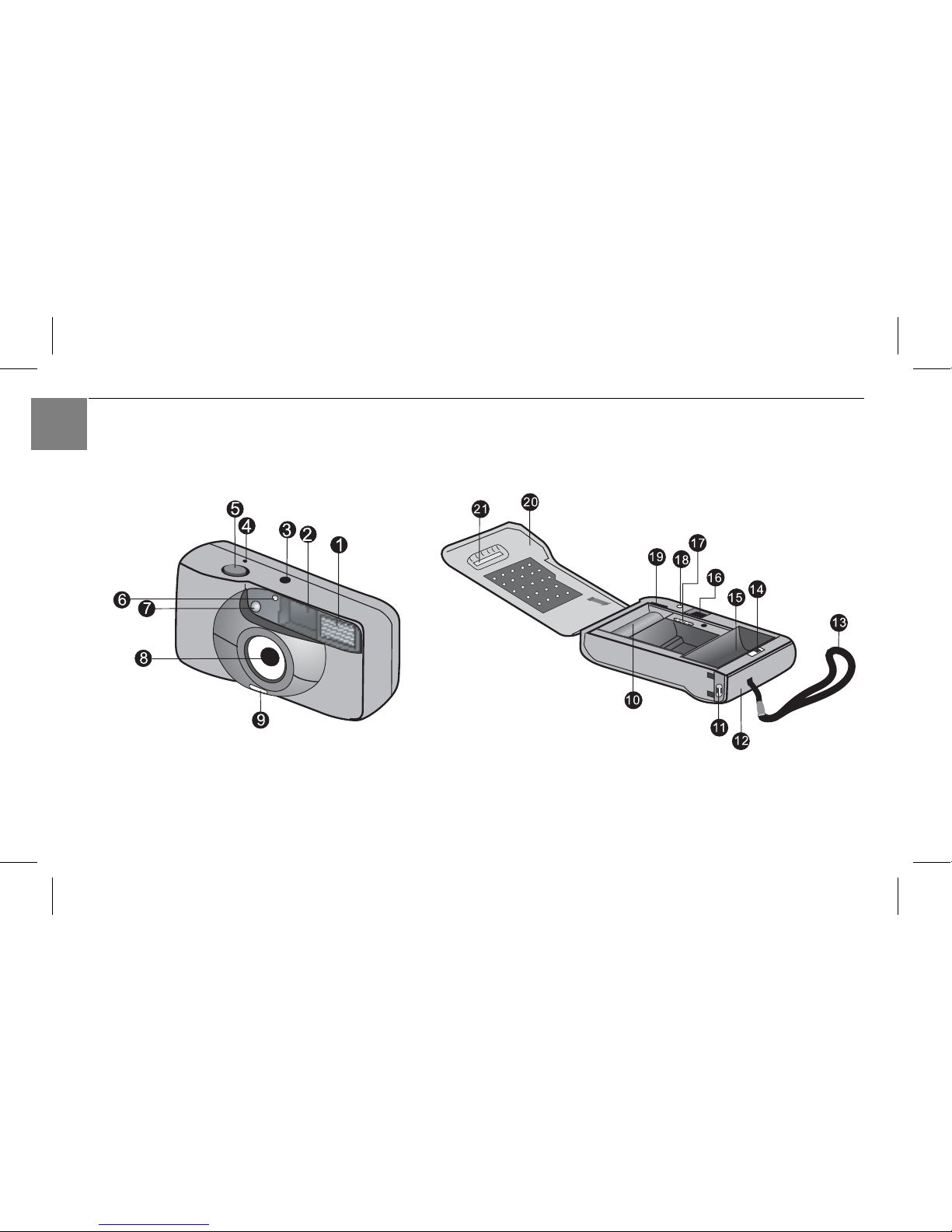

Camera Overview
En
515216-EN 1 8/17/04, 9:51:25 AM
-2-
1. Flash
2. Viewfinder
3. Frame Counter Window
4. Rewind Switch
5. Shutter Release Button
6. Flash Sensor
7. Red-Eye Reduction LED
8. Lens
9. Lens Cover Switch
10. Spool
11. Battery Latch
12. Battery Compartment
13. Wrist strap
14. Film Door Latch
15. Film Chamber
16. Viewfinder
17. Sprocket Gear
18. Flash Ready LED
19. Film Tip Mark
20. Film Compartment Door
21. DX Window
En
515216-EN 2 8/17/04, 9:51:25 AM
Thank you for buying this 2 in 1 compact camera. Before using, please read this manual carefully to
ensure correct use.
Loading the Batteries
1. Open the Battery Compartment by sliding the latch on the Battery Compartment
Door to the direction of the arrow. (Fig. 1)
2. Gently lift up on the Battery Compartment Door. (Fig. 1)
3. lnsert twoAAAalkaline batteries into the Battery Compartment, checking that
the (+) and (-) on the battery are aligned according to the polarity
information shown on the contact plate. (Fig. 2)
4. Close the Battery Compartment Door by pushing it back until it latches.
About the Film Speed
The Camera is designed to use DX-coded ISO100 or 400 film. When the film is
loaded, the camera automatically sets the correct film speed by reading the black-
and-silver pattern on the film cassettes. If DX-coded ISO 200 film is loaded, film speed
will be set to ISO400. If non DX-coded film is loaded, film speed will be set to ISO100
automatically.
Loading the Film
1. Open the Film Compartment Door by pressing upward on the Film Door Latch and
gently lift up the Film Compartment Door. (Fig. 3)
2. Insert the film into the Film Compartment, and pull out the film leader to reach the
Film Tip Mark. (Fig. 4)
3. Make sure the film perforations engage the film Sprocket Gear, and the film lies
-3-
En
515216-EN 3 8/17/04, 9:51:25 AM
evenly between the guide rails. (Fig. 4)
4. Close the door. The film will automatically advance and the Frame Window will
show “1” (Fig. 5)
Taking photographs
1. Slide the Lens Cover Switch to turn the camera on. (Fig. 6)
2. Hold the camera steady with both hands. Be careful not to block the Lens, Flash
and Flash Sensor with your fingers or hair. (Fig. 7)
3. Look through the Viewfinder and center the main subject in the Viewfinder. To
ensure sharp pictures, make sure your subject is at least 3.94ft. (1.2m) away from
the camera. (Fig. 8)
4. Press on the Shutter-Release Button to take a picture. (Fig. 9)
5. The camera will advance automatically to the next frame.
About the Flash
1. The camera determines when flash is needed and fires the flash automatically.
2. When the flash is recharged and full (the green Flash Ready LED will light up),
press the Shutter-Release Button to take a flash
photograph. (Fig. 10)
3. The green Flash Ready LED will go into sleep
mode after about 3 minutes. Camera will
re-awaken when the Shutter Release Button is
depressed or by re-opening the Lens Cover.
3.94ft.(1.2m)
-4-
En
515216-EN 4 8/17/04, 9:51:26 AM
En
4. Recommended flash shooting range:
ISO 100: 3.94 - 4.92ft. (1.2 - 1.5m)
ISO 200: 3.94 - 6.89ft. (1.2 - 2.1m)
ISO 400: 3.94 - 9.84ft. (1.2 - 3m)
Note: When taking flash pictures under insufficient lighting conditions, please make sure the green
Flash Ready LED is lit before pressing the Shutter-Release Button.
Using Red-Eye Reduction
This function makes it possible to minimize the Red-Eye effect that sometimes occurs when taking
portrait photographs with the flash.
1. Press the Shutter-Release Button halfway.
2. The Red-Eye Reduction LED will light up.
3. Hold there for at least two seconds.
4. Then press the Shutter-Release Button down completely to take your
picture. (Fig. 11)
Rewinding the Film
1. As soon as the end of the film is reached, the film will rewind
automatically.
2. To rewind the film in mid-roll, press the Rewind Switch with a
fine-pointed instrument. (Fig. 12)
3. When rewinding is complete, the motors stops automatically.
Open the Film Compartment Door and remove the film for processing. (Fig. 13)
-5-
515216-EN 5 8/17/04, 9:51:26 AM
En
Do not open the Film Compartment Door if the film is not completely rewound.
Precautions
- Store the camera in a cool, dry place. Don’t expose the camera to heavy dust or water.
- Do not attempt to disassemble the camera by yourself.
- Avoid excessive force or impact caused by handling, bumping or dropping.
- Don’t break up the battery or throw it into fire. Keep the battery away from children.
SPECIFICATIONS
TYPE: 35MM COMPACT CAMERA
LENS: 27MM LENS 2 ELEMENTS F8.0
FOCUSING: FOCUS FREE
SHUTTER: MECHANICAL SINGLE BLADE
SHUTTER SPEED: 10.5 +/- 3.5 MS ( 7 - 14 MS )
Specifications are subject to change without notice.
-6-
515216-EN 6 8/17/04, 9:51:26 AM
-7-
En
Using the Underwater Housing to Take Pictures Under Water
1. Shutter Release Button
2. Wrist Strap
3. External Viewfinder
4. External Viewfinder Holder
5. External Viewfinder Strap
6. Sealing Gasket
7. Security Lock
8. Locking Latches
515216-EN 7 8/17/04, 9:51:26 AM
-8-
En
The supplied Underwater Housing allows you to take pictures underwater as deep as 65ft (20m).
Fitting the Camera into the Underwater Housing
1. Opening the Underwater Housing
a. Locate the Security Lock, use your left thumb to slide and hold it upwards
(Fig. 1action 1).
b. Pull the Locking Latch outwards (Fig. 1 action 2).
c. Ensure that your right thumb is pressing on the other side of the latch
(Fig. 1 action 3).
d. Release hold on the Security Lock. Lift the Locking Latch to open the Housing
2. Place the camera into the Underwater Housing as illustrated in Fig. 2.
Note:
• Make sure the camera is loaded with film and a fresh set of batteries.
• Slide the Lens Cover Switch to turn on the camera.
• Remove the Wrist Strap from the camera.
• Ensure that sealing gasket is correctly in place to prevent water leakage.
3. Closing the Underwater Housing
a. Locate the Security Lock, use your left thumb to slide and hold it upwards
(Fig. 3 action 1).
b. Pull the Locking Latch outwards (Fig. 1 action 2), release hold on the Security
Lock.
c. Firmly press the rear of the case against the front. Position the Locking Latch so
that it hooks on the rear of the case (Fig. 3. action 2).
515216-EN 8 9/10/04, 9:55:49 AM
-9-
En
d. Firmly press on the Locking Latch to lock the Housing (Fig. 3 action 3).
Attaching the Wrist Strap to the Underwater Housing
1. Insert the small loop of the Wrist Strap through the Wrist Strap Holder.
2. Take the other end of the Wrist Strap and insert this end through the small loop.
3. Pull tight to secure.
Mounting the External Viewfinder
Slide the External Viewfinder into the External Viewfinder Holder. (Fig. 4)
Taking Photographs
1. Aim the camera at the subject through the External Viewfinder, then press the
Shutter Release Button to take a picture. (Fig. 5)
2. For more information on taking photographs, please see the section “Taking
Photographs” in the camera portion of this manual.
Note: Dry the Underwater Housing thoroughly before taking the camera out.
Safety Precautions
Observe the list of precautions below so as to enjoy all of the features and functions, while minding
product safety issues.
• Always make sure that all accessories are securely mounted to the Housing;
• Be sure to use the wrist strap to avoid dropping the camera accidentally;
• Avoid shocks/damage to the exterior and/or interior of the camera;
• Do not open the Housing in a wet or sandy environment;
• After use, always rinse with fresh water. Make sure that the sealing gasket of the Housing is correctly
3.94ft.
(1.2m)
515216-EN 9 9/10/04, 9:55:49 AM
