Polaroid DMC 1e User manual

DMC Ie

Installation Quickstart

DMC_COV1.FMK i Tuesday, May 4, 1999 10:14 AM

English_______________________________3

Polaroid DMC Ie

DMC_TOC.fm Page 1 Tuesday, May 4, 1999 10:37 AM

English

Installation Quickstart

Unpack the Box

Make sure you have the following components. Contact your

dealer if any is missing or damaged

DMC Ie camera

Power supply and cord (may differ from illustration for some

locations)

SCSI host adapter installation kit for PCs (optional; contact

your dealer)

SCSI cable adapter (HD50 to DB25)

SCSI cable (2-meter)

Polaroid DMC Software CD containing

• TWAIN driver and Polaroid DMC Ie software for

Windows 95, 98 and NT

• Adobe Photoshop plug-in and Polaroid DMC Ie software

for Power MAC and PowerPC systems

• Online user’s guide

Optional image-reporting software (available in some regions)

Warning:

Nothing inside the camera or power supply is user

serviceable. Do not disassemble the camera. Doing so could result

in severe electrical shock and damage to the camera. This action

may also void your warranty. Contact Polaroid Technical Support

or your dealer if the camera is malfunctioning. (To contact

Polaroid from within the U.S.A., call

1-800-432-5355

. Outside the

U.S.A., see

Obtaining Technical Assistance

in the online user’s guide

or visit

www.polaroid.com

on the World Wide Web.)

356

DMC_ENG.fm Page 3 Thursday, May 20, 1999 3:06 PM

English

Install the Software

Turn the computer on.

Close any applications that may be running.

Insert the Polaroid DMC Ie software CD into the drive.

Follow instructions on the screen.

Remove the CD from the drive.

Power Mac or

PowerPC

Windows 95, 98 or NT

Select Polaroid

DMC Installer.

Wait for the DMC install pro-

gram to start.

If it does not, select Run from

the Windows Start menu.

Click Browse and select

SETUP.EXE on the CD-ROM.

Click OK.

DMC_ENG.fm Page 4 Thursday, May 20, 1999 3:06 PM

English

Attach the Camera to the Microscope

You need a 0.63 or 1:1 c-mount adapter (not provided) compatible

with your microscope. (Do not use a 0.5 c-mount adapter.) Refer

to your microscope manual for more information about c-

mounts.

Caution:

Verify that the

threaded end of the c-mount

adapter does not exceed

0.25 in. (6.3mm). Longer

adapters can damage the

camera.

Connecting the camera to the microscope:

Screw the c-mount adapter into the camera.

Note:

Finger-tighten the adapter. Do not use tools.

Insert the c-mount adapter into the microscope. The camera

indicator LEDs should face toward the front of the microscope.

0.25 in.

(6.3mm)

maximum

Indicator

LEDs

DMC_ENG.fm Page 5 Thursday, May 20, 1999 3:06 PM

English

Connect the Camera to the Computer

The DMC Ie camera requires a SCSI host adapter in your

computer. If your computer does not have an adapter, you must

install one (see page 11). If your computer is a PC-compatible with

a SCSI adapter, but the adapter is connected to a hard drive or CD-

ROM drive, installing a second adapter is recommended.

Set the camera SCSI address:

Each device connected to a SCSI host adapter must have a unique

address from 0-6. To assure a unique address for the camera,

determine the addresses of any other SCSI devices:

Turn the camera power switch to off (0) and set the SCSI address

switch to a value not used by any other device.

Note:

The address is preset to 4. Do not change it unless another

device is using 4. Other addresses typically available are 2, 5 and 6.

Power Mac or PowerPC Windows 95, 98 or NT

•

Run Apple System Proﬁler,

usually on the Apple menu.

If it is not, it may be avail-

able from www.apple.com/

swupdates.

•

Click Devices and Volumes

to view the SCSI device

addresses.

•

Look at the SCSI

address switch on each

SCSI device connected

to your system. If nec-

essary, see the instruc-

tions provided with the

devices.

Power switch?

(off=0)

SCSI address switch

Do not use 7, 8 or 9?

(not valid addresses)

DMC_ENG.fm Page 6 Thursday, May 20, 1999 3:06 PM

English

Connect the SCSI cables:

Place the DMC camera at the end of the SCSI chain as shown or

between the computer and other SCSI devices. Use the shortest

possible cables.

Note:

Turn the computer, camera and all other SCSI devices off

before connecting or disconnecting any cables.

Do not connect

the camera to the parallel connector on your computer.

Doing so could damage the camera or computer.

Set termination:

The last device in a SCSI chain must be terminated (or have

termination on), while all other devices must be unterminated (or

have termination off).

If the camera is the only device connected to your SCSI host

adapter or the last device in a SCSI chain, set the camera

termination to on (1). Otherwise, set termination to off (0).

Termination instructions for your other SCSI devices are provided

with the devices.

Note:

Do not use an external, passive terminator to terminate the

camera. If another device is at the end of the SCSI chain, that

device must be terminated with an active terminator for proper

camera operation.

Other SCSI device

(not terminated)

Computer

DMC Ie camera

termination on (1)

Termination

switch

DMC_ENG.fm Page 7 Thursday, May 20, 1999 3:06 PM

English

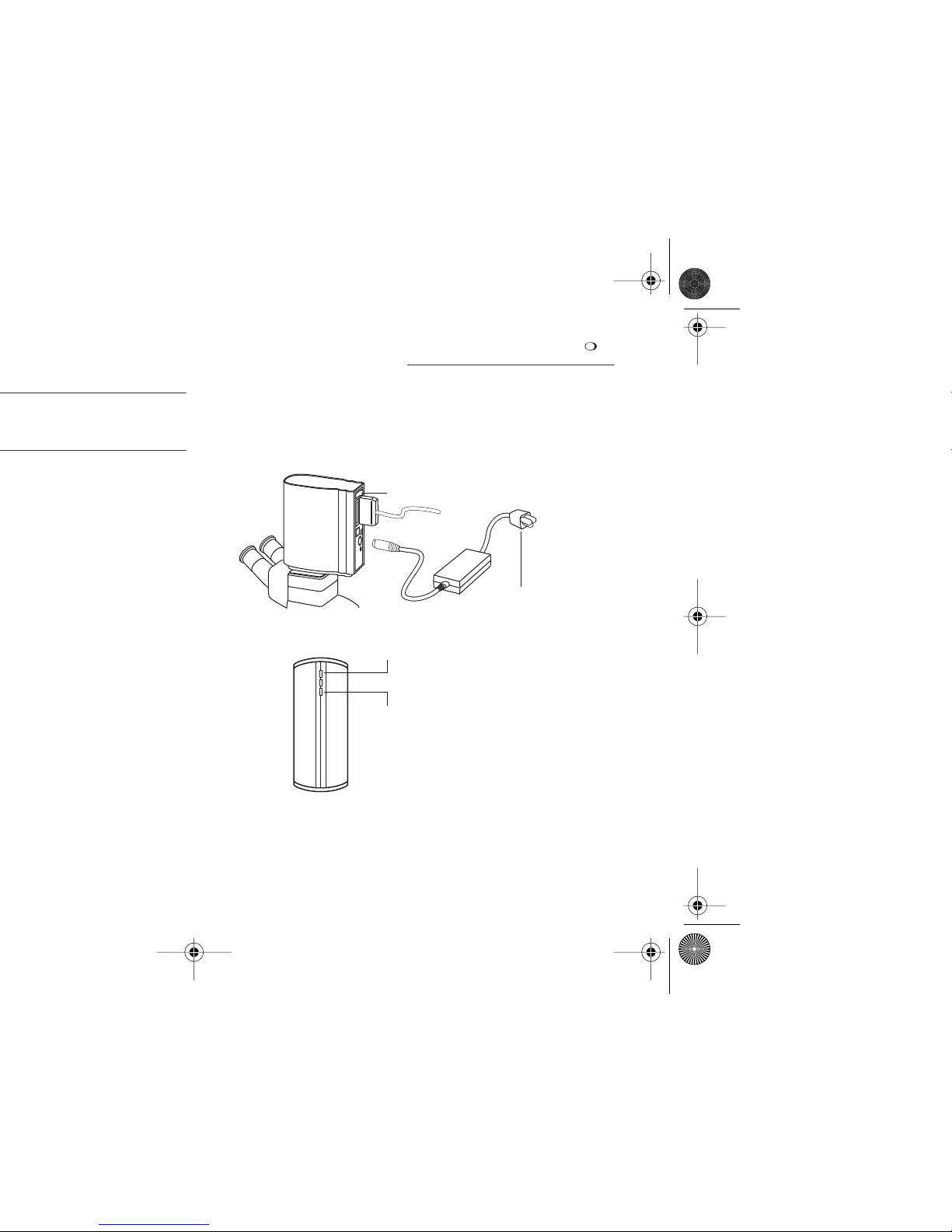

Connect the Camera to AC Power

and Turn On

Connect the camera to AC power and turn the power switch on.

Verify that the green and yellow LEDs are on, indicating AC and

termination power are on.

Turn the computer on.

Wait for the system to install the camera driver and display the

normal desktop.

Power switch (on=1)

To AC power

Green LED

Yellow LED

DMC_ENG.fm Page 8 Thursday, May 20, 1999 3:06 PM

English

Take a Test Picture

Start the DMC Ie program:

Place a specimen under the microscope and focus it through

the microscope eyepiece.

Click Preview in the DMC Ie main window. If necessary, adjust

the c-mount on the microscope to focus the image on the

computer screen. (Refer to your microscope manual for

instructions.)

In the DMC Ie main window, choose the appropriate exposure,

sensitivity and color temperature settings for the image being

captured.

Select 8-Bit Color from the Image Type box for the test.

Click Capture & Transfer to capture and save the image to disk.

Open the saved image with an image-processing application,

verifying that it was captured satisfactorily.

Power Mac or PowerPC Windows 95, 98 or NT

•

Double-click

Polaroid DMC Ie.

•

Select Programs from the

Start menu.

•

Point to Polaroid Digital

Microscope Camera and

select Polaroid DMC Ie.

DMC_ENG.fm Page 9 Thursday, May 20, 1999 3:06 PM

English

Capture, Enhance and Save

Additional Images

Follow instructions in the on-line user’s guide to capture, enhance

and save additional images.

Viewing the online DMC User’s Guide:

Power Mac or PowerPC Windows 95, 98 or NT

Double-click DMC Ie,

launching the DMC Ie

program.

Select DMC Help from the

Help menu.

Select Programs from the

Start menu.

Point to Polaroid Digital

Microscope Camera and

select User's Guide.

DMC_ENG.fm Page 10 Thursday, May 20, 1999 3:06 PM
