User’s Manual
For
Bluetooth
Mini Optical
Cordless Mouse Extra
BT-02MU
1
Overview
Bluetooth is a low-power wireless networking standard, which uses short radio links to allow
electronic devices to communicate with other without using cables.
The following services are supported by Bluetooth technology:
•Synchronize your Bluetooth PDA with your computer.
•Send your business cad to anyone who has a Bluetooth enabled device.
•Send or receive files to or from anyone who has a Bluetooth enabled device.
•Send an e-mail without being wired to the network.
•Dial up to internet on your computer over your Bluetooth cellular phone.
•Send a fax from your computer over your Bluetooth cellular phone.
•Chat with anyone who has a Bluetooth enable computer.
•Play a one-on-one serial game without a cable.
•Most Bluetooth enabled devices may act as:
A Bluetooth host – can provide one or more services, such as access to the
internet or to other Bluetooth devices.
A Bluetooth client – can use the service provided by Bluetooth servers.
Bluetooth devices can act as both host and client, and do both at the same
time.
Introduction
You will enjoy the freedom to use this Bluetooth mini optical cordless mouse practically
anywhere. Not only does the optical tracking engine allow it to work well on most surfaces,
but the fact that it’s wireless means you can use it in your left or right hand. There’s no cable
to clutter your desk and tether you to your computer.The wireless mouse makes it easy and
comfortable to use, regardless of the size of your hand. And the optical engine provides
accurate and responsive cursor movement unhampered by performance-inhibiting dirt and
dust buildup.
BT-02MU has made setting up Bluetooth devices as simple as turning them on and clicking
through an intuitive setup assistant. The new wireless mouse is perfect for you, especially
when you take your laptop on trips. The mouse has been designed with an off-switch that lets
you save battery power when you travel. And you only need to put the mouse in the on
position to reestablish its wireless link with your laptop.
2
System Requirement
PC System Requirement:
CPU: Intel Pentium III 500MHz or above.
Memory: 256MB or more.
Hard Disk Space: at least 50MB.
OS: Windows 2000/XP
USB 1.1 compliant port.
CD-ROM Drive.
Mac System Requirement:
MAC OS: 10.1.4 or later
Mac OS driver and software provided by Apple.
USB 1.1 compliant port.
CD-ROM Drive.
Package Contents
Bluetooth mini optical cordless mouse.
Bluetooth USB charging receiver (Base Station).
CD-ROM (Manual / Driver & Utility)
Quick Installation Guide
PLANEX Bag
2 pcs. Rechargeable AAA-1.2 Ni-Mh Battery
3
Software Installation
Note: Do not plug your Bluetooth USB Adapter into USB port until you have completed the
software installation as the following:
1. Insert the CD-ROM into your CD-ROM drive. The “InstallShield Wizard” should
automatically start running. If it doesn’t load, run its “Setup.exe” file.
2. A window appears for you to choose your preferred language for this installation.
Click “OK” to continue.
3. Wait for the setup preparation.
4

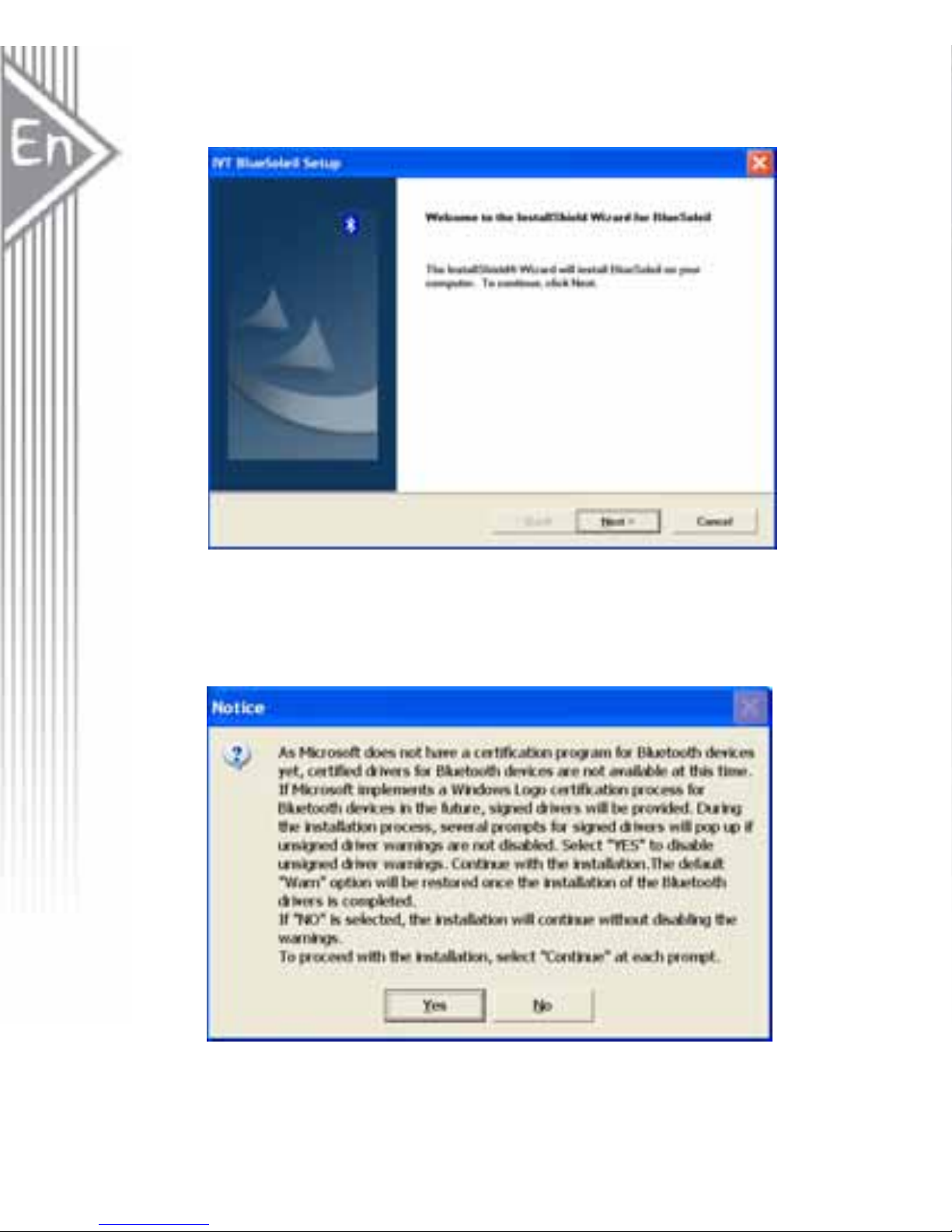

4. The “IVT BlueSoleil Setup” window should now appear, Click “Next”.
5. Select “Yes” to proceed with the installation.
5
6. Click “Yes” to accept License Agreement.
7. Click “Next” to install the driver to the default folder. Click “Browse” and select another
folder if you wish to relocate your driver.
6

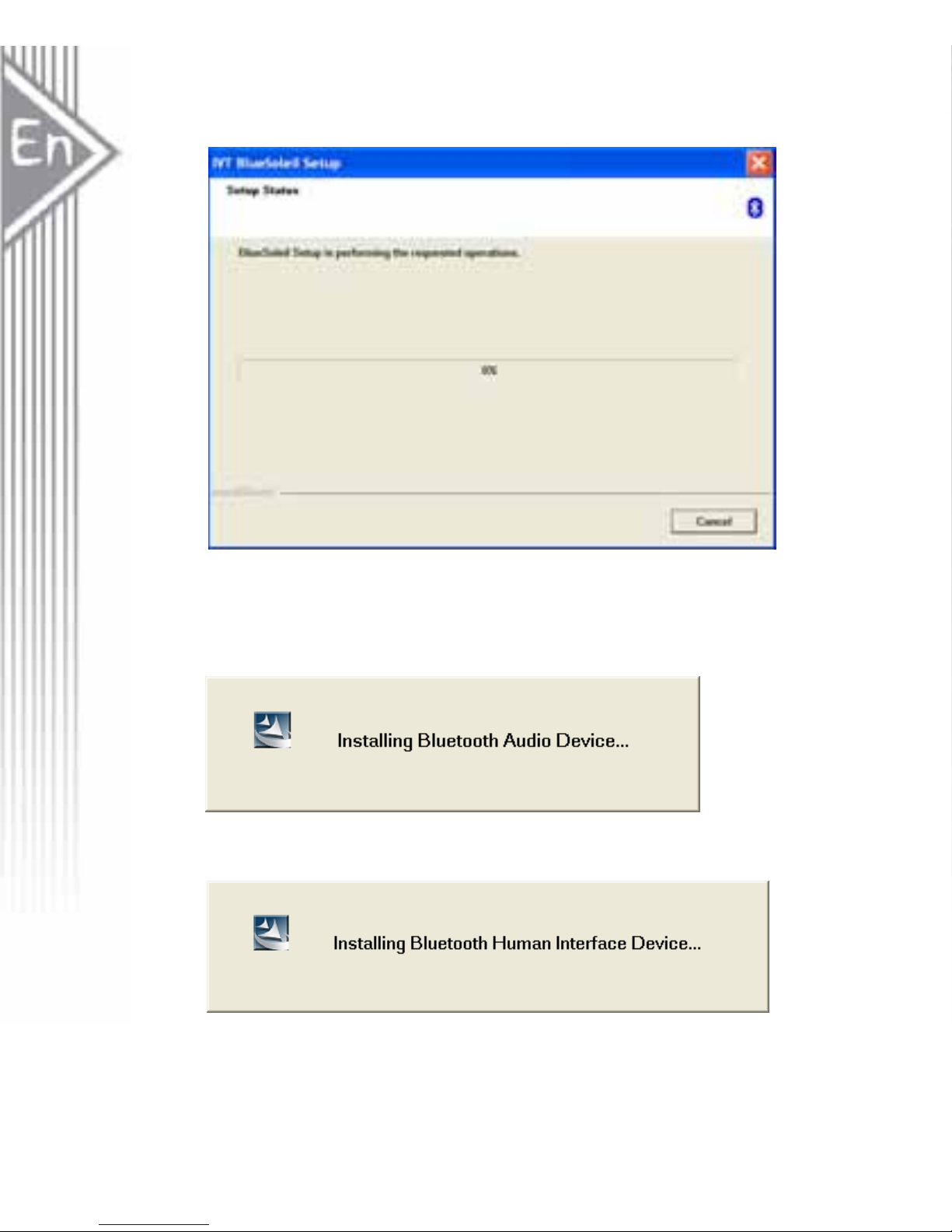

8. Wait for the setup.
7
9. Wait for Bluetooth device installation.
10. Check “Yes” and click “Finish” to restart your computer.
8
Hardware Installation
Install USB Adapter
1. Insert the USB dongle into an available USB port after installing the driver and restarting
your computer. You will see a system notice of “new USB devices found”. Click “Next”
to register. To boot from a different location, mark “install from a list or specific
location” and click “Next” to continue.
9
2. Wait while the wizard searches for your USB dongle.
10
3. Click on “Finish” while the search is completed.
