Planet WRT-416 User manual

802.11g Wireless Broadband Router

WRT-416

Quick Installation Guide

Table of Contents

Package Content............................................................................. 3

Hardware Installation ...................................................................... 4

Initial Conguration......................................................................... 5

Further Conguration ...................................................................... 8

Package Content

1 x WRT-416

1 x Power Adapter

1 x User’s Manual CD

1 x Quick Installation Guide

1 x External Antenna

1 x Ethernet Cable

Note

If any of the above items are missing or damaged,

contact your local dealer for support.

Hardware Installation

Before you proceed with the installation, it is necessary that you have

enough information about the WRT-416.

Keep the wireless router as central in your work area as possible.

Signal strength and speed fall off with distance.

Higher is often better. For instance, set it up on the top shelf of a

bookcase rather than the bottom one, if possible.

Prior to connecting the hardware, make sure to power off your Ethernet

device and Wireless Router. Then follow the steps below to connect the

related devices.

Step 1: Connect your computer to the LAN port of WRT-416 by

using RJ-45 cable. Attach one end of the Ethernet cable

with RJ-45 connector to your hub, switch or a computer’s

Ethernet port, and the other end to one of the LAN ports of

your router.

Step 2: Assemble the antenna to WRT-416. Try to place them

to a position that can best cover your wireless network. The

antenna’s position will enhance the receiving sensitivity.

Step 3: Connect the power adapter. Connect the single DC output

connector of the power adapter to the power jack on the side

of the AP. Then plug the Power Adapter into an AC outlet.

Step 4: Power on the following devices in this order: HUB or

Switch, router, and PCs

ONLY use the power adapter supplied with the WRT-416.

Otherwise, the product may be damaged.

If you want to reset your WRT-416 to default settings,

press the Reset button 5 second. Then release the

button and wait for 10 seconds for rebooting.

Initial Conguration

1. Open your web browser.

2. Enter WRT-416 IP address (default IP address is http://192.168.1.1)

into the address eld of the web browser. Please also make sure your

PC’s IP address is in the same IP range with WRT-416.

If the router’s LAN port has been changed with new IP

address, enter the new IP address instead.

3. A User Name and Password dialog box will appear. Please enter your

User Name and Password here. The User Name and Password are

“admin” by default. Click “OK” to access the management page.

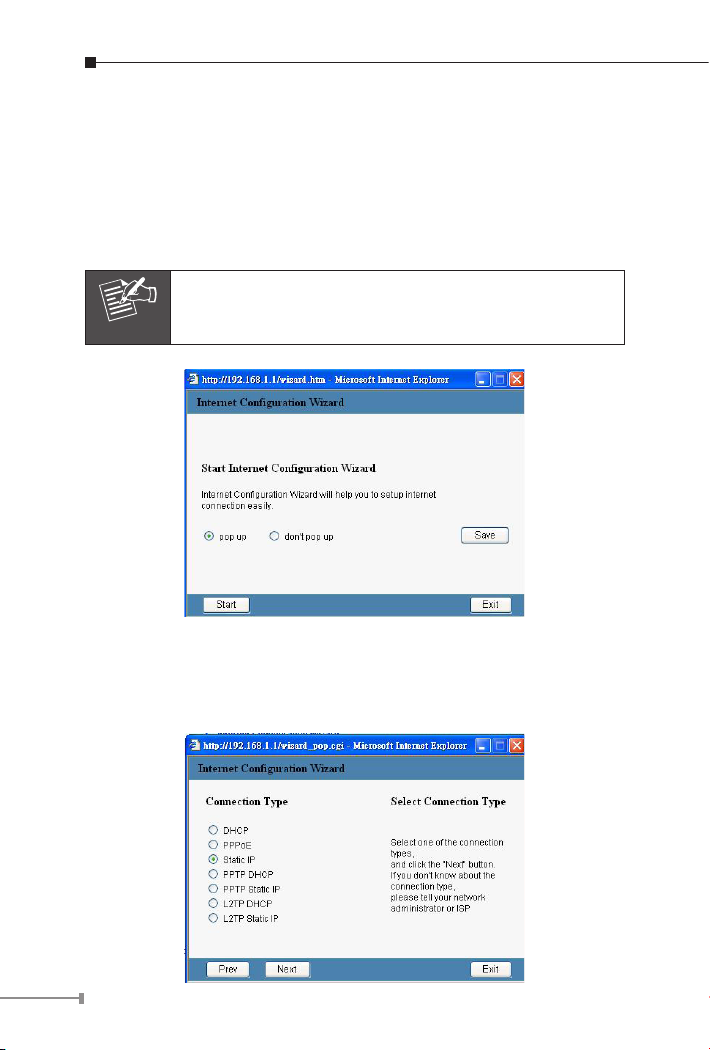

4. Once you log in, the Conguration Wizard and Status page will pop

up at the same time. Conguration Wizard will appear every time

you enter WRT-416. If you do not want to display wizard by itself

next time, select “don’t pop up” option and click “save”. In the

future, you can still have wizard appeared by clicking “Wizard” tab

on upper right panel of WRT-416’s web page.

Click “Start” to go to next step.

Note

in order to start the wizard, you will need to have the

pop-up blocker DISABLED in your web browser.

5. On this page, select your Internet connection type and then input the

congurations needed to connect to your Internet Service Provider

(ISP). Please obtain all necessary information from your ISP before

go through this conguration. Click “Next” to proceed.

6. On this page, you can set the Radio Band, Mode, SSID and Channel

to your WRT-416. The SSID is to identify your wireless network. All

the devices (AP and wireless client) on the same wireless network

must be congured to the same SSID. You can leave the Radio Band

and Channel settings to default. On the Mode Settings, the default

is AP mode which allow your wireless client to connect each other

and the wired Ethernet network. Please refer to the user’s manual

for detial on other available modes.

Click “Next” to proceed.

7. You have nished all basic congurations for WRT-416. Please press

“Exit” to close this window. The WRT-416 will perform reboot if major

changes are made. After reboot completes, the WRT-416 is ready to

use.

Further Conguration

If you want to congure more detail settings of WRT-416, please refer

to the manual in the bundled CD. If you have any difculty on resolving

the problem while installing or using the WRT-416, please feel free to

contact PLANET for support.
