Planet SW-502 User manual

10/100Mbps

Fast Ethernet Switch

SW-502/SW-802

User's Manual

Trademarks

Content subjects to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

fitness for a particular purpose.

PLANET has made every effort to ensure that this User's

Manual is accurate; PLANET disclaims liability for any

inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without

notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any

inaccuracies that may be contained in this User's Manual.

PLANET makes no commitment to update or keep current the

information in this User's Manual, and reserves the right to

make improvements to this User's Manual and/or to the

products described in this User's Manual, at any time without

notice.

If you find information in this manual that is incorrect, misleading,

or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the Instruction manual,

may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at its own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Revision

PLANET Fast Ethernet Switch User's Manual

FOR MODELS: GSD-503/GSD-504/GSD-803/GSD-804

Rev: 1.0(May.2005)

Part No.: 2011-A33160-000

1. INTRODUCTION

1.1 Package Contents

Check the contents of your package for following parts:

。 Fast Ethernet Switch x1

。 User's manual x1

。 Power adapter x1

If any of these are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original

packing material, and use them against to repack the product in case

there is a need to return it to us for repair.

1.2 How to Use This Manual

This Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical

installation of the Switch.

Chapter 3 Switch operation

The chapter explains the Fast Ethernet Switch transmit operation.

Chapter 4 Troubleshooting

The chapter explains the troubleshooting of the Fast Ethernet Switch.

Appendix A

This chapter contains cable information of the Fast Ethernet Switch.

1.3 Product Features

。 Comply with IEEE 802.3, 10Base-T, IEEE 802.3u,

100Base-TX

。 5/8-port 10/100Mbps Auto-Negotiation ports - 10/20Mbps,

100/200Mbps Auto-sensing

。 Compact size design for wall mount or desktop placement

。 High performance Store-and-Forward Switching Architecture

。 Runt and CRC filtering

。 Flow control (Back Pressure) supports in half-duplex mode

。 1K MAC Address Table, automatically learning and aging

。 LED indicators array for easy diagnostic, troubleshooting

。 Plug-and-Play Installation

。 Auto-MDI/MDIX on each port

1.4 Product Specifications

Model SW-502 SW-802

Hardware Specification

Network Ports 5 10/100Base-T RJ-45

MDI/MDI-X ports

8 10/100Base-T RJ-45

MDI/MDI-X ports

Dimensions (W x D x H) 159 x 100 x 28mm

Weight (KG) 0.16 KG 0.18 KG

Power Requirement External Power adapter 12V 500 mA

Switch Specification

Switch Architecture Store-and-forward

Address Table 1K entries, auto learning/ageing

Flow Control IEEE 802.3x full duplex operating and flow control

Packet Control Runt & CRC filtering, Broadcast storm control

Standard Conformance

Network Standards IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet)

and IEEE802.3x (flow control)

Operation Temperature 0~50ºC

10% to 90% (Non-condensing)

Humidity -40~70ºC

Regulation Compliance FCC, CE

2. INSTALLATION

This section describes the functionalities of the Fast Ethernet Switch’s

components and guides how to install it on the desktop. Basic

knowledge of networking is assumed. Please read this chapter

completely before continuing.

2.1 Product Description

With concepts of "Easy to Install and use", "Compact-sized design",

and "Simple troubleshooting", PLANET SW-502/SW-802 provides

cost-conscious business and home users with the foundation of an

integrated system of small-office / home-office networking. The SW

502/SW-802 is the fancy-shape plastic models and just right for your

network of 10 to 50 users.

The SW-502/SW-802 Fast Ethernet Switch is a Simple and

cost-effective, highly reliable network switch. And is the ideal device

for bridging Ethernet to Fast Ethernet workgroups or networks.

Therefore, the Switches will be the fast being recognized as one of the

most important building blocks for today networking technology.

To segment the network, ease the network traffic, the 5/8-port

10/100Mbps are useful for the SOHO switched networks as the

friendly network backbone. Provides array LED indicators, the

network status can be monitored at a glance.

2.1.1 Product Overview

PLANET SW-502/SW-802 are Fast Ethernet switches with 5/8 RJ-45

10/100 Mbps ports for high-speed network connectivity. The switches

can also automatically identify and determine the correct transmission

speed and half/full duplex mode of the attached devices with its 5/8

ports.

This product also supports store-and-forward forwarding scheme to

ensure low latency and high data integrity, eliminates unnecessary

traffic and relieves congestion on critical network paths. With an

intelligent address recognition algorithm, the switches could recognize

up to 1K different MAC address and enables filtering and forwarding at

full wire speed.

2.1.2 Switch Front Panel

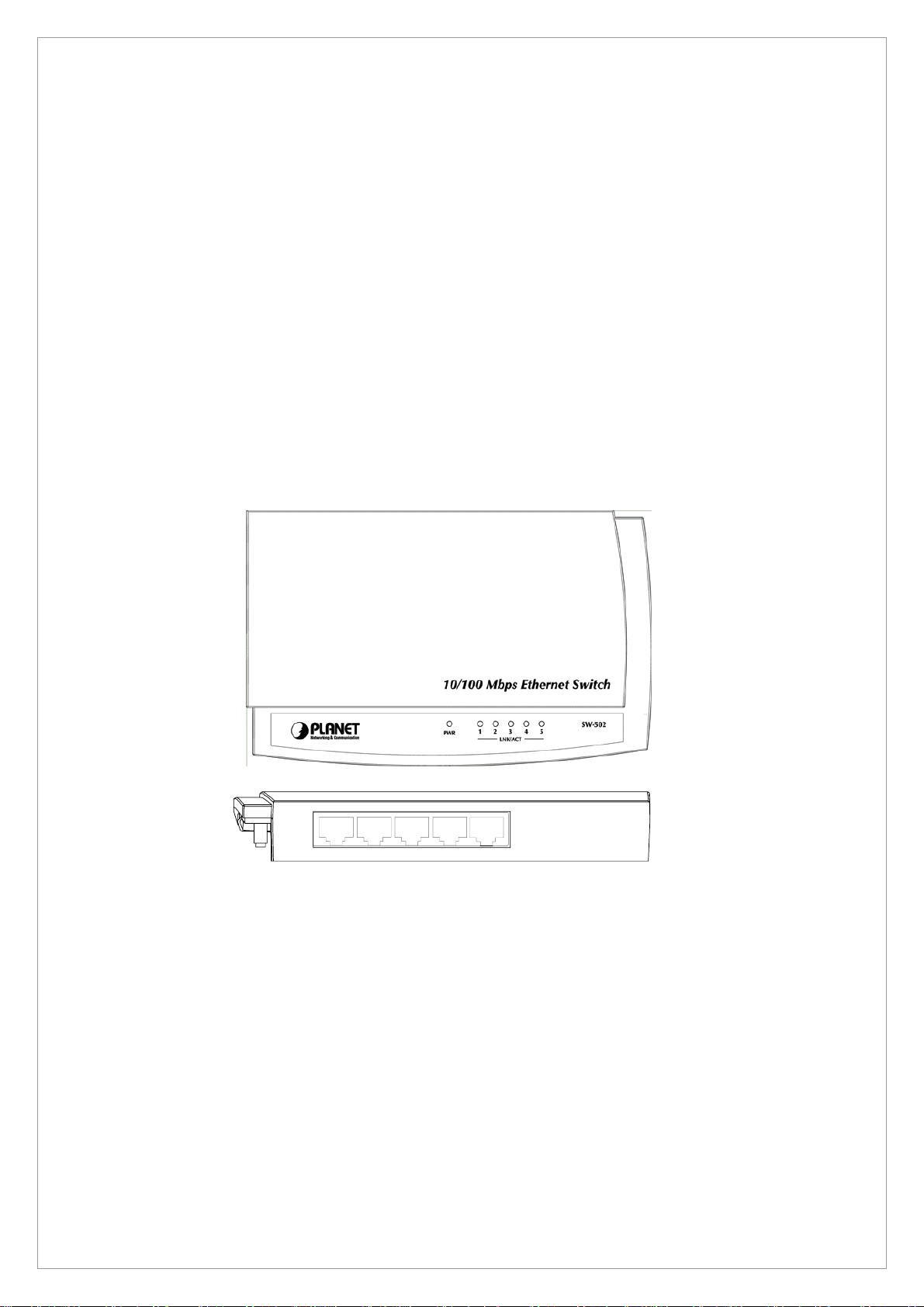

Figure 2-1 & 2-2 show the front panel and rear panel of SW-502

Figure 2-1 SW-502 front panel

Figure 2-2 SW-502 rear panel

Figure 2-3 & 2-4 show the front panel and rear panel of SW-802

12345

Figure 2-3 SW-802 front panel

2.1.3 LED Indicators

Figure 2-4 SW-802 rear panel

LED Color Function

PWR Green Lights to indicate tha is powered on.t the Switch

L lly

that the switch is actively sending or

NK/ACT Green Lit: indicate the link through that port is successfu

established.

Blink: indicate

receiving data over that port.

ower Notice:

s a power-required device, it means, it will not work

1. The device i

till it is powered. If your networks should active all the time, please

12345678

consider using UPS (Uninterrupted Power Supply) for your device.

It will prevent you from network data loss or network downtime.

2. In some area, installing a surge suppression device may also

ur Fast Ethernet Switch and make

Note: This switch does not need software configuration.

2.2.1 Desktop Installation

To install the switch on desktop, simply follow the next steps:

Step1: Attach the rubber feet to the recessed areas on the bottom of

Step2: Place the switch on desktop near a DC power source.

Step3: Keep enough ventilation space between the switch and the

Note: When choosing a location, please keep in mind the

Step4: Connect your switch to network devices. le to the

devices such

help to protect your switch from being damaged by unregulated

surge or current to the Switch or the power adapter.

2 Installing the Switch

This part describes how to install yo

connections to it. Please read the following topics and perform the

procedures in the order being presented.

the switch.

surrounding objects.

environmental restrictions discussed in Chapter 1, Section 1.4

Product Specification.

A. Connect one end of a standard network cab

10/100/1000 RJ-45 ports on the Back of the switch.

B. Connect the other end of the cable to the network

as printer servers, workstations or routers…etc.
