Planet IGS-6325-20T4C4X User manual

Industrial L3 20-Port 10/100/1000T +

4-Port Gigabit TP/SFP + 4-Port 10G SFP+

Managed Ethernet Switch

IGS-6325-20T4C4X

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

3. Wiring DC Power Inputs .............................................................................. 5

4. Terminal Setup ........................................................................................... 6

4.1. Logging on to Console ......................................................................... 7

4.2. ConguringIPAddressviaConsole ....................................................... 8

5. Starting Web Management .........................................................................10

5.1 LoggingintotheIndustrialManagedSwitch.........................................10

5.2. SavingCongurationviaWeb ..............................................................13

6. RecoveringBacktoDefaultConguration.....................................................15

7. Customer Support .....................................................................................16

1. Package Contents

Thank you for purchasing PLANET Industrial L3 Managed Ethernet Switch.

“Industrial Managed Switch” is used as an alternative name in this Quick

InstallationGuide.

Open the box of the Industrial Managed Switch and carefully unpack it. The box

shouldcontainthefollowingitems:

zTheIndustrialManagedSwitch x1

zQuickInstallationGuide x1

zDB9toRJ45InterfaceRS232ConsoleCable x1

zRubber Feet x 4

zRackMountAccessoryKit x1

zACPowerCord x1

zSFP Dust Cap x 8

zRJ45DustCap x25

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

The Industrial Managed Switch provides remote login interface for management

purposes.Thefollowingequipmentisnecessaryforfurthermanagement:

zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPProtocols.

zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

zSerialPortConnection(Terminal)

 The above Workstations come with COM Port (DB9) or USB-to-RS232

converter.

 The above Workstations have been installed with terminal emulator, such as

HyperTerminalincludedinWindowsXP/2003,puttyorTeraTerm.

 Serial cable -- one end is attached to the RS232 serial port, while the other

endtotheconsoleportoftheIndustrialManagedSwitch.

zEthernetPortConnection

 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.

 The above PC is installed with Web browser and JAVA runtime environment

plug-in.

Note

It is recommended to use Internet Explore 8.0 or above to access

the Industrial Managed Switch. If the Web interface of the Indus-

trialManagedSwitchisnot accessible,pleaseturnoff theanti-virus

softwareorfirewallandthentryitagain.

3. Wiring DC Power Inputs

The 6-contact terminal block connector on the panel of Industrial Managed Switch

isused for two DCredundant powers input. Please follow the steps below to insert

the power wires.

1.Insert positive/negative DC power wires into contacts 1 and 2 for DC POWER 1,

or5and6forDCPOWER2.

DI/DO

FaultR.O.

Ring

DC 2

DC 1

100~240V AC

50/60 Hz

AC POWER

OFF

DC POWER

OFF

DC Input Range:

36V~60V

Fault

GNDGNDDO 1DO 0DI 1DI 0

DC 2DC 1

Figure 3-1 6-contact terminal block connector

2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.

1 2 3 4 5 6

Power 1 Fault Power 2

+-+-

Figure 3-2 The pin of 6-contact terminal block connector

Note

The wire gauge for the terminal block should be in the range

between12and24AWG.

4. Terminal Setup

Tocongure the system,connecta serialcable toaCOMport onaPCor notebook

computerandtoRJ45typeofserialportoftheIndustrialManagedSwitch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 4-1 Industrial Managed Switch Console Connectivity

A terminal program is required to make the software connection to the Industrial

ManagedSwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:115200

Databits:8

Parity:None

Stopbits:1

Flowcontrol:None

Figure 4-2 COM Port Conguration

4.1. Logging on to Console

Once the terminal is connected to the device, power on the Industrial Managed

Switchandtheterminalwilldisplay“runningtestingprocedures”.

Then, the following message asks to log in user name and password. The factory

default user name and password are shown as follows and the login screen in

Figure4-3appears.

Username:admin

Password:admin

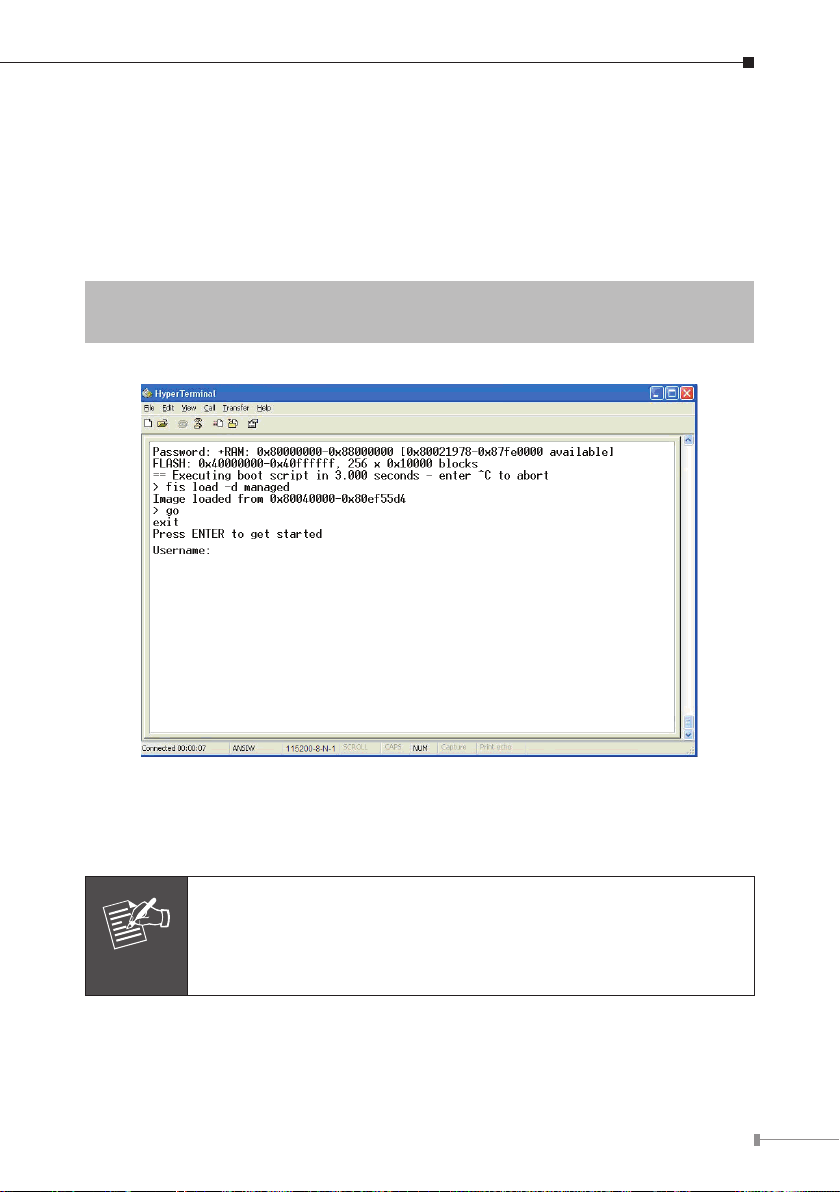

Figure 4-3: Industrial Managed Switch Console Login Screen

The user can now enter commands to manage the Industrial Managed Switch. For

adetaileddescriptionofthecommands,pleaserefertothefollowingchapters.

Note

1.For security reason, please change and memorize the new pass-

wordafterthisfirstsetup.

2.Only accept command in lowercase letter under console inter-

face.

4.2.ConguringIPAddressviaConsole

TheIndustrialManagedSwitchisshippedwithdefaultIPaddressshownbelow.

IPAddress:192.168.0.100

SubnetMask:255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

usetheproceduresasfollows:

 ShowthecurrentIPAddress

1.Atthe“#”prompt,enter“show ip interface brief”.

IGS-6325-20T4C4X#show ip interface brief

2.ThescreendisplaysthecurrentIPaddressasshowninFigure4-4.

Figure 4-4: IP Information Screen

 ConguringIPAddress

3.At the “#” prompt, enter the following command and press <Enter> as shown

inFigure4-5.

IGS-6325-20T4C4X#congure terminal

IGS-6325-20T4C4X(cong)#interface vlan 1

IGS-6325-20T4C4X(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0

The previous command would apply the following settings for the Industrial

ManagedSwitch.

IPAddress:192.168.1.100

SubnetMask:255.255.255.0

Figure 4-5: Conguring IP Address Screen

4.Repeatstep1tocheckiftheIPaddressischanged.

 Storecurrentswitchconguration

5.Enterthefollowingcommandandpress<Enter>togobackto“#”prompt.

# exit

Figure 4-6: Inputting Exit Command Screen

6.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.

# copy running-cong startup-cong

Figure 4-7: Saving Current Conguration Command Screen

If the IP is successfully congured, the Industrial Managed Switch will apply the

new IP address setting immediately. You can access the Web interface of the

IndustrialManagedSwitchthroughthenewIPaddress.

Note

If you are not familiar with the console command or the related

parameter,enter “help” anytimein consoletogetthe helpdescrip-

tion.

5. Starting Web Management

The following shows how to start up the Web Management of the Industrial

Managed Switch. Note the Industrial Managed Switch is congured through an

Ethernet connection. Please make sure the manager PC must be set to the same

IP subnet address.

For example, the default IP address of the Industrial Managed Switch is

192.168.0.100, then the manager PC should be set to 192.168.0.x (where x

is a number between 1 and 254, except 100), and the default subnet mask is

255.255.255.0.

PC / Workstation

with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address:

192.168.0.100

Figure 5-1: IP Management Diagram

5.1 Logging in to the Industrial Managed Switch

1.Use Internet Explorer 8.0 or above Web browser and enter IP address

http://192.168.0.100(thefactorydefaultIPaddressortheonethatyouhave

justchangedinconsole)toaccesstheWebinterface.

2.When the following dialog box appears, please enter the default user name and

password “admin” (or the password you have changed via console). The login

screeninFigure5-2appears.
