Pioneer RC310TG User manual

Operating Instructions

The display and some features of the remote control may

vary according to the model of the system.

The shape and positions of the buttons and indicators may

vary according to the model of the system, but the features

and functionality would remain the same.

The unit will confirm the successful reception of each button

command with a beep.

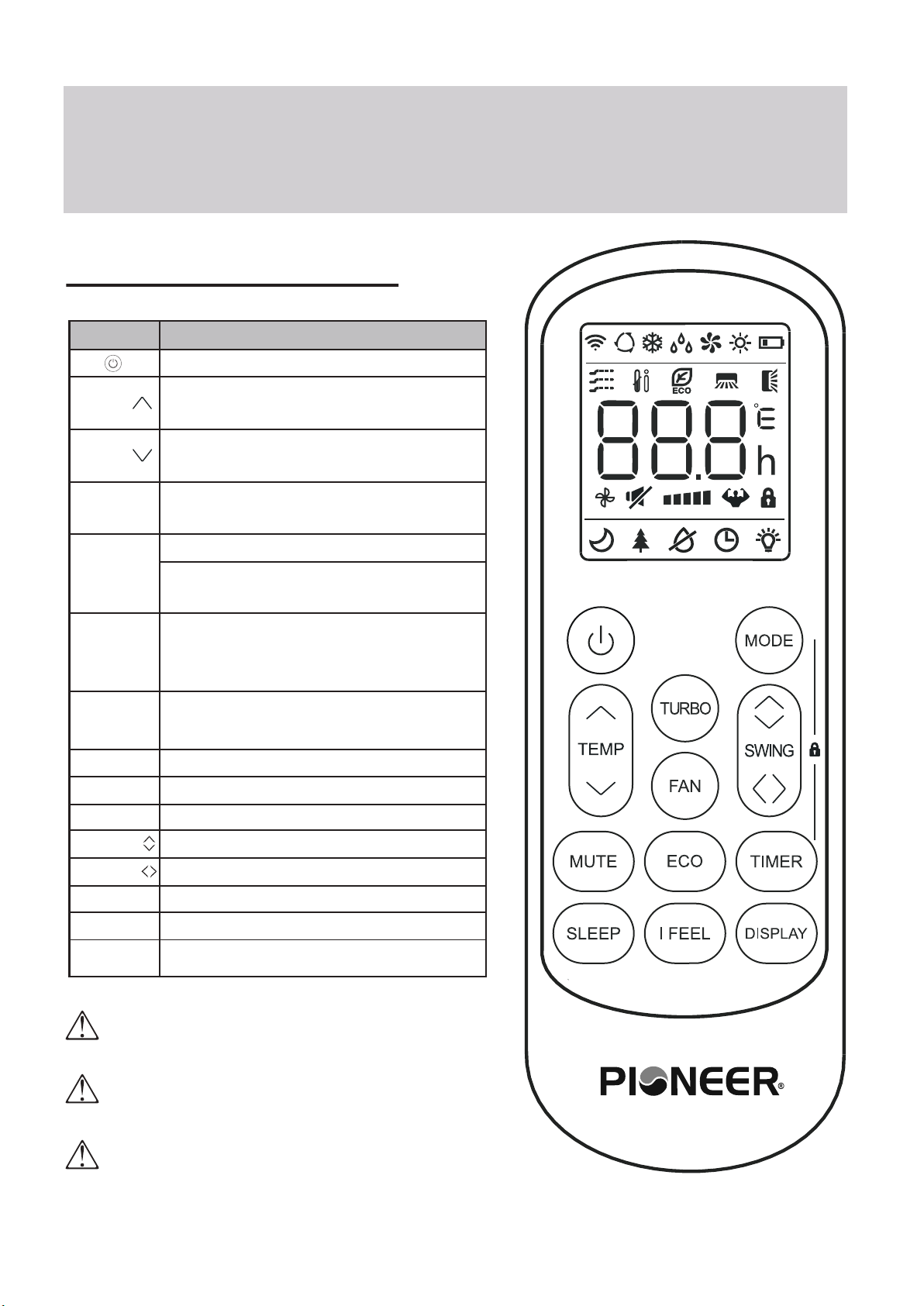

Remote Buttons Overview

Button Description

Turns the air conditioner on or off

Activates/deactivates the ECO feature

Configures the automatic on/off times

Toggles the system’s Sleep Mode

Turns the LED display on or off

Activates the up-down louver motor

Activates the left-right louver motor

Puts the system into silent mode

Press MODE+TIMER for child-lock

Activates the system’s Follow Me mode

Long press to activate the 46°F “Away

from Home” freeze protection setting.

Decreases set temperature, set timing,

or navigates the functional menu

Increases set temperature, set timing,

or navigates the functional menu

Selects the mode of operation (Auto,

Cool, Dry, Fan, and Heat modes)

Configures the fan speed

(Auto, Low, Mid, and High)

Activates/deactivates the TURBO

feature, which allows the system to

reach set temperatures quicker

MODE

TEMP

DISPLAY

SWING

MUTE

LOCK

I FEEL

TURBO

FAN

TIMER

SLEEP

ECO

SWING

NOTE ON ILLUSTRATIONS

The illustrations in this manual are strictly for explanatory purposes. The actual display and some

functions of the remote controller may vary according to the model purchased.

Operating Instructions

No. Description

Icon

Auto Mode

Cooling Mode

Signal Transmit Indicator

Dry Mode

Fan Only Mode

9Heating Mode

ECO Mode

Unit of Temperature (°C/°F)

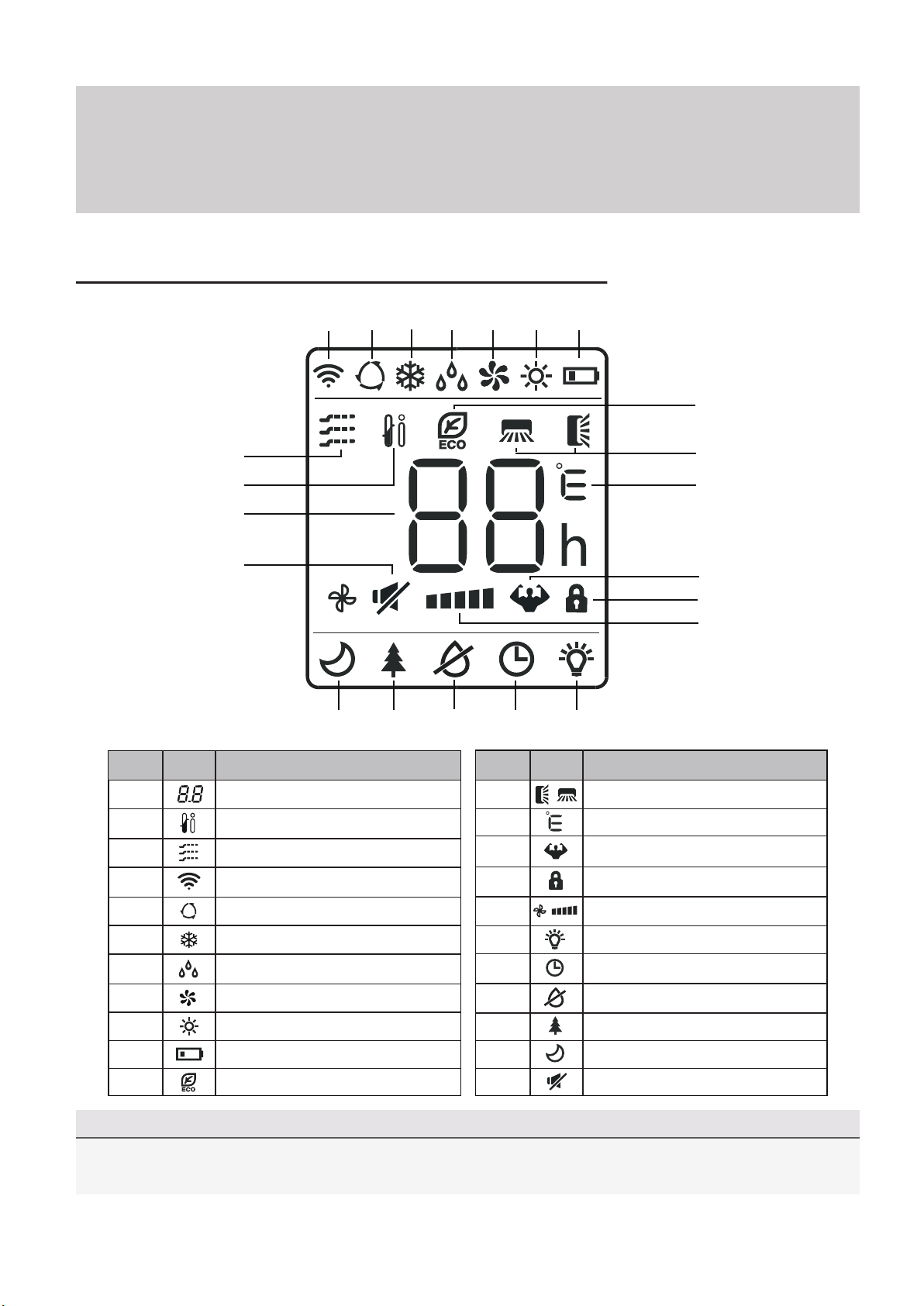

Remote Controller LED Screen and Icons

No. Description

Icon

112

Temperature Indicator

Battery Level Indicator

Mute Function

Turbo Mode

Child Lock Indicator

Directional Swing Indicators

Timer Active Indicator

LED Display On/Off

Health Funct. (Some Models)

Anti-Mildew (Some Models)

Sleep Function

I Feel/Follow Me Mode

Gentle Wind (Some Models)

Fan Speed (Auto or Fixed)

45678910

192021 1718

Depending on the system, the control type (Cooling Only or Heat Pump) and the unit of

Temperature (°C or °F) can be configured using the manual dip-switches below the battery

compartment. Operate as below:

Operating Instructions

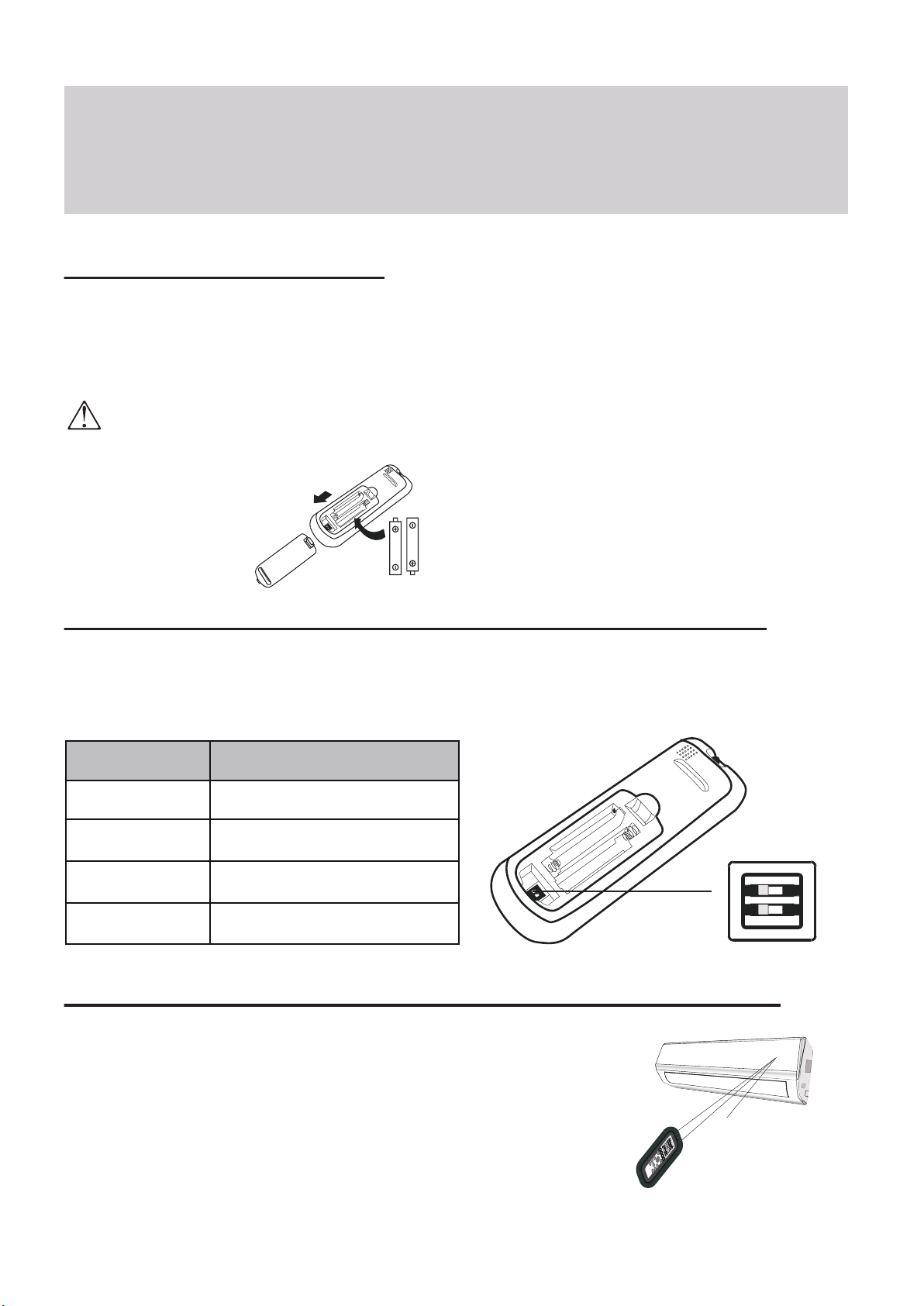

Replacement of Batteries

Remove the battery cover from the rear of the remote controller, by sliding it downward in

the direction of the arrow as depicted below. Install batteries according to the depicted

directions (+ and -) as shown on the remote controlller. The cover then slides back into place.

Configuring Remote Controller Settings (some models)

Use 2x AAA batteries. Do not use re-chargeable batteries. Replace old batteries with new ones of the same type when the

display is no longer legible. Do not dispose of batteries as unsorted municipal waste. Disposal of such waste separately

for special treatment is necessary. If the system will not be used for a long time, remove batteries to prevent leakage.

Note

Please remove batteries to avoid

leakage damage when not

being used for a long time.

Signal

receptor

DISPLAY3D HEAL THY

ON/OFF

SWING

FAN

TIMER SUPE R

SLEE PMODE

ECO

CLOCK

Operating the Remote Controller Sucessfully and Safely

• Ensure no objects come between the remote controller and signal

receptor of indoor unit.

• Keep the remote at least 3 ft away from televisions and other

electrical appliances.

• Always direct the remote controller toward the air conditioner.

• Don’t leave the remote exposed to sunrays.

Switch Position

°C

°F

COOL

HEAT

Functional Result

Temp. Units are Celsius

Temp. Units are Fahrenheit

Cooling Only Operation

Heating + Cooling Operation

Operating Instructions

CAUTION

Regarding the Airflow of the Indoor Unit

The air that is pulled in by the fan (the “return air”) enters the

grille and is passed through the filter. It is then

cooled/dehumidified/heated through the heat exchanger.

The direction of the air output is manipulated up and down by the

motorized louver, and left to right via manually controlled vertical

deflectors. Some models may come with “dual-swing” capability,

which offers both a horizontal and vertical motorized air flow swing.

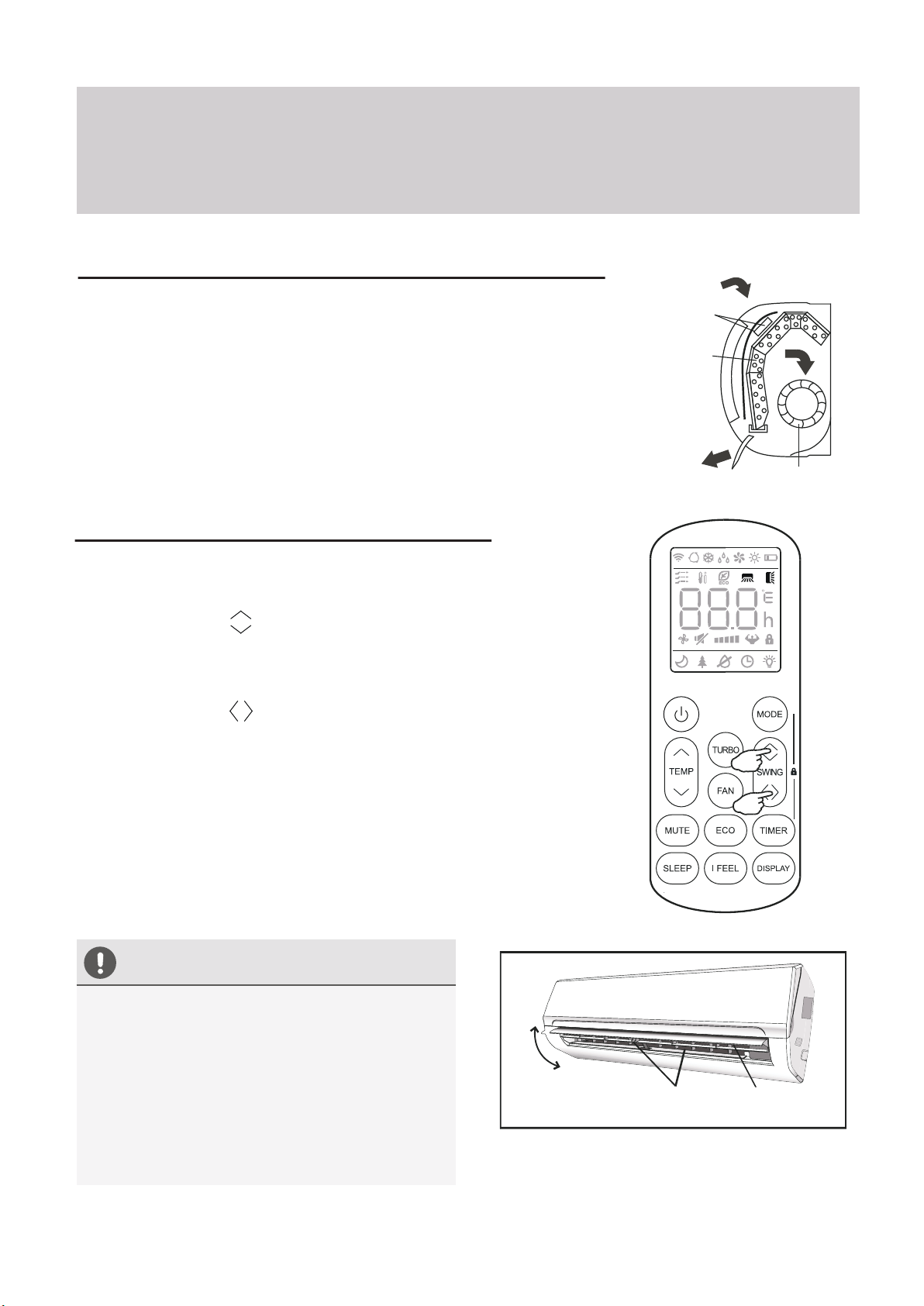

Controlling the System’s Airflow

1. Pressing the SWING buttons activates the louver.

• Press the Swing button to trigger the horizontal

flaps to swing up and down. Press this button again

to stop swing movement at the current angle.

• Press the Swing button to trigger the vertical

flaps to swing left and right. Press this button again

to stop swing movement at the current angle.

2. If the vertical deflectors (which are located

underneath the flaps) are adjusted manually,

they can be used to fix the airflow in a certain

vertical position before turning the system on.

Filter

Heat

Fan

•Do not manipulate the louvers themselves

manually, or serious damage may occur.

•Deflector adjustments should be made

only when the system is switched off.

•Never poke fingers, sticks, or other

objects into the air inlet/outlet vents.

Horizontal

Flaps

Flap

Movement Vertical

Deflectors

Note: Some models possess a self-clean mode which is activated

by pressing and holding these two buttons together.

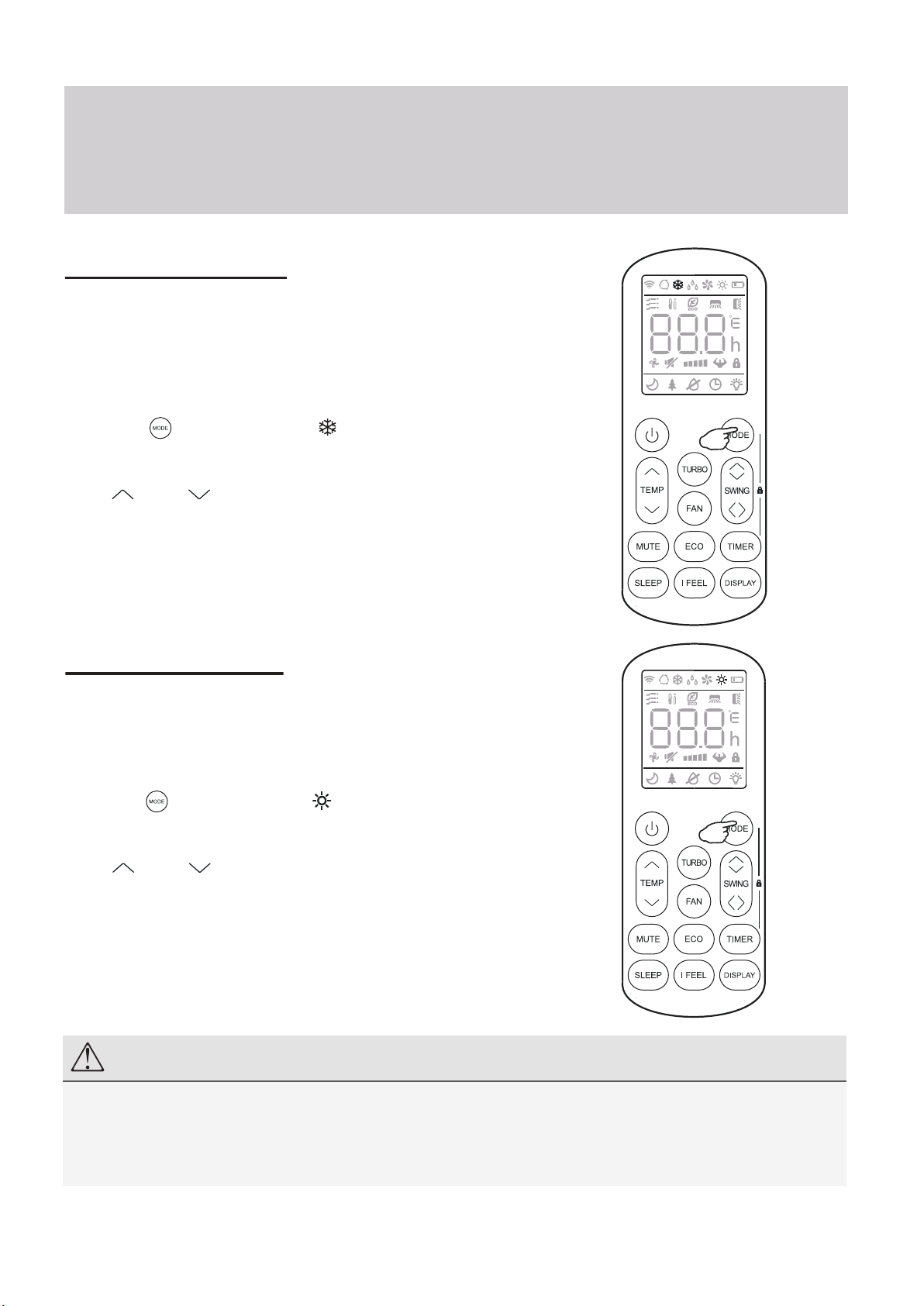

COOLING Mode

Cooling mode allows the air conditioner

to cool the room while also reducing

the humidity of the air in the room.

To put the system into cooling mode,

press the button until the symbol

appears on the remote’s display.

The and buttons can then be used to

set a temperature lower than that of the room.

Operating Instructions

HEATING Mode

Heating mode allows the air conditioner

to heat the room.

To put the system into heating mode,

press the button until the symbol

appears on the remote’s display.

The and buttons can then be used to

set a temperature higher than that of the room.

NOTE

In heating mode, the appliance will periodically enter a defrost cycle, which is essential in order to clean frosting

off the condenser and recover heat exchange capability. This process is normal and lasts for 2-10 minutes.

During defrosting, the indoor unit’s fan will cease operation. After the cycle is completed, the system will resume

its normal heat mode operation automatically. Press ECO 10 times within 8 seconds to trigger a forced defrost.

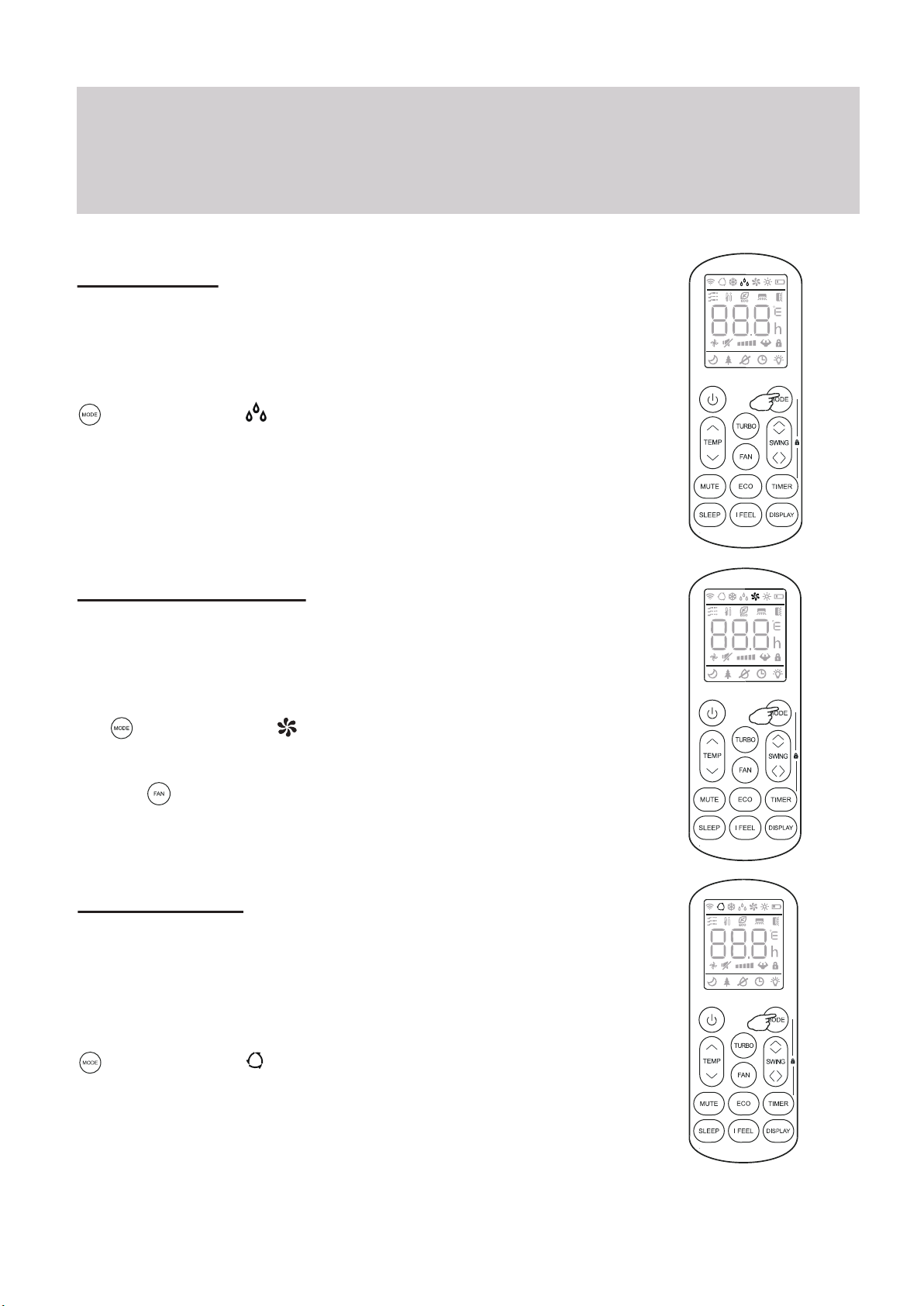

DRY Mode

Dry mode is a limited function that can rapidly

reduce the humidity/moisture of the room.

To put the system into dry mode, press the

button until the symbol appears on the

remote’s display.

An automatic preset of this mode is then

activated.

Operating Instructions

FAN-ONLY Mode

Fan-only mode is used to set the system to use

only air ventilation and no heating or cooling.

To put the system into fan-only mode, press

the button until the symbol

appears on the remote’s display.

Use the button to then set the desired fan

speed.

AUTO Mode

Auto mode will let the system determine the

running configuration based on the set

temperature and the current room temperature.

To put the system into AUTO mode, press the

button until the symbol appears on the

remote’s display.

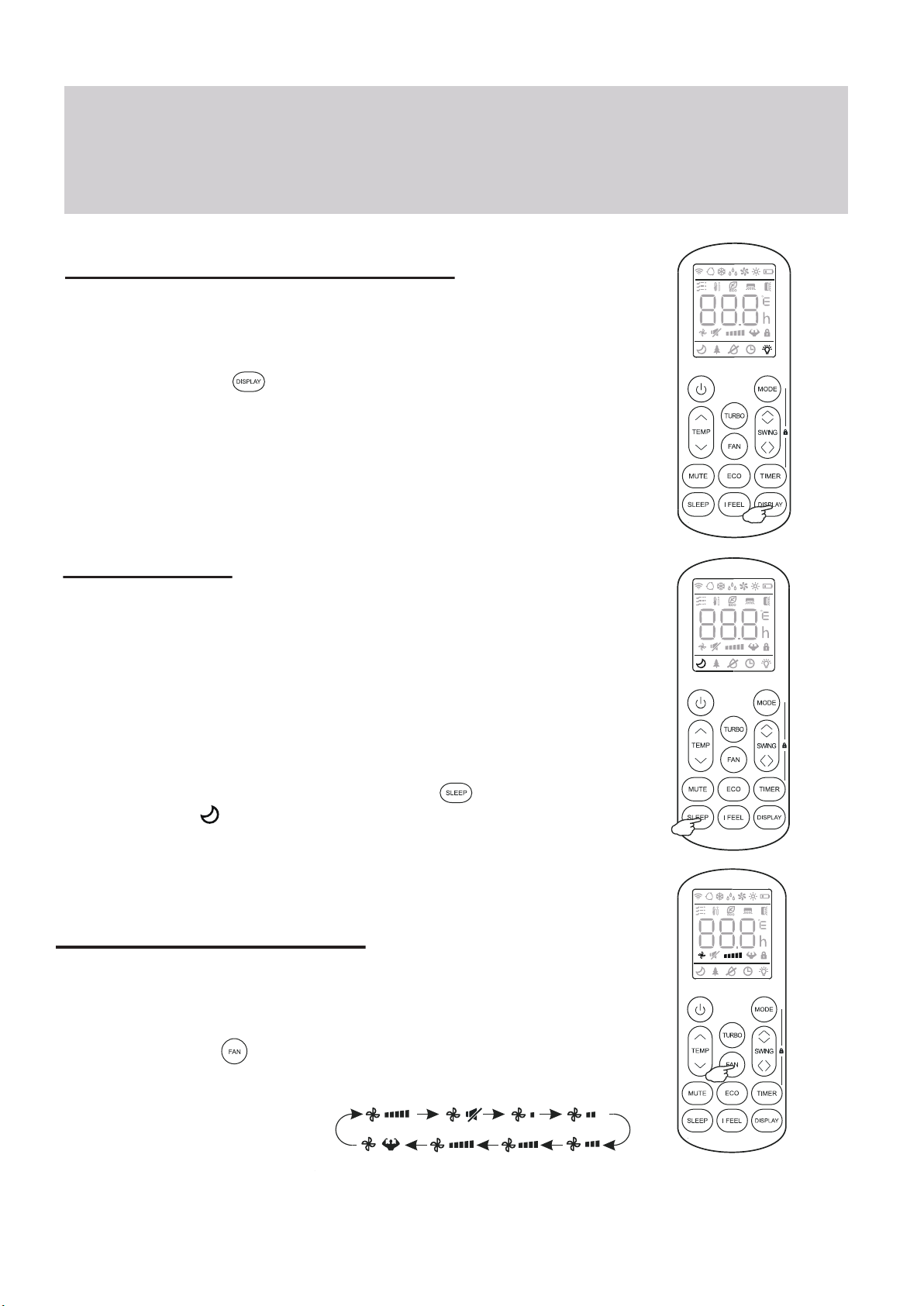

Turning the Display On or Off

The LED display on the front panel of the

system can be turned on or off as desired.

To do so, press the button in order to

switch off the LED display on the front panel.

This button can be pressed again to turn the

LED display back on.

Operating Instructions

SLEEP Mode

Sleep mode is generally meant for periods of lower

cooling requirements, such as during typical sleeping

hours. This mode will result in decreased energy use,

and can only be activated via remote control.

After 10 hours in sleep mode, the air conditioner will

revert back to the previously set mode.

To put the system into sleep mode, press the

button, and the symbol will appear on the display.

Press this button again to exit from this mode.

Changing the Fan Speed

The fan speed can be changed between AUTO, LOW, MID,

and HIGH speeds.

To do so, press the button. The running fan speed can

then be set. It follows the cycle of:

Auto>Mute>Low>Low-Mid>

Mid>Mid-High>High>Turbo

(Flash)

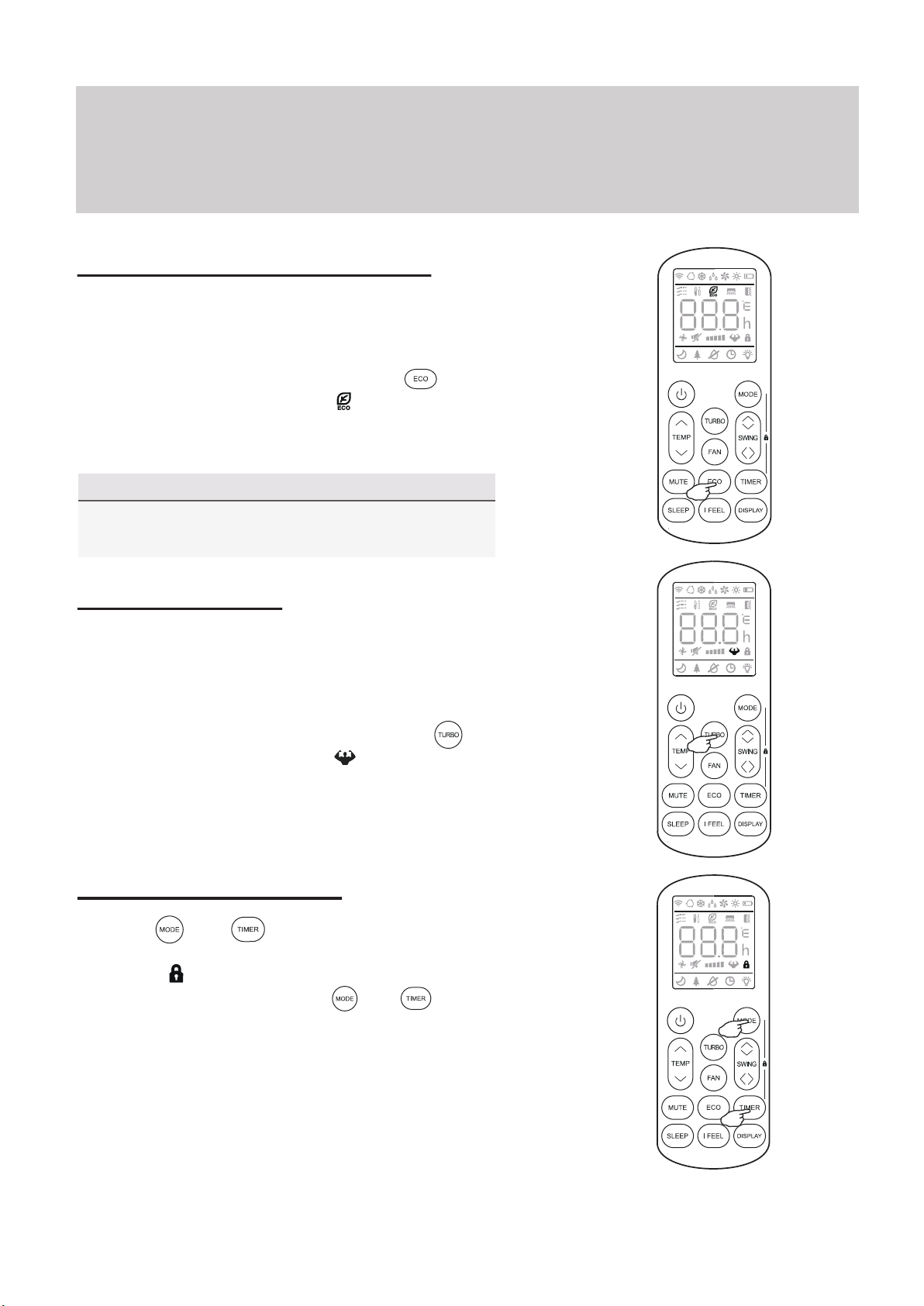

Energy Saver (ECO) Option

In this mode, the appliance will automatically

manage the operation in order to save energy.

To turn the ECO feature on, press the

button on the remote, and the icon will

appear. The system is now running in ECO,

and the process can be repeated to turn it off.

Operating Instructions

NOTE

The ECO feature is available in both COOLING

and HEATING modes.

TURBO Option

Child-Lock Function

In this mode, the appliance will operate using the

highest fan speed in order to maximize output

and reach the set temperature the quickest.

To turn the TURBO feature on, press the

button on the remote, and the icon will

appear. The system is now running in TURBO,

and the process can be repeated to turn it off.

Pressing and buttons together will acti-

vate the child-lock function. When this function is

active, the icon will be displayed, and no single

button will be active. Press the and buttons

together once more to de-activate the child-lock

function.

NOTE Regarding Timers

•Press the button to cancel

at any time in Timer Off.

•The programming will cancel

if no buttons are pressed after

5 seconds. This may require

restarting the process.

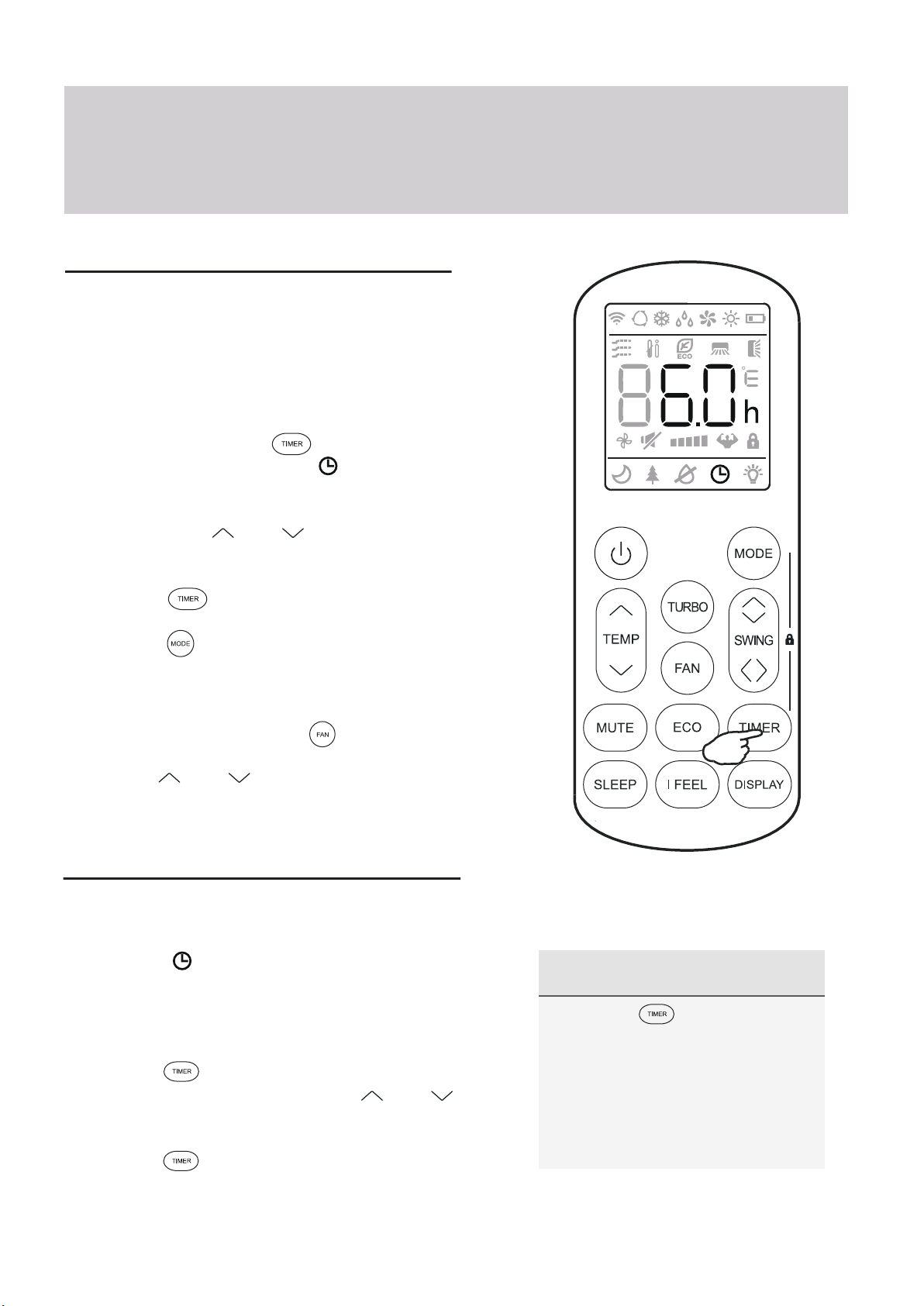

Using the Timer - TIMER ON

The TIMER feature allows you to set a time delay for

the system to turn itself on or off.

To set a time delay for the system to turn itself on in X

amount of hours:

1. Begin by pressing the button while the

system is powered off. The symbol will then

display flashing. The default setting is 6.0 hours.

2. Use the Temp and buttons to set the

needed time delay in 30 minute increments.

3. Press the button a second time to confirm.

4. Press the button to select the desired

operating mode that the unit should start up in.

5. Set the desired fan speed that the unit should

start up in by pressing the button.

6. Use the and buttons to set the desired

operation temperature. The unit is now primed.

Using the Timer - TIMER OFF

The TIMER OFF feature allows the appliance to

turn itself off after X amount of hours have passed.

The symbol will appear. To set a time delay for

the system to turn itself off in X amount of hours:

1. Confirm that the appliance is on and running.

2. Press the button to enter the prompt for

switching off the system. Use the and

buttons to configure the time delay setting.

3. Press the button again to confirm. It can

also be pressed once more to cancel the setting.

Operating Instructions

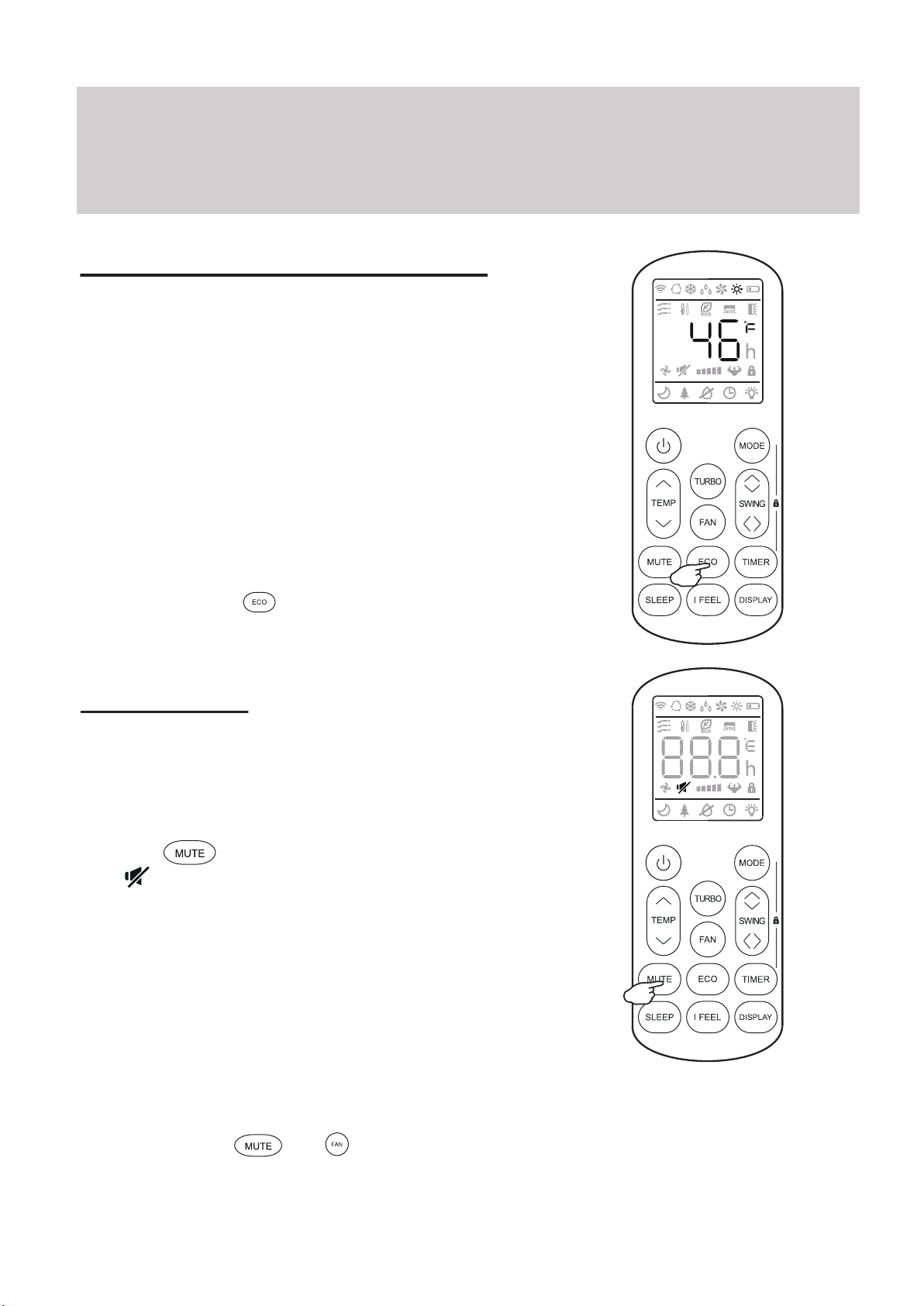

46°F Freeze Protection Function

This feature is meant to be used to prevent

freezing while the user is away from home. When

turned on, it sets the system to keep a temperature

of 46°F. If the unit is in standby, then the setting

will automatically start the heating mode when the

room temperature is equal to or lower than 46°F.

It will set the system back to standby when the

room temperature reaches 48°F.

If the room temperature is ever 64°F or higher,

then the appliance will cancel or prevent this

feature automatically.

Press and hold the button for 3 seconds to

activate this feature. Repeat this to de-activate.

MUTE Mode

When the system is muted, the remote controller will

display AUTO fan speed, and the indoor unit will

operate at its lowest fan speed in order to

minimize operation noise.

Press the button in order to activate this mode.

The icon will display to indicate that the system is

muted.

This mode can be cancelled by pressing either the

FAN, TURBO, or SLEEP buttons.

Note: The MUTE feature cannot be activated when the

system is in DRY mode.

Note: Some models come equipped with a “Gentle Wind”

function, where the unit will auto-close the vertical

louver, and provide a softer air breeze. Activate this

by pressing the and buttons together for 3

seconds.

This manual suits for next models

Table of contents

Other Pioneer Remote Control manuals

Pioneer

Pioneer RG57A6/BGEFU1 User manual

Pioneer

Pioneer CD-SR90 User manual

Pioneer

Pioneer CD-R5/E5 User manual

Pioneer

Pioneer CD-R5 User manual

Pioneer

Pioneer CD-R33 User manual

Pioneer

Pioneer KJR-12B/DP(T)-F-1 User manual

Pioneer

Pioneer WYD Series User manual

Pioneer

Pioneer BR-95 User manual

Pioneer

Pioneer CD-ME300 User manual

Pioneer

Pioneer BR-360 User manual

Pioneer

Pioneer CD-R320 User manual

Pioneer

Pioneer CD-R9 User manual

Pioneer

Pioneer RG52F3JBGEFU1 User manual

Pioneer

Pioneer BR-360 User manual

Pioneer

Pioneer CD-R10 User manual

Pioneer

Pioneer CD-SR11 User manual

Pioneer

Pioneer BR-95 A User manual

Pioneer

Pioneer CD-SR110 User manual

Pioneer

Pioneer EU-OSK105 Installation instructions

Pioneer

Pioneer CD-MR80D User manual

Pioneer

Pioneer passport DCT User manual

Pioneer

Pioneer BR-95D User manual

Pioneer

Pioneer CU-RF100-U User manual

Pioneer

Pioneer CD-R33 User manual

Popular Remote Control manuals by other brands

Panasonic

Panasonic EUR7622KB0 Operation guide

Bang & Olufsen

Bang & Olufsen Beo4 user manual

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 user manual

Multiplex

Multiplex PROFI TX 9 instructions

One Remote

One Remote RMB4 user manual

FUTABA

FUTABA 9ZAP - PART2 manual

HR Matic

HR Matic HR MULTI 3 quick start guide

Yamaha

Yamaha ACC-GNRST-30-20 installation instructions

EisSound

EisSound KBSOUND user manual

Marantz

Marantz RC101 user guide

Conrad

Conrad FS20 TC6 operating instructions

Anritsu

Anritsu MP1777A Operation manual

Niles

Niles WVC100 Installation & operating guide

RCA

RCA RCU1300 manual

Bang & Olufsen

Bang & Olufsen BEO6 Getting started

GE 94901 instruction manual

Onbon

Onbon YQ1-75 user manual

FUTABA

FUTABA R7108SB Full manual
