MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER

DEH-P4350 X1N/ES

Service

Manual

DEH-P3350 X1N/ES

DEH-P3350B X1N/ES

DEH-P4350/X1N/ES

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech. Description, Disassembly

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................3

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10

4. PCB CONNECTION DIAGRAM ................................28

5. ELECTRICAL PARTS LIST ........................................36

6. ADJUSTMENT..........................................................41

7. GENERAL INFORMATION .......................................45

7.1 DIAGNOSIS ........................................................45

7.1.1 TEST MODE..............................................45

7.1.2 DISASSEMBLY .........................................49

7.1.3 CONNECTOR FUNCTION DESCRIPTION ...53

7.2 PARTS .................................................................54

7.2.1 IC................................................................54

7.2.2 DISPLAY....................................................59

7.3 OPERATIONAL FLOW CHART...........................60

8. OPERATIONS AND SPECIFICATIONS.....................61

DEH-P4350,P3350,P3350B

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 49).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 43).

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

DEH-P4350,P3350,P3350B

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

DEH-P4350,P3350,P3350B

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

-Owner's Manual, Installation Manual

Model Part No. Language

DEH-P4350/X1N/ES CRD3302 English, Spanish, Portuguese(B)

DEH-P3350/X1N/ES CRD3303 Arabic

DEH-P3350B/X1N/ES CRD3312 English, Spanish, Portuguese(B), Arabic

DEH-P4350/X1N/ES CRB1630 Chinese

DEH-P3350/X1N/ES

-PACKING SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-P4350/X1N/ES DEH-P3350/X1N/ES DEH-P3350B/X1N/ES

1-1 Owner’s Manual CRD3302 CRD3302 CRD3302

1-2 Owner’s Manual CRD3303 CRD3303 CRD3303

* 1-3 Owner’s Manual CRB1630 CRB1630 Not used

1-4 Installation Manual CRD3312 CRD3312 CRD3312

1-5 Polyethylene Bag CEG1116 CEG1116 CEG1116

* 1-6 Caution Card CRP1241 CRP1241 CRP1241

2 Cord Assy CDE6436 CDE6436 CDE6436

3 Spring CBH1650 CBH1650 CBH1650

* 4 Screw Assy CEA2396 CEA2396 CEA2396

5 Screw CBA1002 CBA1002 CBA1002

* 6 Polyethylene Bag CEG-127 CEG-127 CEG-127

7 Screw CRZ50P090FMC CRZ50P090FMC CRZ50P090FMC

8 Screw TRZ50P080FMC TRZ50P080FMC TRZ50P080FMC

* 9 Polyethylene Bag CEG-158 CEG-158 CEG-158

10 Handle CNC5395 CNC5395 CNC5395

11 Bush CNV3930 CNV3930 CNV3930

12 Polyethylene Bag CEG-162 CEG-162 CEG-162

13 Carton CHG4262 CHG4268 CHG4269

14 Contain Box CHL4262 CHL4268 CHL4269

15 Protector CHP2251 CHP2251 CHP2251

16 Protector CHP2252 CHP2252 CHP2252

17 Case Assy CXB3520 CXB3520 CXB3520

18 Remote Control Unit CXB6797 Not used Not used

* 19 Battery CEX1065 Not used Not used

* 20 Accessory Assy CEA2395 CEA2395 CEA2395

DEH-P4350,P3350,P3350B

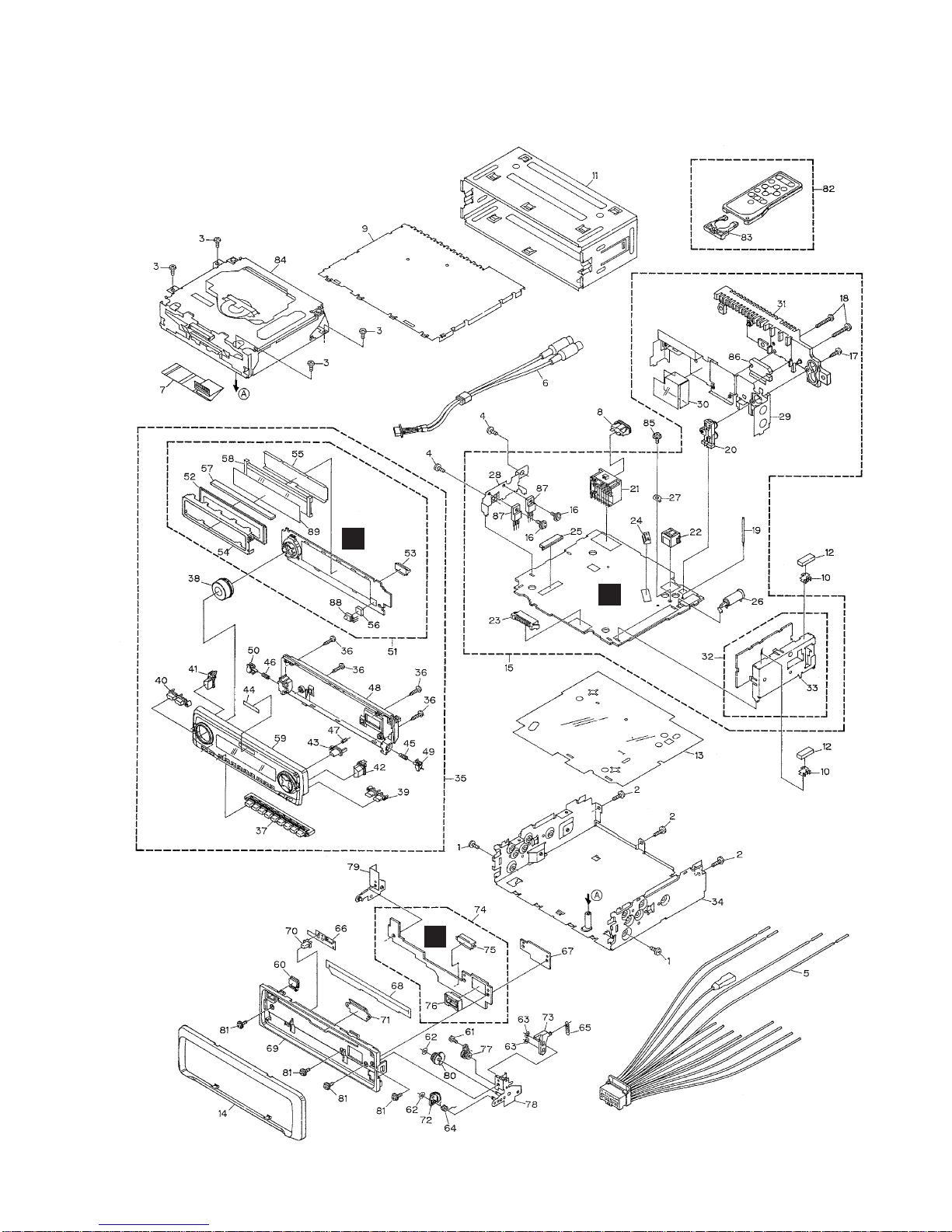

2.2 EXTERIOR

DEH-P4350,P3350,P3350B

1 Screw BMZ30P040FZK

2 Screw BMZ30P100FMC

3 Screw BSZ26P060FMC

4 Screw BSZ30P060FMC

5 Cord Assy CDE6436

6 Cord Assy See Contrast table(2)

7 Cable CDE6444

8 Fuse(10A) CEK1136

9 Case CNB2686

10 Holder CNC5704

11 Holder CNC8659

12 Cushion CNM4870

13 Insulator CNM6948

14 Panel CNS6332

15 Tuner Amp Unit See Contrast table(2)

16 Screw ASZ26P060FMC

17 Screw BPZ26P100FMC

18 Screw BSZ26P160FMC

19 Clamper See Contrast table(2)

20 Pin Jack(CN351) CKB1035

21 Plug(CN901) CKM1330

22 Connector(CN701) CKS3408

23 Plug(CN750) CKS3537

24 Connector(CN331) See Contrast table(2)

25 Connector(CN501) CKS4398

26 Antenna Jack(CN402) CKX1056

27 Holder(CN403) CNC5399

28 Holder CNC8615

29 Holder See Contrast table(2)

30 Insulator CNM6949

31 Heat Sink CNR1583

32 FM/AM Tuner Unit CWE1563

33 Holder CNC8815

34 Chassis Unit CXB6100

35 Detach Grille Assy See Contrast table(2)

36 Screw BPZ20P100FZK

37 Button(1-6) CAC6773

38 Knob(VOLUME) CAC6775

39 Button(FUNC/AUDIO) CAC6776

40 Button(SOURCE/DISP) CAC6777

41 Button(EQ) CAC6778

42 Button(SFEQ) CAC6779

43 Button(OPEN) CAC6780

* 44 Badge CAH1754

45 Spring CBH2430

46 Spring CBH2431

47 Spring CBH2491

48 Cover CNS6282

49 Holder CNV6505

50 Holder CNV6506

51 Keyboard Unit See Contrast table(2)

52 LCD See Contrast table(2)

53 Connector(CN1901) CKS4205

54 Holder CNC9053

55 Sheet CNM6969

56 Cushion See Contrast table(2)

57 Connector CNV6440

58 Lighting Conductor CNV6441

59 Sub Grille Assy See Contrast table(2)

60 Button(EJECT) CAC6839

61 Screw(M2x2) CBA1176

62 Washer CBF1038

63 Washer CBF1039

64 Spring CBH2428

65 Spring CBH2429

66 Spring CBL1512

67 Holder CNC9096

68 Cover CNM6854

69 Panel CNS6278

70 Pin CNV6486

71 Lighting Conductor CNV6487

72 Gear CNV6507

73 Arm CNV6508

74 Panel Unit CWM7375

75 Socket(CN1950) CKS3550

76 Connector(CN1951) CKS4206

77 Damper Unit CXB5070

78 Holder Unit CXB6356

79 Holder Unit CXB6357

80 Clutch Unit CXB6358

81 Screw IMS20P045FZK

82 Remote Control Unit See Contrast table(2)

83 Cover See Contrast table(2)

84 CD Mechanism Module(S8.1) CXK5201

85 Screw ISS26P055FUC

86 IC(IC361) PAL006A

87 Transistor(Q510,Q910) 2SD2396

88 IC(IC1902) See Contrast table(2)

89 Film See Contrast table(2)

(1) EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

DEH-P4350,P3350,P3350B

(2) CONTRAST TABLE

DEH-P4350/X1N/ES, DEH-P3350/X1N/ES and DEH-P3350B/X1N/ES are constructed the same except for

the following:

Part No.

Mark No. Symbol and Description DEH-P4350/X1N/ES DEH-P3350/X1N/ES DEH-P3350B/X1N/ES

6 Cord Assy CDE6494 Not used Not used

15 Tuner Amp Unit CWM7376 CWM7383 CWM7676

19 Clamper CEF1007 Not used Not used

24 Connector(CN331) CKS3598 Not used Not used

29 Holder CNC9470 CNC9472 CNC9472

35 Detach Grille Assy CXB6288 CXB6295 CXB7019

51 Keyboard Unit CWM7398 CWM7405 CWM7681

52 LCD CAW1626 CAW1628 CAW1679

56 Cushion CNM6984 Not used Not used

59 Sub Grille Assy CXB7155 CXB7163 CXB7162

82 Remote Control Unit CXB6797 Not used Not used

83 Cover CNS6439 Not used Not used

88 IC(IC1902) SBX8035-H Not used Not used

89 Film Not used Not used CNM6983
