Pioneer DEH-M6006ZH User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2001 K-ZZS. JAN. 2001 Printed in Japan

ORDER NO.

CRT2657

MULTI-CD CONTROL CD PLAYER WITH RDS TUNER

DEH-M6006ZH X1P/EW

Service

Manual

HONDA

VEHICLE DESTINATION PRODUCED AFTER HONDA PART No. ID No. PIONEER MODEL No.

CIVIC 5door EUROPE March 2001 39100-S6A-G500 DEH-M6006ZH/X1P/EW

ACCORD EUROPE February 2001 39100-S1A-E100 DEH-M6017ZH/EW

DEH-M6006ZH/X1P/EW

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

DEH-M6017ZH EW

CONTENTS

1. SAFETY INFORMATION............................................2

2. EXPLODED VIEWS AND PARTS LIST ......................3

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..10

4. PCB CONNECTION DIAGRAM................................30

5. ELECTRICAL PARTS LIST........................................40

6. ADJUSTMENT .........................................................49

7. GENERAL INFORMATION.......................................54

7.1 DIAGNOSIS .......................................................54

7.1.1 ERROR MESSAGES.................................54

7.1.2 DISASSEMBLY.........................................55

7.1.3 CONNECTOR FUNCTION DESCRIPTION ......60

7.2 PARTS ................................................................61

7.2.1 IC ...............................................................61

7.2.2 DISPLAY ...................................................67

7.3 OPERATIONAL FLOW CHART..........................68

8. OPERATIONS AND SPECIFICATIONS ....................71

DEH-M6006ZH,M6017ZH

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 55)

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 51).

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.

• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable

results.

Caution:

1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.

2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. A “CLASS 1 LASER PRODUCT” label is affixed to the

top of the player.

3. The triangular label is attached to the mechanism

unit frame.

CLASS 1

LASER PRODUCT

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.

Wavelength = 800 nanometers

DEH-M6006ZH,M6017ZH

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

-PACKING SECTION PARTS LIST

Part No.

Mark No. Description DEH-M6006ZH/X1P/EW DEH-M6017ZH/EW

1 Protector UHP2311 CHP2311

2 Protector UHP2312 CHP2312

3 Protector UHP2315 CHP2315

4 Polyethylene Bag UEG1042 CEG-162

5 Contain Box UHL-091 CHL4294

6 Protector UHP2313 CHP2313

7 Protector UHP2314 CHP2314

8-1 Polyethylene Bag UEG1229 CEG1229

8-2 ID Card CEE1018 CEE1018

DEH-M6006ZH,M6017ZH

2.2 EXTERIOR(DEH-M6006ZH)

DEH-M6006ZH,M6017ZH

1 Screw BSZ26P060FMC

2 Screw BSZ26P150FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P120FMC

5 Cable CDE6645

6 Button(L/M/U) CAC6568

7 Button(CD,AUX) CAC6569

8CD Mechanism Module(S8.1) CXK5201

9 IC(IC901) TDA7384

10 Transistor(Q801,805) 2SD2396

11 Button CAC6570

12 Button CAC6571

13 Screw ISS30P060FMC

14 Case CNB2560

15 Holder CNC5704

16 Cushion CNM7071

17 Cushion CNM4870

18 Insulator CNM6862

19 Heat Sink CNR1565

20 Tuner Amp Unit UWM7108

21 Screw BSZ26P060FMC

22 Terminal(CN501) CKF1059

23 Terminal(CN502) CKF1059

24 Connector(CN901) CKM1208

25 Plug(CN902) CKM1283

26 Connector(CN601) CKS1962

27 Plug(CN602) CKS3538

28 Antenna Jack(ANT501) CKX1060

29 Holder CNC7533

30 Holder CNC8746

31 Holder CNC8747

32 Insulator CNM5967

33 FM/AM Tuner Unit UWE1576

34 Holder CNC7532

35 Screw PRZ30P060FSN

36 Chassis Unit CXB5428

37 Button CAC6573

38 Button(TA) CAC6574

39 Button(PTY,NEWS) CAC6575

40 Cushion CNM6939

41 Lighting Conductor CNV6159

42 Conductor CNC9043

43 Lighting Conductor CNV6160

44 Rubber CNV6173

45 Lighting Conductor CNV6294

46 Holder CNV6295

47 Knob Assy CXB5429

48 Grille Unit CXB5431

49 Lighting Conductor CNV6161

50 Screw BPZ20P080FMC

51 Screw ISS26P055FUC

52 Connector CNV6163

53 Connector CNV6293

54 Keyboard Unit UWM7109

55 Plate CAH1723

56 LCD(LCD951) CAW1588

57 Socket(CN951) CKS3551

58 Holder CNC8745

59 Plate CNM7308

60 Holder CNV6162

61 Spacer CNM7313

62 Button(SEEK/SKIP) CAC6572

63 Button(EJECT) CAC6567

Mark No. Description Part No. Mark No. Description Part No.

-EXTERIOR SECTION PARTS LIST

DEH-M6006ZH,M6017ZH

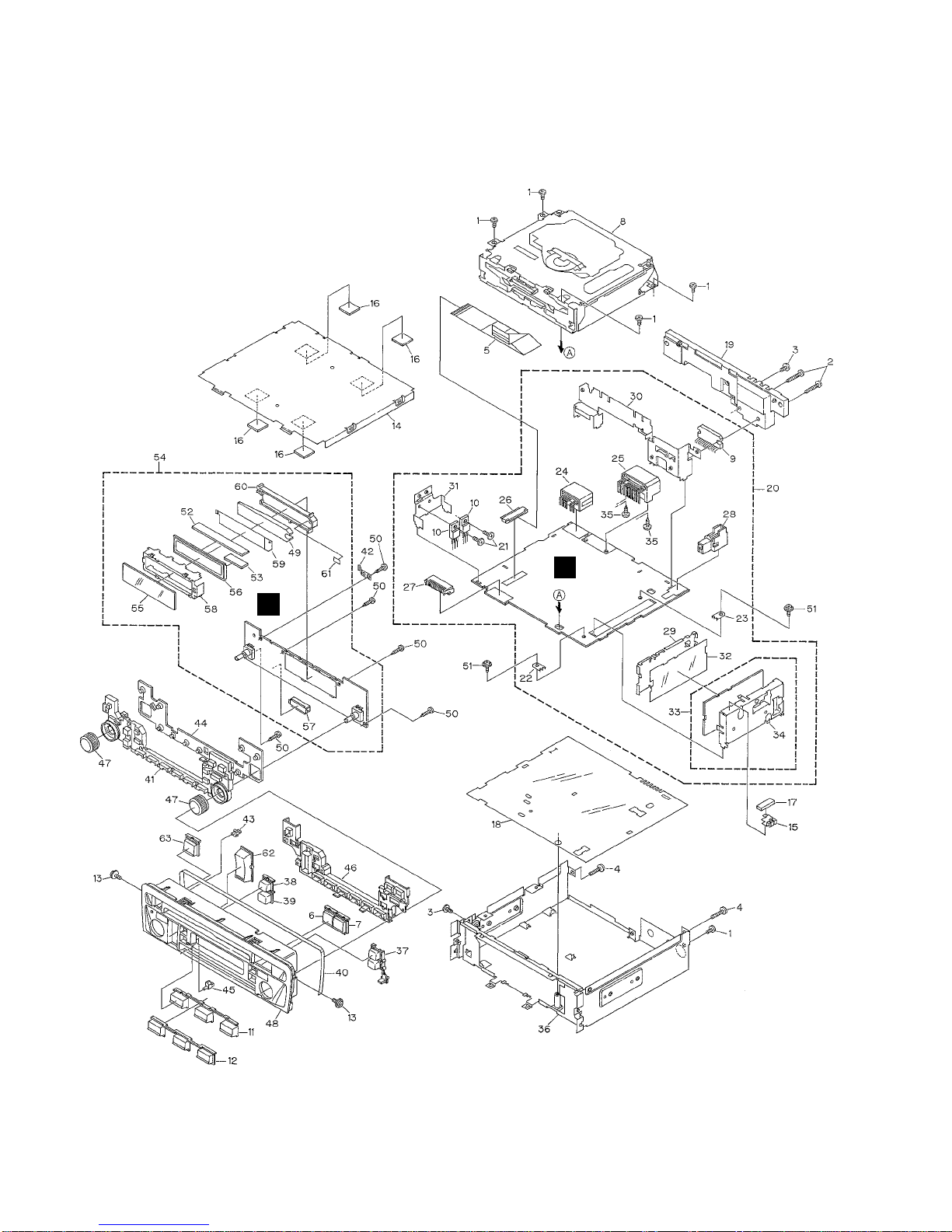

2.3 EXTERIOR(DEH-M6017ZH)

DEH-M6006ZH,M6017ZH

1 Screw BSZ26P060FMC

2 Screw BSZ26P150FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P120FMC

5 Cable CDE6645

6 Screw BPZ20P080FMC

7 Spacer CNM7313

8CD Mechanism Module(S8.1) CXK5201

9 IC(IC901) TDA7384

10 Transistor(Q801,805) 2SD2396

11 Lighting Conductor CNV6161

12 Cushion CNY-197

13 Holder CNV6162

14 Case CNB2560

15 Holder CNC5704

16 Cushion CNM7071

17 Cushion CNM4870

18 Insulator CNM6862

19 Heat Sink CNR1565

20 Tuner Amp Unit CWM7372

21 Screw BSZ26P060FMC

22 Terminal(CN501) CKF1059

23 Terminal(CN502) CKF1059

24 Connector(CN901) CKM1208

25 Plug(CN902) CKM1283

26 Connector(CN601) CKS1962

27 Plug(CN602) CKS3538

28 Antenna Jack(ANT501) CKX1060

29 Holder CNC7533

30 Holder CNC8746

31 Holder CNC8747

32 Insulator CNM5967

33 FM/AM Tuner Unit CWE1576

34 Holder CNC7532

35 Screw PRZ30P060FSN

36 Chassis Unit CXB6229

37 Connector CNV6163

38 Connector CNV6293

39 Screw ISS26P060FMC

40 Knob Assy CXB6649

41 Grille Unit CXB7646

42 LCD(LCD951) CAW1588

43 Keyboard Unit CWM7351

44 Conductor CNC9043

45 Socket(CN951) CKS3551

46 Button(CD,AUX) CAC6827

47 Button(L/M/U) CAC6829

48 Button CAC6830

49 Button(SEEK,SKIP) CAC6831

50 Button(EJECT) CAC6838

51 Screw ISS26P055FUC

52 Button(TA,PTY/NEWS) CAC6888

53 Button(REW) CAC6916

54 Button(PLAY/PROG) CAC6917

55 Button(FF) CAC6918

56 Button(NR) CAC6919

57 Button(DISC-) CAC6920

58 Button(DISC+) CAC6921

59 Lighting Conductor CNV6299

60 Holder CNV6482

61 Lighting Conductor CNV6481

62 Cushion CNM7388

63 Holder CNC9251

64 Plate CNM6684

Mark No. Description Part No. Mark No. Description Part No.

-EXTERIOR SECTION PARTS LIST

DEH-M6006ZH,M6017ZH

2.4 CD MECHANISM MODULE

DEH-M6006ZH,M6017ZH

1 Control Unit CWX2411

2 Connector(CN802) CKS2192

3 Connector(CN801) CKS2193

4 Connector(CN701) CKS2773

5 Connector(CN101) CKS3486

6 Screw BMZ20P030FMC

7 Screw BSZ20P040FMC

8 Screw(M2x3) CBA1077

9 Screw(M2x5) EBA1028

10 Screw CBA1243

11 Screw(M2x4) CBA1362

12 Washer CBF1037

13 Washer CBF1038

14 Washer CBF1060

15 •••••

16 Spring CBH2079

17 Spring CBH2117

18 Spring CBH2314

19 Spring CBH2110

20 Spring CBH2282

21 Spring CBH2318

22 •••••

23 Spring CBH2324

24 Spring CBH2118

25 Spring CBH2161

26 Spring CBH2163

27 Spring CBH2189

28 Spring CBH2377

29 Spring CBH2260

30 Spring CBH2262

31 Bracket CNC8568

32 Spring CBL1369

33 Connector CDE5531

34 Connector CDE5532

35 Shaft CLA3894

36 Screw(M2.6x6) CBA1458

37 Frame CNC8565

38 Frame CNC8749

39 Lever CNC9265

40 Arm CNC8663

41 Bracket CNC8567

42 •••••

43 Spacer CNM3315

44 Sheet CNM6659

45 •••••

46 •••••

47 Ball CNR1189

48 Belt CNT1086

49 Roller CNV4509

50 Arm CNV6037

51 Arm CNV5247

52 Arm CNV5248

53 Arm CNV5249

54 Guide CNV5254

55 Guide CNV5255

56 Gear CNV5257

57 Gear CNV5256

58 Guide CNV6272

59 Damper CNV6010

60 Arm CNV6096

61 Arm CNV6031

62 Arm CNV6211

63 Guide CNV6012

64 Guide CNV5510

65 •••••

66 Guide CNV5751

67 Clamper CNV6013

68 Gear CNV5813

69 Motor Unit(M1) CXB2190

70 Screw Unit CXB5892

71 Chassis Unit CXB4797

72 Gear Unit CXB4728

73 Arm Unit CXB5753

74 Motor Unit(M2) CXB2195

75 Lever Unit CXB4730

76 Arm Unit CXB4731

77 Motor Unit(M3) CXB2562

78 Arm Unit CXB4732

79 Bracket Unit CXB4795

80 Screw JFZ20P025FMC

81 Screw JGZ17P025FZK

82 Washer YE20FUC

83 Pickup Unit(Service)(P8) CXX1285

84 Screw IMS26P030FMC

* 85 PCB CNX2982

86 Photo-transistor(Q1, 2) CPT230SX-TU

87 Damper CNV6011

88 Rack CNV6014

89 Spring CBH2315

Mark No. Description Part No. Mark No. Description Part No.

-CD MECHANISM MODULE SECTION PARTS LIST

DEH-M6006ZH,M6017ZH

1234

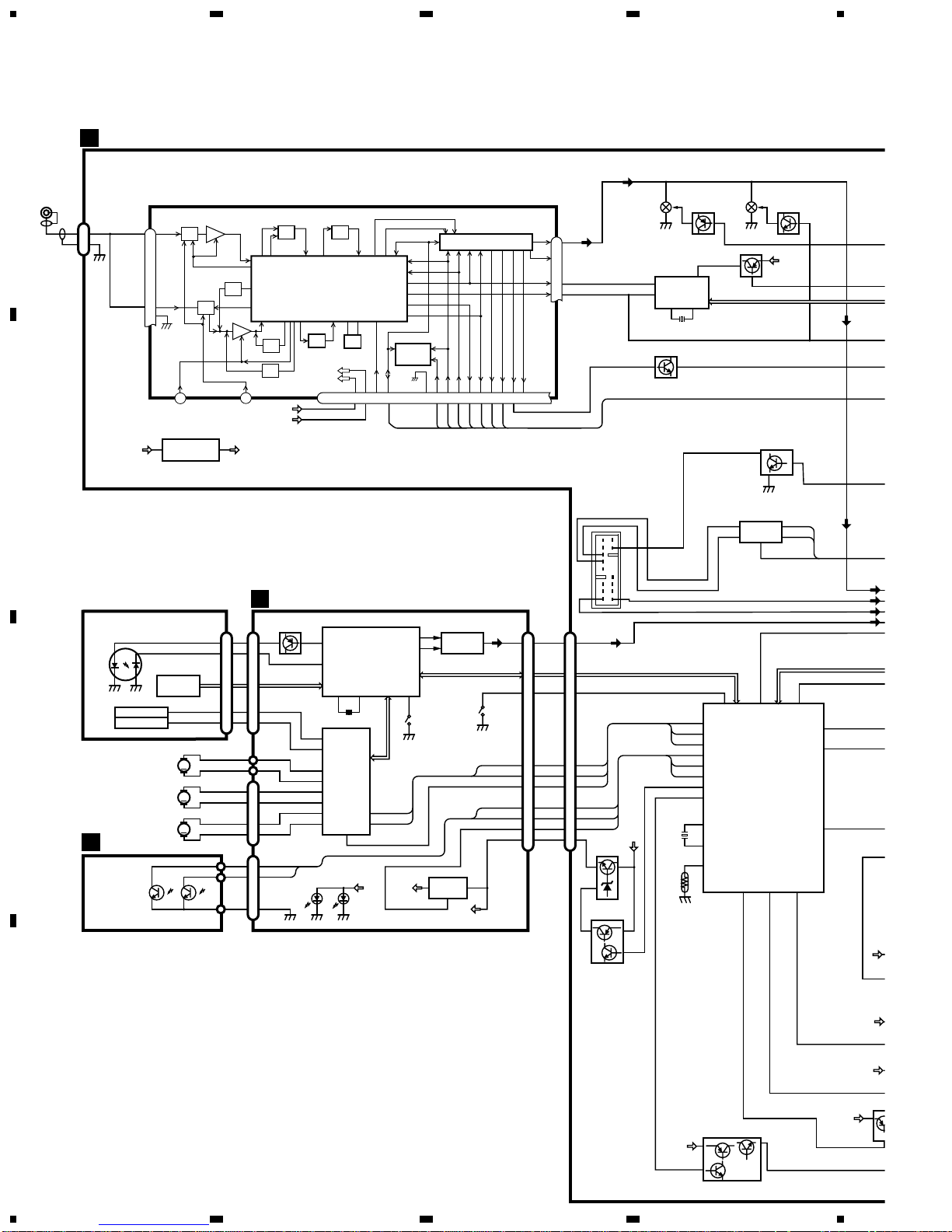

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

3.1 BLOCK DIAGRAM

Q511 Q505

Q503

Q501

Q504

Q509

IC 401

PM4009A

IC 603

CA0008AM

X401

RDS

DECODER

IP-BUS DRIVER

1211

MUTE

XOUT

XIN

BL+B

CDLOAD

clamp PEE1

87 24

CDEJET

CONT

EJTSNS

DSCSNS

CD5VON

VDCONT

BLPOW

SYSTEM µ-COM

IC 601(2/2)

PD5667A

ANT501

VDDB U

VDD

VCC

ANT

FO +

TO +

FO +

TO +

X201 S801

HOME

S802

CLAMP

CDLOAD

CDEJET

CONT

EJTSNS

DSCSNS

CD5VON

V+5

ED/TD/SD/MD

98 21

PSW

L +

L —

FDP

TDP

SOP

MUTE

SOM

COP

COM

LOP

LOM

6 LOUT

24 39

D802

DISC SENSE

EJECT

SENSE

MOTOR

CARRIAGE

MOTOR

SPINDLE

MOTOR

D801

28 DSCSNS

CD5VON

1 CDLOAD

LD +

HOLOGRAM

UNIT

FOCUS ACT

TRACKING ACT

IC 501

S-81250PGPD

POWER ON MUTE

IC 601

TA2063F

IC 201

UPD63710GC

IC 301

BA5985FM

CD DRIVER

RF-AMP,SERVO,DSP,DAC LPF

CN701

CN802

CN801

CN101

5V REGULATOR

IC 701

BA05SFP

PICKUP UNIT(SERVICE)(P8)

BUS—

BUS+

BUS+L

BUS—L

5IPDO

IPDI

IPPW

swvdd

VDD

CN601

Q853

Q854

Q806

Q805

ATUNER AMP UNIT

CCONTROL UNIT

DPHOTO UNIT

TEMP

X602

TH601

(S8)

VDD

SWDACC

TUN L

BUS+L

BUS—L

CD L

Q101

Q807

Q851

PEE2

VDD

antled

Q60

VDD

discind

syspw

ANTPW 65

Q604

CN901

IC 3

EEPROM

FM/AM TUNER UNIT

FM/AM 1ST IF 10.7MHz

T51 Q51 CF51 CF52 CF53

IC1

MIXER, IF AMP, DET.

LDET

COMP

25 10 14 12 15 16 8 13 2 3 4

CF202

VDD

VCC

DI/DO

CE2

CE1

SDBW

FMSD

NL1

NL2

IC 2 FM MPX

AMANT

FMANT

ATT

AMRF

FMRF

RF ADJ

ANT2 ADJ

X901

10.25MHz

ANT1 ADJ

LOCL

LOCH

AMDET

MPXREF 41kHz

AM 2ND IF

450kHz

CREQ

DGND

STIND

L ch

R ch

924

FMLOCL

20177

26 RFGND

This manual suits for next models

Table of contents

Other Pioneer CD Player manuals

Pioneer

Pioneer DRM-700 User manual

Pioneer

Pioneer CLD-S315 User manual

Pioneer

Pioneer DEH-X8750BT User manual

Pioneer

Pioneer LaserDisc CLD-D504 User manual

Pioneer

Pioneer CDX-P2050VS User manual

Pioneer

Pioneer Super Tuner IIID DEH-P5800MP User manual

Pioneer

Pioneer PD-M435 User manual

Pioneer

Pioneer CLD-210KVT User manual

Pioneer

Pioneer PD-F1009 - CD Changer User manual

Pioneer

Pioneer CMX-5000 User manual

Pioneer

Pioneer PD-7300 User manual

Pioneer

Pioneer CDJ-1000 User manual

Pioneer

Pioneer PD-50AE User manual

Pioneer

Pioneer DEH-P713 User manual

Pioneer

Pioneer LaserDisc CLD-D604 User manual

Pioneer

Pioneer CLD-A1CC User manual

Pioneer

Pioneer DEH-P4850MP User manual

Pioneer

Pioneer PD-S703 User manual

Pioneer

Pioneer DRM-1004 User manual

Pioneer

Pioneer DEH-P6600 User manual

Pioneer

Pioneer PD-70AE User manual

Pioneer

Pioneer CLD-M450 User manual

Pioneer

Pioneer CMX-5000 User manual

Pioneer

Pioneer PD-M502 User manual

Popular CD Player manuals by other brands

RCA

RCA RP-7923 instruction manual

Philips

Philips AZ1207 owner's manual

Philips

Philips CD582 user manual

Philips

Philips AZ 6821 operating manual

Lasonic

Lasonic MSU-2020 user manual

THOMSON

THOMSON RCD150 user manual

Denon

Denon DCD-1420 Service manual

Panasonic

Panasonic SJ-MR100 operating instructions

Onkyo

Onkyo DX-7210 instruction manual

Sony

Sony MZ-R3 operating instructions

Denon

Denon DVM-4800 Service manual

JBL

JBL MR-32 Operation manual

RCA

RCA RCD152 Specifications

Technics

Technics SL-PS770A Service manual

Clarion

Clarion compact disc owner's manual

Sony

Sony MZ-M10 operating instructions

Philips

Philips Expanium AZ 1538 user manual

Rotel

Rotel RCD 975 owner's manual
