Pioneer CDX-MG6036ZH User manual

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER ELECTRONIC CORPORATION 1999 K-ZZB. JUNE 1999 Printed in Japan

ORDER NO.

CRT2351

6 DISC IN-DASH CD CHANGER

CDX-MG6036ZH US

Service

Manual

HONDA

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................3

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10

4. PCB CONNECTION DIAGRAM ................................26

5. ELECTRICAL PARTS LIST ........................................42

6. ADJUSTMENT..........................................................46

7. GENERAL INFORMATION .......................................48

7.1 DIAGNOSIS ........................................................48

7.1.1 TEST MODE..............................................48

7.1.2 DISASSEMBLY .........................................53

7.1.3 CONNECTOR FUNCTION DESCRIPTION.......57

7.2 IC ........................................................................58

8. OPERATIONS AND SPECIFICATIONS.....................63

VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No.

Not specified U.S.A. June 1999 08A06-3B1-3000 CDX-MG6036ZH/US

-This service manual should be used together with the following manual(s):

Model Order No. Mech. Module Remarks

CX-890 CRT2376 G1 CD Mechanism Module:Circuit Description, Mechanism Description, Disassembly

-To operate this product, a 14-pin H-BUS head unit is required.

When performing adjustments, connect the 8-pin/14-pin conversion jig (GGD1163) to a Pioneer 8-pin H-

BUS head unit. You can use it in place of a 14-pin H-BUS head unit.

CDX-MG6036ZH

-CD Player Service Precautions

1. For pickup unit(CXX1311) handling, please refer

to"Disassembly"(see page 53).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 46).

-When the Repair is Complete

When the repair is complete, make the CD mechanism

ready for transportation implementing the following

procedures:

1. Press the changer side 1 and 4 simultaneously to turn

the ACC on.

2. As the ACC is turned on, the disc indicator blinks in

red.

3. When the blinking is stopped, the mechanism is

ready for the transportation.

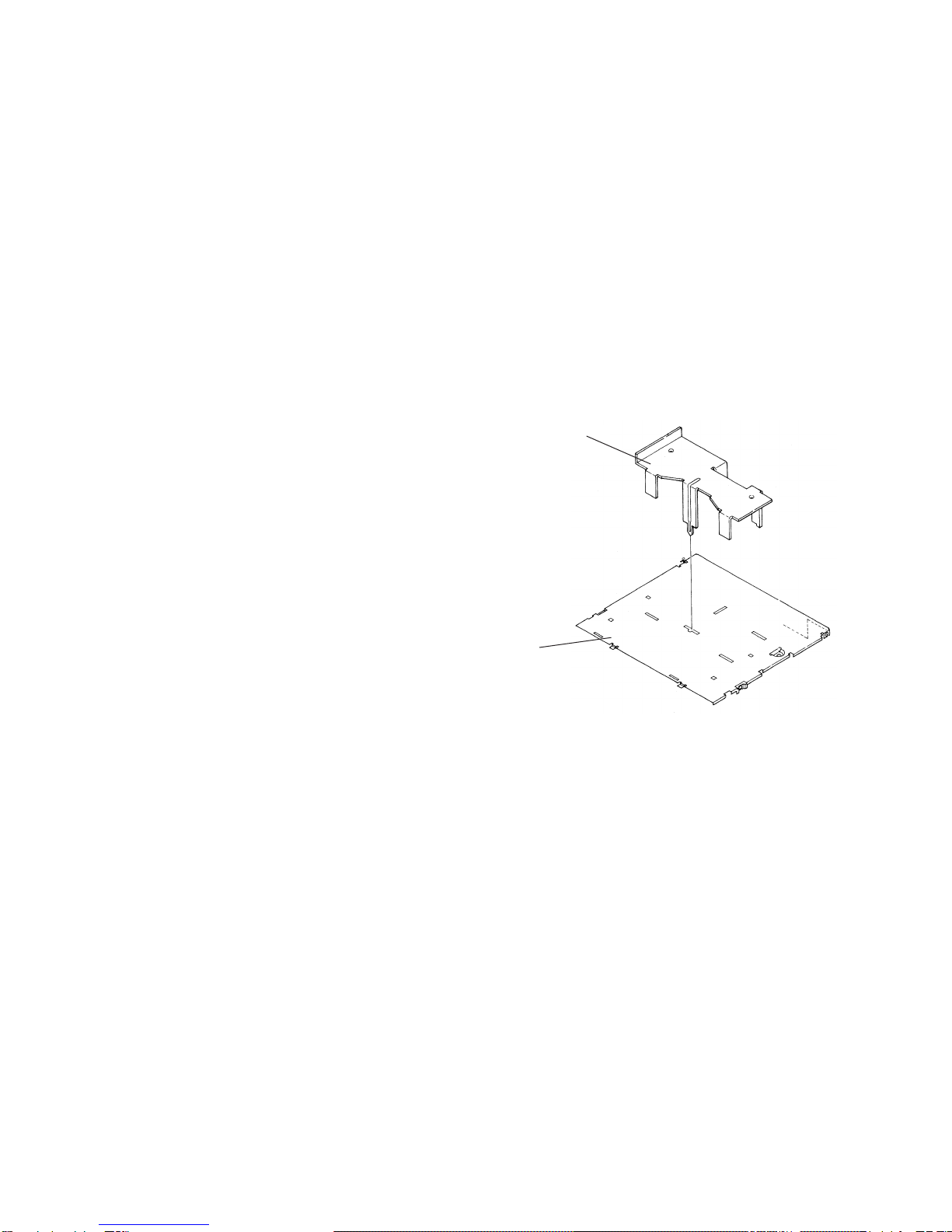

4. Attach the Transportation Bracket (CNC7878). Now

you can transport it.(See the figure below)

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

1. SAFETY INFORMATION

Transportation Basket

(CNC7878)

Case

(CNB2354)

CDX-MG6036ZH

1 Screw Assy CEA2565

* 2 Polyethylene Bag CEG-127

3 Screw HMF40P060FZK

4 Screw HMF50P080FMC

5 Owner’s Manual(English) CRB1553

6 Spacer CNM6551

* 7 Sheet CHW1402

8 Protector CHP2123

* 9 Polyethylene Bag E36-609

10 Protector CHP2124

11 Carton CHG3764

12 Contain Box CHL3764

13 Clamper CNV4042

* 14 Band CNF-512

15 Polyethylene Bag CEG1116

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

CDX-MG6036ZH

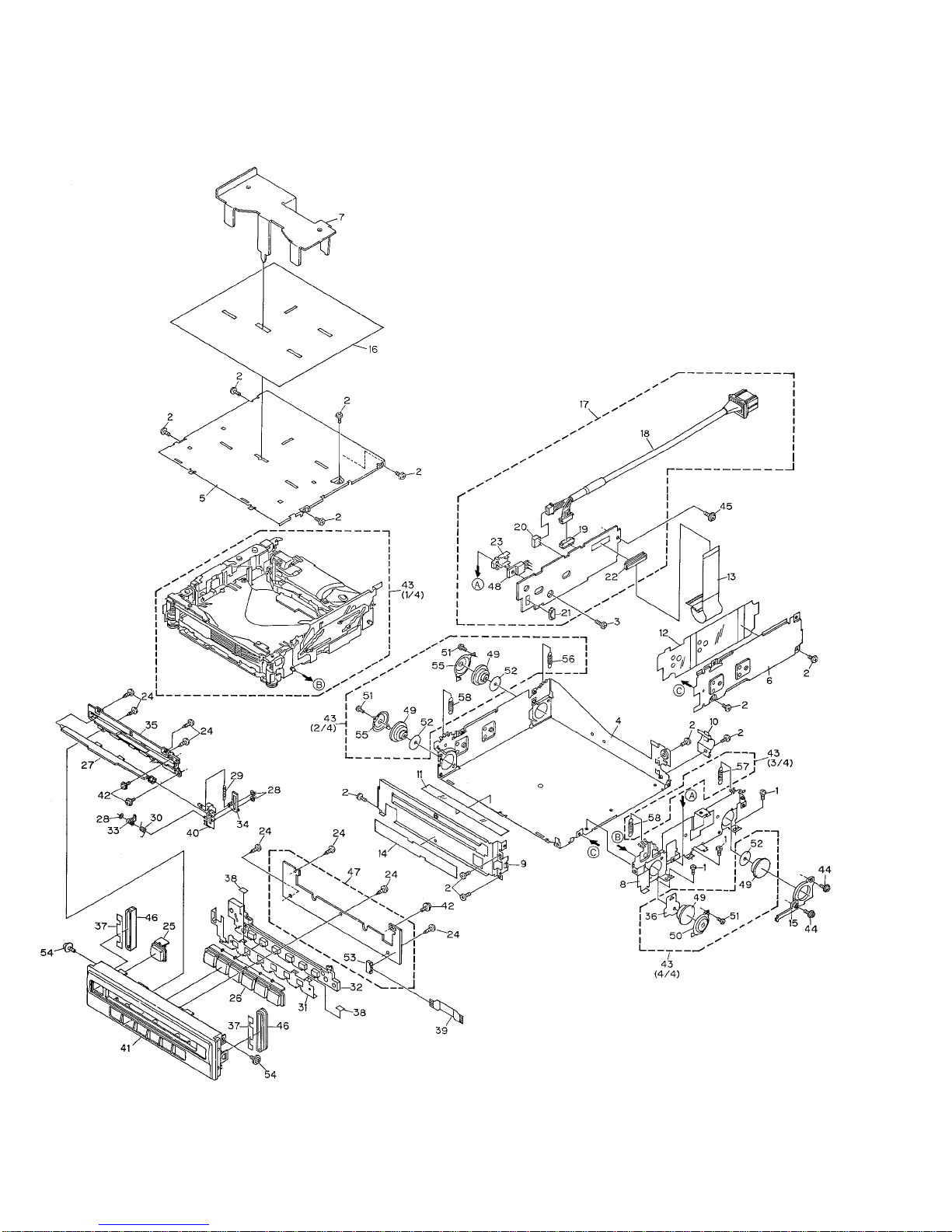

2.2 EXTERIOR

CDX-MG6036ZH

1 Screw BMZ20P020FMC

2 Screw BMZ26P030FMC

3 Screw BMZ26P060FMC

4 Chassis Unit CXB3407

5 Case CNB2354

6 Side Frame CNB2397

7 Bracket CNC7878

8 Bracket CNC8026

9 Front Frame CNC8110

10 Holder CNC8111

11 Insulator CNM5969

12 Insulator CNM6112

13 PCB CNP5516

14 Insulator CNM6409

15 Holder CNV5543

* 16 Caution Label CRP1200

17 Extension Unit CWM6288

18 Cord CDE6055

19 Connector(CN102) CKS2200

20 Connector(CN103) CKS3597

21 Connector(CN701) CKS3785

22 Connector(CN101) CKS3989

23 Holder CNC8031

24 Screw BPZ20P060FMC

25 Button CAC5864

26 Button CAC5865

27 Door CAT2003

28 Washer CBF1038

29 Spring CBH2201

30 Spring CBH2200

31 Conductor CNC8051

32 Lighting Conductor CNV5901

33 Gear CNV5547

34 Arm CNV5548

35 Guide CNV5880

36 Sheet CNM6318

37 Double Faced Tape CNM6424

38 Insulator CNM6512

39 PCB CNP5373

40 Bracket Unit CXB3111

41 Grille Unit CXB3409

42 Screw IMS20P040FMC

43 CD Mechanism Module(G1) CXK4702

44 Screw IMS20P040FMC

45 Screw IMS26P040FMC

46 Cushion CNV5674

47 Keyboard Unit CWM6289

48 Transistor(Q708) 2SB1335A

49 Damper CNV5120

50 Holder CNC7826

51 Screw CBA1250

52 Sheet CNM5981

53 Connector(CN901) CKS3785

54 Screw IMS26P030FZK

55 Holder CNC7477

56 Spring(Left Rear) CBH2065

57 Spring(Right Rear)(Black) CBH2067

58 Spring(Front) CBH2066

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

CDX-MG6036ZH

2.3 CD MECHANISM

CDX-MG6036ZH

1-9 •••••

10 CD Core Unit(Servo Unit) CWX2202

11 Connector(CN101) CKS2764

12 Connector(CN301) CKS3966

13 Connector(CN201) CKS3991

14 CD Core Unit(STS Unit) CWX2203

15 Connector(CN701) CKS3989

16 Connector(CN801) CKS3989

17 Connector(CN802) CKS4054

18 Screw CBA1037

19 Screw CBA1041

20 Screw CBA1076

21 Screw CBA1250

22 Screw CBA1405

23 Screw CBA1452

24 Screw CBA1453

25 Screw CBA1479

26 Washer CBF1037

27 Washer CBF1038

28 Washer CBF1039

29 Washer CBF1064

30 Spring CBH2007

31 Spring CBH2271

32 Spring CBH2274

33 Spring CBH2014

34 Spring CBH2015

35 Spring CBH2016

36 Spring CBH2017

37 Spring CBH2290

38 Spring CBH2019

39 Spring CBH2064

40 Spring CBH2195

41 Spring CBH2196

42 Spring CBH2224

43 Spring CBH2250

44 •••••

45 Roller CLA3154

46 Roller CLA3157

47 Roller CLA3159

48 Roller CLA3160

49 Shaft CLA3179

50 Spacer CLA3194

51 Roller CLA3248

52 Bush CLA3353

* 53 Shaft CLA3469

54 Shaft CLA3693

55 Steer CNC7215

56 Steer CNC7216

57 Cam CNC7227

* 58 Holder CNC7235

59 Gear CNC7236

60 Gear CNC7238

61 Lever CNC7243

62 Lever CNC7244

63 Lever CNC7245

64 Lever CNC7246

65 Cover CNC7441

66 Holder CNC8613

67 Lever CNC8024

68 Gear CNC8140

69 Sheet CNM5831

70 PCB CNP5680

71 PCB CNP5681

72 Gear CNR1479

73 Gear CNR1481

74 Gear CNR1495

75 Gear CNR1501

76 Gear CNR1502

77 Gear CNR1540

78 Gear CNR1541

79 Belt CNT1080

80 Worm Gear CNV5046

81 Gear CNV5047

82 Gear CNV5048

83 Gear CNV5049

84 Holder CNV5056

85 Pulley CNV5058

86 Arm CNV5061

87 Spacer CNV5066

88 Arm CNV5189

89 Cover CNV5207

90 Cover CNV5424

91 Cover CNV5425

92 Lever CNV5427

93 Arm CNV5491

94 Gear CNV5519

95 Holder CNV5648

96 Composite PCB CNX3141

97 Composite PCB CNX2989

98 Chassis Unit CXB4314

-CD MECHANISM SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

CDX-MG6036ZH

99 Frame Unit CXB2702

100 Lever Unit CXB2703

101 Arm Unit CXB2704

102 Lever Unit CXB2708

103 Lever Unit CXB2709

104 Lever Unit CXB2711

105 Arm Unit CXB2712

106 Lever Unit CXB2713

107 Lever Unit CXB2714

108 Carriage Mechanism Unit(G1) CXB2998

109 Screw CBA1041

110 Screw CBA1250

111 Screw CBA1362

112 Screw CBA1471

113 Washer CBF1038

114 Spring CBH2008

115 Spring CBH2009

116 Spring CBH2010

117 Spring CBL1335

118 Roller CLA3707

* 119 Bracket CNC7228

120 Guide Unit CXB4417

121 Cover CNC7628

122 Sheet CNM6414

123 Sheet CNM5378

124 Sheet CNM5695

125 Sheet CNM5827

126 PCB CNP4978

127 Ball CNR1189

128 Bearing CNR1423

129 Belt CNT1079

130 Holder CNV5037

131 Guide CNV5040

132 Clamper CNV5042

133 Rack CNV5111

134 Arm CNV5579

135 Holder CNV5759

* 136 Chassis CXB2698

137 Arm Unit CXB2705

138 Motor Unit(M4 CARRIAGE) CXB3178

139 Screw Unit CXB3179

140 Lever Unit CXB4450

141 Insulator CNM6306

142 Spacer CNM6345

143 Motor(M5 SPINDLE) CXM1120

144 Screw JFZ14P020FMC

145 Washer YE15FUC

146 Arm Unit CXB4953

147 Arm Unit CXB4954

148 Tray Assy CXB4307

149 Spring CBH2269

150 •••••

151 Cam Motor Assy CXB3170

152 Spacer CNC8289

* 153 Bracket Unit CXB4165

* 154 Motor Unit(M1 Cam Gear) CXB3174

* 155 Motor Unit(M3 ELV) CXB3175

156 Screw JFZ20P025FMC

157 Loading Arm L Assy CXB3171

158 •••••

159 Screw CBA1453

160 Washer CBF1038

161 •••••

162 Washer CBF1074

163 Spring CBH2136

* 164 Arm CNC7241

* 165 Arm CXB4449

166 •••••

167 Belt CNT1079

168 Holder CNV5055

169 Pulley CNV5057

170 Roller CNV5064

171 Guide CNV5125

* 172 Bracket Unit CXB4316

173 Roller Gear Unit CXB3176

174 Motor Unit(M2 LOAD) CXB3177

175 Screw JFZ14P020FMC

176 Loading Arm R Assy CXB3172

177 Screw CBA1453

178 Washer CBF1074

179 Spring CBH2136

* 180 Arm CNC7242

* 181 Arm CXB4448

182 •••••

183 Roller CNV5064

184 Roller Gear Unit CXB3176

185 Guide CNV5126

186 Switch(S885 MAX) CSN1052

187 LED(D883) CL202IRXTU

188 Photo-transistor(Q881) CPT230SCTD(CD)

Mark No. Description Part No. Mark No. Description Part No.

CDX-MG6036ZH

Mark No. Description Part No.

189 LED(D891,892) CL202IRXTU

190 Switch(S887 CLAMP) CSN1051

191 Switch(S886 ELV HOME) CSN1052

192 Bracket Unit CXB4306

193 Photo-transistor(Q851,852) CPT230SCTD(CD)

194 Resistor(R856) RS1/8S911J

195 Resistor(R857) RS1/8S821J

196 Photo-interrupter(Q1) RPI-221

197 •••••

198 Pickup Unit(Service)(P8) CXX1311

CDX-MG6036ZH

1234

PICKUP UNIT(SERVICE)

MOTOR PCB(B) MOTOR PCB(A)

CD CORE UNIT(SERVO UNIT)

PCB UNIT(D)

PCB UNIT(A)

PCB UNIT(C)

PCB UNIT(E) PCB UNIT(B)

LOAD MOTOR PCB

CD CORE UNIT

HOLOGRAM

UNIT

FOCUS ACT

TRACKING ACT

LD+

LD-

FO+

TO+

Q101

Q102

CN101

IC101

UPC2572GS

RF AMP

IC201

UPD63702AGF

DIGITAL SERVO

PROCESSOR

DIGITAL SIGNAL

PROCESSOR

µ-COMPUTER

INTERFACE

35 69 EFM

CD 4CH DRIVER

IC301

BA5986FM

BVD

V5 MUTE

MD/SD/TD/FD

74 10 11

VR2

XTAL

X201

CONT

CN201 CN801

CN301

WDCK

RFCK

RAOV

LRCK

SCKO

DOUT

MCK

IC501

CXD2511R

SHOCKPROOF

CONTROL

DAT

LRC

IC502

MSM514400DP-60TS

4M DRAM

V+5V IC701

BA05SFP

5V REGULAT

XAO/XSTB/XSO/XSI/

MOTOR DRIVER

IC802

LB1836M

ELVSNS

MOTOR DRIVER

LB1836M

IC801

CG-

CG+

EL-

EL+

PVD

LO-

LO+

PVD PVD

Q801

Q802

CLAMP

ELHOME

CN802

BCL

SPINDLE

MOTOR

CARRIAGE

MOTOR

HOME

SWITCH

VCC

ST/SR

GND

HOME

MOTOR

CAMGEAR

MOTOR

ELEVATION

MOTOR

Q851 Q852

D891 D892

PH1

PVD

Q881

D883 PH2

S883

MAX

SWITCH

PH1

PVD

PH1

PH2

MAXSW

LD MOTOR-

LD MOTOR+

MAXSW

PH2

PH1

PVD

ELV HOME

S886

S887

CLAMP

ELEVATION

SENSE

KEYBO

KEY MATRIX

D905~916

10 2

11 1

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

3.1 BLOCK DIAGRAM

Table of contents

Other Pioneer CD Player manuals

Pioneer

Pioneer CDJ-200 User manual

Pioneer

Pioneer CDJ-500II User manual

Pioneer

Pioneer CDX-P1270 User manual

Pioneer

Pioneer CDJ-400 - Cd/Media Player Instruction Manual

Pioneer

Pioneer PD-101 User manual

Pioneer

Pioneer PD-S801 User manual

Pioneer

Pioneer DEH-P3550MP XM User manual

Pioneer

Pioneer CLD-M450 User manual

Pioneer

Pioneer VP-1000 User manual

Pioneer

Pioneer CDJ-800 User manual

Pioneer

Pioneer DEH-P410 User manual

Pioneer

Pioneer PD-M602 User manual

Pioneer

Pioneer PD-F605 User manual

Pioneer

Pioneer CDJ-1000 User manual

Pioneer

Pioneer CLD-2090 User manual

Pioneer

Pioneer CMX-3000 User manual

Pioneer

Pioneer DRM-7000 User manual

Pioneer

Pioneer PD-F958 User manual

Pioneer

Pioneer PD-95 User manual

Pioneer

Pioneer PD-F957 User manual

Pioneer

Pioneer DEX-P99RS/UC User manual

Pioneer

Pioneer CDX-M2516ZSA User manual

Pioneer

Pioneer CDX-P670UC User manual

Pioneer

Pioneer PD-Z970M User manual

Popular CD Player manuals by other brands

RCA

RCA RP-7923 instruction manual

Philips

Philips AZ1207 owner's manual

Philips

Philips CD582 user manual

Philips

Philips AZ 6821 operating manual

Lasonic

Lasonic MSU-2020 user manual

THOMSON

THOMSON RCD150 user manual

Denon

Denon DCD-1420 Service manual

Panasonic

Panasonic SJ-MR100 operating instructions

Onkyo

Onkyo DX-7210 instruction manual

Sony

Sony MZ-R3 operating instructions

Denon

Denon DVM-4800 Service manual

JBL

JBL MR-32 Operation manual

RCA

RCA RCD152 Specifications

Technics

Technics SL-PS770A Service manual

Clarion

Clarion compact disc owner's manual

Sony

Sony MZ-M10 operating instructions

Philips

Philips Expanium AZ 1538 user manual

Rotel

Rotel RCD 975 owner's manual
