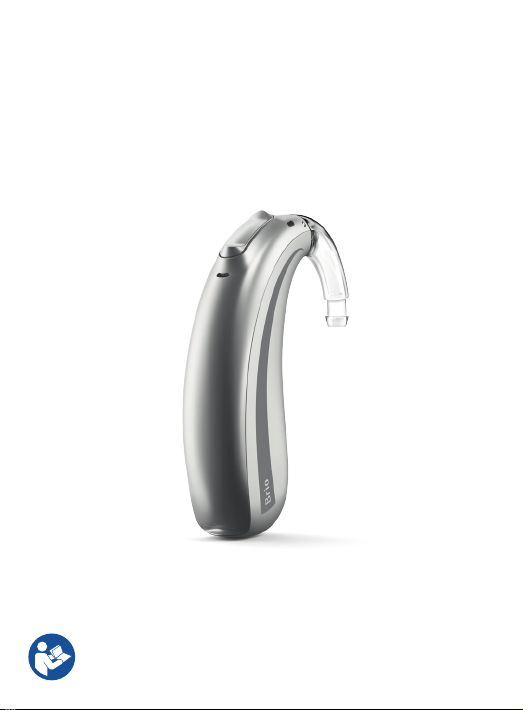

Phonak Brio 5 B-675 User manual
Brio 5 B-675
User Guide
3
Your hearing aid details
Models
Phonak Brio™ 5 B-675
Phonak Brio™ 5 B-675 Demo
CE mark applied
2021
2021
This user guide is valid for:
Model
c
Brio 5 B-675
c
Brio 5 B-675 Demo
Earpiece
c
Classic earmold
c
Universal eartip
Battery size
675
675
If no box is checked and you do not know the
model of your hearing aid, please ask your hearing
care professional.
Your hearing aids operate between 2.4 GHz–2.48 GHz
frequency range. When ying please check if ight
operator requires devices to be switched into ight
mode, see chapter 12.
4 5
Your hearing aids have been developed by Phonak —
the world leader in hearing solutions based in Zurich,
Switzerland.
These premium products are the result of decades
of research and expertise and are designed to keep you
connected to the beauty of sound! We thank you for
making such a great choice and wish you many years of
listening pleasure.
Please read the user guide carefully to make sure that
you understand and get the best out of your hearing aids.
For more information regarding features, benets, setup,
use and maintenance or repairs of your hearing aid and
accessories — contact your hearing care professional or
manufacturer representative. Additional information can
be found in the data sheet of your product.
6
Contents
Your hearing aid Further information
Using the hearing aid
1. Quick guide 8
2. Parts of the hearing aid 10
3. Left & right hearing aid markings 12
4. On/O 13
5. Batteries 14
6. Putting on the hearing aid 16
7. Removing the hearing aid 17
8. Multi-function button 18
9. Connectivity overview 19
10. Initial pairing 20
11. Phone calls 23
12. Flight mode 27
13. Join our hearing loss community! 29
14. Operating, transport and storage conditions 30
15. Care and maintenance 31
16. Exchanging the earpiece 34
17. Service and warranty 35
18. Compliance information 37
19. Information and description of symbols 43
20. Troubleshooting 48
21. Important safety information 50
22. For the US market only, complies 59
with the FDA regulations
8
On/O
Multi-function button
The button has several functions. It
functions as a volume control and/or a
program change depending on the hearing
aid programming. This is indicated in your
individual instructions. If paired with a
Bluetooth® enabled phone, a short press
will accept and a long press will reject an
incoming call.
Flight mode
To enter ight mode press the lower part
of the button for 7 seconds while closing
the battery door. To exit ight mode, simply
open and close the battery door again.
OOn
1. Quick guide
Left & right hearing aid markings
Changing batteries
Blue marking for left hearing aid.
Red marking for right hearing aid.
1.
Remove the
sticker from the
new battery and
wait two minutes.
2.
Open the
battery door.
3.
Place battery in
the battery door
with the “+”
symbol facing
upwards.
9
10 11
2. Parts of the hearing aid
The following pictures show the possible earpieces and
hearing aid model described in this user guide.
Possible earpieces
Brio 5 B-675 / Brio 5 B-675 Demo
Multi-function
button
Hook / sound output
Classic earmold (detachable)
Battery door
Universal
eartip
Classic
earmold
12 13
3. Left & right hearing aid markings
There is a red or blue marking to tell you if it is a left or a
right hearing aid.
Blue marking for left hearing aid.
Red marking for right hearing aid.
4. On/O
The battery door is also the on/o switch.
1.
Closed battery door =
hearing aid is on
2.
Open battery door =
hearing aid is o
When you switch on the hearing aid you may hear a
start-up melody.
14 15
5. Batteries
2.
Open the
battery door.
3.
Place battery in
the battery door
with the “+”
symbol facing
upwards.
1.
Remove the
sticker from
the new battery
and wait two
minutes.
If it is dicult to close the battery door: Check that
the battery is inserted correctly and the “+” symbol is
facing upwards. If the battery is not inserted correctly,
the hearing aid will not work and the battery door can
be damaged.
Replacement battery
This hearing aid requires a size 675 zinc-air battery.
Model
Phonak Brio 5
B-675 / 675 Demo
Zinc-air
battery
size
675
Color
marking on
package
blue
IEC
code
PR44
ANSI
code
7003ZD
Please ensure you use the correct type of battery in
your hearing aids (zinc-air). Please also read chapter
21.2 for further information on product safety.
Low power: You will hear two beeps when the battery is
low. You will have approximately 30 minutes to change
the battery (this can vary, depending on the hearing aid
settings and battery). We recommend that you always
have a new battery on hand.
5.1 Insert battery (standard battery doors)
16 17
6. Putting on the hearing aid
1.
Take the earmold up to your ear
and place the ear canal part into
your ear canal.
Putting on the hearing aid with classic earmold
2.
Place the hearing aid behind
your ear.
3.
Insert the upper part of the
earmold into the upper part of
the bowl of your ear.
Removing the hearing aid with classic earmold
7. Removing the hearing aid
1.
Lift the hearing aid above the
upper part of your ear.
2.
Grasp the earmold with your
ngers and gently remove it.
Please try to avoid gripping the tube to remove the
hearing aid.
18 19
8. Multi-function button
It functions as a volume
control and/or a program
change depending on the
hearing aid programming.
This is indicated in your
individual “Hearing aid
instructions”. Please ask
your hearing care professional
for a printout.
The multi-function button has several functions.
If the hearing aid is paired with a Bluetooth® enabled
phone, a short press on the upper or lower part of the
button will accept an incoming call and a long press will
reject an incoming call – refer to chapter 11.
9. Connectivity overview
The illustration below shows the connectivity options
available for your hearing aid.
* The TV Connector can be connected to any audio source such as a TV, PC or hi- system.
** Roger wireless microphones can be connected to your hearing aids as well.
Bluetooth enabled
devices
TV Connector
connected to TV*
Roger microphone** Phonak RemoteControl
