Philips FC8136/01 User manual

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8136/01

12/07

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Color : Dutch Blue

- Power consumption : 1400 W

(IEC) 230 V

- Maximum Air displacement : 38 l/s

- Dust storage capacity : 3 L

- Cord length (depending on type) : 7 m

- Filter system : Double layered

S-Bag

: Permanent motor

protection filter

: HEPA 10

exhaust filter

- Noise : < 80 dB

ACCESSORIES

- Nozzle : All purpose floor nozzle

- Additional Nozzle : Parquet nozzle

- Tubes : Metal Telescopic tube

- Accessories : Crevice nozzle and small nozzle

- Accessory Storage : Tube clip

- Coupling : Conical coupling

OPTIONAL (accessories)

- HEPA exhaust filter : FC8070 (8838 070 01010)

- FC8021 : S-bag Classic

- FC8022 : S-bag Clinic

- FC8023 : S-bag Anti-Odor

2-7

FC8136/01

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- First remove the dust container.

- Remove the dustcover using a screwdriver (see picture).

- When the dustcover has been removed, 3 of the 7 screws D

that need to be unscrewed to disassemble the upper

housing, are accessible (see picture).

- The 4th screw Dis hidden under the 0/I button, to remove

the button use a screwdriver (see picture)

- Finally the last 3 screws Dthat need to be removed are

situated at the bottom side of the appliance (see picture).

- During re-assembling, take care all the wires are positioned

in the guides correctly.

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

-Item 36, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

3-7

Pos Service code Description

4222 459 48711

4222 459 48721

4222 459 49021

4222 459 48701

4322 004 93721

4222 459 46441

4222 459 48731

4222 459 49041

4222 459 46271

4222 459 49051

4222 459 46341

4222 459 52081

4222 459 49061

4222 459 48741

4222 459 46581

4222 459 48751

4222 459 48761

4222 459 46451

4222 459 48771

4222 459 46221

4222 459 46381

4222 459 46391

4222 459 46401

4222 459 48791

9965 100 56857

Dustcover assy Dutch Blue

Dustcover latch kit Dutch Blue

Seal for suction

Dustbag holder assy

Reusable dustbag

Anti missing protector kit

Front wheel kit Dutch Blue

Right side panel White

Inlet ﬁlter

Inlet ﬁlter frame Blue

Dustchamber seal

Safety valve kit

Left side panel White

Button on/off Dark Midnight

Button spring

Mid frame assy Dutch Blue

Button CW Dark Midnight

Sealing Motor front cover

Filter panel Dutch Blue

Outlet HEPA assy

Cordwinder complete UK/HK

Cordwinder complete Europe

Cordwinder complete PRC

Back wheel assyDutch B./Dark M.

Motor cover

Pos Service code Description

4222 459 46321

4222 459 46331

4222 459 46471

4222 459 46411

4222 459 46371

4222 459 46521

4222 459 46771

4222 459 46781

4222 459 46501

4222 459 46761

4222 459 46311

4222 459 46511

9965 100 56858

4222 459 46571

4222 459 46591

4222 459 46621

4222 459 46641

4222 459 46141

4222 459 46601

4322 004 23831

4222 459 49031

4222 459 49171

4222 459 54641

LED PCB assy

Sensor PCB assy

Front cover motor

Rubber piston

Switch

Outer motor cov. assy (incl silenc.)

Motor 220 V CCC China only

Motor 220 - 240 V Europe

Protector kit motorcompartment

Main PCB assy 220 V CCC

Main PCB assy 230 V

Fixation outer motor cover

Motor ﬁxation rubbers

Noise red. around outer mot. cov.

Hose assy

Small nozzle

Crevice nozzle

Floor nozzle

Telescopic tube (2TT)

Accessory holder

Parquet nozzle

Cord outlet Dark Midnight

Nozzle holder Dutch Blue

FC8136/01

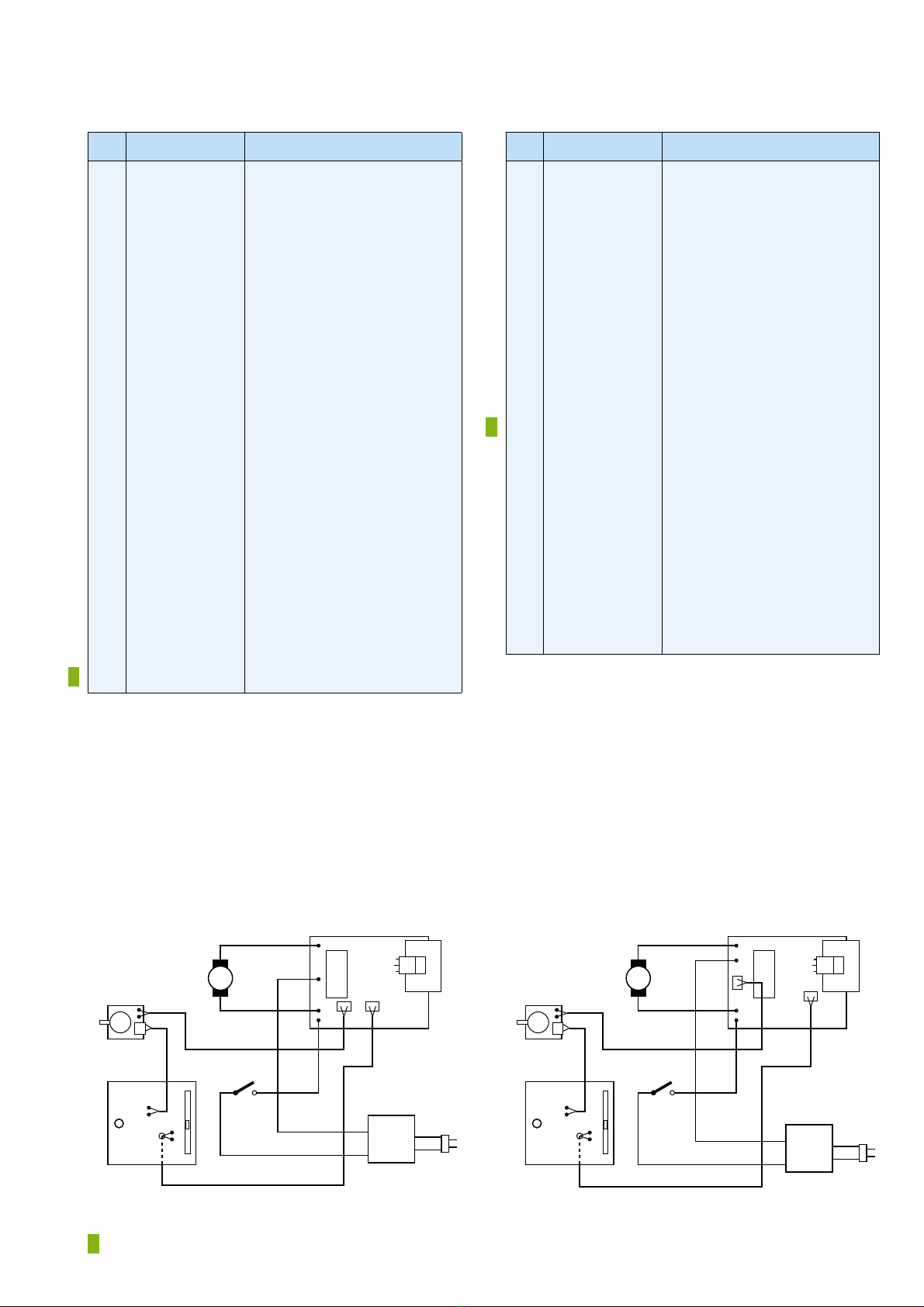

PARTS LIST

ELECTRICAL DIAGRAM

Blue

Red

White

Cord

Winder

Main PCB

220 V CCC

LED PCB

Sensor

PCB

Switch

Blue

Red

Brown

Cord

Winder

Main PCB

230 V

LED PCB

Sensor

PCB

Switch

230 V

= changed

4-7

FC8136/01

EXPLODED VIEW

1 2

5-7

FC8136/01

EXPLODED VIEW

6-7

FC8136/01

EXPLODED VIEW

7-7

FC8136/01

EXPLODED VIEW
