Philips 3000 series User manual

Service

Manual

3000 Series

XD3010/61

Contents

XD3010/61

Important repair instructions

•Only skilled personnel should carry out the repair.

•After repair the appliance should function properly.

•After repair the appliance has to meet the regulatory- and safety requirements that were applicable at the

time of release of the model.

•After repair the appliance always has to be tested for electrical safety according VDE 0701-0702 and for

medical products IEC 62353.

General information 3

Performance

Filtration

Usability

Nozzles and accessories

Sustainability

Weight and dimensions

Optional (accessories)

Technical information 4

Production date (or serial number)

Electrical diagram

Disassembly- and Reassembly advice 5

Disassembly

Reassembly

Service parts 8

Version history 15

Performance

•Input power (IEC) : 1800 W

•Input power (max) : 2000 W

•Sound power level : 83 dB

•Vacuum (max) : 26 kPa

Filtration

•Dust bag type : S-bag Classic Long

Performance

•Exhaust lter : Super Clean Air lter

•Motor lter : 1 layer foam lter

Usability

•Action radius : 9 m

•Carrying handle : Front

•Cord length : 6 m

•Tube coupling : ActiveLock

•Tube type : Metal 2-piece telescopic

tube

•Wheel type : Rubber

Nozzles and accessories

•Accessories included : Crevice tool, Integrated

brush

•Standard nozzle : ExtraClean nozzle

Sustainability

•User manual : 100% recycled paper

•Packaging : > 90% recycled materials

Weight and dimensions

•Dimensions of product : 400 x 282 x 251 mm

•Weight of product : 4.8 kg

Optional (accessories)

•Filter Replacement Kit HP :

3000 052 95741 CP1203/01

•Alma HF nozzle Con. 35 mm PH Deep Black

4322 004 26051 CP0189/01

•Turbo brush 35 mm Deep Black

4322 004 26231 CP0191/01

General information

XD3010/61

Electrical diagram

0.33µF

275V

220µF

16V

1W5V1

1N4007

Mains

Voltage

AC2

Motor

AC1

BTA16-600B

IC1

1/2W

470k

332/100V

1/4W

47k

47R

1/4W180k

1/2W7k5

Production date (or serial number)

YYMMDD

Technical information

Disassembly

•To remove the Exhaust lter (12):

Turn the appliance upside down, push the blue

button and remove the Exhaust grill (13), now

the Exhaust lter can be removed / replaced by

a new one. (see picture)

•Remove the dustcover assy (7) using a

screwdriver (see picture).

•To remove the Top housing:

Remove the 3 screws (B). (see picture)

•Turn the appliance upside down and remove

the 3 screws (C) on the bottom (underneath the

Exhaust grill). (see picture)

C C

•Lift the Top housing by using a screwdriver on

the backside, place it between Lower housing

and Top housing.

(Remark: buttons do not need to be removed).

•When you take o the upper housing you have

to be careful that the connector of the potmeter

is not disconnected. Remove the connection for

the potmeter then the housing can be removed.

Disassembly- and Reassembly advice

XD3010/61

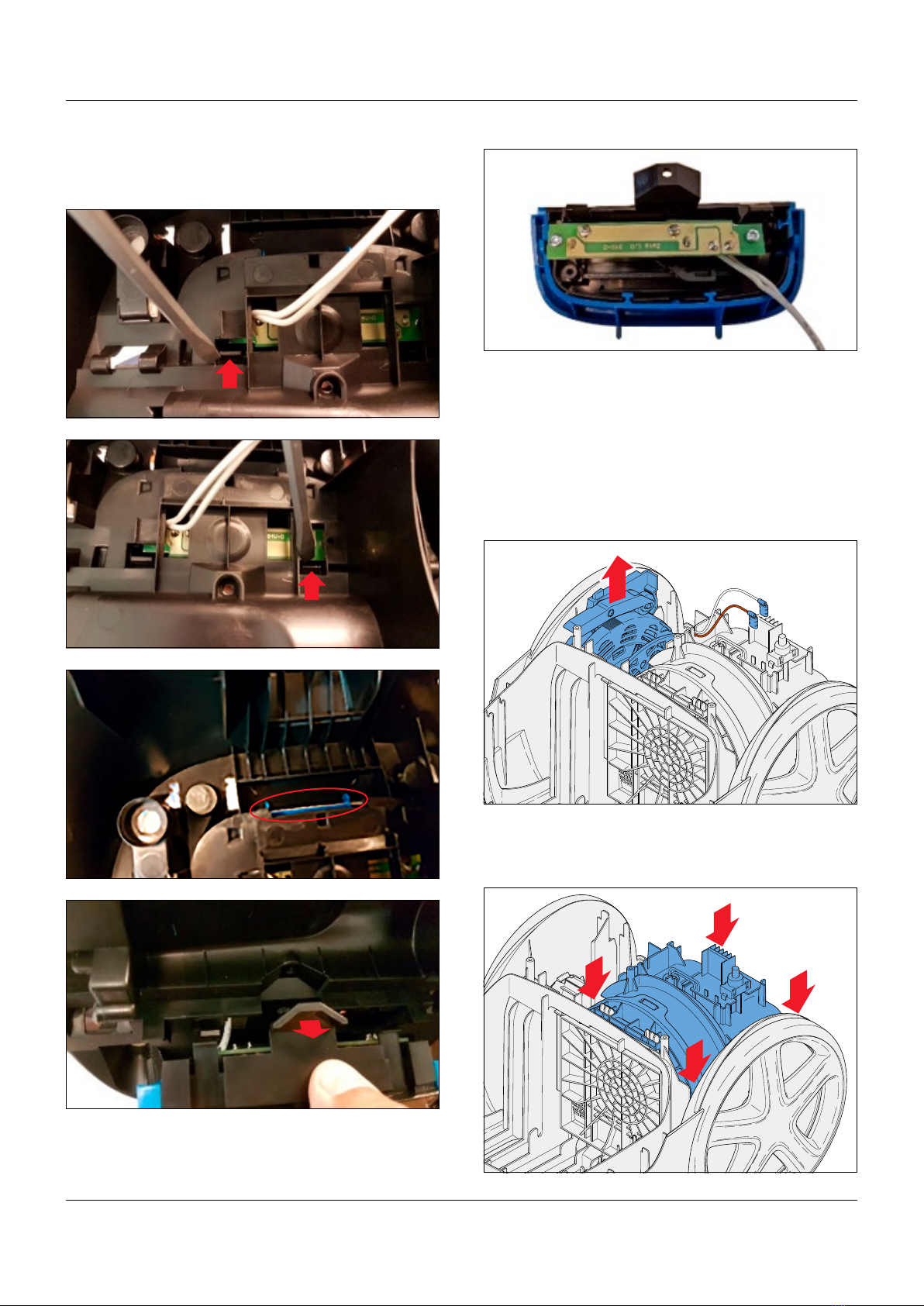

•The panel can be removed by clicking hooks

using a screwdriver. Works the same as with the

predecessor.

Disassembly- and Reassembly advice

•To re-assemble the Top housing: make sure

that the sealing rim does not come below the

Top housing, it should be placed after the Top

housing is placed.

•Remove Cordwinder Lever.

•Remove Cordoutlet.

•Disconnect the 2 connectors from the PCB and

remove Cordwinder assy (26). (see picture)

•To remove the Motor housing:

Remove the 4 screws (E), for 2 of the screws an

extra long screwdriver is needed. (see picture)

Disassembly- and Reassembly advice

•Now the Motor housing can be removed by

lifting: Grip on back side with one hand, with

other hand push down in the Dust chamber.

•To replace the motor (37) and PCB (32):

The PCB is connected to the Motor with 2 wires

through the Motor housing.

Remove the Motor housing Cover by unclicking

the 3 clicks.

Watch out: Valve assy spring jumps out !

Remove the Motor rubber (38).

Pull the motor to the outside and remove the 2

wires Xand Yconnected to the PCB.

Now the motor and PCB can be replaced.

(see exploded view)

Reassembly

•The Motor rubber needs to be replaced correctly,

safety valve can be replaced and afterwards the

Motor housing cover can be clicked on.

•Replace Motorassy in the Lower housing.

•Fix all the screws (E).

•Replace the Cordwinder assy and reconnect de

2 wires to the PCB on the Motor housing.

•First leed the cord through the Cord outlet, then

the Cordwinder assy can be replaced.

•Keep the cable and plug in its original position!!!

•Replace the Top housing and x all the screws

(B) and (C).

•Now the Dustcover assy can be replaced by

using a screwdriver.

• Remark: Safety valve cannot be supplied

separately, make sure that this can be re-used.

XD3010/61

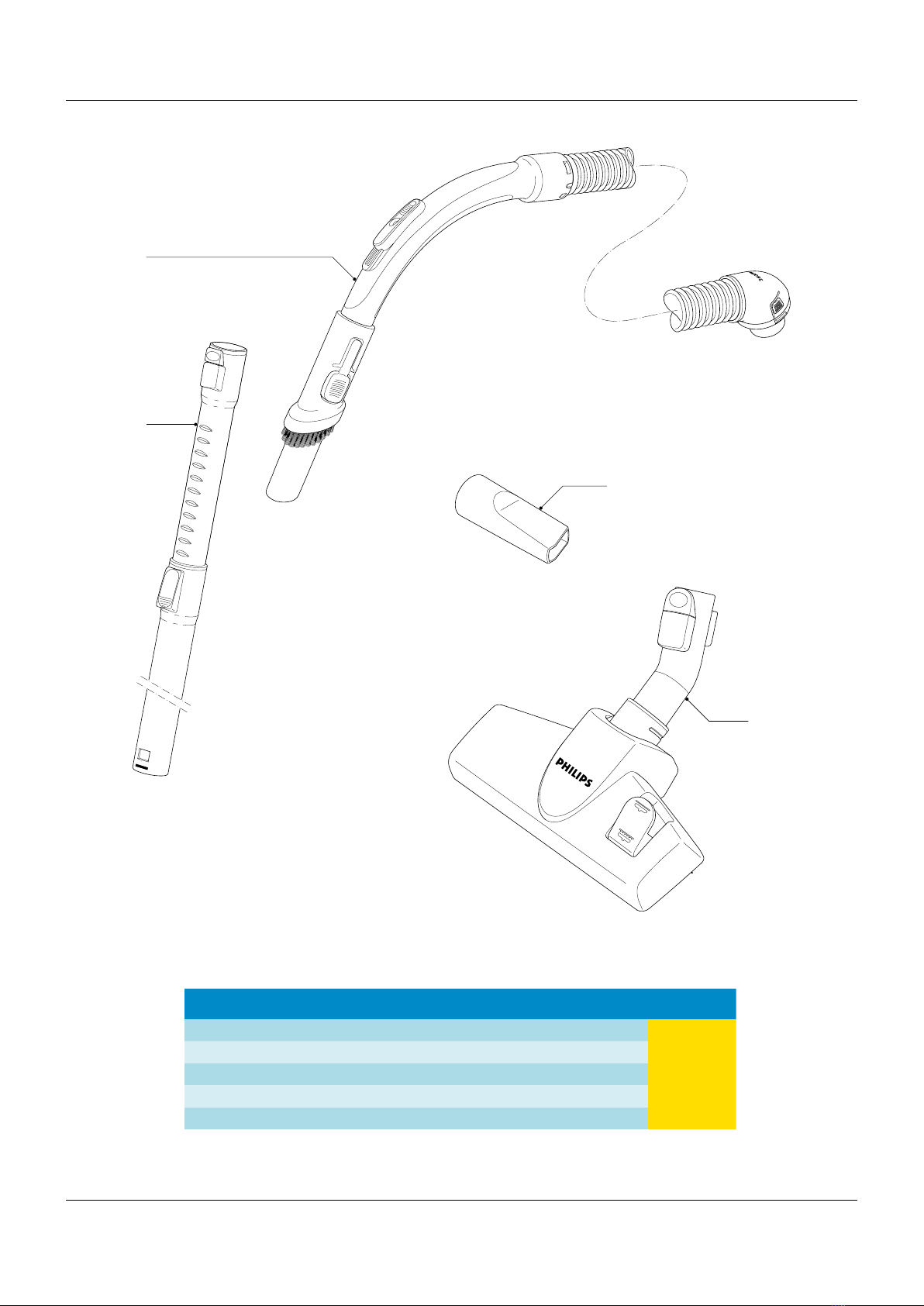

Pos Service code Description Remark CRP

1 3000 053 22101 Hose assy Zeta

2 4322 004 26244 2-Piece TT tube Active lock CP0187/01

4 4322 004 26224 Multi-purpose Active lock 35 mm Deep Black

5 4322 004 26201 Crevice tool 35 mm Deep Black CP0188/01

50* 3000 052 95741 Filter Replacement Kit HP Not shown CP1203/01

* Consisting of 2 lters and a dust bag

Service parts

710

720

750

730

740

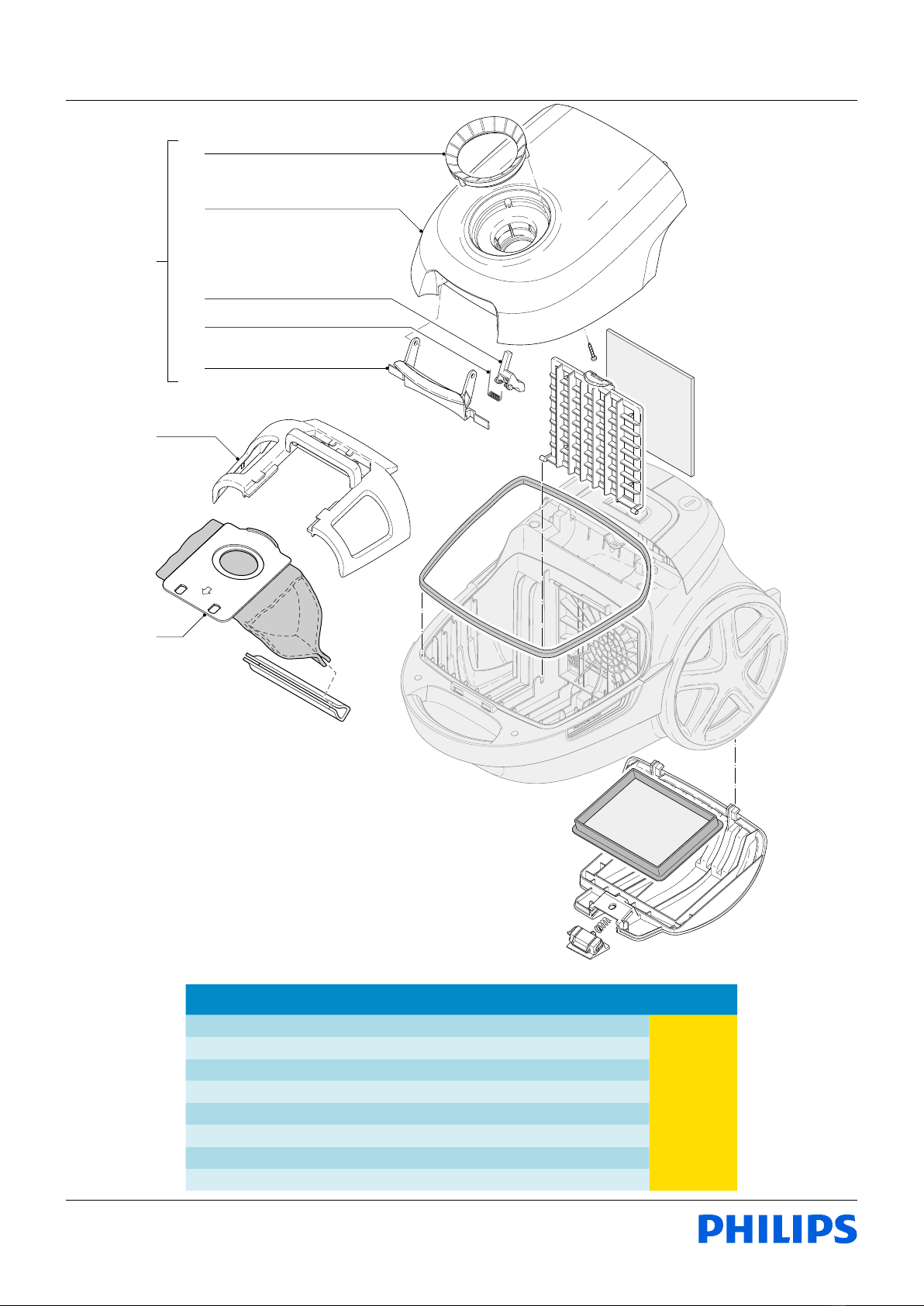

Pos Service code Description Remark CRP

7 3000 056 91571 Dust cover assy Dark Royal Blue 161377

710

720

730

740

750

8 3000 054 29761 Dust bag holder Zeta Basic Blue 61192

51 4322 004 93372 Cotton Dustbag assy

Service parts

1310

1320

XD3010/61

Pos Service code Description Remark CRP

9 4322 004 94331 Inlet lter Performer Compact CP1056/01

11 9965 100 73735 Sealing rim Dust chamber

12 4322 004 94351 Scouring pad Performer Compact CP1351/01

13 3000 053 42991 Exhaust grill assy

1310

1320

Service parts
