Philips 28HFL5009D/12 User manual

www.philips.com/welcome

Installation Manual for MediaSuite and Signature ranges

xxHFL5009D

xxHFL7009D

Status: Release

Version 1.2

Date: August 2014

Author: Marian Pufulete


        1

Contents

 Requirements before starting the installation .......................................................................................................... 3
 Find out the state of the TV ...................................................................................................................................... 4
Re-install TV .............................................................................................................................................................. 5
 Installation wizard ..................................................................................................................................................... 8
 Channel options ...................................................................................................................................................... 20
    Consumer Setup Menu ............................................................................................................................................ 24
    Professional Settings ............................................................................................................................................... 25
 Welcome Logo ........................................................................................................................................................ 52
1   SmartInfo ................................................................................................................................................................. 52
1.2 SmartInfo Show .............................................................................................................................................. 53
1.3 SmartInfo Browser ......................................................................................................................................... 53
 Clone ....................................................................................................................................................................... 54
     Feature settings ...................................................................................................................................................... 56
 CSM (Consumer Setup menu) .................................................................................................................................. 61




Notice

Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. TP Vision Netherlands

B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

TP Vision Netherlands B.V. cannot be held responsible neither for any errors in the content of this document nor for

any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on

the Philips support website as soon as possible.

Help and support

Visit the Philips support website at www.philips.com/support for:

-Leaflet and product documentation

-Download a printable PDF version of the user manual

-Contact details of the helpdesk.

Definitions, Acronyms and Abbreviations

Cold start: Unplug the TV from mains power. Connect TV again to the mains power.

Guest RC: Guest Remote control supplied with the TV

OSD: On Screen Display

CSM: Consumer Setup Menu

OOB: Out of the box state – The TV is unboxed and no option or features were configured

[ ]: The values between brackets are referring to a TV menu item

“”:The values between quotation marks are referring to a remote button

1. Requirements before starting the installation

Before starting the installation, make sure that you have everything you need at hand.

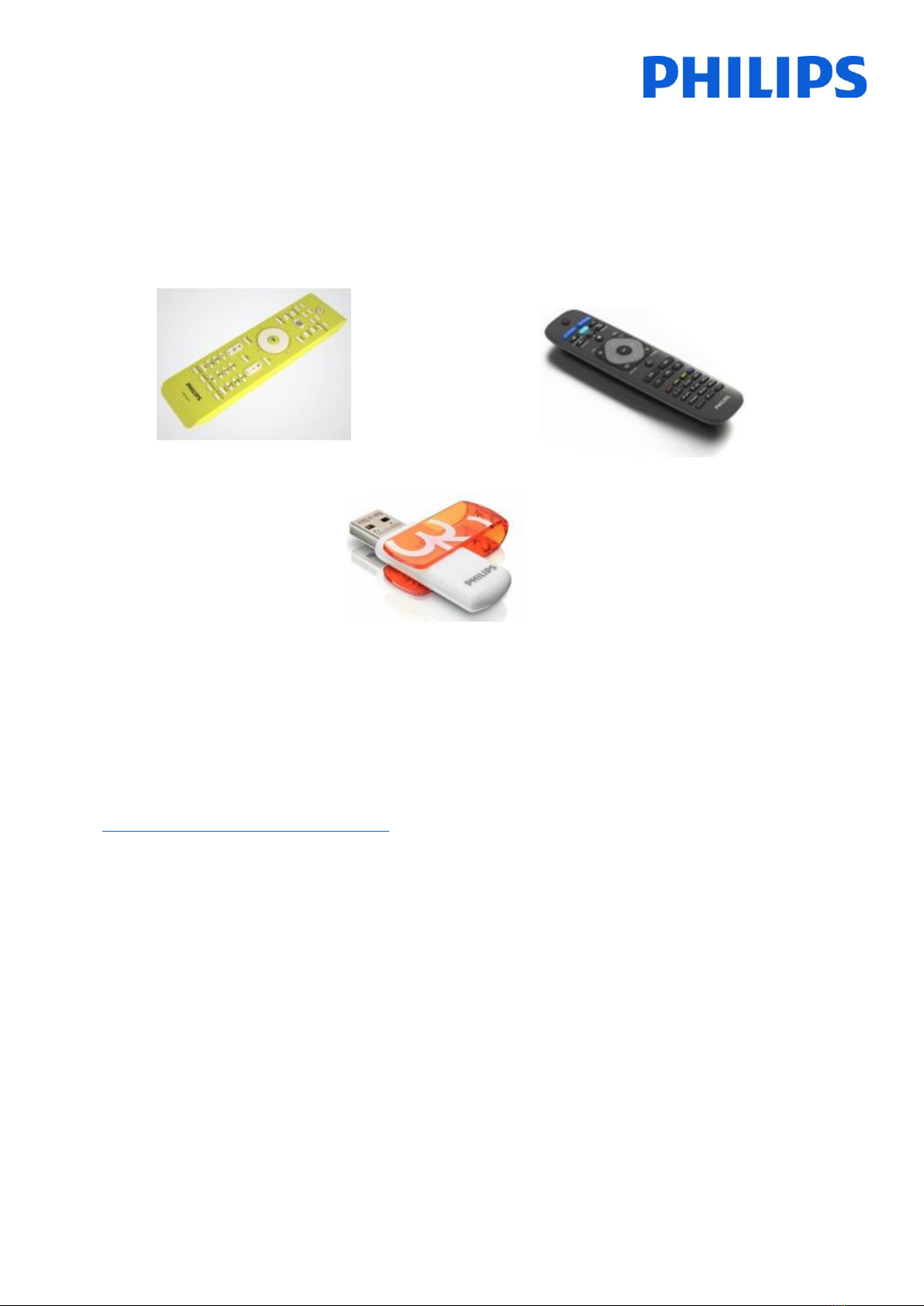

Master remote control 22AV8573 or Guest remote control 22AV1109C

And

USB stick

To access the [Professional Setup] menu with master remote control, press the “RC5SETUP” key and then press the

“Home/Menu” button. Using the guest remote control, press the following keys sequential: “3,1,9,7,5,3,MUTE”.

Note: The sequence: “3,1,9,7,5,3, MUTE” will not show the [Professional Setup Menu] if [High Security]

option is enabled.

For the best guest experience it is highly recommended to use the latest software version available.

Go to: http://www.support.philips.com/support

Enter the model number and download the latest software version available. Unzip the software and follow the

instructions how to upgrade the software on the TV. The USB flash drive used for software upgrade must be

formatted as FAT32 and preferably empty to avoid and accidental upload of wrong setting and software. It

recommended first to upgrade the TV and afterwards to perform the installation.

The latest software version and cloning data can be stored on the same USB drive for a 2 in 1 action: software

upgrade and cloning during the instant initial cloning.

2. Find out the state of the TV

ItisimportanttoknowifaTVisin‘virginmode’(out of the box) or installed before.

Ifyoucanseethisscreenbelow,youknowthattheTVisin‘out of the box’ state and you can install the set by using

procedure described in chapter 4 of this manual.

Ifyoupoweronthesetandthenpressthe‘Home’ button on the guest remote, you will see this screen appear if the

TV already has been installed or the wizard was already skipped.

Professional Settings ON

Professional Settings OFF

You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.

Disable the Professional Settings

Access the setup menu press the “RC5 SETUP” key, and then press the “Home/Menu” button. With the guest

remote control, press the following keys in sequence: “3,1,9,7,5,3, MUTE”.

Go to [Professional Mode] and select the [OFF] optionandconfirmwith“OK”.Press “HOME” and select the option

Store and Restart Now, Confirmwith“OK”.Afterrestarting the TV the PROFESSIONAL SETTINGS mode will be set to

OFF.

3. Re-install TV

If you want to start an installation from scratch you can always re-install the TV. This can be done by using the

option: Re-install TV set. The Guest menu is offering access to options like subtitle, picture settings, audio settings,

alarm, source and TV guide is displayed below:

If the Professional mode is active you can access the setup menu by pressing the “RC5SETUP” key and then press

the “Home/Menu” button. For the guest remote control, press the following keys in sequence: “3,1,9,7,5,3, MUTE”.

This menu provides access to Consumer Setup Menu and Professional Setup Menu.

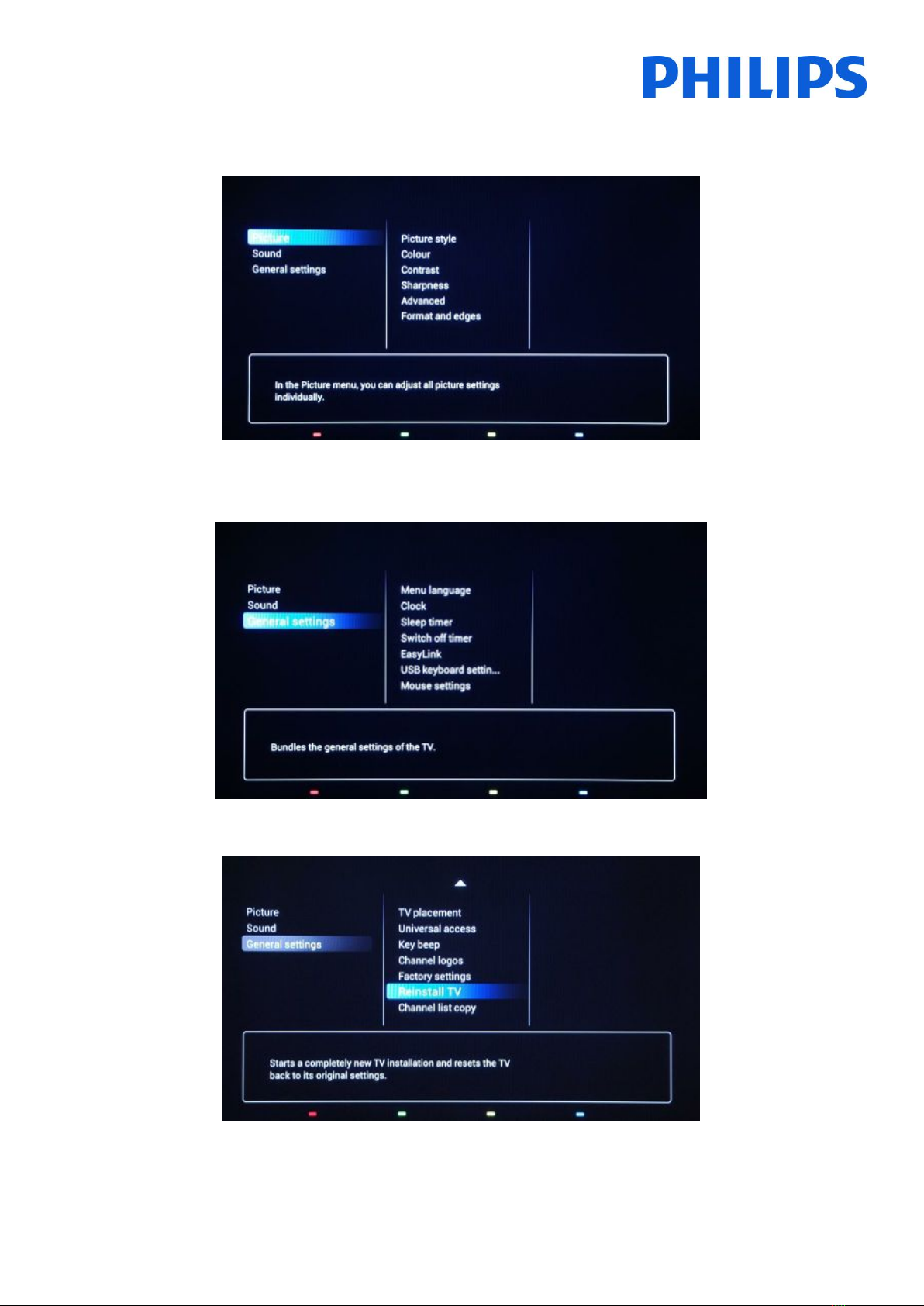

Select the option [TV settings] and press “OK” to access the submenu.

The [TV settings] menu contains [Picture] settings, [Sound] setting and [General settings].

Using the arrow key to navigate to [General Settings]. To access the items from the right menu use the “right

arrow” key.

Navigate with the “down arrow” key to the [Reinstall TV] option.

Press “OK” to start the reinstallation procedure. To avoid any potential mistakes the TV will request a confirmation

to start the Reinstall procedure.

After this operation the TV will power off and on and display the installation wizard.

Note: All settings are at default values and no channel plan is available.

4. Installation wizard

When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.

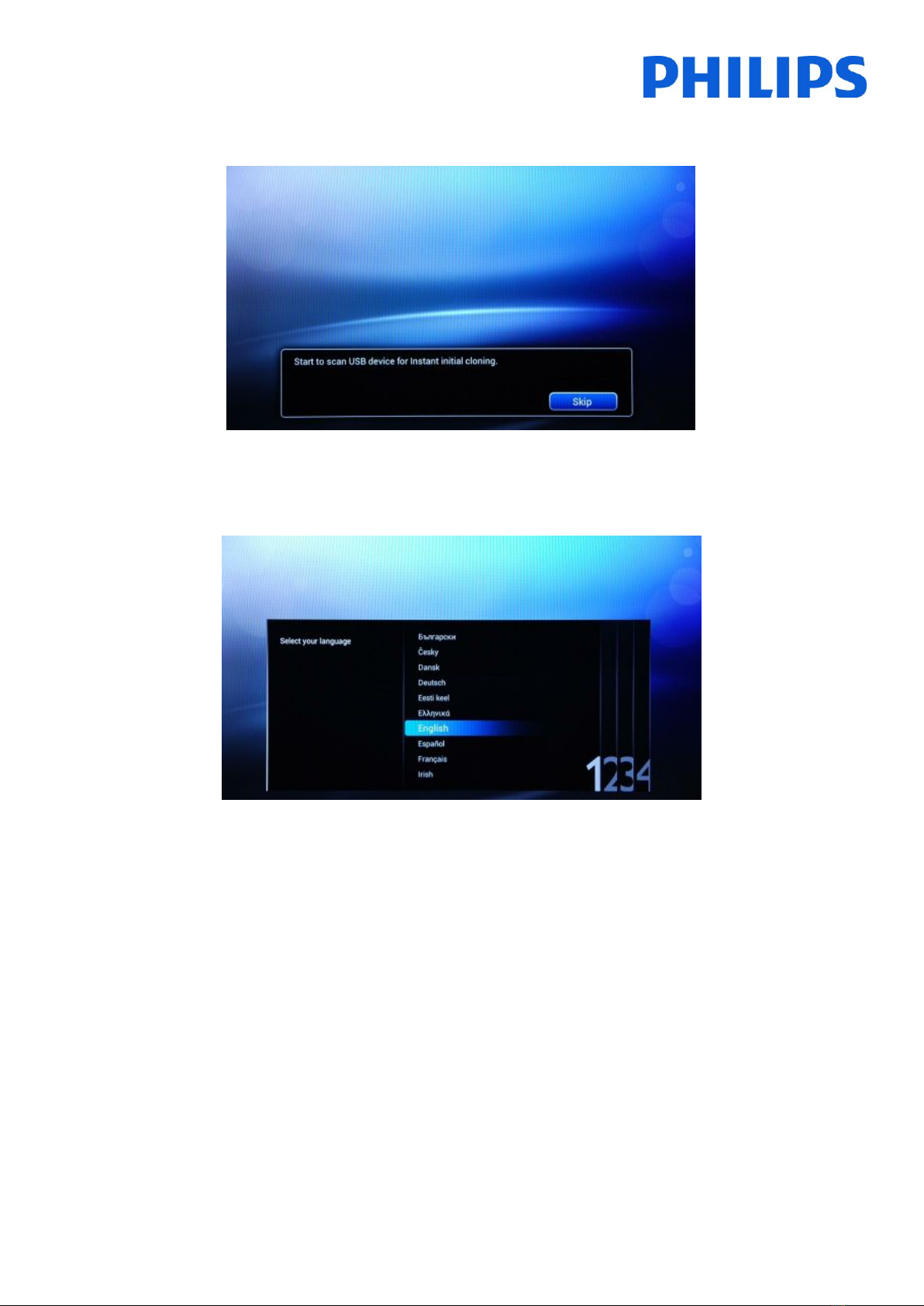

The TV is indicating that a searching process for cloning data on USB key is taking place. If there is no cloning data

available the process can be skipped. If the TV does not find data for cloning will continue to the next step, the

installation wizard

Here you will need to select your preferred language. The language selected will be used for the Consumer Setup

menu and for subtitle and audio language preferences. The language can be change at any moment from the [TV

settings] menu. Please select with the “Up and Down arrow” keys and confirm with “OK” or press the “left arrow”

key.

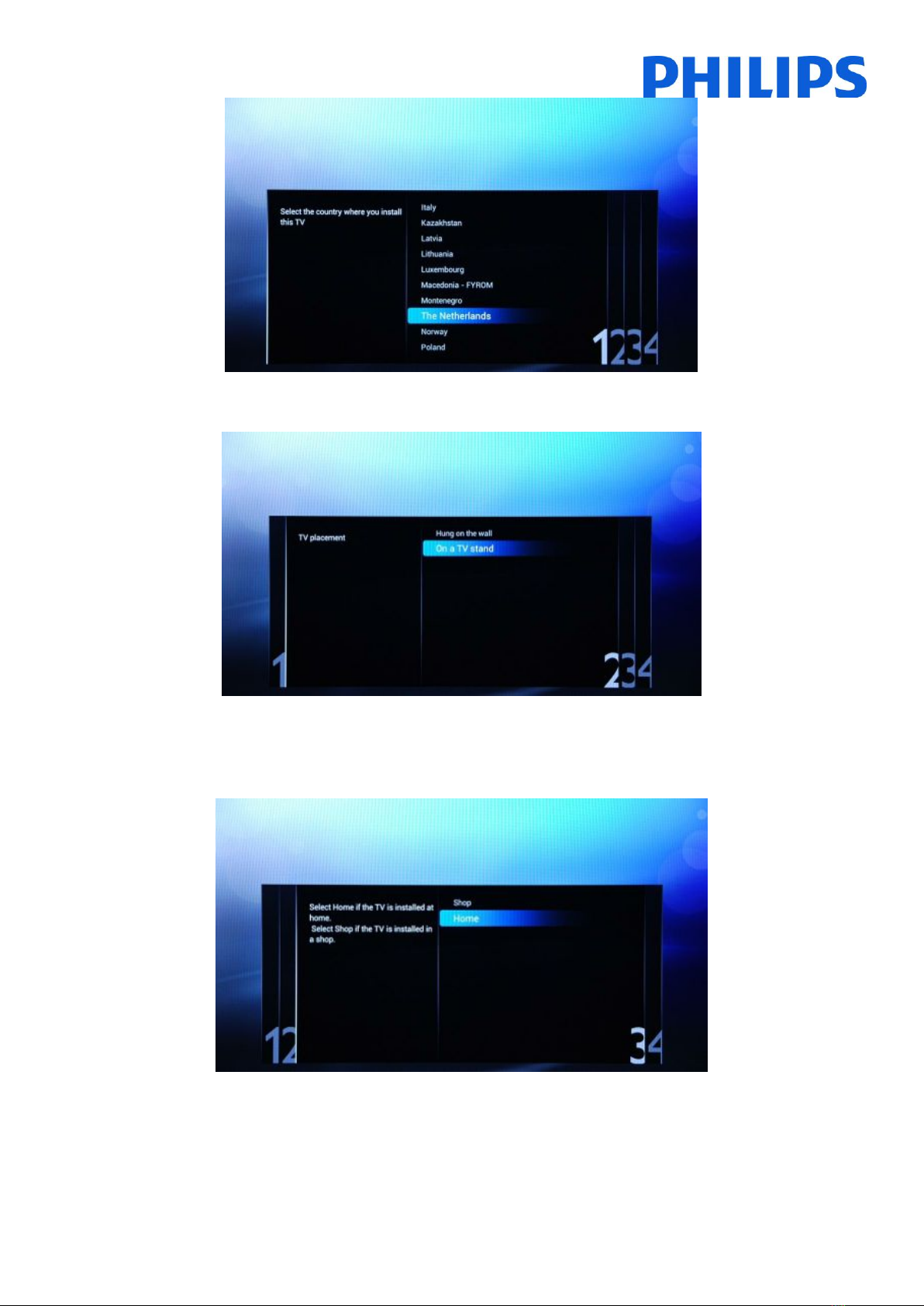

After this, you will need to select the country. Depending on the country selection, some pre-defined settings will be

activated, because of local broadcast requirements. Example: digital/analog channels could be disabled; reordering

and deleting channels can in some cases not be possible.

Note:Ifyouareexperiencingsomeissuesafterselectingyourcountry,pleaseselect‘Others’inthemenu.

The next step is to select the placement of the TV, “Hung on the wall” or “OnaTVstand”. This option will affect

image and sound settings based on the selection.

The next step is to choose between the options [Shop] and [Home]. Please select [Home] option for installation, if

you select [SHOP] a commercial banner will be displayed on the TV. This is for commercial purpose only on shops.

Now you can select the visual and hearing impaired options. If you select [On], your TV will automatically turn on

settings to help visual and hearing impaired people. THE MOST COMMON OPTION IS TO TURN THIS FUNCTION OFF.
