Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/

Video cabinet)

• Leave at least 5 cm around each side of TV

set for ventilation to avoid over-heating.

• Do not place TV set near a radiator or

other sources of heat.

• Do not place TV set where it can be

exposed to rain or excessive moisture.

Mains Connection

• For correct mains voltage, refer to type

sticker at the rear of the TV set.

• Consult your dealer if mains supply is

different.

Note : This diagram is not representative

of the actual plug and socket.

Connections

• Connect the aerial plug to the antenna

socket ¬¬

¬¬

¬on the backcover.

• Insert the mains plug into a wall socket.

Use of Remote Control

• Insert correct type of batteries into the

compartment.

• Ensure the batteries are placed in the right

direction.

Switching on the set

• Press the mains power button to switch

on/off the TV.

• If the set is on standby mode (indicator is

red), press STANDBY button on the

remote control to switch on set.

INSTALLATION

5 cm 5 cm

5 cm

Great user manuals database on UserManuals.info

USEFUL TIPS

• Avoid heat and

direct sunlight.

• Avoid direct

exposure to rain

or water.

• Never repair the TV yourself – get a skilled

personnel!

• DO NOT leave your TV on standby for a

prolonged period.

• Switch off your TV if not in use.

• This will allow the TV to be demagnetised,

giving good picture.

• Clean the TV’s screen with a slightly damp

soft cloth ONLY WHEN NECESSARY.

Note : Do not use abrasive solvent as it can

damage the screen’s coating.

Great user manuals database on UserManuals.info

CONNECTING PERIPHERAL EQUIPMENT

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VCR VCR

VCD/DVD

OR OR

Laser disc player

VCR

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

Connection for playback

1. Connecting to AV sockets

You may choose to connect to AV1 in or

AV2 in sockets or both.

• Connect the corresponding sockets of

the equipment to that of the TV.

• To playback programme, select the first

AV channel (if connection is made to

sockets at AV1 in) or the second AV

channel (if connection is made to

sockets at AV2).

Note : For mono equipment, connect to

the AV1 in or AV2 in and “L” sockets

only.

2. Connecting to S-Video socket

If you have a S-Video equipment,

connect to the S-Video socket for better

picture quality.

• Connect the corresponding socket of the

equipment to that of the TV.

• To view playback programmes, select

the AV2 channel.

Note : Do not connect Video “in” socket

of the TV if S-Video socket is used.

Equipment such as VCR, Laser disc player, VCD, DVD etc. can be connected to

the video and audio (AV) sockets at the rear of the TV. Switch off mains power

of the TV and equipment before making any connection.

Great user manuals database on UserManuals.info

CONNECTING PERIPHERAL EQUIPMENT

VCR

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VCR 1 VCR 2

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

Connection for recording

1. From the TV channel you are watching

•Connect the corresponding sockets of

the VCR to the Monitor “out”sockets

at the rear of the TV.

2. From one VCR to another VCR

•Connect the sockets of the VCR which

you wish to record from to the

corresponding sockets at either AV1 or

AV2.

•Connect the sockets of the receiving

VCR to the Monitor “out”sockets at

the rear of the TV.

Great user manuals database on UserManuals.info

FUNCTIONS OF TV CONTROLS/SOCKETS

1Mains Power button Switch mains power on or off.

2Standby light indicator Indicate red light when standby mode is

activated.

3Remote sensor Aim remote control handset at remote sensor

when operating the TV.

4Headphone socket Connect headphone jack to socket for personal

listening.

5AV “in”sockets Connect to Video “out”and Audio “out”

sockets of VCR, laser disc player, etc.

6Volume adjustment Adjust sound volume louder/softer. Pressing

these two buttons together will call up the

main menu. Press these two buttons again will

exit menu. Works as cursor left ( ) or right

( ) in a menu.

7Channel adjustment Select channel in ascending/descending order.

Works as cursor up ( ) or down ( ) in a

menu.

VIDEO

AUDIO

Great user manuals database on UserManuals.info

ehf

123

456

789

INC.

SURR.

SLEEPOSDAV

SMART SMART

A/CH

SURF

FUNCTIONS OF REMOTE CONTROL

1. STANDBY

Switch off set temporarily to standby

mode. (The red light indicator lights

up when set is on standby mode). To

switch on set, press STANDBY or any

DIGIT button.

2. AV

Selects the AV channels.

3. OSD (On-Screen Display)

– Displays channel number and

sound transmission mode.

– Allows you to exit menu from screen.

4. DIGIT (0 - 9)

Allows you select a channel. For a

2-digit channel number, the second

digit must be entered before the “ – “

sign disappears.

5. SMART SOUND

Allows you to access 4 different types

of sound settings.

6. MENU

To display or exit menu from screen.

7. CURSOR UP

Allows you to select the next item on

the menu.

8. CURSOR LEFT

Allows you to access the sub-menus

and adjust the settings.

9. VOLUME + / –

Increases / decreases volume.

10. MUTE

Mutes sound. To restore sound, press

button again.

11. TELETEXT (applicable to certain

versions only)

Selects text information. Refer to

the section on “Teletext”.

Note : If your current channel is capable

of transmitting teletext but is not in

teletext mode, pressing the

button

will activate the teletext clock at the top

right hand corner of the screen.

Great user manuals database on UserManuals.info

ehf

123

456

789

INC.

SURR.

SLEEPOSDAV

SMART SMART

A/CH

SURF

FUNCTIONS OF REMOTE CONTROL

12. SLEEPTIMER

Allows you to select a time period

after which the set will switch to

standby mode automatically. You

can set the timer from OFF mode up

to a maximum of 240 minutes.

13. SMART PICTURE

Allows you to access 4 different

types of picture settings.

14. INCREDIBLE SURROUND

Allows you to select incredible

surround sound (enhanced stereo

sound) when transmission is stereo

mode.

15. CURSOR RIGHT

Allows you to access the sub-menus

and adjust the settings.

16. CURSOR DOWN

Allows you to select the next item

on the menu.

17. CHANNEL + / –

Allows you to select channel in

ascending or descending order.

18. 44

Allows you to switch from stereo to

mono sound when transmission is

in stereo mode or choose between

first language or second language

for transmission in bilingual mode.

19. SURF / ALTERNATE CHANNEL

–When surf mode is activated

through the main menu, it allows

you to select up to a maximum of 8

channels and view quickly the

selected channels .

–It also allows you to alternate

between the last viewed channel

and the present channel if alternate

channel mode is activated.

Great user manuals database on UserManuals.info

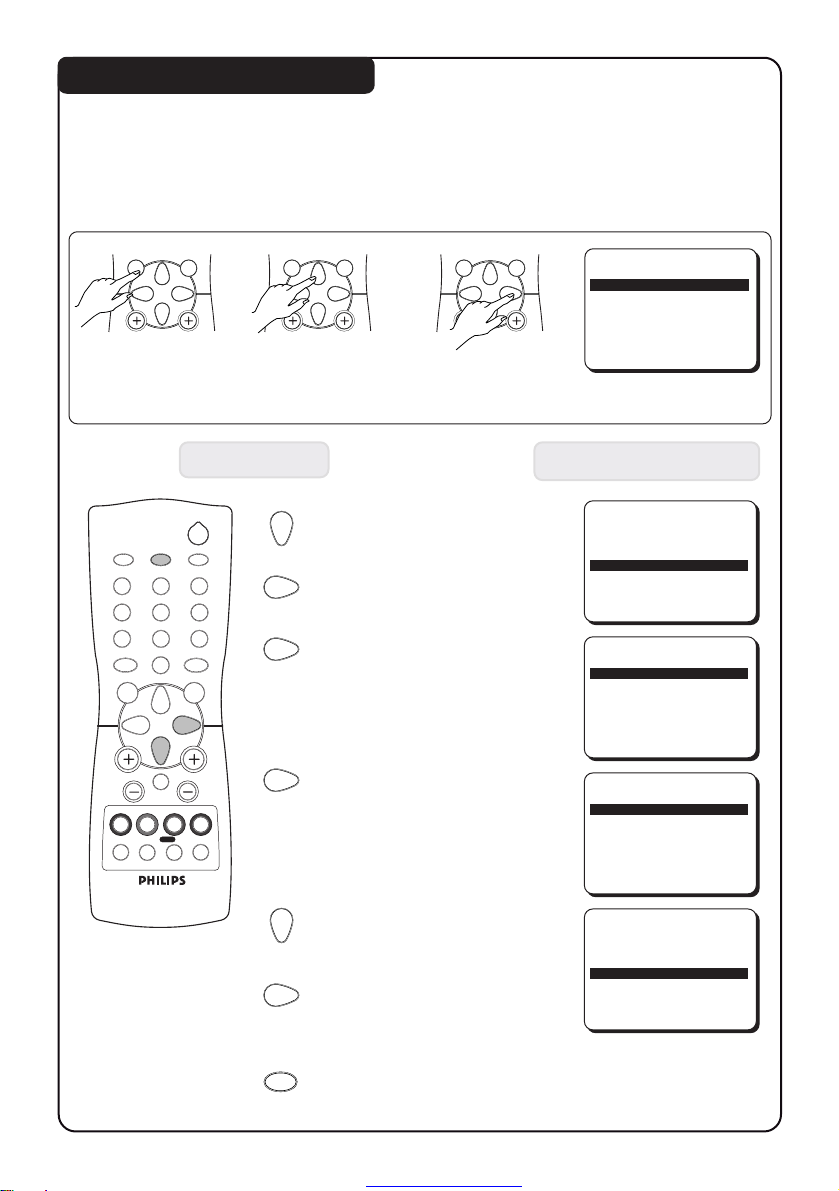

AUTOMATIC TUNING OF THE TV CHANNELS

OSD

Selecting the language and Automatic Tuning

Press button Result on TV Screen

1. Enter main menu.

2. Select INSTALLATION.

3. Enter INSTALLATION

menu. LANGUAGE

option is highlighted.

4. Select your desired

language.

5. Select AUTO STORE.

6. Start automatic tuning.

7. After tuning is completed,

the INSTALLATION menu

will appear.

8. Exit menu from screen.

ehf

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

SURF A/CH

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

CONTRAST

IIIIIIII

❙ ❙ ❙ ❙ ❙ ❙

LANGUAGE ENGLISH

AUTO STORE

SWAP B

LANGUAGE ENGLISH

AUTO STORE

SWAP B

SKIP B

AUTO STORE 050 MHZ

CHANNEL 1

LANGUAGE ENGLISH

AUTO STORE

SWAP B

SKIP B

Great user manuals database on UserManuals.info

1010

SELECTION OF TV SYSTEM

OSD

(Applicable to certain versions only)

This feature allows you to select your desired TV system. If AUTO is selected, the

respective colour system will be automatically selected according to the transmis-

sion system.

Note : Select another system if reception is poor at AUTO mode.

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

SWAP BB

SKIP

MANUAL B

SYSTEM AUTO

SEARCH 044 MHZ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

SYSTEM AUTO

SEARCH 044 MHZ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

CHANNEL 8

STORED

➠➠➠

MENU INC.

SURR. MENU INC.

SURR.

LANGUAGE ENGLISH

AUTO STORE B

SWAP B

1. Enter main

menu.

2. Select

INSTALLATION.

3. Enter

installation mode.

Press button Result on TV Screen

4. Select MANUAL.

5. Enter MANUAL menu

6. Enter system menu.

7. Press button repeatedly

to cycle through the

respective transmission

system and select the

desired system.

8. Select STORE.

9. Store system.

10.Exit menu from screen.

Other manuals for 21PT3962

Table of contents

Other Philips TV manuals

Philips

Philips 75PFL6601 User manual

Philips

Philips MatchLine 20PF9925/12S User manual

Philips

Philips 50PUS8807 User manual

Philips

Philips 21HT5404 User manual

Philips

Philips Essence 5000 Series User manual

Philips

Philips 42PFL3704D User manual

Philips

Philips 37PF9731 User manual

Philips

Philips 32PW6322 User manual

Philips

Philips 32 IN HDTV MONITOR WITH ACTIVE CONTROL 32PT830H... User manual

Philips

Philips 216?2554 User manual

Philips

Philips 28PFL2908H/12 User manual

Philips

Philips 42PF7421 - 2 User manual

Philips

Philips 29PT780A-57R User manual

Philips

Philips 20PV184 User manual

Philips

Philips 65PFL8900 User manual

Philips

Philips 27I REALFLAT CTV W-PIP-DBX STEREO-REMOTE... User manual

Philips

Philips 25PT5324/05R User manual

Philips

Philips 20PT1582-75R User manual

Philips

Philips 37TA2800/79 User manual

Philips

Philips 32DW6558/05 User manual

Philips

Philips 32PHA4509 User manual

Philips

Philips TPS1.3A User manual

Philips

Philips 7805 Series User manual

Philips

Philips 55PUG6794 User manual

Popular TV manuals by other brands

Toshiba

Toshiba 27A10 owner's manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Panasonic

Panasonic Genus TX-G10 operating instructions

Toshiba

Toshiba 19A20 Service manual

Sony

Sony XBR-100Z9D reference guide

Samsung

Samsung 55S9 B Series Quick setup guide

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Sylvania

Sylvania 6427FB owner's manual

Sanyo

Sanyo CE19LD90N-B instruction manual

North State

North State TV2GO user guide

RCA

RCA RTU7877 instruction manual

Sharp

Sharp 21K-FG1RU Operation manual

Sony

Sony Esprit TAV-L1 operating instructions

Grundig

Grundig 43 VLE 4820 user manual

Samsung

Samsung LN26C350D1D Service manual
