Philips SWW1890/12 User manual

www.philips.com/welcome

Quick Start Guide

SWW1890

Install

Enjoy

What’s in the box

Note

•Make sure you have all these items in the box. Contact your dealer for

any missing or damaged items.

Receiver Transmitter User manual

Quick Installation Guide

Power adapter x 1 USB cable for the power supply

of the transmitter x 1

Quick Start Guide

HDMI cable Adhesive tape x 2 Anchors x 2

Screws x 2

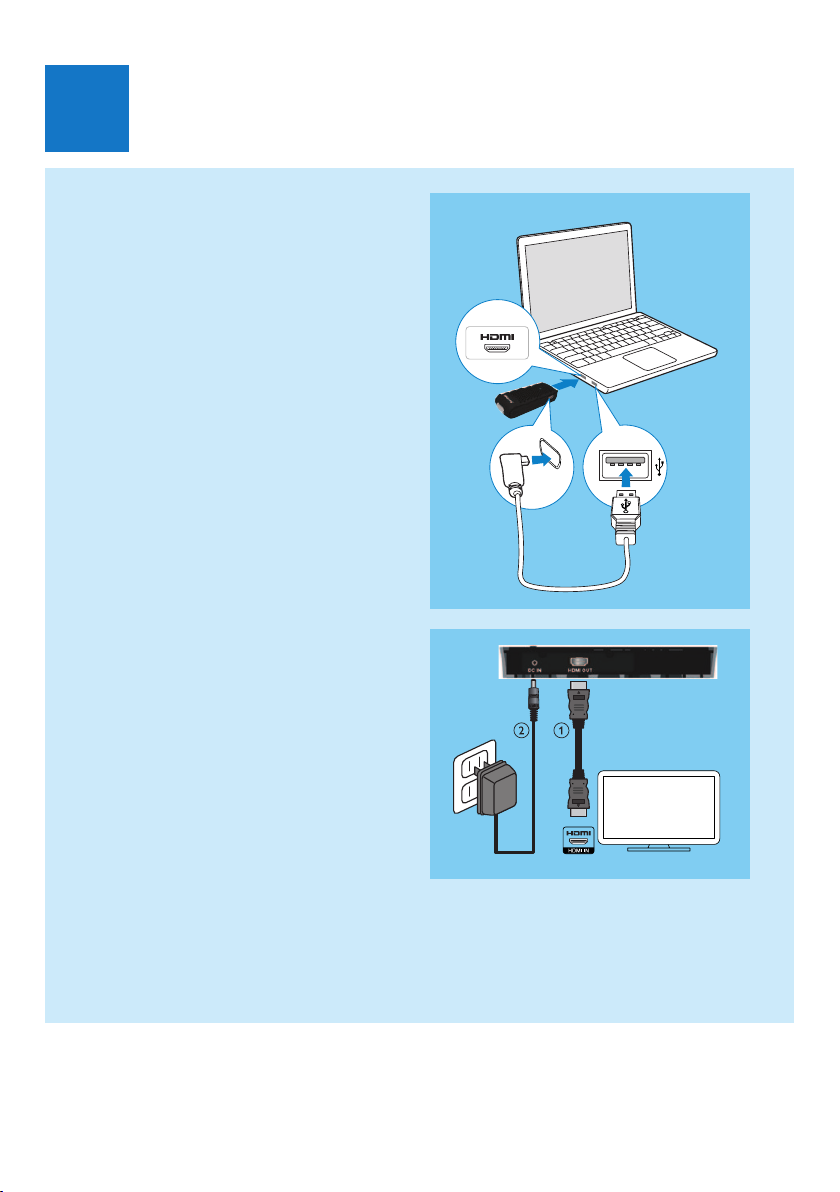

Connect the transmitter to your

computer

1 Connect the transmitter to the HDMI

port of the computer.

2 Connect the small end of the USB cable

to the POWER jack of the transmitter;

3 Connect the other end of the USB cable

to your the USB port of your computer.

»The power LED indicator of the

transmitter ashes in blue, then turns

into solid blue when the connection is

established.

Connect the receiver to the HDTV set

1 Connect the transmitter to the HDMI

port of the computer:

•Connect one end of the HDMI cable

to HDMI OUT connector of the

receiver.

•Connect the other end of the HDMI

cable to the HDMI in connector of

your HDTV.

2 Connect the supplied power adapter to

the receiver:

•Connect one end of the power

adapter to the DC IN connector of

the receiver.

•Connect the other end of the power

adapter to a power socket.

HDMI

1Install

Turn on the power of your HDTV

1 Go to the source menu under the settings

menu of your HDTV.

2 Select the HDMI input to which the

receiver is connected.

Activate the wireless link

Switch on the transmitter and receiver.

When there is power supply for the transmitter

and receiver, they are on automatically.

»The link between the transmitter and

receiver is established (within 15-20

seconds).

HDMI

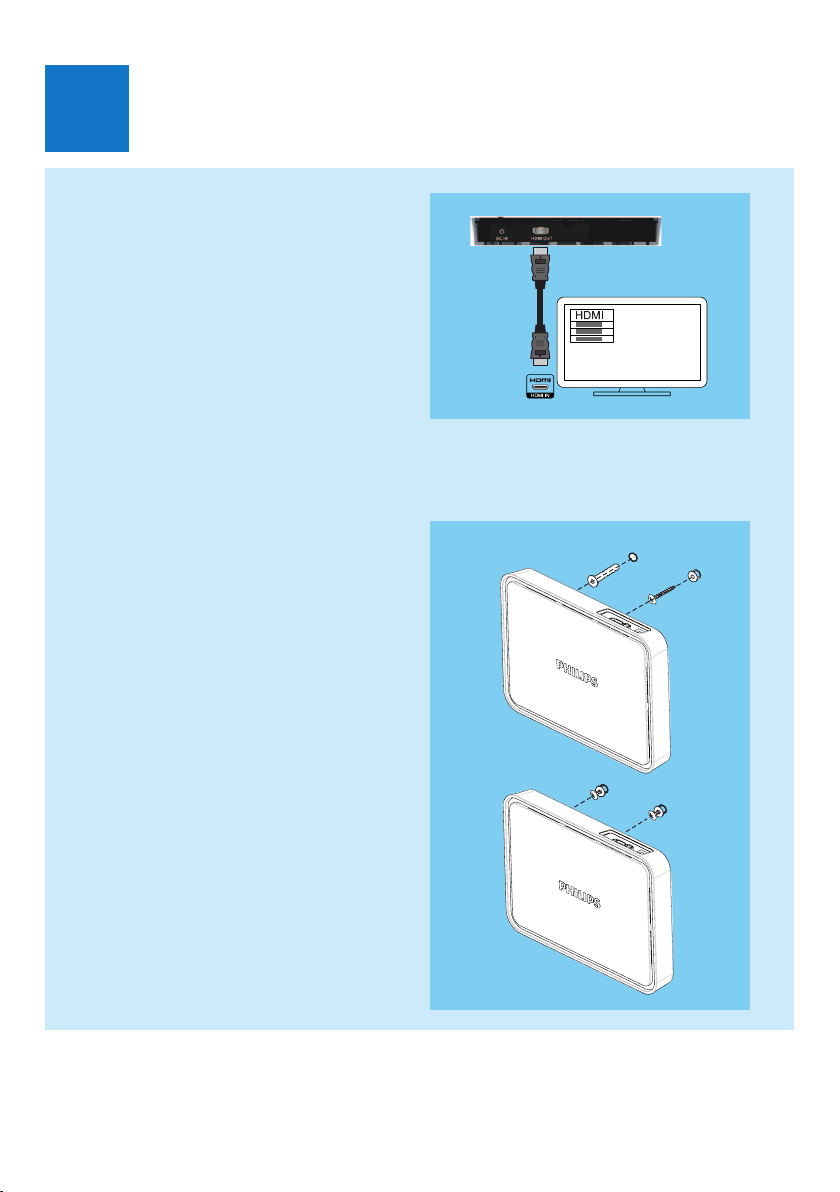

Mount your receiver

You can either mount the receiver on the wall

or on the back of the HDTV.

Mount your receiver on the wall

1 Select a spot near the HDTV.

2 Drill two holes in the wall. Make sure

that the distance between the two holes

is 45mm and the diameter of the hole is

5 mm.

3 Punch the supplied two anchors into the

two holes on the wall.

4 Put the two screws into the anchors and

leave 3 mm to mount the receiver on.

5 Hook the key holes at the back of the

receiver on the screws.

2Enjoy

There is no video displayed on my TV screen.

•Make sure that the appropriate cables are selected and inserted to the transmitter, receiver,

and HDTV.

•Make sure that you select HDMI as the input source on your HDTV.

•Check the power LED and status LED on the receiver.

I cannot hear any sound or the sound is poor, what do I do?

•Make sure that the TV volume is adjusted correctly.

•Make sure that the TV volume is not set to minimum or the sound is not muted.

•Make sure that the audio volume of your computer is turned up.

•Make sure that the audio bit rate is supported.

•Make sure that the audio output of your computer is set to HDMI output.

Troubleshooting

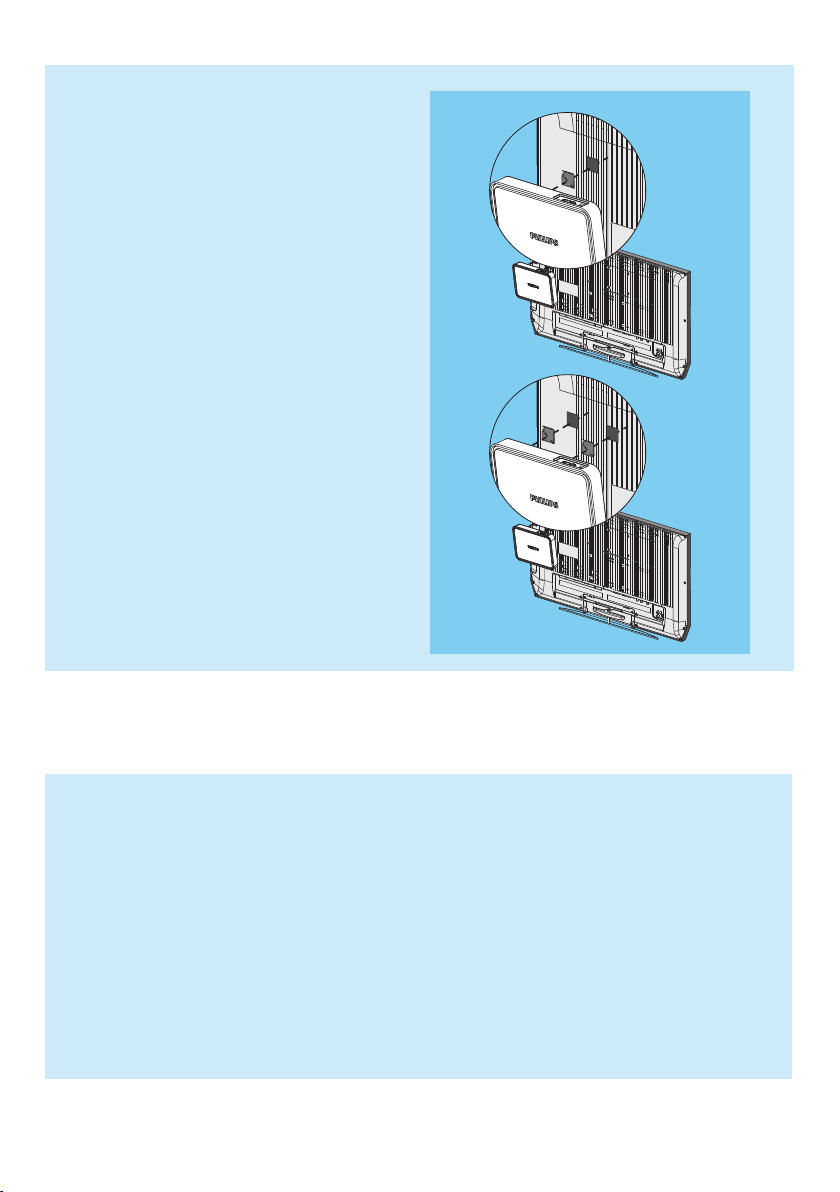

Mount your receiver on the back of

the HDTV

1 Remove the white protective lm from

one of the supplied adhesive tapes.

2 Secure the glued side of the adhesive tape

and attach it to the central bottom area of

the receiver.

3 Select a at location on the rear side of

the HDTV.

4 Remove the white protective lm from

the other adhesive tape.

5 Secure the glued side of the adhesive tape

and attach it to the selected rear side of

the HDTV.

6 Align the adhesive tape on the receiver

with the one on the HDTV until both the

receiver and HDTV are mounted together

rmly.

SWW1890_12_EN_QSG_V1.1

WK11254
