Philips VOIP8410B Quick start guide

VOIP841 FIRMWARE UPGRADE PROCEDURE

The last available version on Philips web site is:

V1.0.4.80

1°) Installation for upgrade:

-The Philips VOIP841 must be plug on a router where a PC is already plugged.

-Here under a sample of installation:

2°) Read my actual VOIP841 version:

-Select on the handset “Menu/Settings/Information” and valid by “Select”.

-The handset display several information among which the Firmware version.

Sample: “Firmware Ver.:1.0.4.10”

3°) Read my actual VOIP841 IP:

-Select on the handset “Menu/Settings/Information” and valid by “Select”.

-The handset display several information among which the IP address.

Sample: “IP address: 192.168.2.3”

4°) Save the last firmware file available on Philips web site:

-Click on the below link, to download the last available Firmware version:

http://www.p4c.philips.com/cgi-bin/dcbint/get?id=voip8411b/01&doctype=fus&redirect=1 *

-Save the downloaded ZIP file under your computer, and then unzip it.

Warning:

Should you encounter any difficulty to open this link, please check your current version of

Adobe Acrobat Reader. For an optimal use, we recommend to run the document under

version 7.0 minimum.

If you cannot, or if you do not wish to upgrade your Adobe Acrobat Reader version, please

type in the complete link in your Internet Explorer, to open the document.

*

5°) Upgrade my VOIP841 Phone:

-Open your web browser (Internet explorer for example) and type in the address bar

the IP address read on §3.

-The following screen should be displayed:

-Enter “philips” as user name and “voip841” as password and validate with OK.

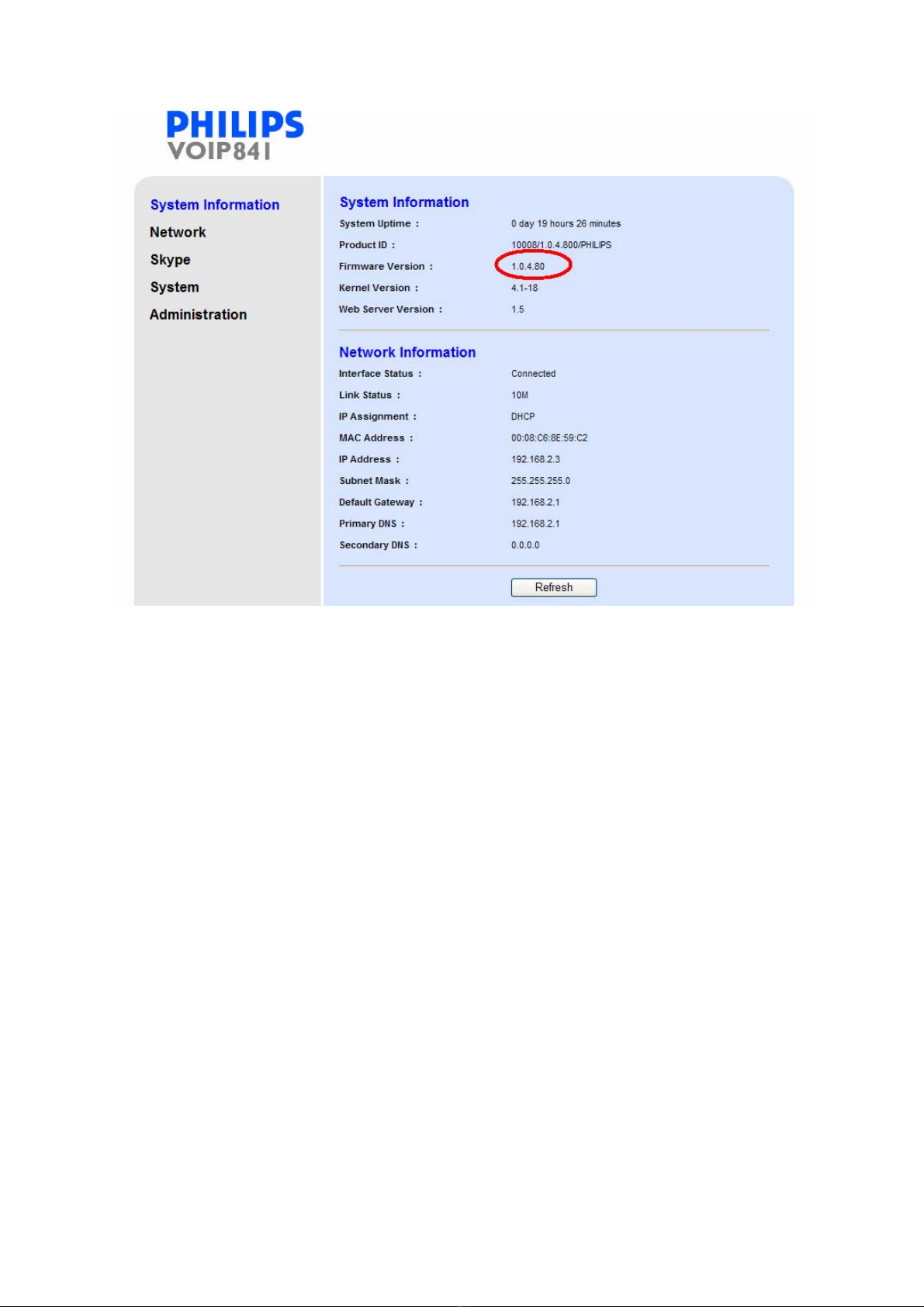

-The following window will be displayed:

-You can also check the current Firmware version on this screen.

-Click on “System” in the menu on the left.

-The following window is displayed:

-Click on “Browse” to open the explorer, and select the file saved on §4, then

continue with “Upgrade”.

UPGRADE MUST NOT BE INTERRUPTED.

With some Router, it can be useful to disable firewall

router feature during the update.

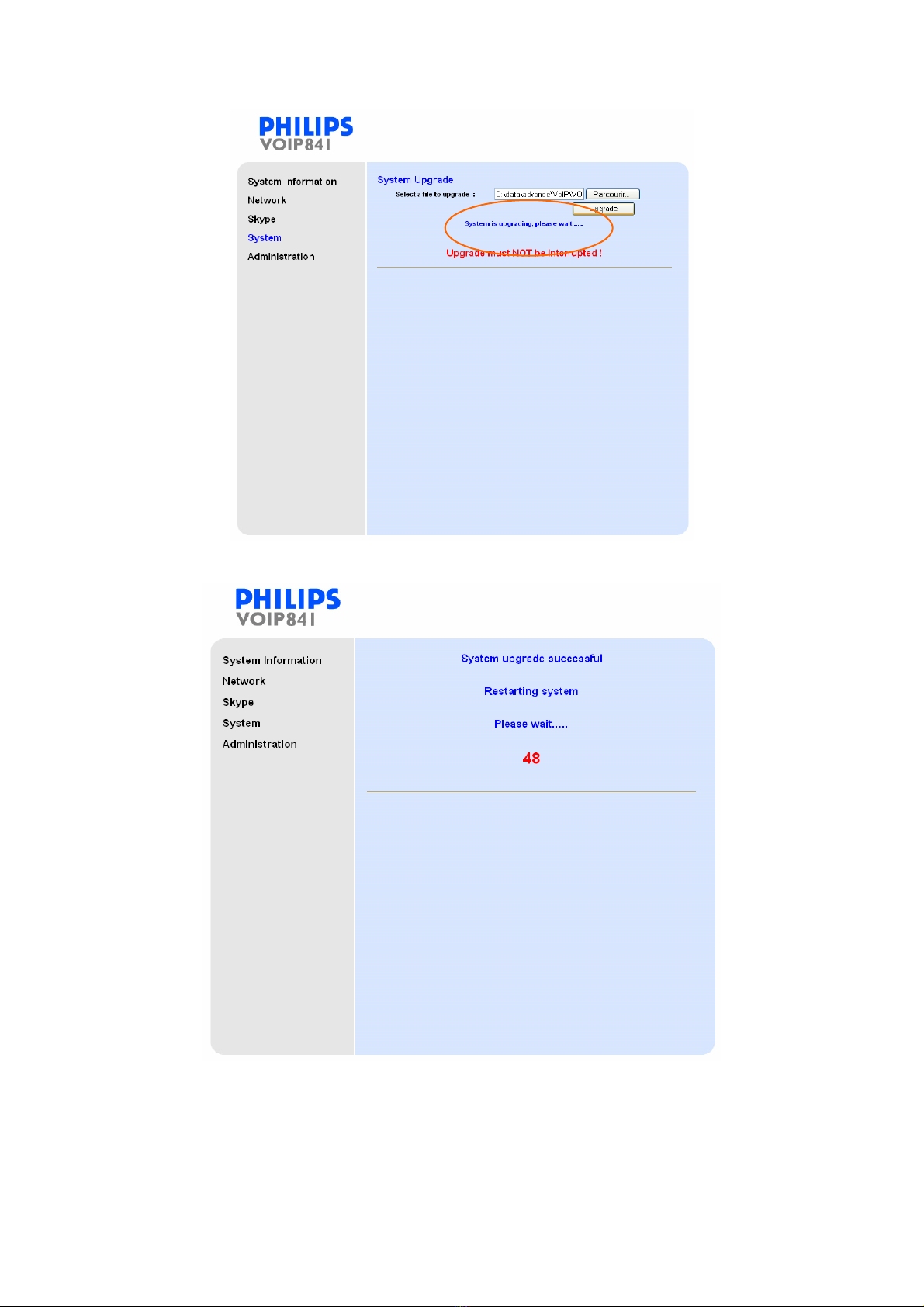

-The following window, with “System is upgrading, please wait …”message is

displayed:

-After a while, the following window is displayed:

-Once the countdown is finished, the following window is displayed:

-To finish the upgrade, remove one battery of the handset, and then put it back.

Your product will restart, and invite to sign in.
